Description

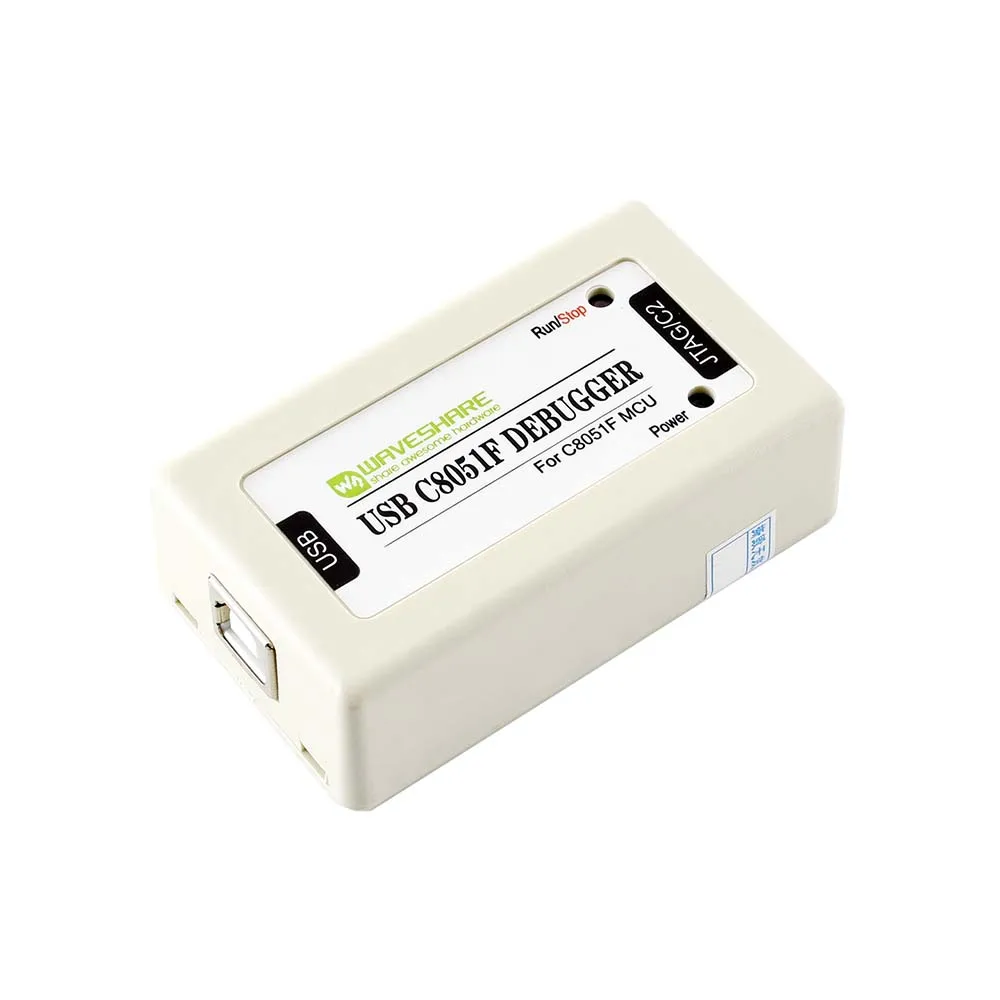

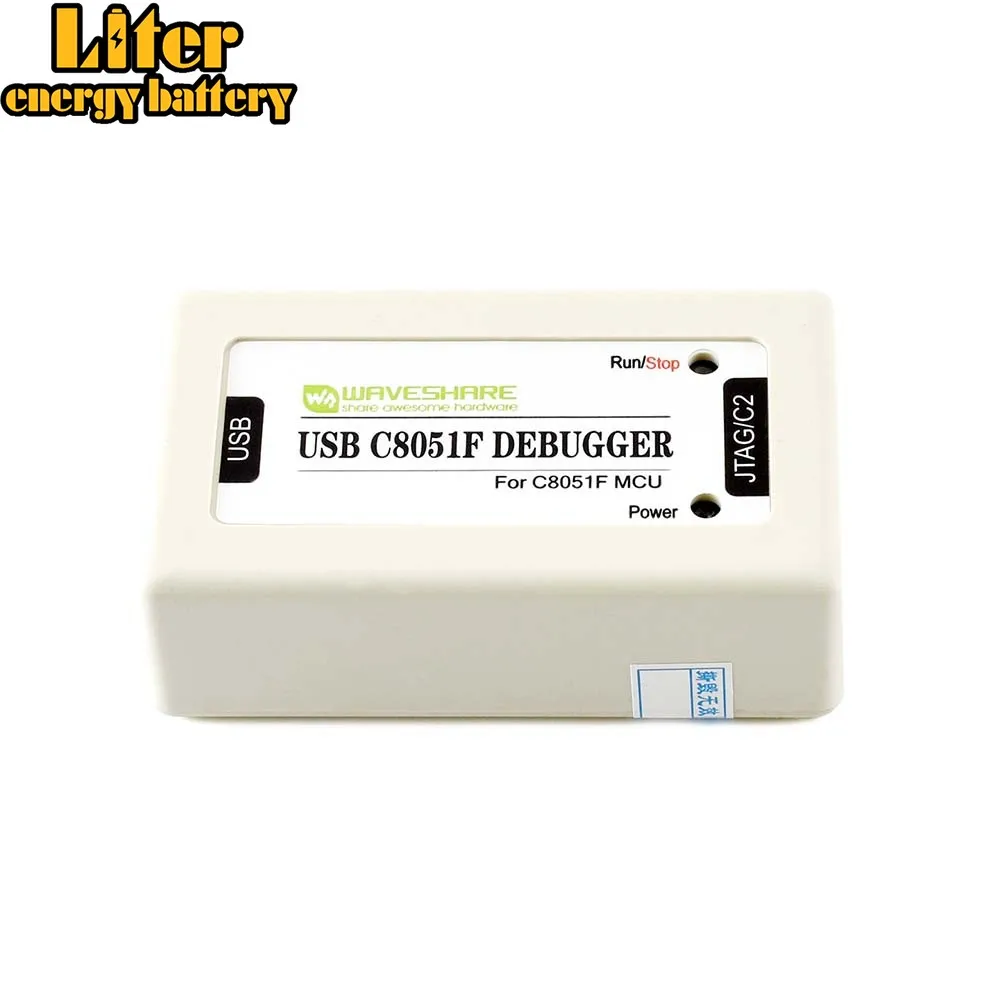

The USB C8051F Debugger provides the interface between the PC's USB port and the target device's in-system debug/programming circuitry.

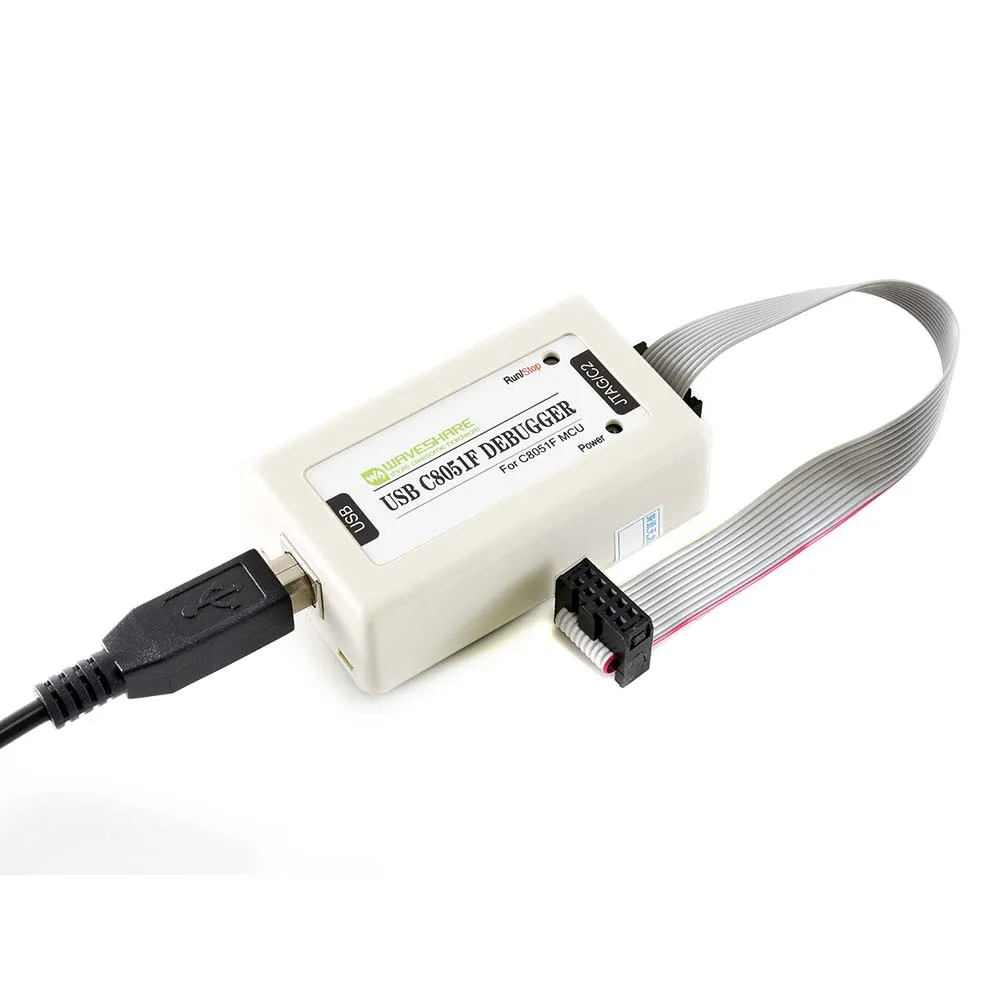

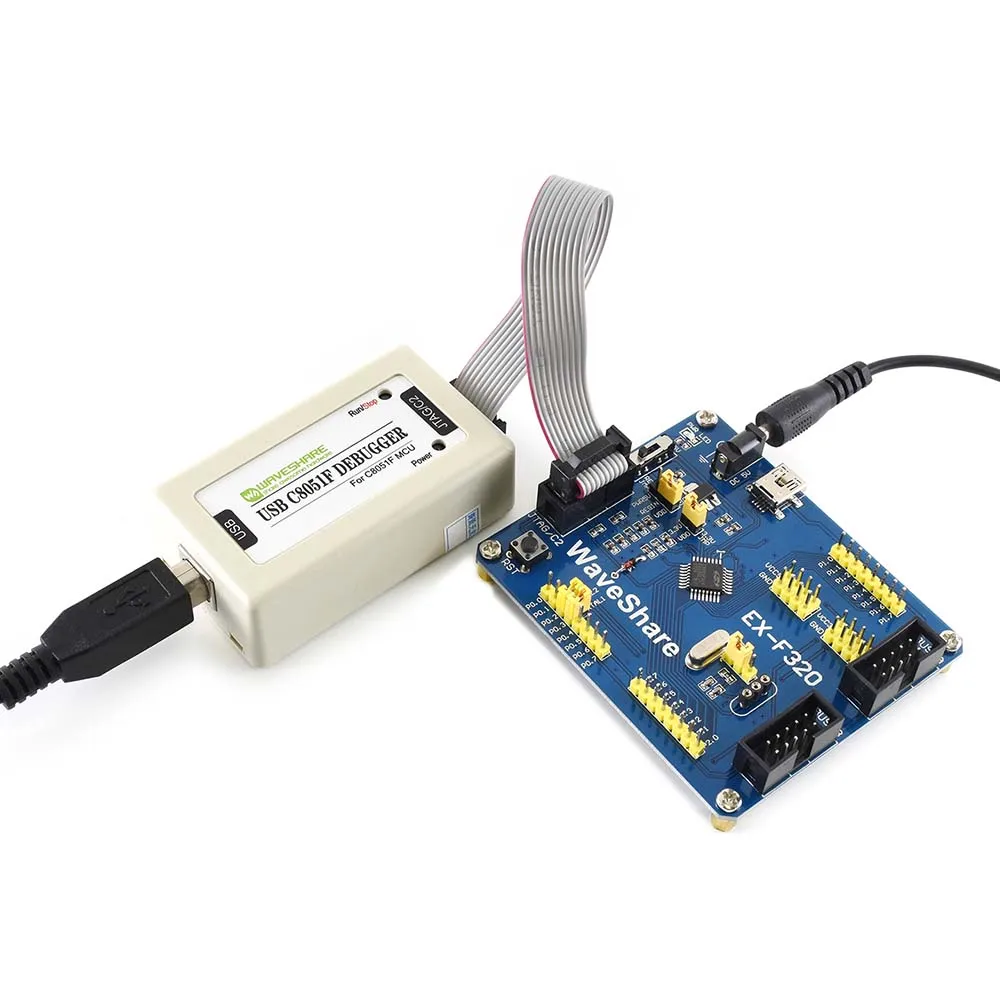

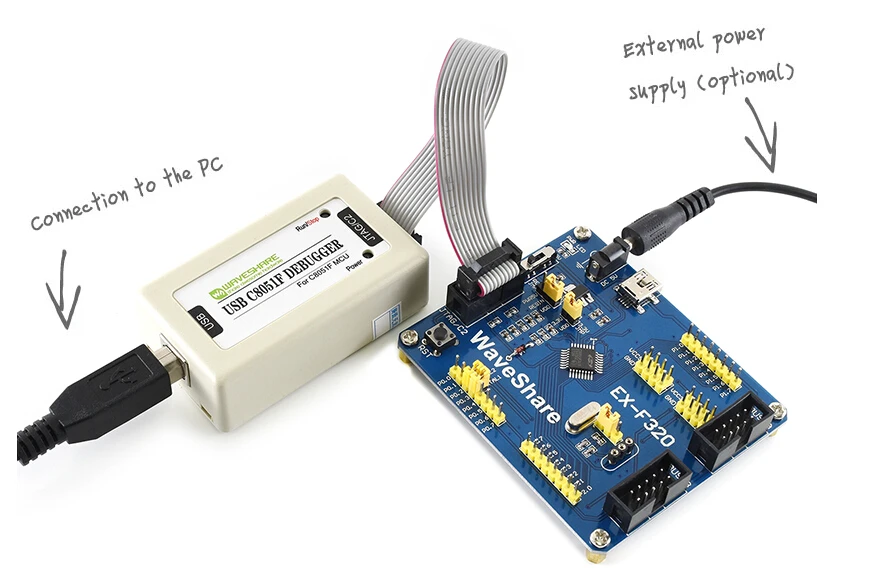

The attached 10-pin DEBUG ribbon cable connects the adapter to the target board and the target device's debug interface. The USB C8051F Debugger supports both Silicon Laboratories JTAG and C2 debug interfaces. Power is provided to the adapter from the USB connection to the PC. The USB C8051F Debugger is capable of providing power to a circuit board via pin 10 of the DEBUG connector.

Key Features

In-system debuging and programming

supports Go or Stop, Step, Multiple Step, Breakpoint, Watchpoints, etc.
features up to 4 breakpoints

USB connection to the PC

Power supplied by USB connector
- supply up to 5V/500mA to a target system
- output driven supported
- ESD protection supported
USB 2.0 full speed interface compatible

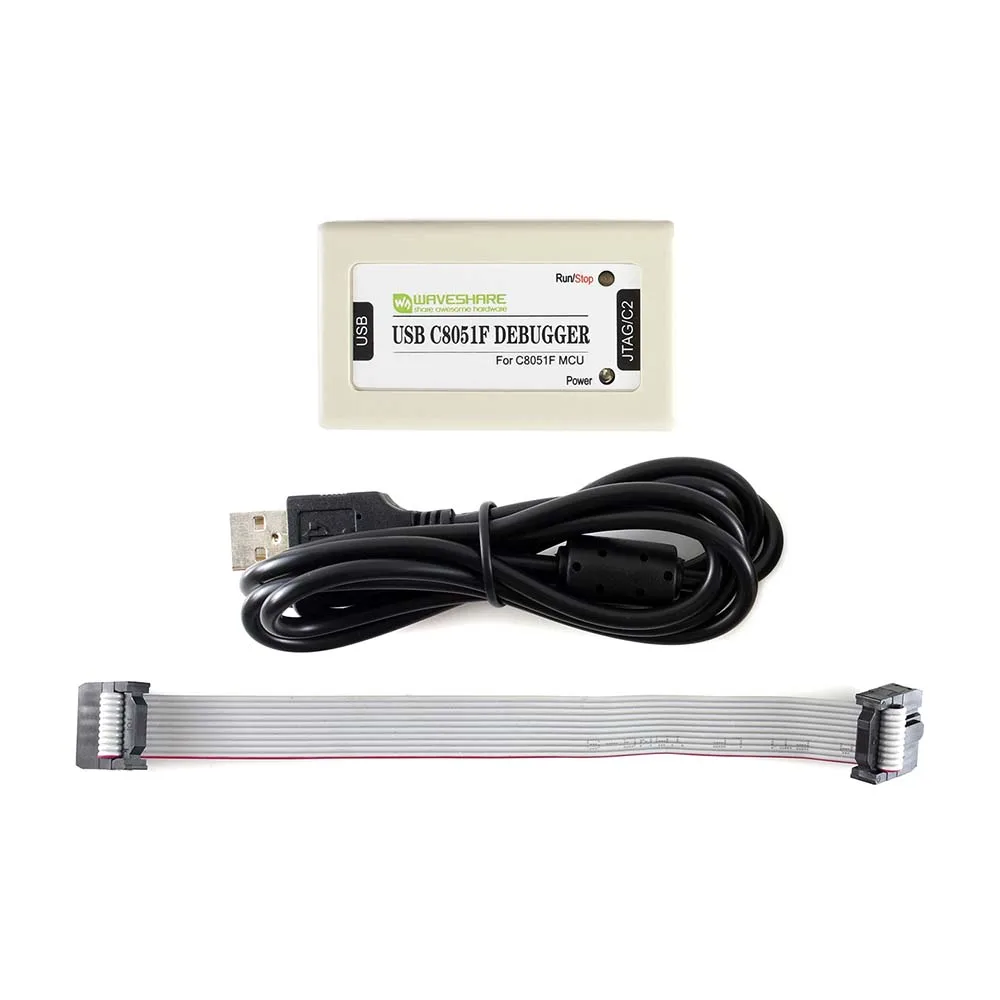

USB standard A to Mini-B cable provided

JTAG and C2 debug interfaces:

10-pin ribbon cable provided for connection to a target board with the appropriate connector, the figure below shows the pin definitions:

Firmware update feature supported

Status LEDs provided for indicating the operating state

Supported Devices

All the devices from C8051Fxxx MCUs are supported.

Refer to Silicon Laboratories IDE 3.42.00 or Keil V3.80, the following devices are supported:

JTAG

C8051F00x C8051F01x C8051F02x C8051F04x C8051F06x C8051F12x C8051F2xx

C8051F3xx C8051F41x C8051F5xx C8051F7xx C8051F8xx C8051F9xx
