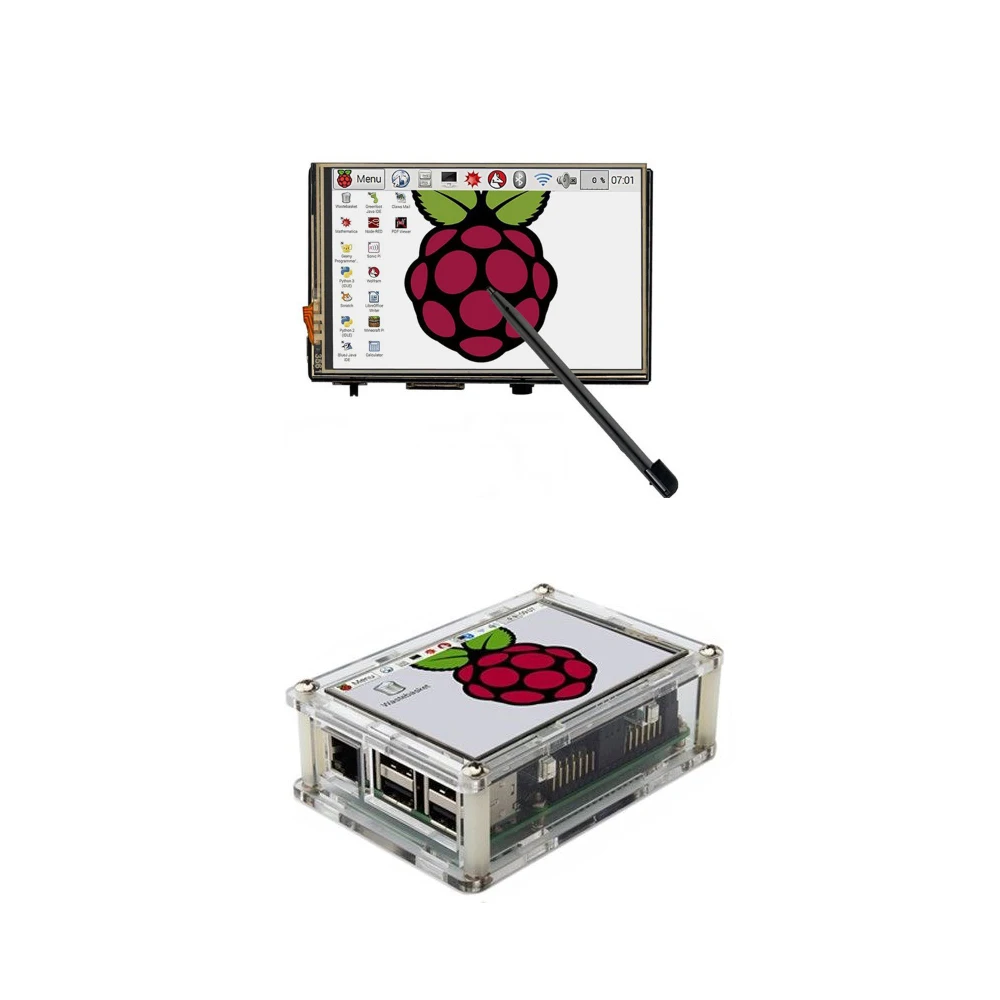

                Raspberry Pi 3 Model B + 3.5 Inch Raspberry LCD + Acrylic Case + Heat sinks

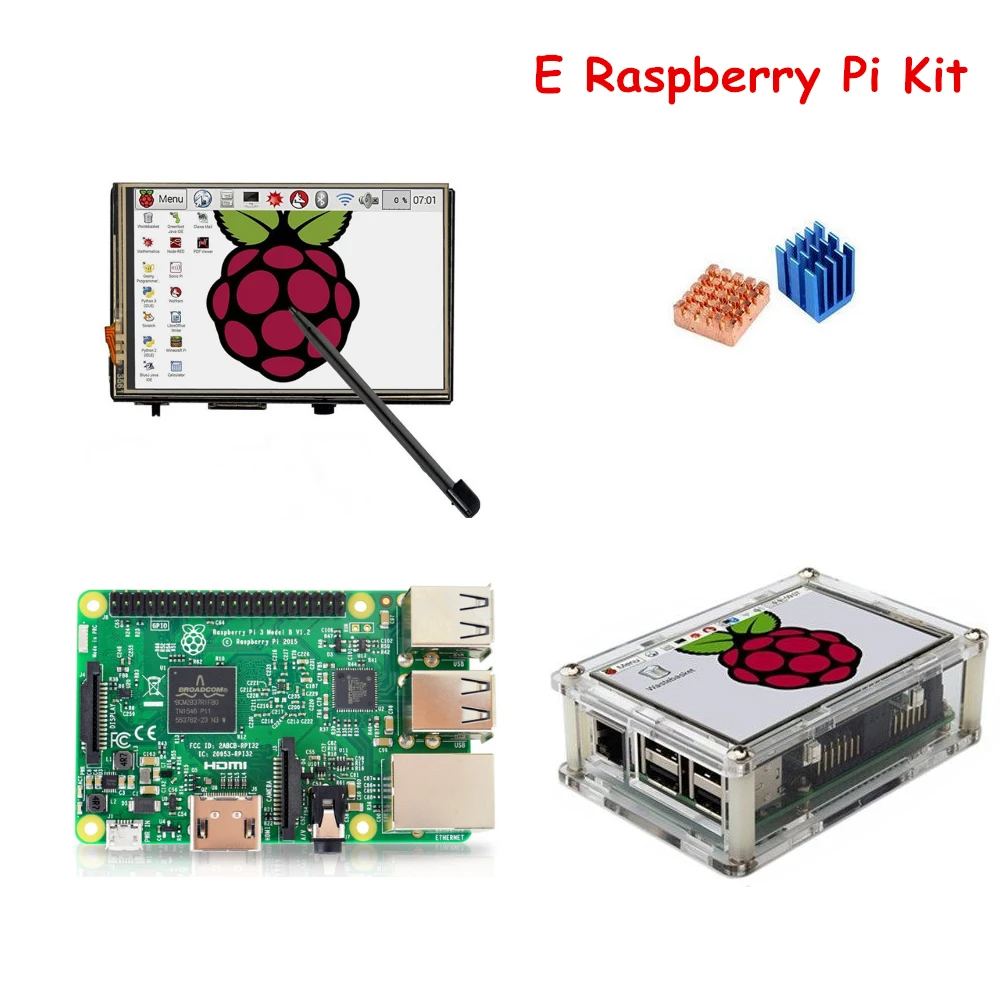

Packing list :

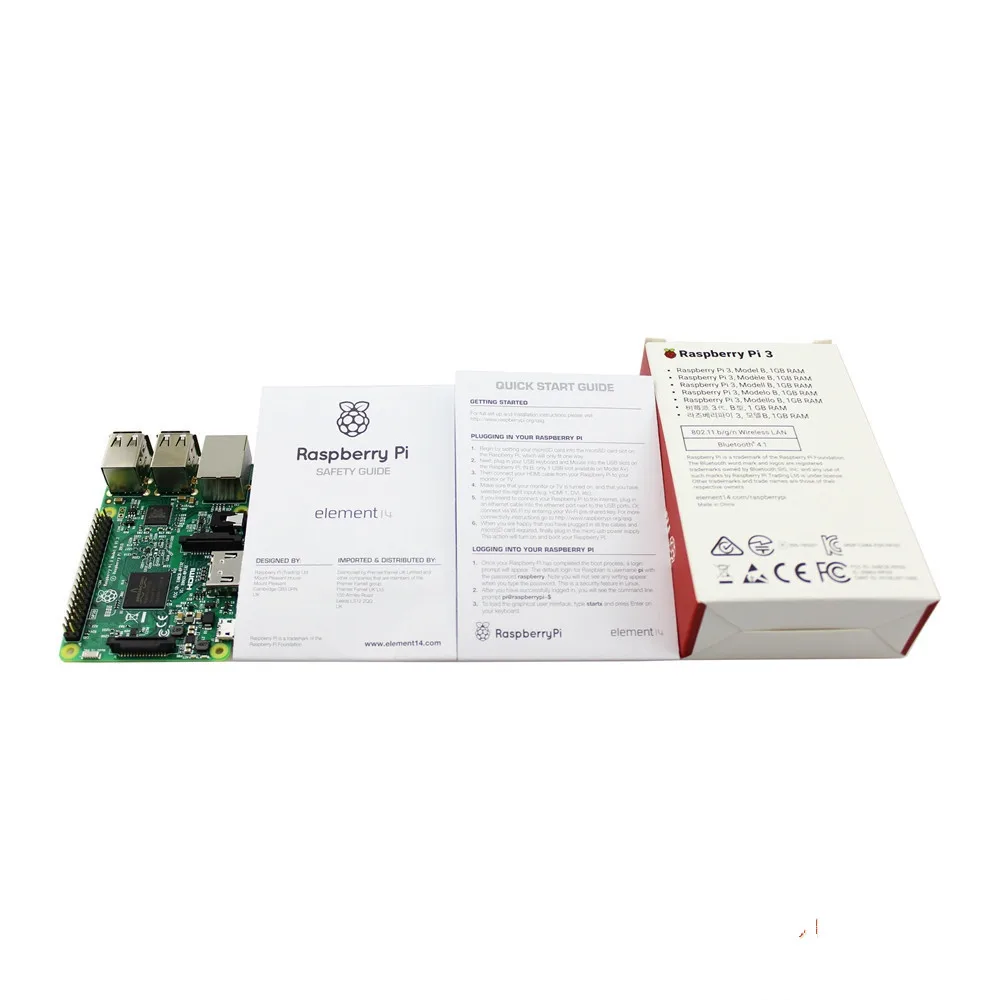

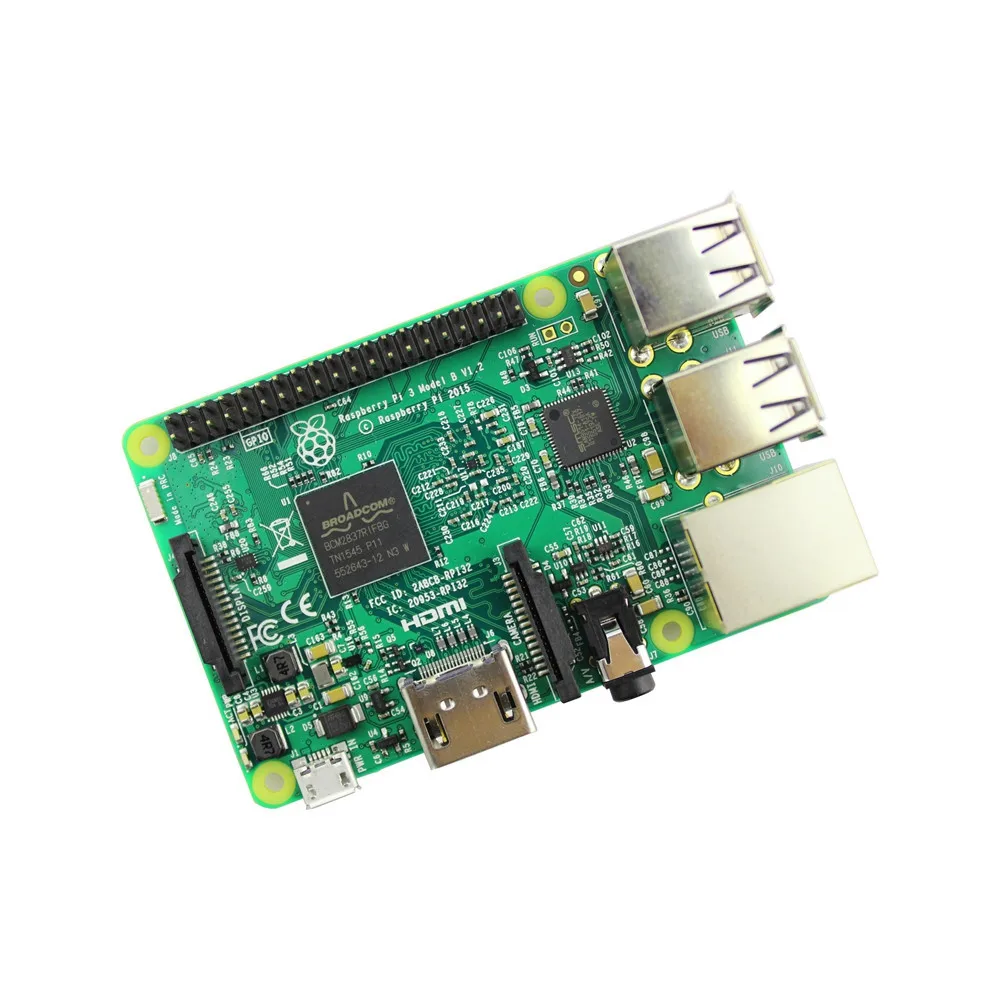

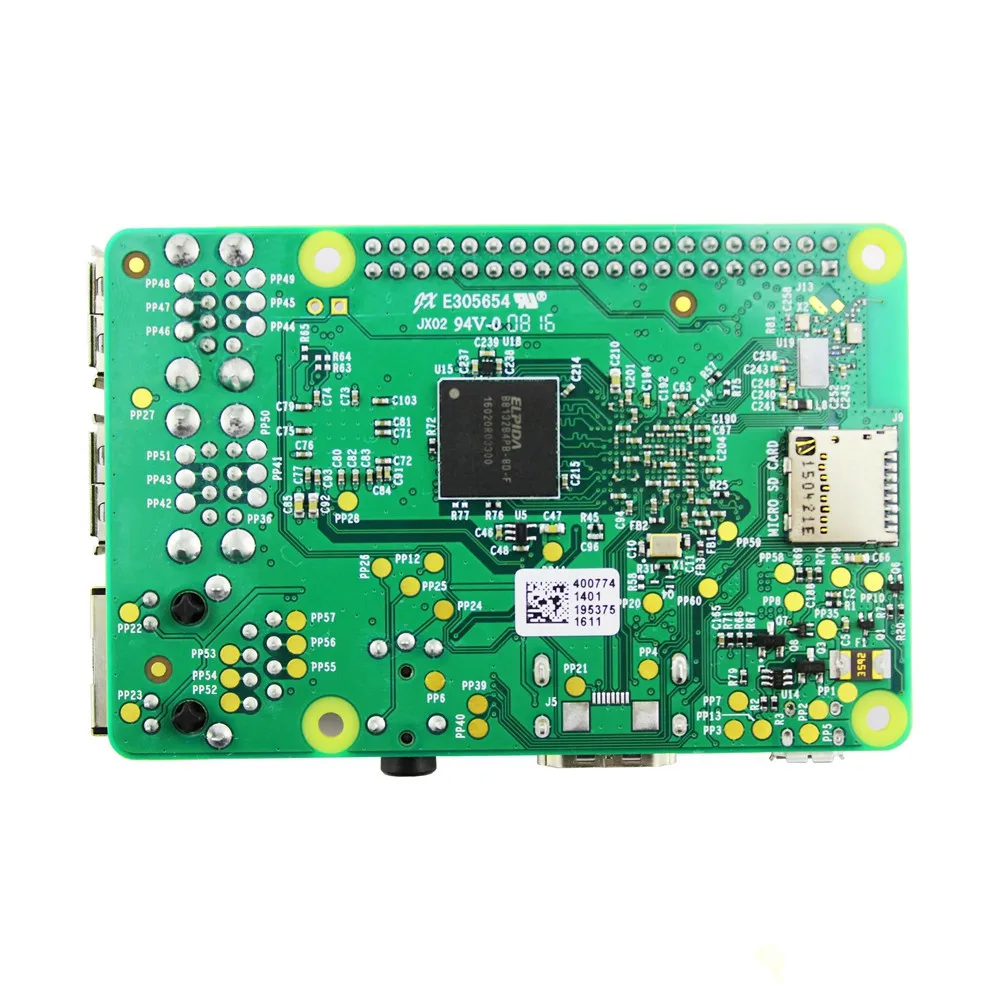

Element14 Raspberry Pi 3 Model B    X  1       3.5 Inch Raspberry LCD Screen     X      1   Acrylic Case   X    1   Heat  Sinks    X     2                   Product description: Raspberry Pi 3 Model B SBC  Original Raspberry Pi 3 Model B 1GB LPDDR2 BCM2837 64-bit Quad-Core 1.2 GHz with WiFi & Bluetooth     Raspberry Pi 3 Model B SBC   The Raspberry Pi 3 Model B looks identical to the Pi 2 B at first glance. It is the same size and has much of the same components on board. So what is the difference? The new Pi 3 brings more processing power and on-board connectivity, saving you time with the development of your applications. Perfect for your Internet of Things (IoT) designs.   Pi 3 compared to Pi 2   More processor speed. The CPU on the Pi 3 is one and a half times faster at 1.2 GHz. Your Pi board performs better.   On-board connectivity. The Pi 3 features 802.11 b/g/n Wireless LAN and Bluetooth Classic & Low Energy (BLE). You can get connected much quicker without the need for any external device.   2.5 A power supply. With more processor speed and on-board connectivity, you'll need more power. Power supplies for previous Pi boards will not be sufficient. You will need the Official Raspberry Pi 3 Power Supply (9098126 — white) or (9098135 — black).   New components. The Pi 3 features a chip antenna where status LEDs were located previously. The status LEDs are still on the board, right next to the microSD card slot.   New to Raspberry Pi?   The Raspberry Pi is a single computer board — developed to encourage and aid the teaching of programming and computing. It is also a fantastic starting point for the development of the Internet of Things (IoT) projects. The low cost and 'plug and play' nature of Pi makes for a board that is accessible to all and has numerous connectivity options. Pi is the perfect experimental tool, whether you want to use it as a desktop computer, media centre, server or monitoring/security device within your home. No limits. Linux-based operating systems run on the Pi with plenty of access to free software and downloads. What is more, there is a great Pi community out there — look at DesignSpark, the design engineer community at internet.   Features & Benefits of the Pi 3   •Broadcom BCM2837 chipset running at 1.2 GHz •64-bit quad-core ARM Cortex-A53 •802.11 b/g/n Wireless LAN •Bluetooth 4.1 (Classic & Low Energy) •Dual core Videocore IV® Multimedia co-processor •1 GB LPDDR2 memory •Supports all the latest ARM GNU/Linux distributions and Windows 10 IoT •microUSB connector for 2.5 A power supply •1 x 10/100 Ethernet port •1 x HDMI video/audio connector •1 x RCA video/audio connector •1 x CSI camera connector •4 x USB 2.0 ports •40 GPIO pins •Chip antenna •DSI display connector •microSD card slot •Dimensions: 85 x 56 x 17 mm     Feature of the Raspberry LCD :   LCD Interface: SPI   Touch Screen Controller: XPT2046   Backlight: LED   LCD Type: TFT   Resolution: 320*480 DOTS   Core System: vision 3.18.9   SPI Speed: 32MHz   Color Levels Index: 65536   Power Consumption/Backlight Current: TBD   Supports Raspbian system, enables your system to:   1) Play videos (supports multi formats, MP4 and so on) 2) Take photos by touching (up to 17 camera modes) 3) Support software keyboard (system interaction without keyboard/mouse) 4) Support driver is installed automatically.   Getting started :   The RPi LCD can be driven in two ways Method 1. install driver to your Raspbian OS.  Method 2. use the Ready-to-use image file of which LCD driver was pre-installed. Method 1. Driver installation: 1. Configure your Pi:  sudo raspi-config     set as:     Select Expand Filesystem.     Boot Option -> Desktop Autologin (may differ depending on Raspbian revision)   2. Copy the driver (choose the driver according to your OS) into your OS then Run the following commands:       tar xvf LCD-show-YYMMDD.tar.gz        cd LCD-show/   For 3.5inch RPi LCD (A), run the command:         sudo ./LCD35-show   3. Then wait a few minutes, the system will restart automatically. When finished, the RPi LCD is ready to use.   4. Once this LCD is enabled, meanwhile the default settings for HDMI are changed. If you want to use another HDMI monitor, please run the following command:        sudo ./LCD-hdmi   Method 2. Using Ready-to-use image   For ready-to-use image or more info. please contact me        FAQ :   Why the LCD doesn't work with my Raspbian?   To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual. However, for the first testing, you may want to use our provided image directly.   Why the LCD still doesn't work with the Waveshare provided image?   Make sure the hardware connection is correct and connects fine. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.    Which power supply should I use?   It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.
