SIM7070G

CAT-M&NB-IoT Module

The SIM7070G is Multi-Band CAT-M, NB-IoT and GPRS module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..



Product advantages



• With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7070G can extend battery life to 10 years.

• CAT-M, NB-IoT , GPRS triple mode • The package of SIM7070G is compatible with SIM7000/SIM800F/SIM900

Product details

General Features Support Bands: CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B2 6/B27/B28/B66/B71/B85 CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B2 8/B66/B71/B85 GSM/GPRS: 850/900/1800/1900MHz Control Via AT Commands Supply voltage range: 3.0V-4.6V(TBD) Operation temperature: -40℃ to +85℃ Dimensions: 24X24X2.3mm Weight: 2.9±0.2g   Date Cat-M: - Uplink: up to 1119Kbps Downlink: up to 589Kbps NB-IoT: - Uplink: up to 150Kbps Downlink: up to 136Kbps EDGE: - Uplink up to 236.8Kbps, Downlink up to 236.8Kbps GPRS: - Uplink up to 85.6Kbps, Downlink up to 85.6Kbps Other Features TCP/UDP HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT Ayla Cloud Firmware update via USB FOTA EAT   Interfaces UART SIM card PCM/I2S SPI I2C GPIO ADC USB Embedded SIM (optional)   Consumption PSM: TBD Sleep: TBD Idle: TBD eDRX: TBD   Certifications(plan) FCC/IC/ANATEL PTCRB AT&T/TMOBILE/VERIZON RoHS/REACH

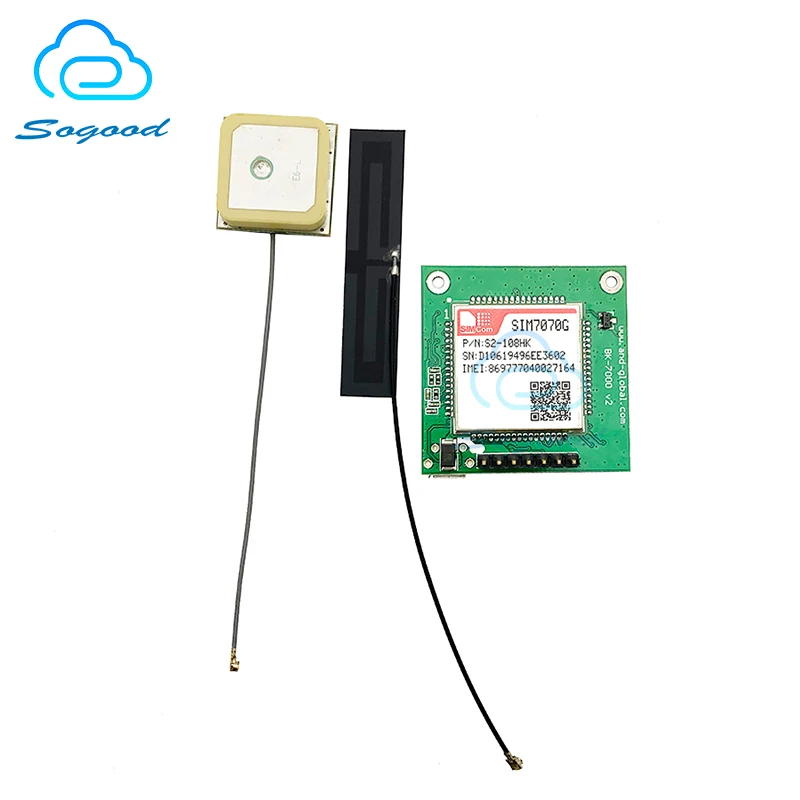

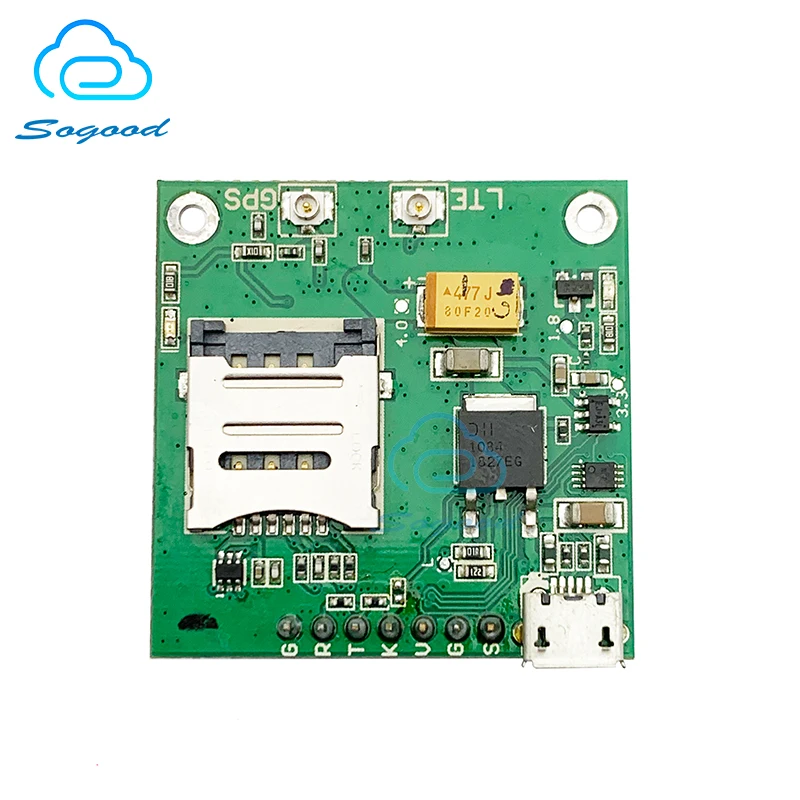

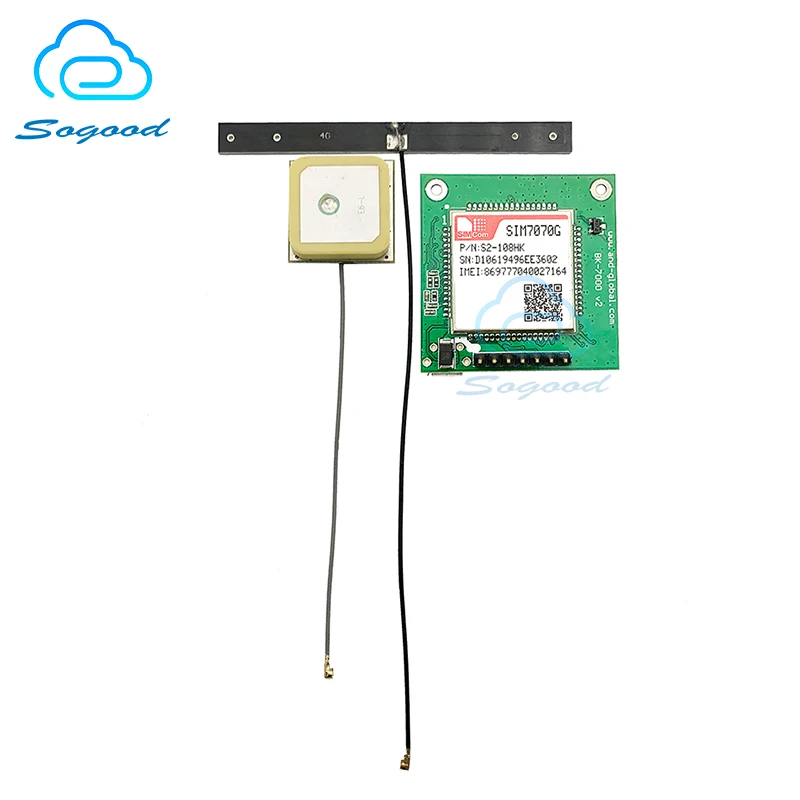

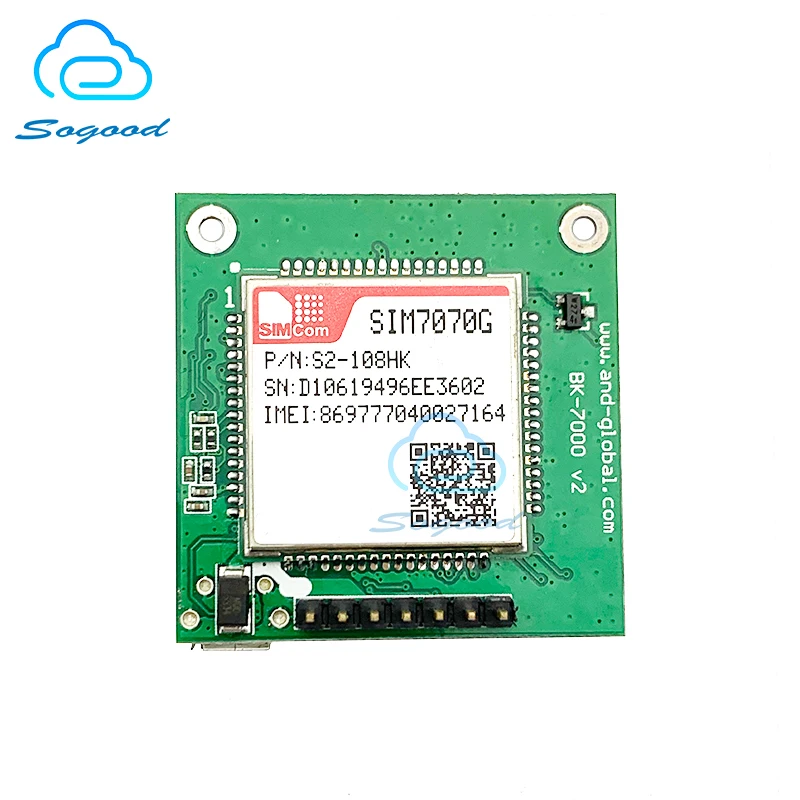

SIM7070G Development Board *1 pcs
