Характеристики
LJC18A3-B-Z/BY Inductive Sensor Capacitance Proximity Switch DC Type 3-Wires PNP Normally Open 12-24V | Обустройство дома
История изменения цены
*Текущая стоимость US $12.41 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 14.38 руб. | 15.37 руб. | 14.5 руб. |
| Feb-20-2026 | 14.39 руб. | 15.31 руб. | 14.5 руб. |
| Jan-20-2026 | 12.32 руб. | 13.54 руб. | 12.5 руб. |
| Dec-20-2025 | 14.33 руб. | 15.64 руб. | 14.5 руб. |
| Nov-20-2025 | 12.91 руб. | 13.2 руб. | 12.5 руб. |
| Oct-20-2025 | 14.87 руб. | 15.99 руб. | 14.5 руб. |
| Sep-20-2025 | 14.60 руб. | 15.14 руб. | 14.5 руб. |
| Aug-20-2025 | 13.61 руб. | 14.78 руб. | 13.5 руб. |
| Jul-20-2025 | 13.49 руб. | 14.20 руб. | 13.5 руб. |
Описание товара

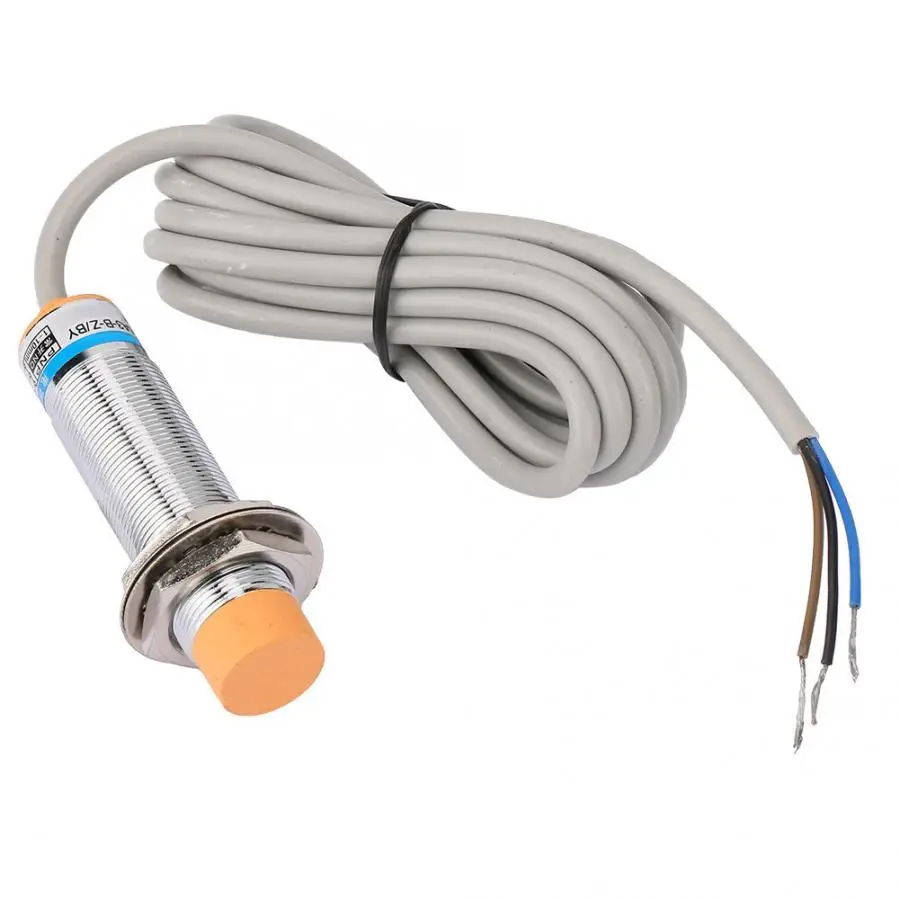

LJC18A3-B-Z/BY Inductive Sensor Capacitance Proximity Switch DC Type 3-Wires PNP Normally Open Proximity Switch DC 12-24V
Features:
- Proximity switch, also known as contactless proximity switch, is an ideal electronic on-off sensor.
- It has sensing performance, reliable action, stable performance and fast frequency response.
- Shockproof, corrosion resistance, strong anti-interference capability.
- Non-contact detection, does not affect the operating conditions of the measured object.
- Sealed structure, good moisture and dust resistance, strong work reliability.
- No mechanical wear and fatigue damage, long working life.
- Widely used in machine tools, metallurgy, chemical, textile and printing industries.
Specification:
Condition: 100% brand new
Material: brass plated nickel shell, ABS detection surface
Weight: 111g/3.9oz
Detection distance: 10mm ±10%
Set distance: 0-8mm
Lag distance: less than 10% of the detection distance
Detection object: any dielectric substance
Standard test object: iron SPCC 50*50*1mm
Response frequency: DC:0.5kHz AC:25Hz
Power supply voltage: DC 12-24V (6-36V) ripple (p-p) less than 10% (DC type)
Withstand voltage: AC1000V 50/60Hz 1min between the charging part and the shell
Voltage influence: within the rated power supply voltage range of ±15%, within the detection range of ±10% when it is the rated power supply voltage value
Current consumption:
N.P type: below 13mA
D type: below 0.8mA
A type: below 1.7mA
Control output:
N.P type: below 300mA
D type: below 200mA
A type: below 400mA
Circuit protection:
N.P.D type: reverse connection protection, surge absorption, load short circuit protection
A Type: surge absorption
Ambient temperature: each - 30 to + 65 ℃ action and save
Ambient humidity: 35-95% RH each (no ice, no frost) action and save
Temperature influence:
Temperature range -30 to + 65 ℃ , +23 ℃, ± 15% detection distance;
Temperature range -25 to + 60 ℃, +23 ℃, ± 10% detection distance.
Insulation resistance: more than 50mΩ (DC500 ) charge between parts and the shell
Package List:
1 x Proximity Sensor Switch
