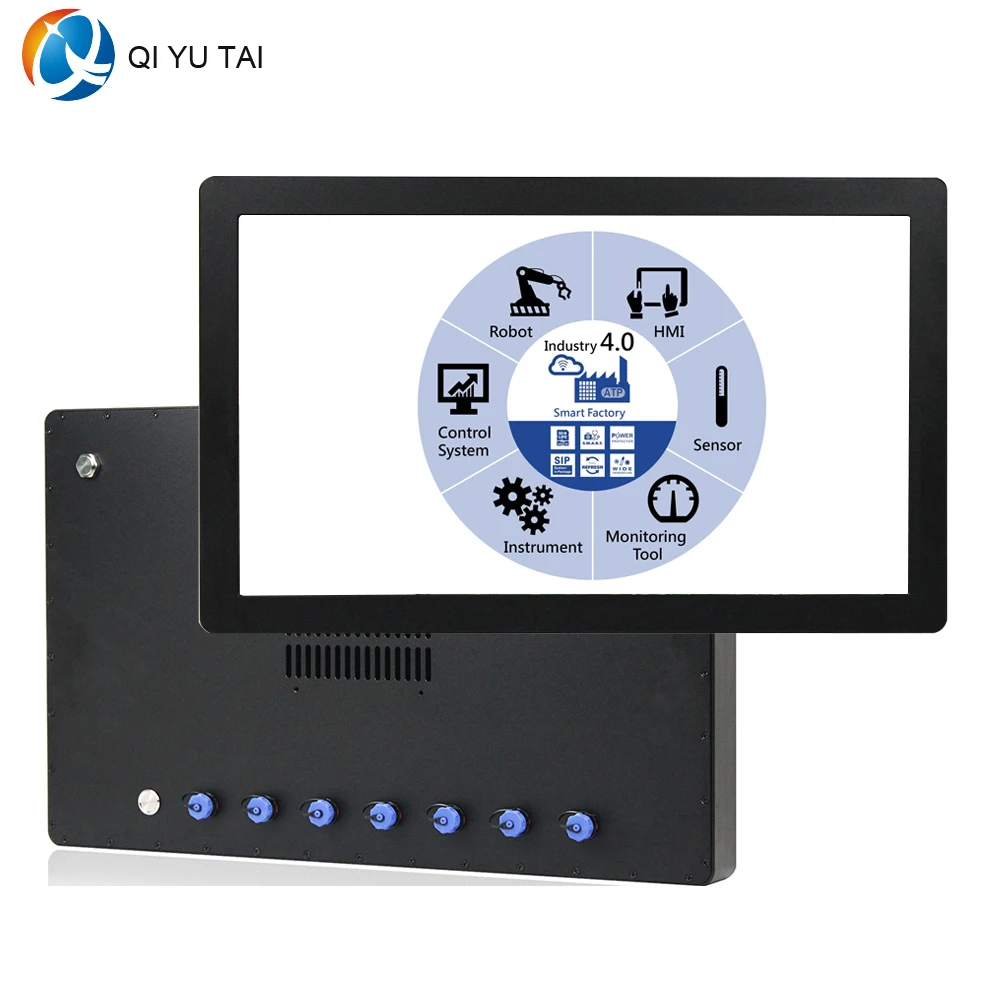

ПК с сенсорной панелью 21 5 дюйма Intel 3855U ip68 водонепроницаемый все в одном компьютер
202 460,41 - 204 950,70 руб.
Бесплатная доставка 20*30 см Односторонняя печатная плата прототип FR-4
1 331,06 руб.
GRM319R71H333JA01 (3216M): Murata capacitance 1206 33000pF 50V + 5% ==20pcs is 1 lot | Компьютеры и офис

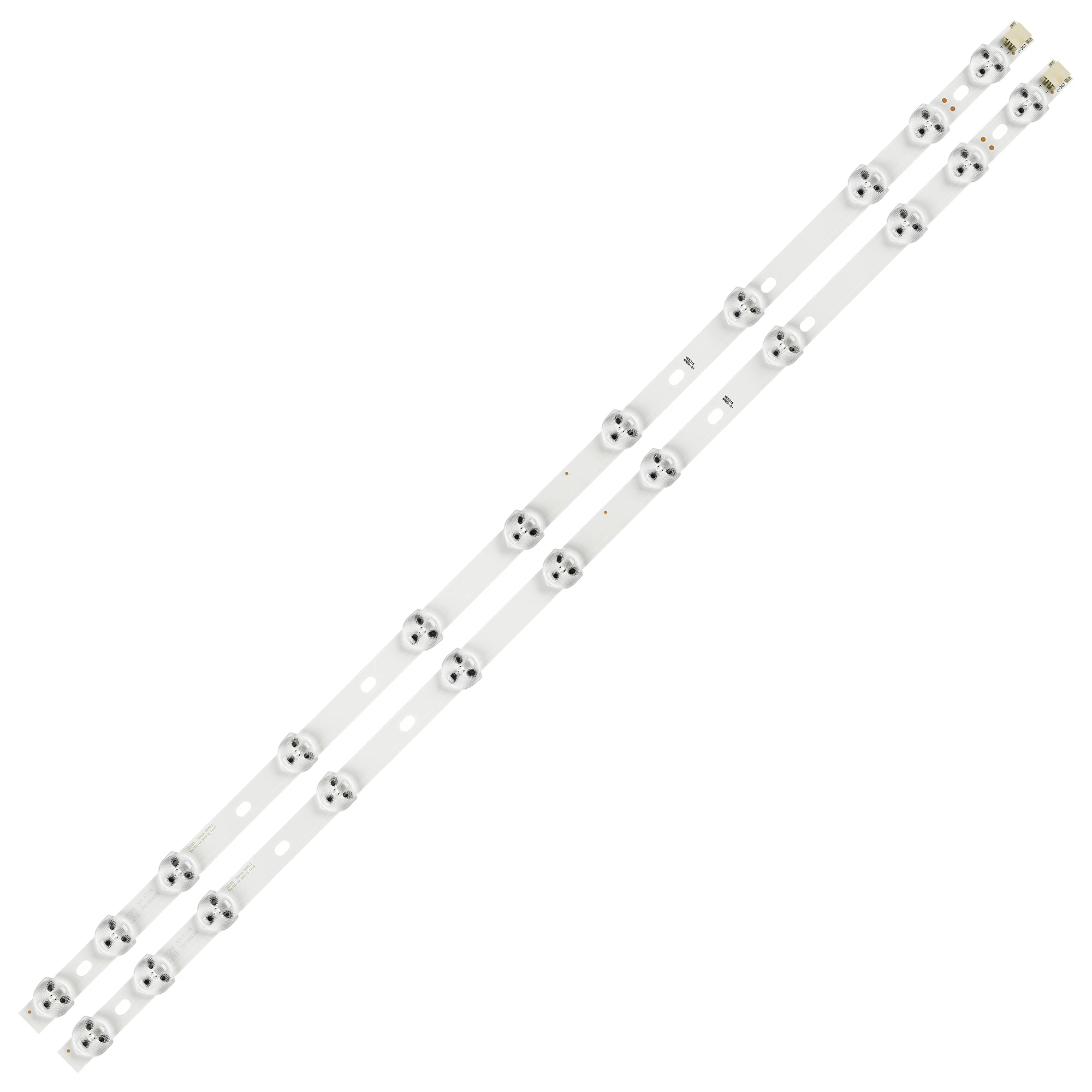

Светодиодная лента для VESTEL 32D1333DB 11 светодиодов 575 мм 32 дюйма NDV REV0.0 VES315WNDB-01 VES315WNDL-N01
1 268,80 - 32 904,18 руб. / набор
Светодиодный светильник 11 для LG Sharp 32 ''TV 32D1334DB LC32LD145K VES315WNDL-01 VES315WNDS-2D-R02 HA5000 VESTEL
1 359,70 руб. / набор
HDD PCB FOR LOGIC BOARD/BOARD NUMBER:100706008 REV C | Компьютеры и офис
Характеристики

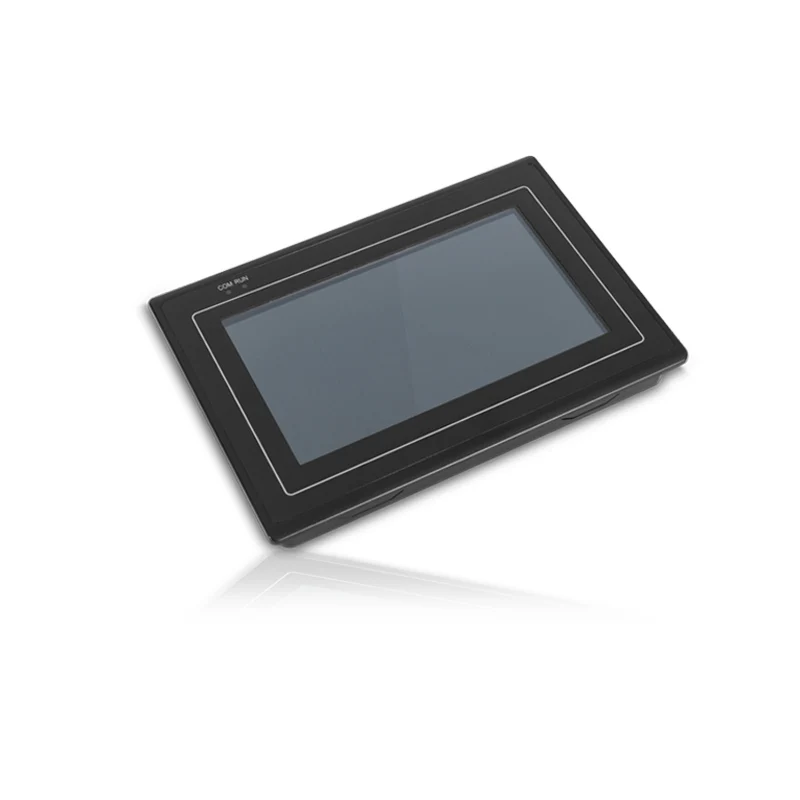

7 inch WinCE Industrial Panel PC touch display Computer embeded tablet pc | Компьютеры и офис
История изменения цены
*Текущая стоимость US $205.30 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-20-2026 | 260.70 руб. | 265.20 руб. | 262.5 руб. |
| Jan-20-2026 | 211.19 руб. | 215.87 руб. | 213 руб. |
| Dec-20-2025 | 256.39 руб. | 261.16 руб. | 258.5 руб. |
| Nov-20-2025 | 254.31 руб. | 259.4 руб. | 256.5 руб. |
| Oct-20-2025 | 203.23 руб. | 207.32 руб. | 205 руб. |
| Sep-20-2025 | 250.2 руб. | 255.80 руб. | 252.5 руб. |
| Aug-20-2025 | 248.22 руб. | 253.60 руб. | 250.5 руб. |
| Jul-20-2025 | 246.30 руб. | 251.54 руб. | 248.5 руб. |
Описание товара
1.Parameters
|
Product model |
WLT-070R-AP20 |
|
Basic parameters |
CPU: Cortex -A8 architecture，frequency 1.0GHZ Memory: 512MB DDR3 Flash：256MB NandFlash |
|
Display screen |
Size：7 inch Resolution：800×480 Wide-temperature type，64K colors or 260K colors LED backlight：lifetime > 25000 hours |
|
Touch screen |
|
|
Hardware interface |
4 channel isolated 3-wire RS-232 serial port（COM1,COM2,COM3，COM4），2 channel（COM1、COM2）multiplex as RS-485 bus. 1 channel isolated CAN bus.（optional） 1 channel WIFI module inside.（optional） 1 channel USB device interface，support ActiveSync connect to PC to exchange data and debug application. 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 10/100M Ethernet interface. 1 channel SD/MMC slot. 1 channel 3.5mm audio output interface. 1 channel DC12V~24V，industrial power solution，higher reliability. |
|
OS |
Windows CE 6.0 R3 |
|
Defend degree |
IP65(front panel) |
|
Working environment |
power：12V DC（12V as recommendation，the range is 12V~24V），600mA working temperature：-10~60℃ storage temperature：-20~80℃ working humidity：10～90%RH |
|
Size |
shell structure：plastic panel size：206.00 x 142.00 （mm） trepanning size：196.00 x 132 .00 （mm） |
|
Application area |
industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment. |
|
Software support |
Flash power-down protection function. IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)、Labview development. Support QT4.8 GUI Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270) |

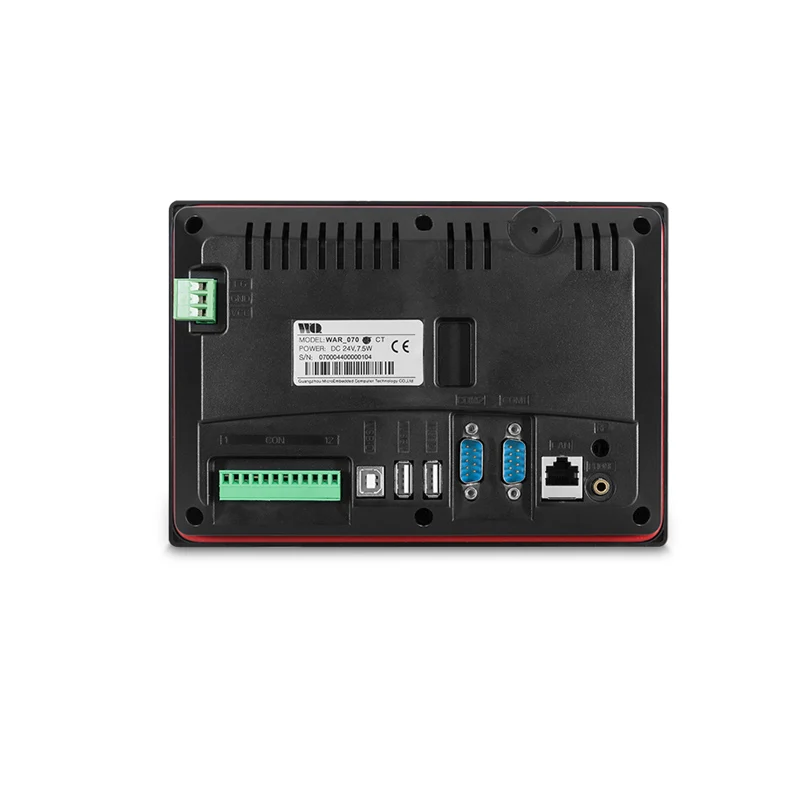

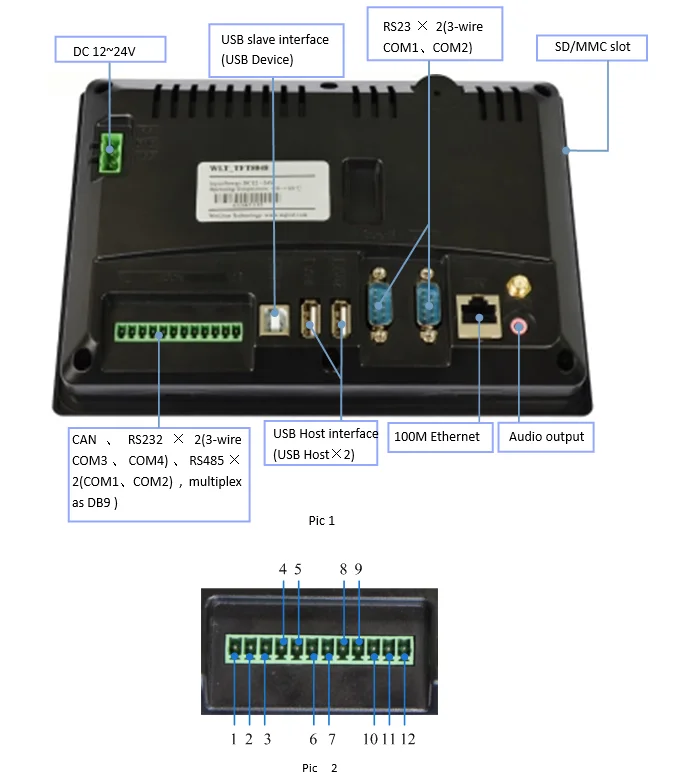

2.Interface definition
|
1 CANL |
2 CANH |
|
3 GND |
4 COM3-RX of RS-232 |
|
5 COM3-TX |
6 COM4-RX of RS-232 |
|
7 COM4-TX of RS-232 |
8 COM2-485B |
|
9 COM2-485A |
10 GND |
|
11 COM1-485B |
12 COM1-485A |
2.1 RS-232 interface
4 channels，support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485.
2.2 RS-485 interface
The corresponding port in Win CE system is COM1、COM2. And COM1/COM2 is a multiplexing of COM1/COM2 of DB9 interface. 120 ohm(Ω) terminal resistance will be needed additionally for a bus network deployment.
2.3 CAN Bus interface
The function of Can-bus interface is optional. Also, 120 ohm(Ω) terminal resistance will be needed additionally for a bus network deployment.
2.4 Power interface
As shown in the figure:

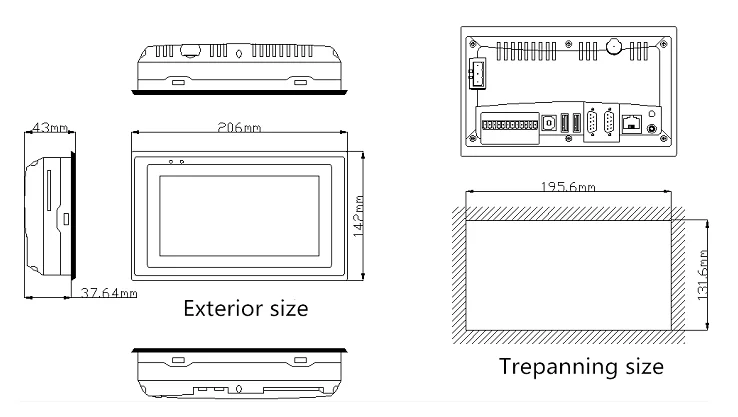

3. Exterior size
Exterior size：206×142 （mm） Trepanning size：195.6×131.6（mm）

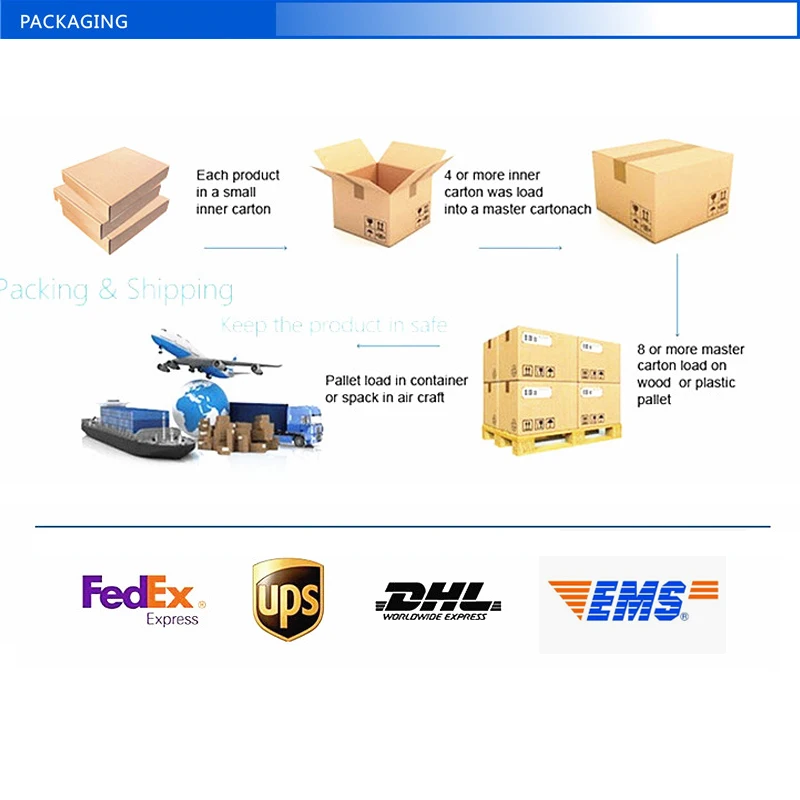

Transport and Packing process
Express (UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
100PCS or More orders: 10-20 working days
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
4.3" WinCE Industrial Panel PC
FAQ
Q: whether your industrial panel pc support the OEM / ODM?
A: Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restaruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: 7",8", 10.1", 10.4",11.6", 12", 13.3" 15", 15.6", 17" 19" 21.5" 22" and wide screen the same zise. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .

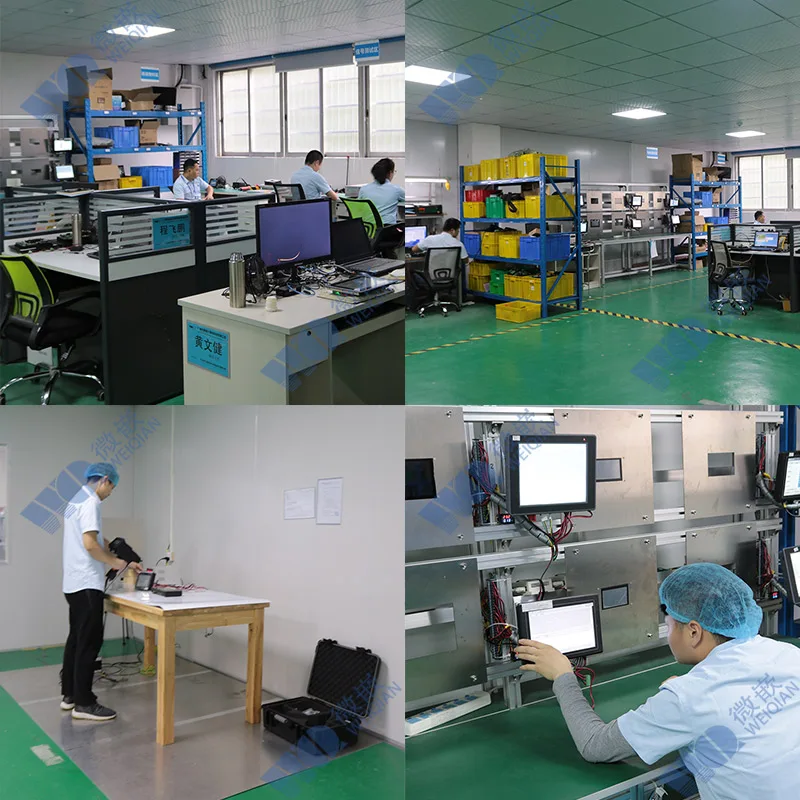

Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee !
