M.NT68676.2A(HDMI+DVI+VGA+Audio) LCD/LED Screen Controller Driver
Board Diy Monitor Kit for LTN140AT21-002

The adapter power need 12V 3A  Not included

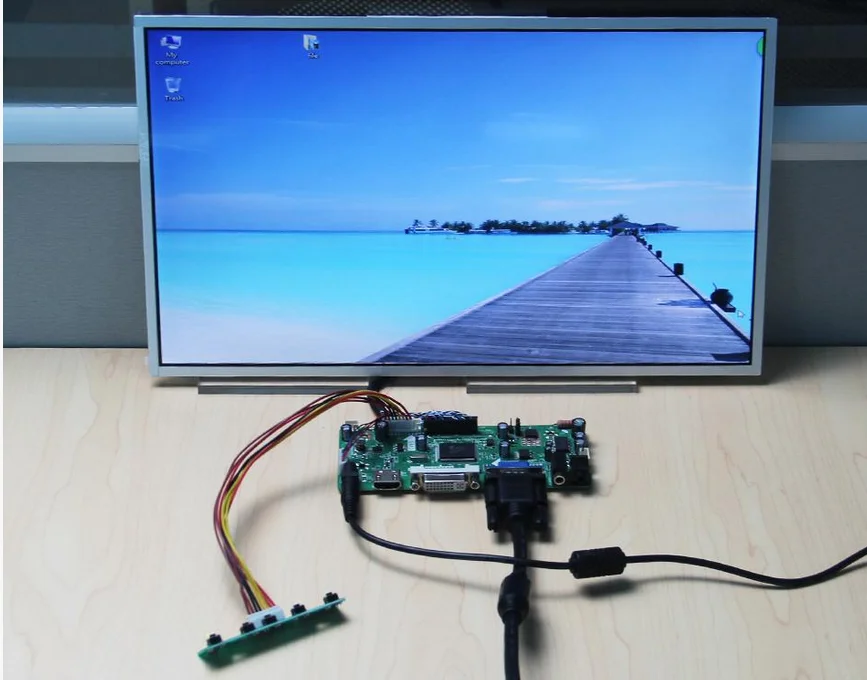

   This is a great set of easy-reassembling LCD controller kit which is used to
turn a bare LCD panel into a desktop/PC monitor. It will be a surprise that your
bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting
 things that we make a monitor successfully by ourselves.

   Plug&play kit, no need soldering.

    Attention:  This kit is for bare lcd LTN140AT21-002, if your lcd model number
is the different from it, please remember to contact us for suggestion of another kit.

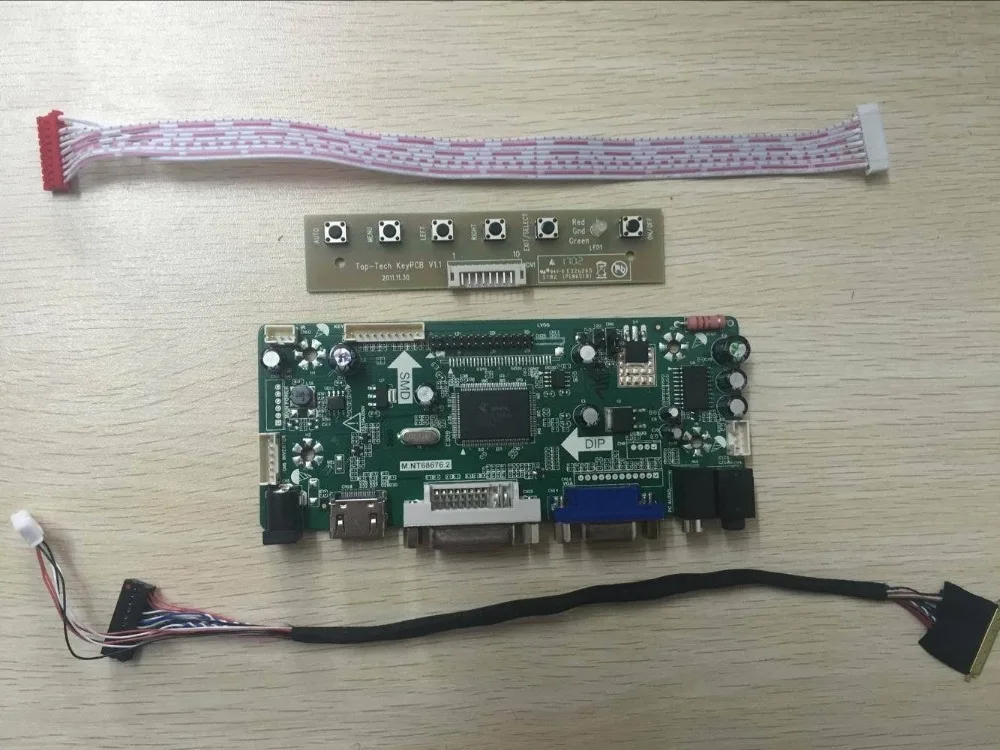

   Necessary Accessories for making LTN140AT21-002 work :

   1.LCD Controller board

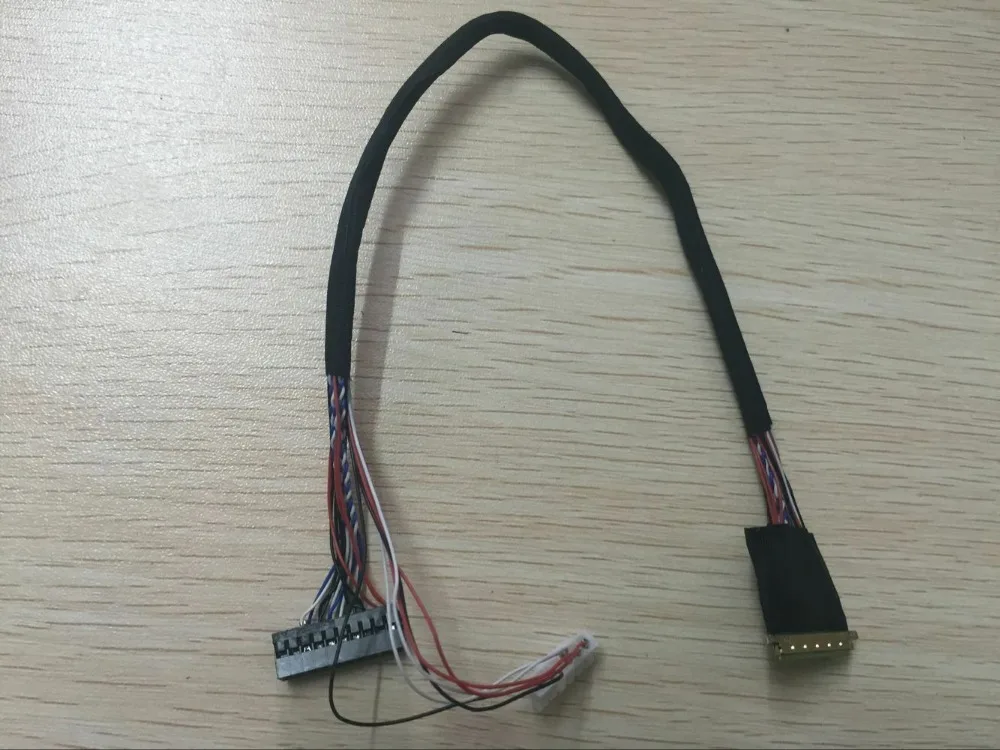

   2.LVDS cable

   3.Keypad

   4.VGA cable/DVI Cable/HDMI cable (not included)

   5.Power Adapter (not included)

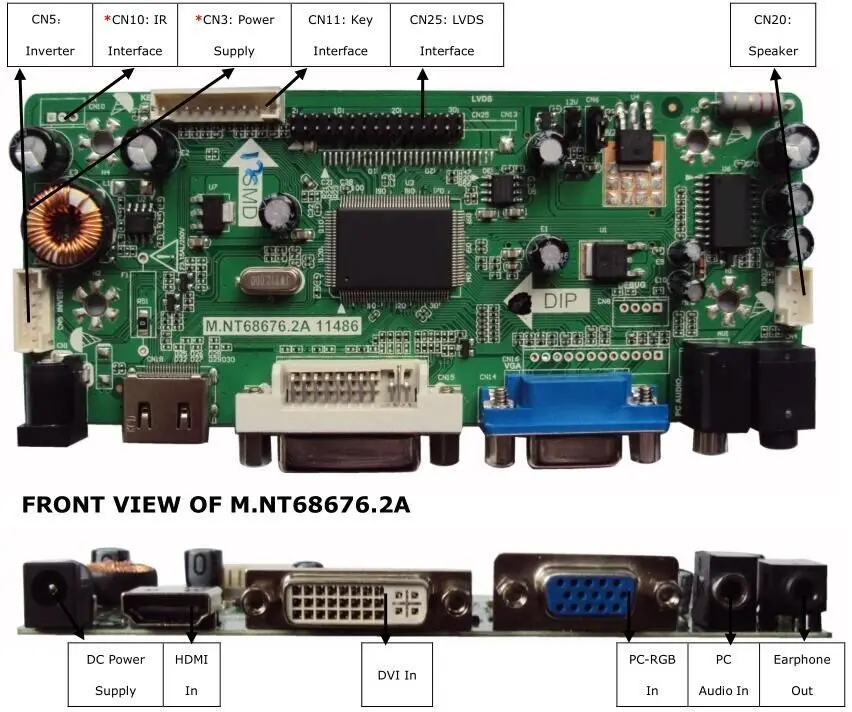

M.NT68676.2A is a monitor control board, which can support LED/LCD panels.
 It can support resolution up to 2048X1152.

M.NT68676.2A can synchronize with computer automatically. Synchronization
requires the synchronous signal which horizontal and vertical sync are separated.

M.NT68676.2A can support dynamic contrast control, headphone input and
digital volume control simultaneously.

Size of controller board: 139mmX58mmX17mm



Notes:

   1. Please make sure that your LCD is ok before bidding this item,
else you will be responsible for the incompatibility.

  2. If you are not specialized in electronics or have doubts in operation,
please contact us for instruction, as we are not able to responsible for wrong operation.

  3. If you pay much attention on resolution setting, please reconsider
before placing the order.


Product function:
his is a great set of easy-reassembling LCD controller kit which is used to
turn a bare LCD panel into a desktop/PC
monitor. It will be a surprise that your bare LCD
 will be of good use, and no longer be a waste.
 Or it is a very insteresting things that we make a monitor successfully by ourselves.
It supports most of the LCD panel from 12.1" to 55" with a LVDS interface and
a resolution lower
 than 2048X1152, plug&play kit, no need soldering.




Step1：
Make sure the AD borad has signal and power. Press "Power" key to power
down the machine .
Step2：
Keep one hand pressing the "Menu" key, then another hand press
the "Power" key to power up the machine. Release both hands when the machice is
totally start up. There will be a factory menu on the top-left corner.
Step3
Use the “Up”or“Dwon”key to choose the "LVDS MAP" item. Then press
"Menu" key to select it, change the valve untill the picture is ok. Repower and
check.


No metal contact is allowed.

1. Take away the old inverter and old LVDS cable from the LCD panel.

2. Connect the new inverter and new LVDS cable to your LCD panel.

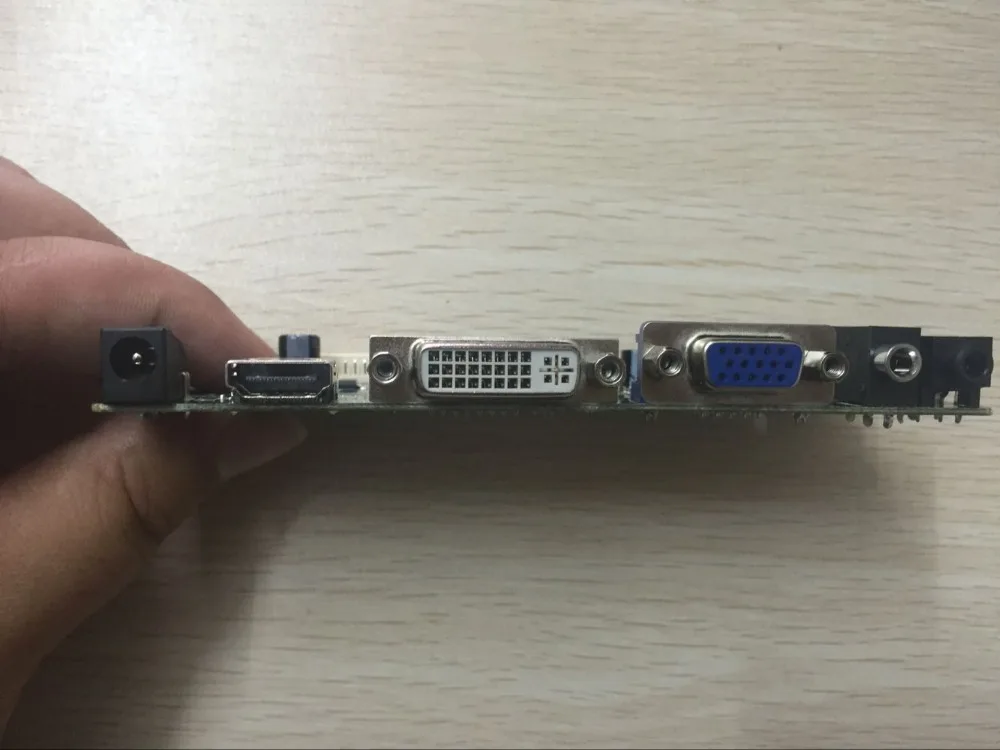

3. Connect controller board kit to the PC with VGA cable/DVI cable/HDMI cable.

4. Input power of 12V,3A. ( Please don't revised the voltage jumper setting on the
lcd controller board before confirmation from us,
because wrong revising of this voltage will get your lcd burnt. By the way, please
don't connect the lvds cable wrongly, some wrong connection can get your lcd burnt too,
if you are not sure, please feel free to contact us.)

if you need buy the adapter power , please tell us （EU   UK AU   US）
