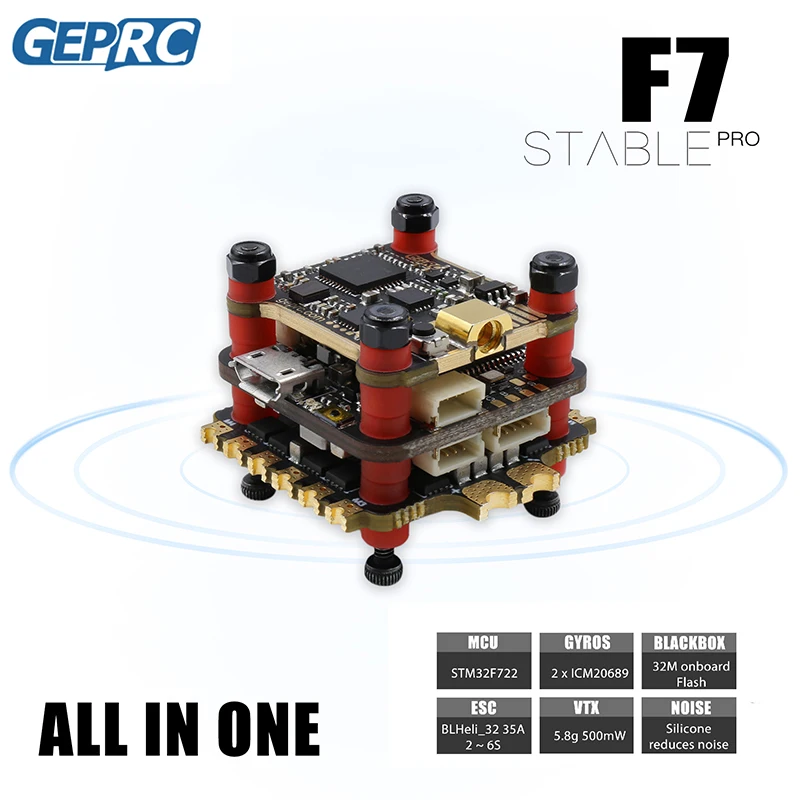

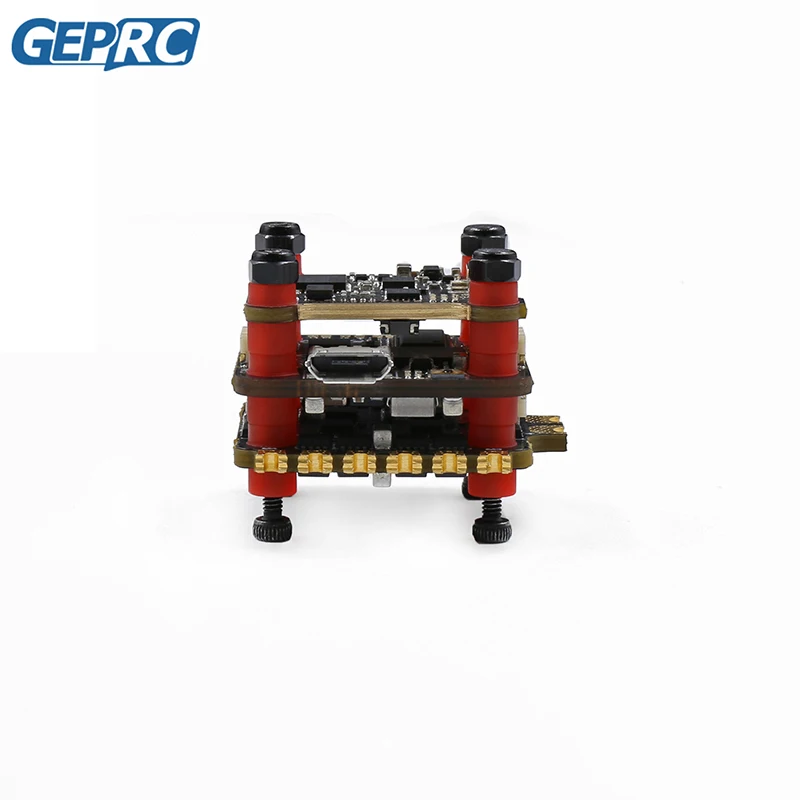

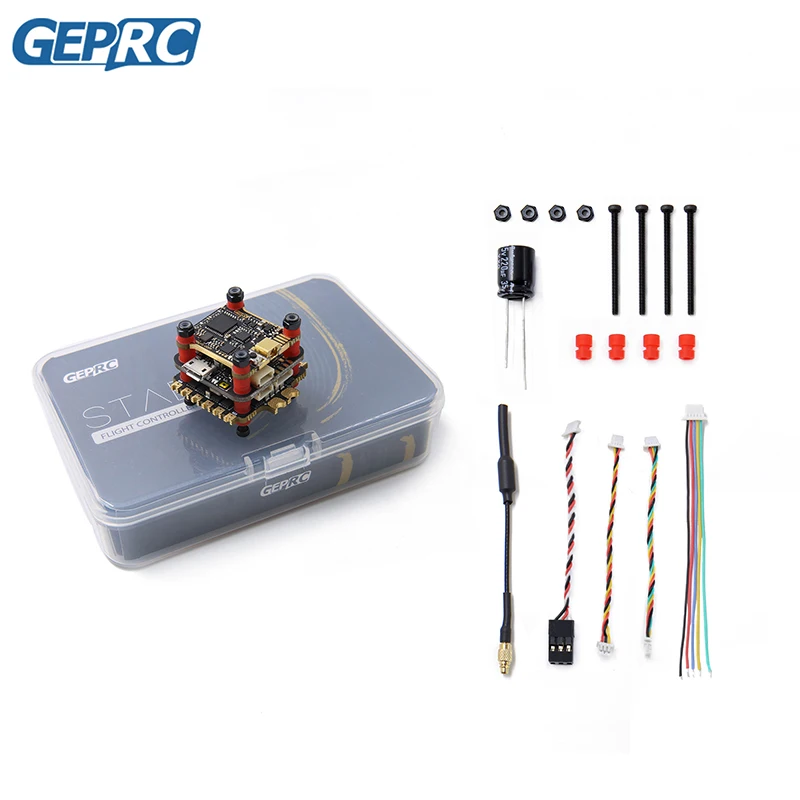

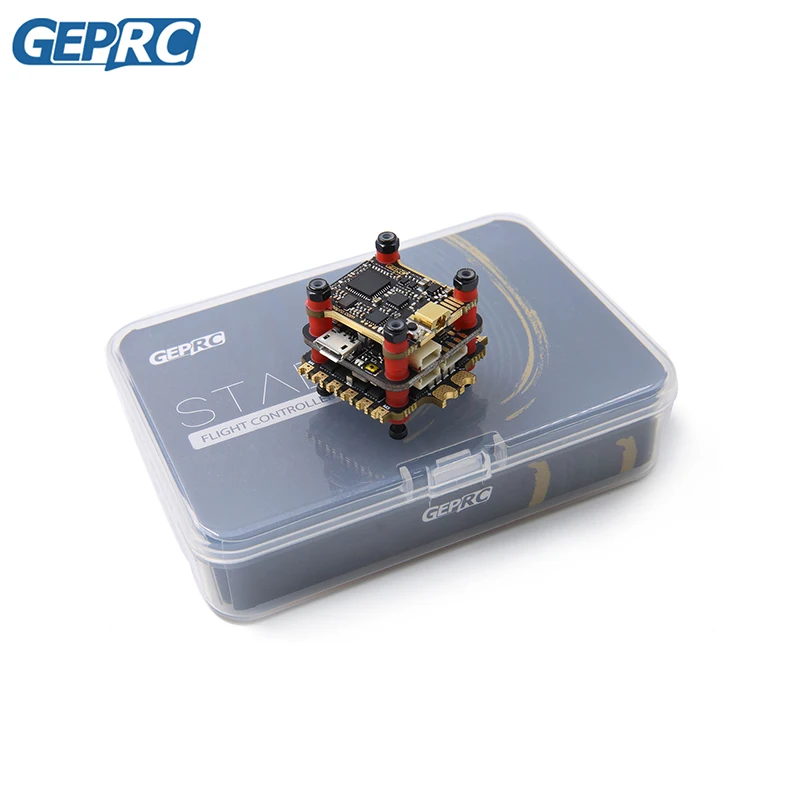

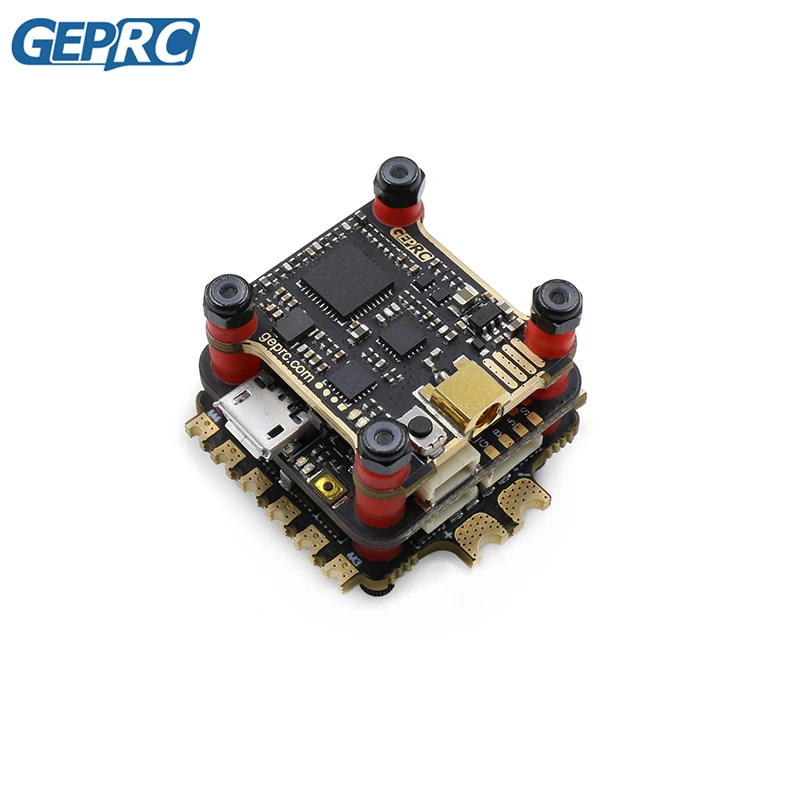

GEPRC STABLE PRO F7 DUAL BL32 35A ESC Flight Tower All in one 2-6S FC Controller For RC Racing Drone | Игрушки и хобби

GEPRC STABLE PRO F7 DUAL BL32 35A ESC Flight Tower All in one 2-6S FC Controller For RC Racing Drone | Игрушки и хобби

  Description   Summary:    After four months of hard work, DUAL ICM 20689 gyroscope both work at the same time. We strongly recommend the F7 Dual ICM20689 version, which is a one-off improvement.  That maximizes the minimalist layout structure, Highly integrated FPV required functions, perfect clean video output. The blackbox is integrated with 32 MB flash memory, Export blackbox data, convenient debugging analysis, optimize flight. Innovative soft damping design to reduce flight control and gyroscope noise and reduce motor heat output     STABLE PRO F7 Flight Controller Specs：   Model:STABLE PRO F7 35A MCU: STM32F722RET6 IMU: 2x ICM20689(SPI) BlackBox: 32Mb onboard Flash OSD: BetaFlight OSD w/ AT7456E chip Baro:NO BEC Output: 5V@3A Integrated LC Filter Input Voltage: 2-6S Lipo Firmware target: EXF722DUAL Size: 26x26mm board, 20mm mounting holes (M2)     STABLE PRO F7 ESC BL32 2-6S 4in1 Specs：   MCU:STM32F051 Input:2-6s lipo Constant:35Amps Burst:45Amps Dimensions:31*31mm(including the power pads) Mounting Holes:20*20mm,M2 Supports Dshot1200,Proshot,Oneshot,Multishot Current meter: Yes Target: GEPRC-BL32-4IN1     STABLE PRO F7 5.8g 500mW VTX Specs:   Input voltage: 5V Channel: 48 Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW Size: 24 * 26 mm Mounting Holes Dimension: 20mm x 20mm Connector type: MMCX Connector BEC Output：5V/1A for Camera of FC Weight: 2.3g Traditional button IRC Tramp protocol     Features:   F7 Support both dual ICM20689 gyroscopes to work simultaneously, Exquisite and perfect flight experience Innovative soft damping design, suitable for most frame, ensures flight control and gyroscope without noise Simple installation method, compact space STM32F722RET6 MCU Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds) Support 2-6s battery and current meter Support blackbox and use 32M on-board flash storage 8g VTX Support IRC protocol, PIT/ 25/100/200/500mw adjustable, 48 frequency Mounting Holes: 20x20mm(M2) Size: 26x26x21mm Weight 16.5g (Including Wire and screws)
