EZ500 HD Diagnosis System

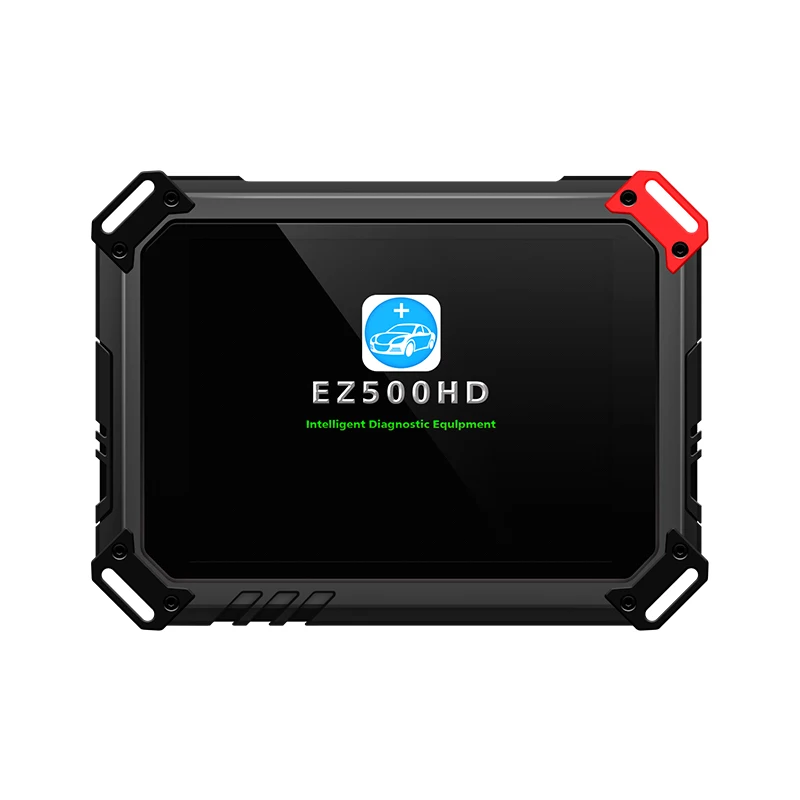

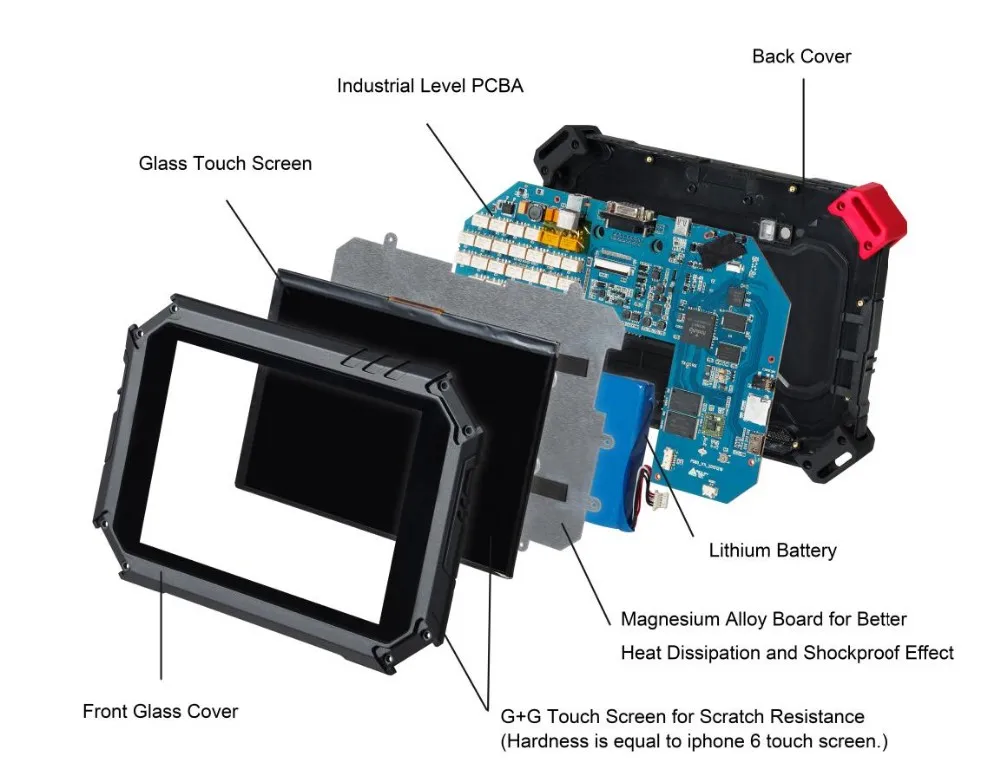

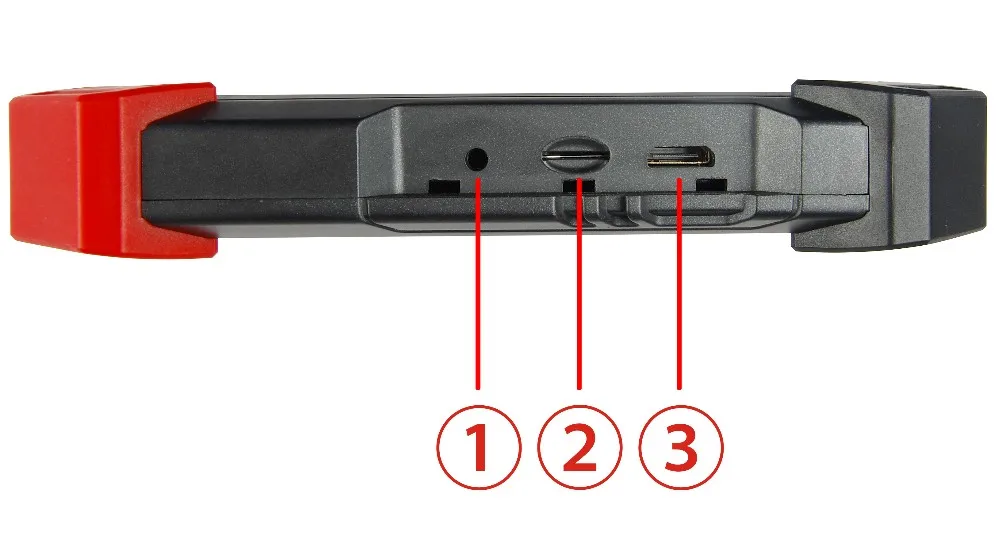

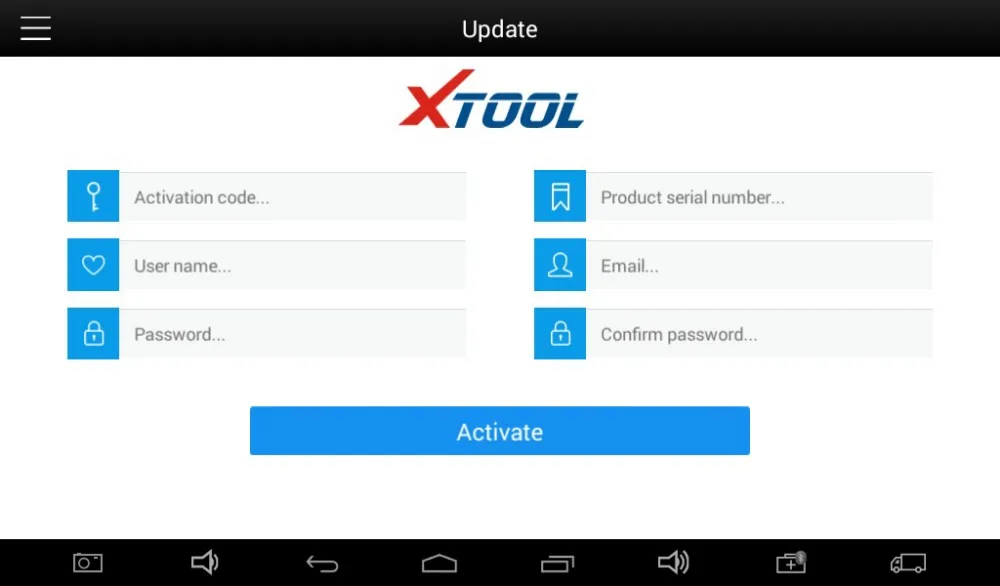

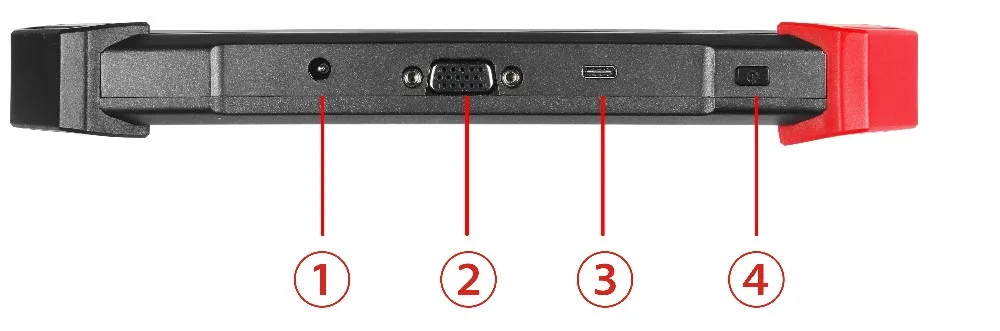

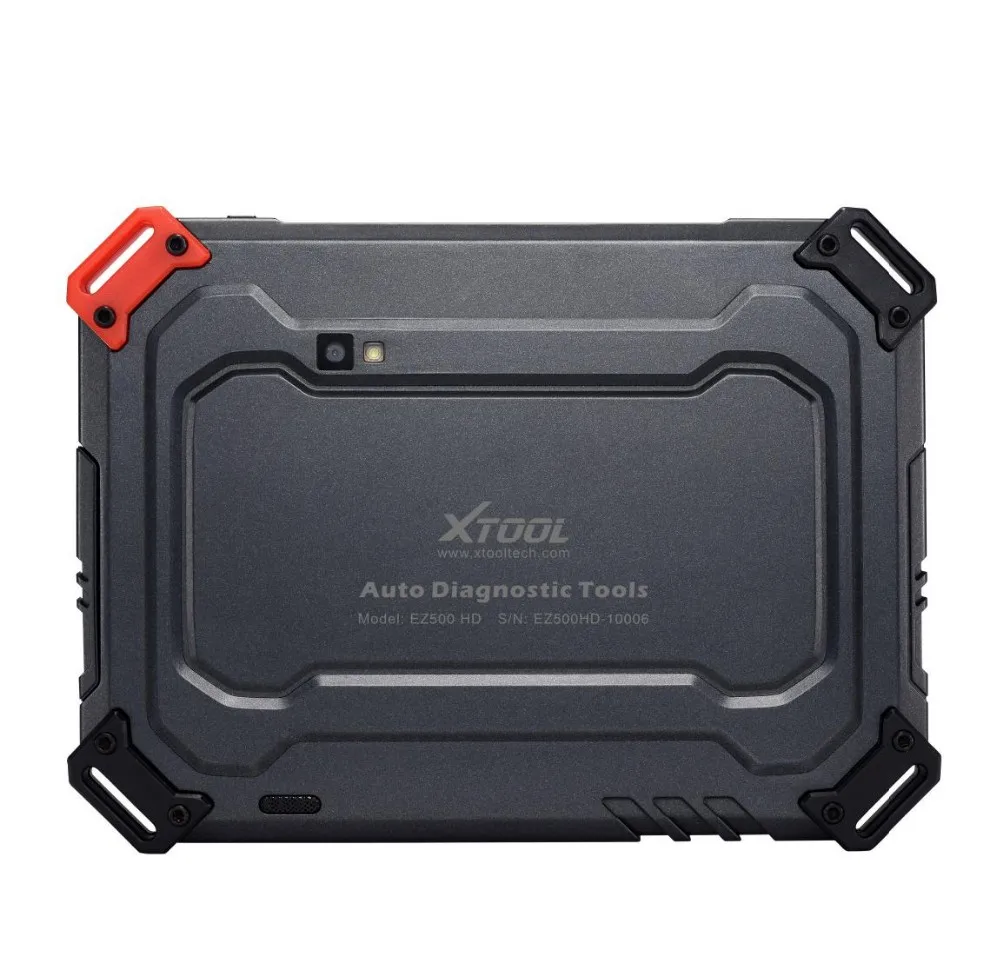

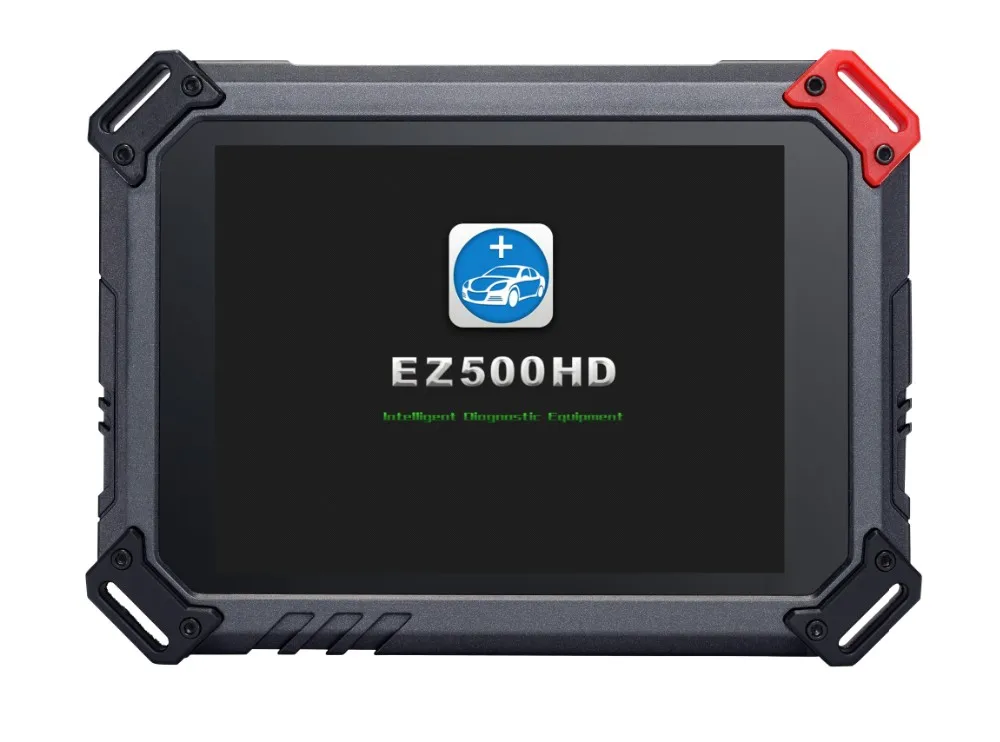

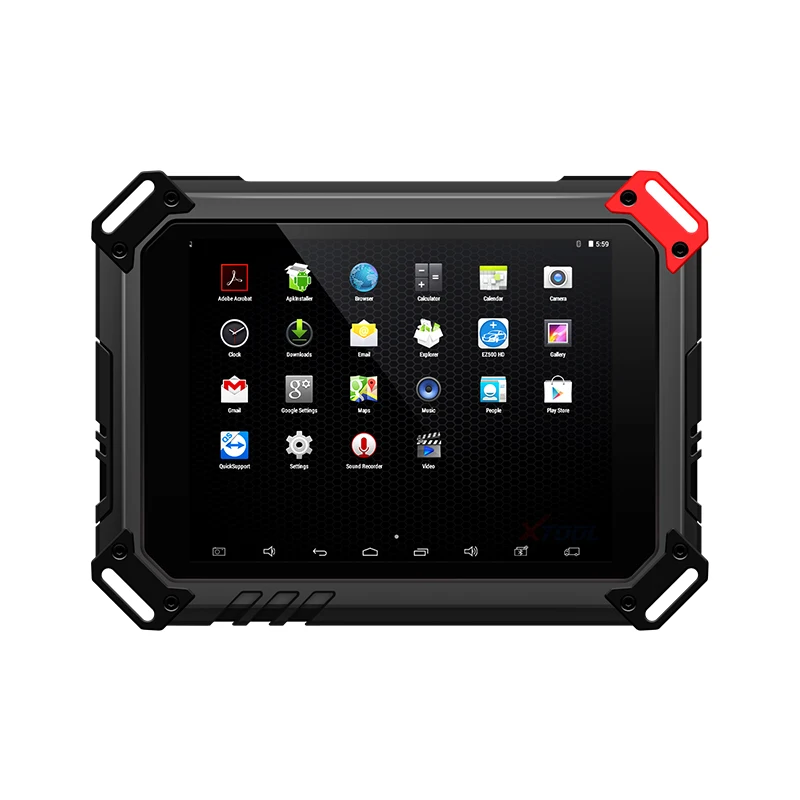

EZ500HD is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ500 provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops. lLayout of EZ500HD   Top View of EZ500 HD Tablet     1. DC Charging Interface: Battery charge, DC 12V. 2. DB15 Interface: Directly connect with truck to establish wire connection. 3. USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously              4. Power Button   Side View of EZ500 HD Tablet     1. Headphone Jack 2. TF Card Slot 3. Mini HDMI Port     Front View of EZ500 HD Tablet   Back View of EZ500 HD Tablet     EZ500 HD Exploded Diagram      Features:   *Easy registration with EZ500 HD connected to WIFI *One-click software update via WIFI *Remote access  *Diagnosis reports in PDF file *Record and playback live data  *8.0 inch multi-touch screen  *On-board battery *Extensive vehicle coverage for most US, Asian and European vehicle makes   Easy registration with EZ500 HD connected to WIFI. Don't bother to use PC for registration.

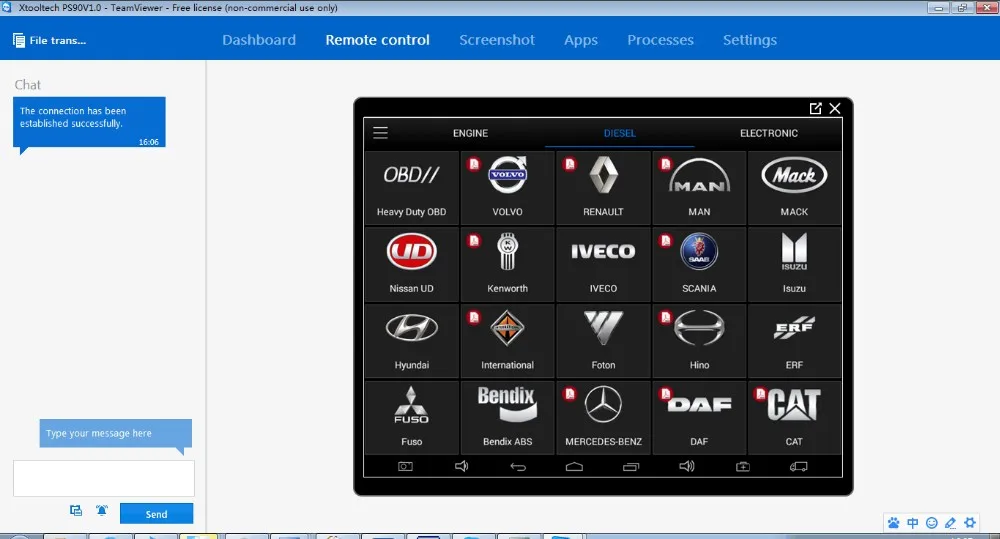

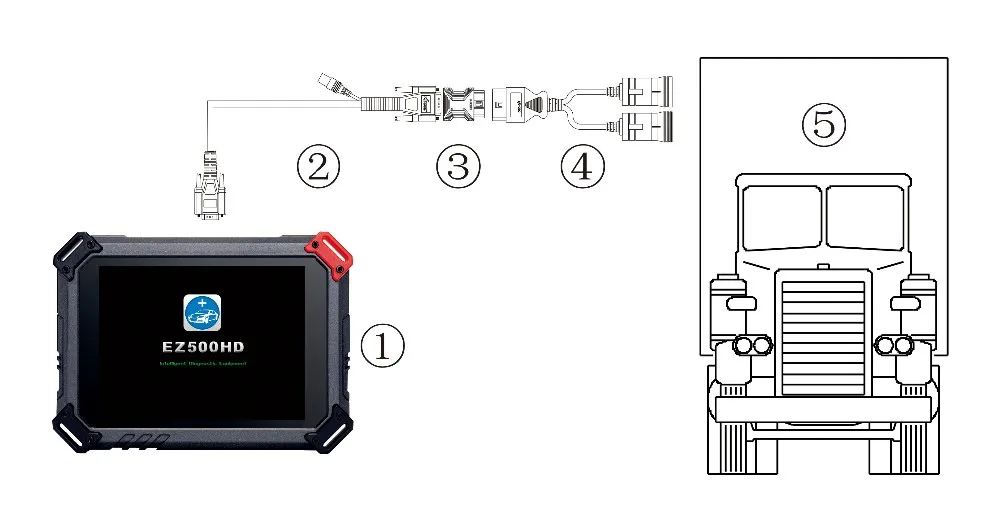

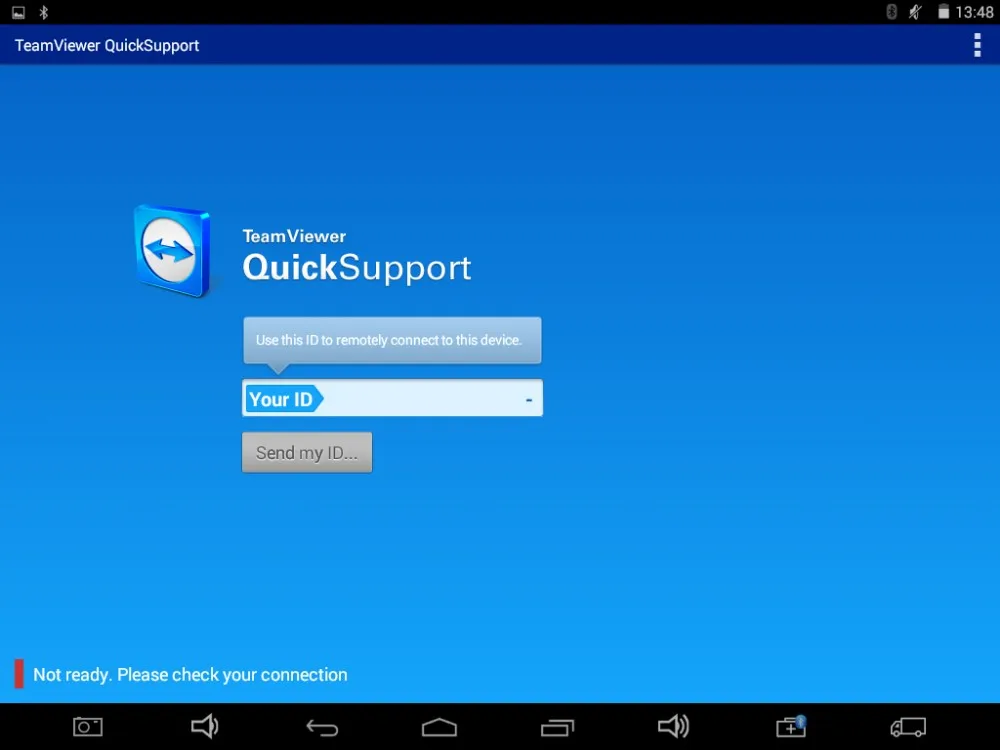

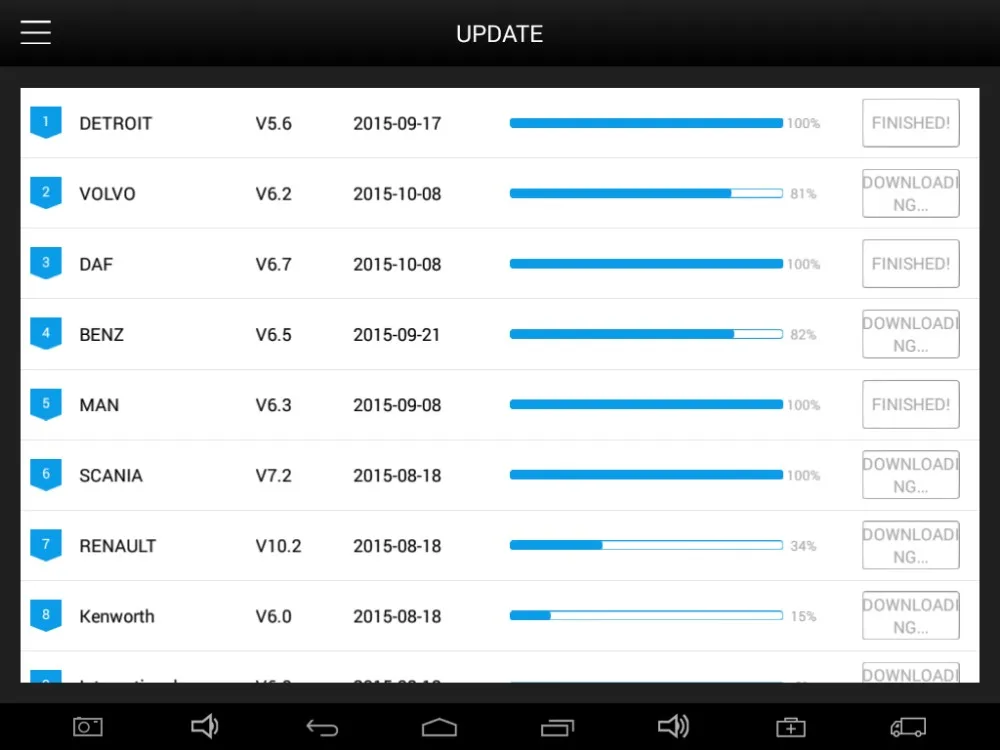

Connect to the vehicle directly with cable     1.  EZ500 HD Mainframe 2.  Main Test Cable 3.  OBD2 16pin Connector 4.  OBD 6+9 Pin Connector or other connectors 5.  Vehicle   One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!      Remote access, which is perfect for training, demonstration and even remote diagnosis.          Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.

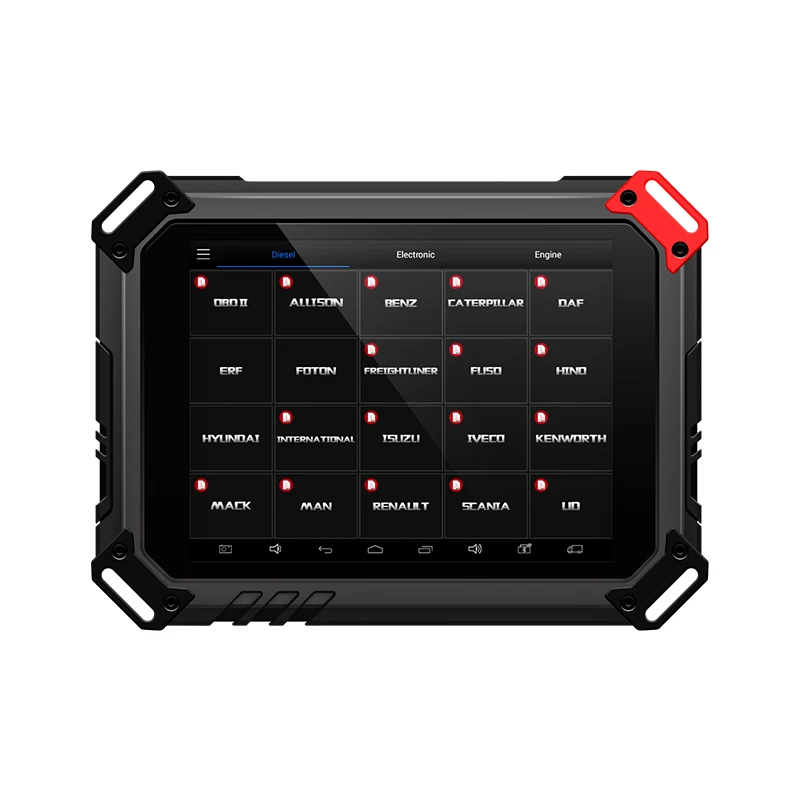

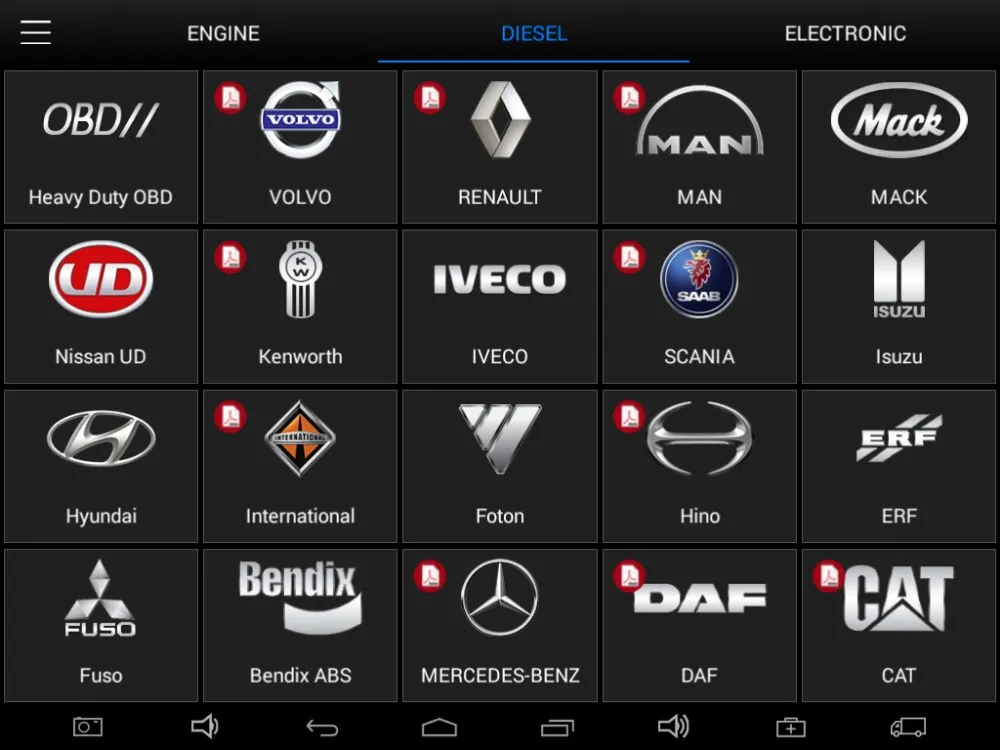

  Extensive vehicle coverage for most US, Asian and European vehicle makes   DIESEL: VO L VO, Allison, Bendix, for Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA,for Nissan UD, WABCO, etc

It can also diagnose trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc

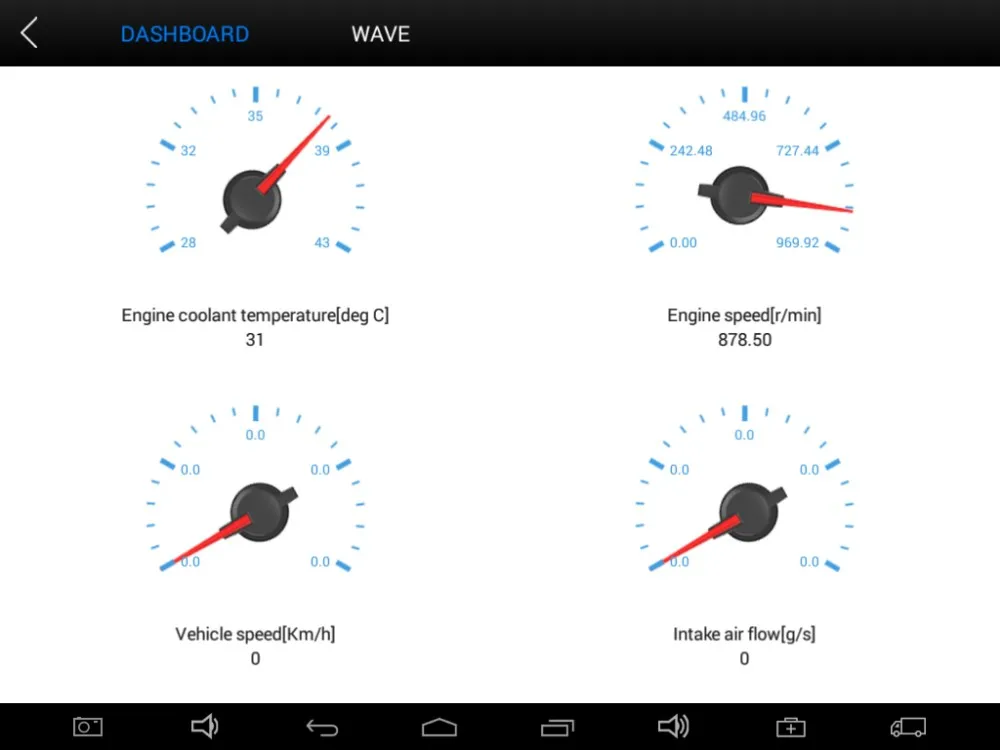

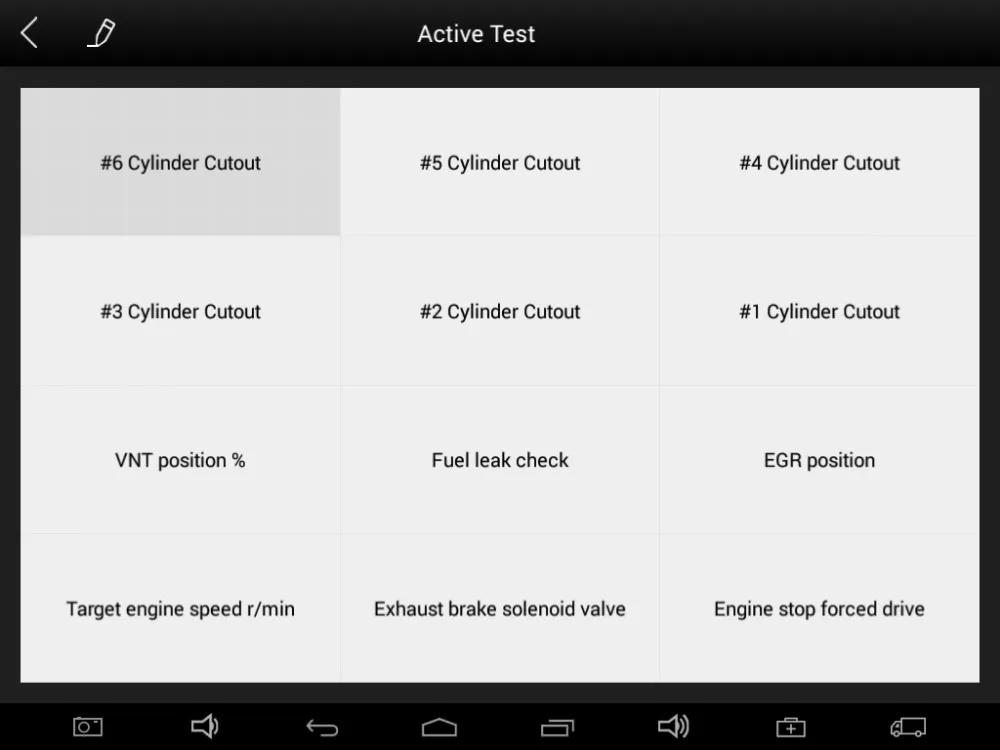

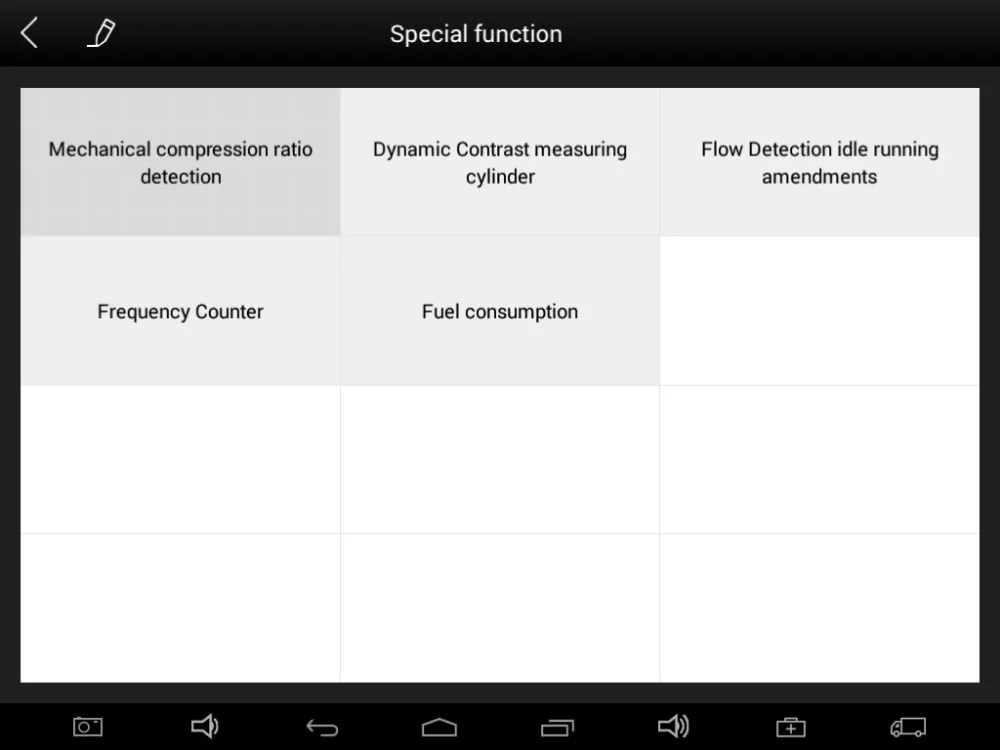

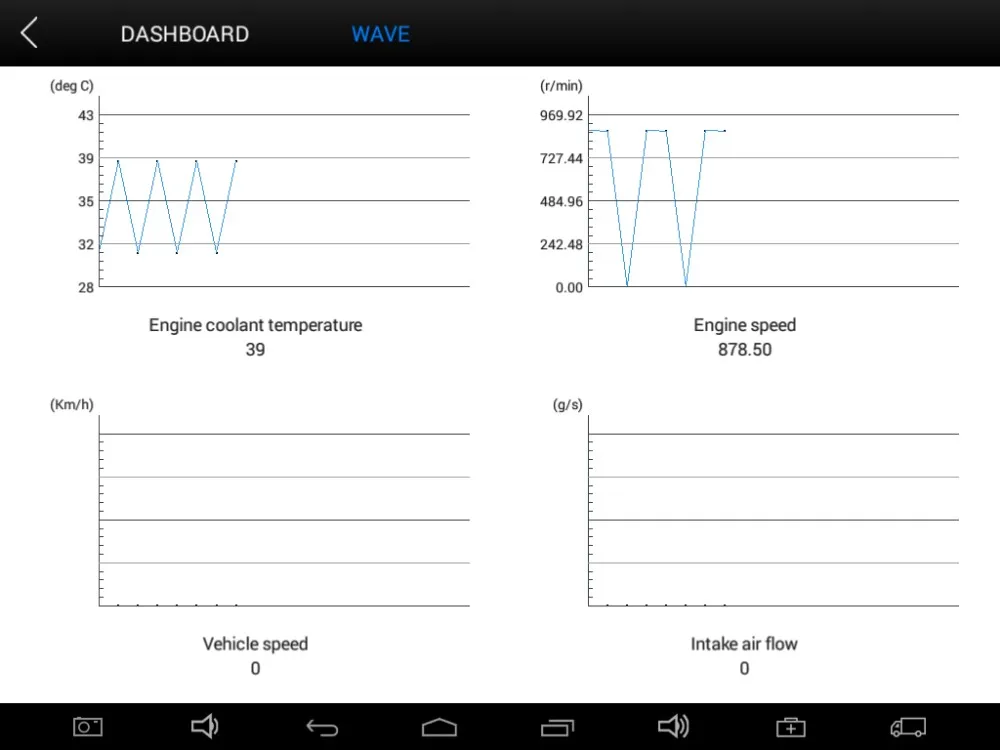

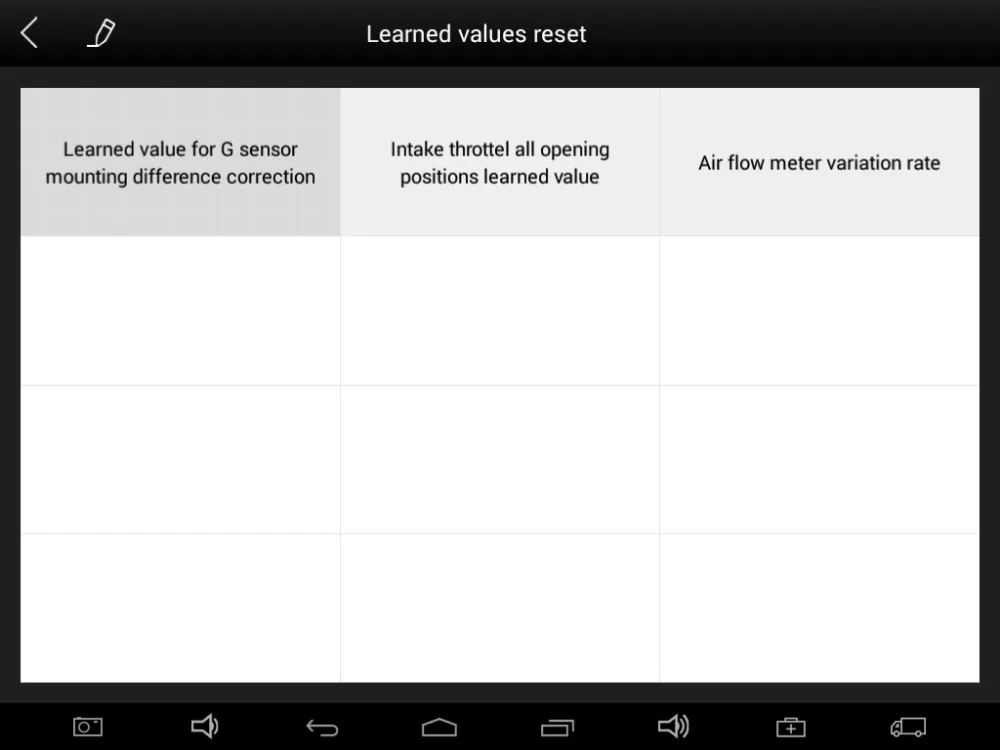

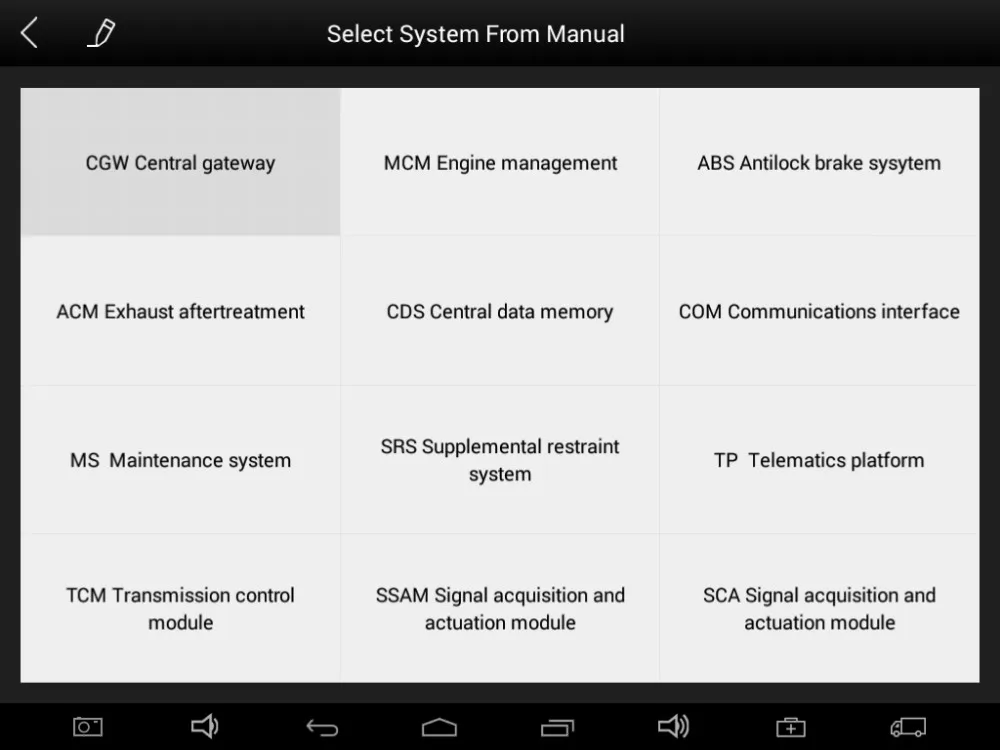

It can also diagnose trucks via ELECTRONIC: Cummins and more...   Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.        Basic Function: read fault codes, clear fault codes, live data, actuation, active test   Accurate Live Data in Both Wave and Dashboard Form  Special Function: Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.

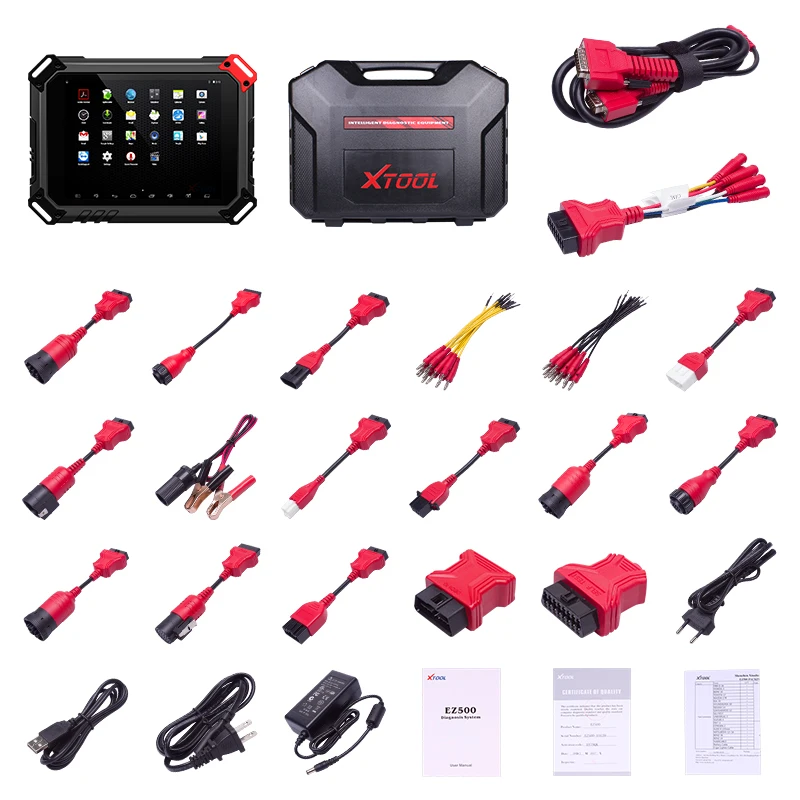

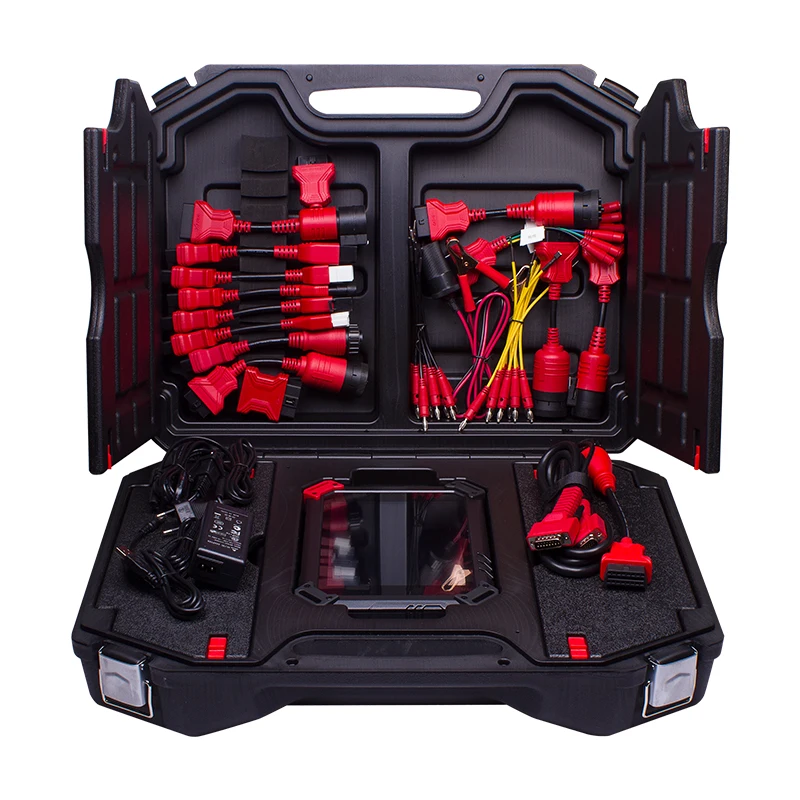

1pc x EZ500 HD Tablet
1pc x Charger for Tablet
1pc x Charger Cable US
1pc x Charger Cable EU
1pc x OBD II-16
1pc x SELFTEST
1pc x OBD-R16
1pc x ISUZU-3
1pc x ISUZU-20
1pc x DENSO-12
1pc x CUMMINS-6
1pc x IVECO-30
1pc x VOLVO-8
1pc x BENZ-14
1pc x Universal Cable
1pc x Battery Cable
1pc x Cigar Lighter Cable
1pc x DB15 Main Cable
1pc x USB TYPE-C Cable
1pc x Tool Case
1pc x Carton
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
