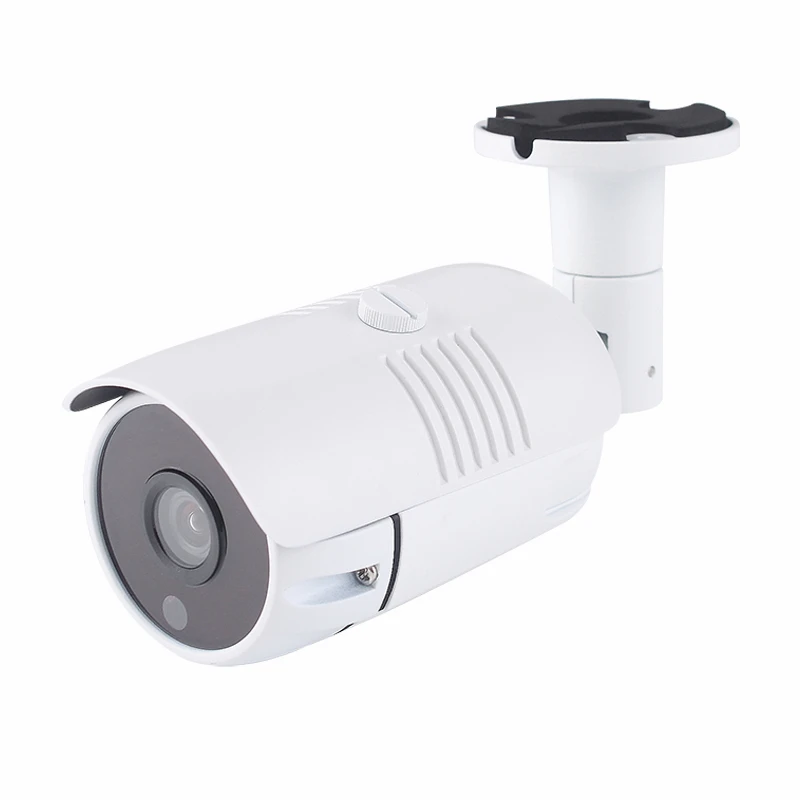

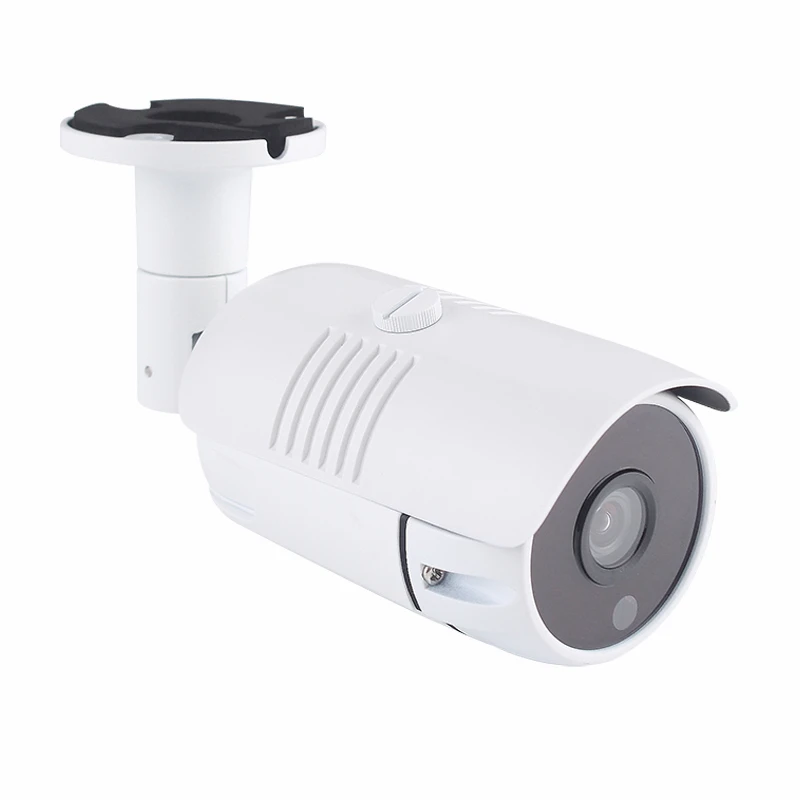

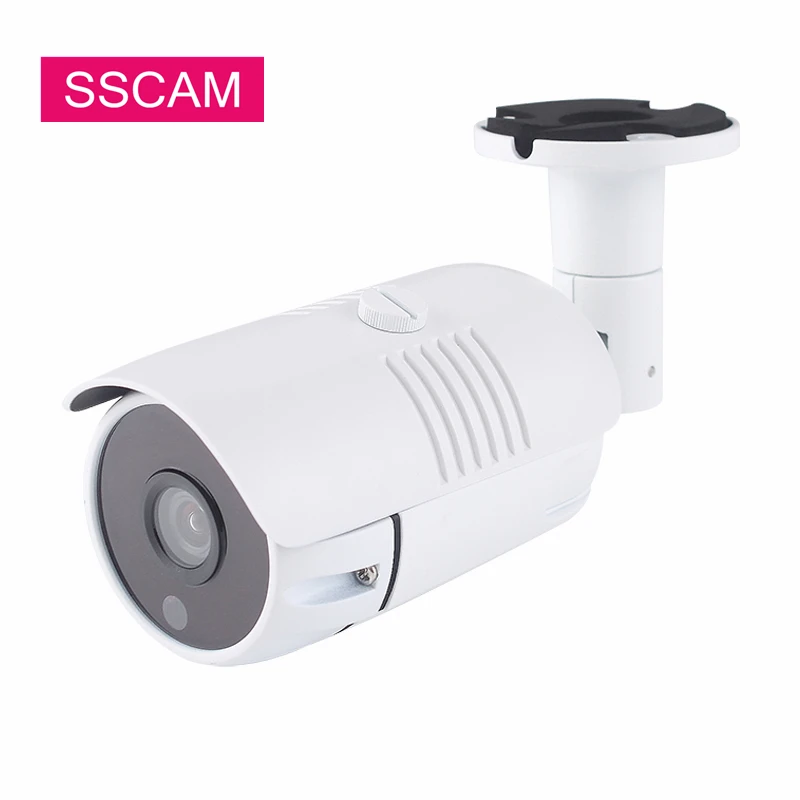

4MP IP CCTV Camera POE Waterproof 3.6mm Fixed Lens ONVIF Street Home Security Network IR P2P Motion Detection Alarm | Безопасность и

---



Features:



2MP 4MP IP Camera; H.265/H.264 Video Compression; 3.6MM Fixed Lens 24Pcs Leds IR Distance 20M; Support P2P View; Cellphone APP:XMEYE; Metal Housing vandalproof;   Specification:

Item Name	IP Network CCTV Camera
Usage	Indoor and Outdoor
System	Hisilicon high-performance DSP
Sensor	2.0M Pixel 1/2.8" CMOS Sensor; 4.0M Pixel 1/2.8" CMOS Sensor
Output resolution	1920(H)×1080(V)                    2560(H)*1520(V)
D/N Mode	Auto switching,black and white video and IR cut action linkage
Illumination	Color 1.0Lux F1.2,Black 0.1 Lux F1.2
Video processing	H.265/H.264 video compression, dual streaming
	AVI format, 0.1M~6Mpbs adjustable;
Video Output	Main streaming: 2560*1520; 1920×1080,1600×1200,1280×1024,1280×960, 1024×768,  1280×720;    Sub streaming:960*540,640×360,480×270, 352×288,320×240, 352×192, 320×192, 288×192, 256×192
Frame rate	2.0 MP 25 frame(full real time),support 1~25 frame/seconds adjustable 4.0MP 15 fram
Network interface	RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported
Access Protocol	Standard ONVIF Protocol, Support third party access; PC;
	Support IE6.0 and aboveSmartphone
	Support Android\iPhone
Lens	3.6mm lens
IR distance	20M (36pcs* IR LEDs)
Function	Support WEB configuration, OSD,real-time video transmission
	Support motion detection
	Support front end storage ,playback and download
	Support uniform client and platform system application
	Support complete SDK for second development.
Power supply	DC12V 1A or POE
Operation temperature	-10°C~+60°C,10%~90%RH







Difference between 2MP and 4MP in resolution:





1. If you have a NVR,  it is P2P and easy to install, using our installation diagram





2. If you don't have NVR, Please install the CMS(Download online,or contact us) on your computer





Select Language, there are 18 languages       How to connect IP Camera to CMS on Computer



How to find out the Serial ID which is necessary for online web or mobile phone viewing     First: Right click the mouse in the CMS menu ,then enter the "Device Config"





  Second: Click the "Version"

  Third: Get the Serial ID of IP Camera





Life Video Surveillance by IE Browser on Computer

Life Video Surveillance by XMEye on Smart Phone





    Q:What’s the default ip address of the cam A: 192.168.1.10 Username : admin  Password : null ( empty ) !   Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ? A: Yes ! All the IP Cameras we are selling supports these functions .   Q: What is the ports information of the camera?
A: ONVIF 2.0 Port 8899; RTSP Port 554; HTTP Port 80; Media Port 34567       Bulk Order: If you need to buy more CAMERAS, please contact us for DISCOUNT PRICE.   Shipment: 1. Item will be shipped within 3-5 business days. 2. Delivery Time: ----Via Express: Generally 3-10 working days. ----Via Air Mail: Generally 10-30 working days.   Warranty and Refunded: 1.We also provide 12-Month free maintenance.  Just send back to us, we will re-send to you good or new one !! 2.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number.  As soon as we receive the items, we will repair or exchange them ASAP.



1 * IP Camera;

​1 * Screw Package;
