Telephone Network Cable Wire Line LAN Cable RJ45 RJ11 Tracker Wire Toner Trackers Tester

Features:

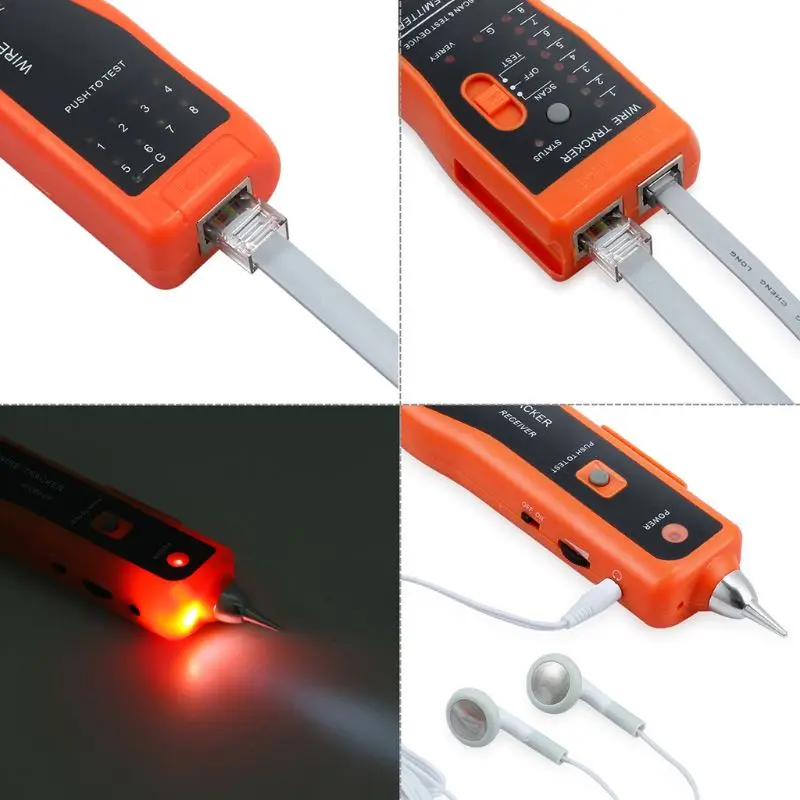

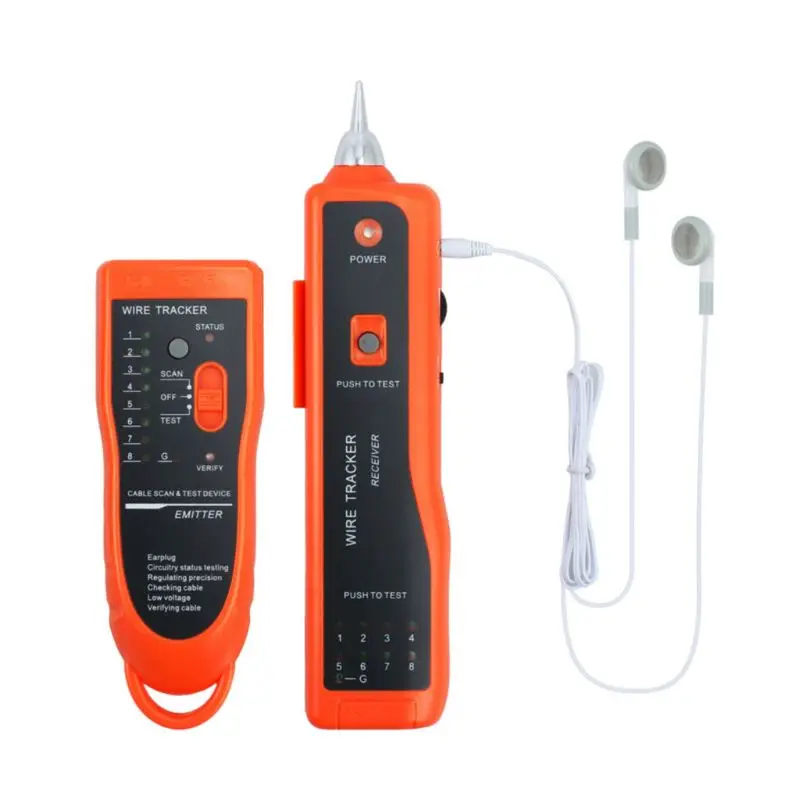

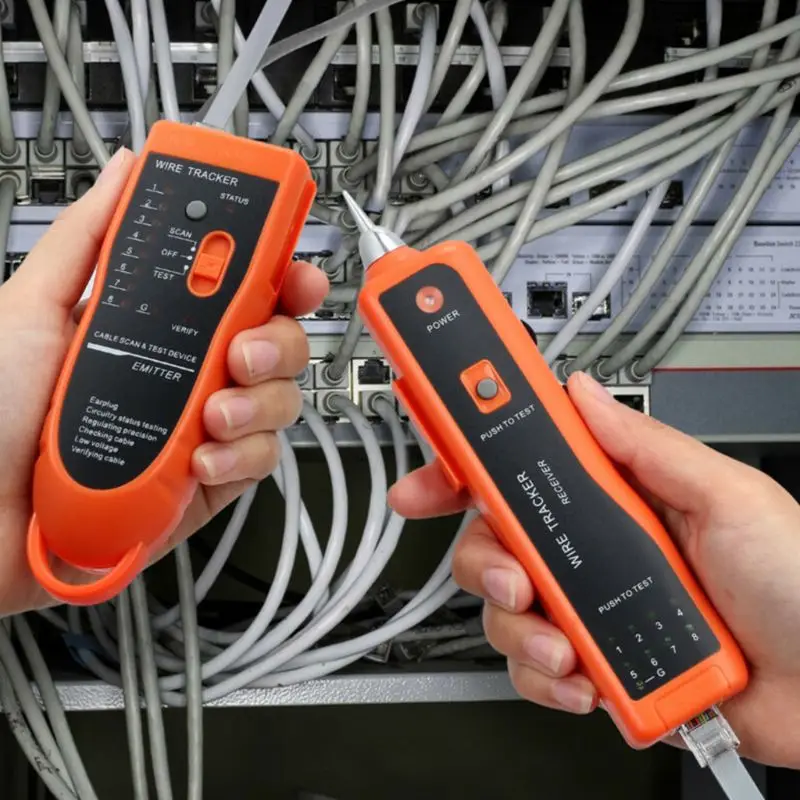

This professional wire tracking set is the latest instrument specialized in tracking of various commonly used cable and wire. The set composed of an emitter and a receiver and the pair allows us to find target wire among plenty rapidly and accurately. The receiver have both sound and LED signal indicators. By comparing the volume of the "tout" sound and the brightness of LED, you can find the target wire with the highest volume and brightness.

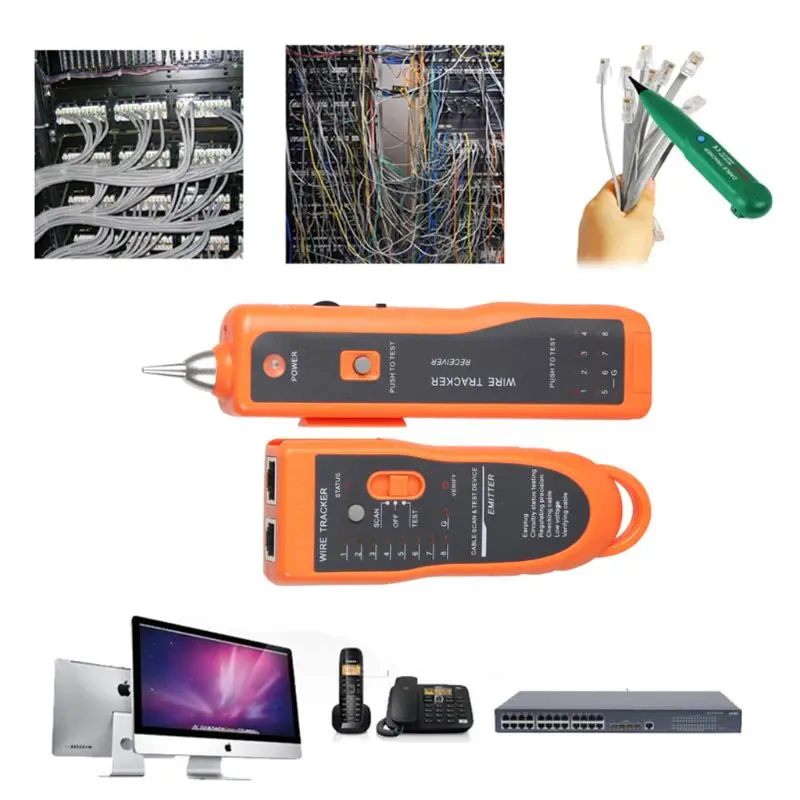

This tracker can be use to trace a wide range of cable including telephone wire, computer network cable, TV cable and other weak current electric wires. Moreover, it has other useful functions including continuity testing, network cable sequence collation, open/short circuit testing and DC level testing.

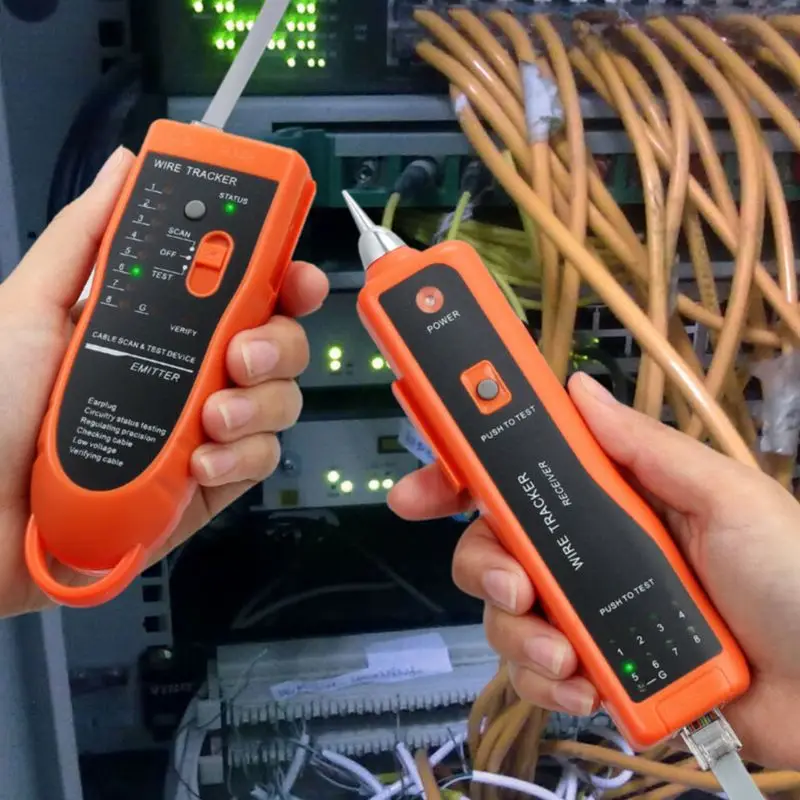

This instrument set is an ideal tool for technicians in installation and maintenance of weak current systems such as communication line and comprehensive wiring circuit. It is widely applicable to telephone systems, computer networks and other metal wire circuit and fields.

Rapidly identify the target wire among plenty of wires.

Telephone wire, network cable and other electric wires scanning & finding.

Locating target wire in wall without drilling.

Network wire collation function:

According to 16 wire sequences, you can judge the characteristics of short circuit, breaking circuit, open circuit and crossing.

Auto scan mode rapidly test corresponding double twisted cables (1,2,3,4,5,6,7,8 and G) to judge wrong connection, short/open circuit.

Network wire sequence collation supports direct wire collation of operating switch.

Continuity testing.

Open / short circuit testing.

DC level testing.

Cable assignment test.

Open, short and cross of LAN cable.

2-wire (RJ11)/4-wire (RJ45) telephone cable.

Line DC detecting, anode and cathode determination.

Ringing signal detecting - Open, short, and cross test.

Cable status testing (2-wire):

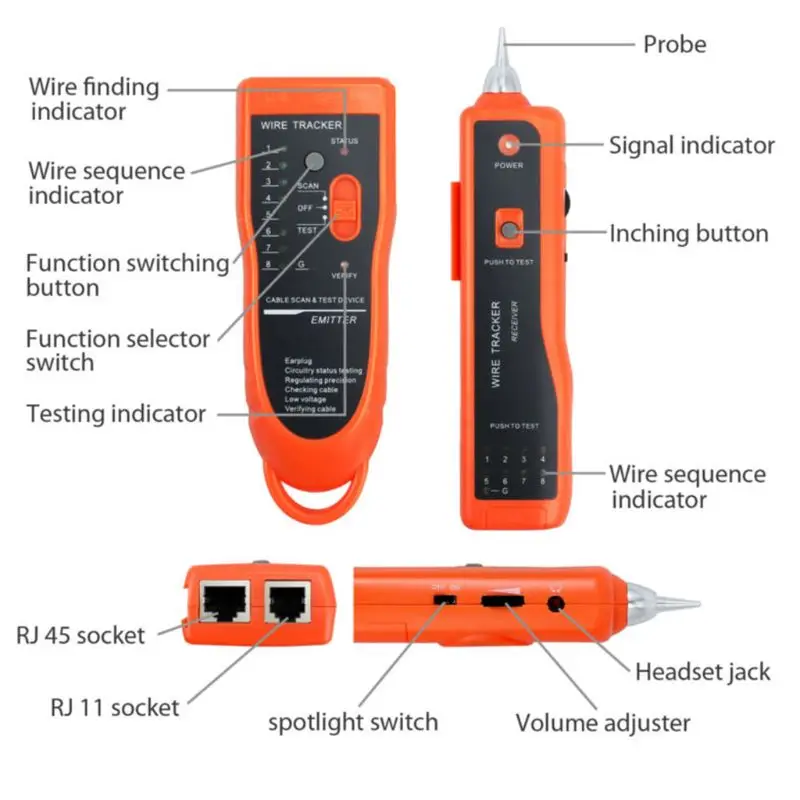

High sensitivity & strong anti-jamming ability

Bright white LED spotlight for dark environments

Earphone for noisy environments

Adjustable volume of signal

Auto time-delay power off

Low battery indication

Comes with RJ45 to BNC Converter

Trace telephone wire/ LAN cable

Trace wire in electrical system

Verify LAN cable condition

Continuity test

Low battery Indication

Bright white LED flash light

Cable Assignment Test: Open, short and cross of LAN cables, 2-wire (RJ11)/ 4-wire (RJ45) Telephone cable

Cable State Testing (2-wire):

1. Line DC detecting and anode, cathode determination

2. Ringing signal detecting

3. Open, short and cross testing

Specification:

The max working current: emitter: <=10mA; Receiver: <=30mA

Signal output electric status: 8Vp-p

Signal transmission format: multi-frequency impulse

Distance of signal transmission: >=3km

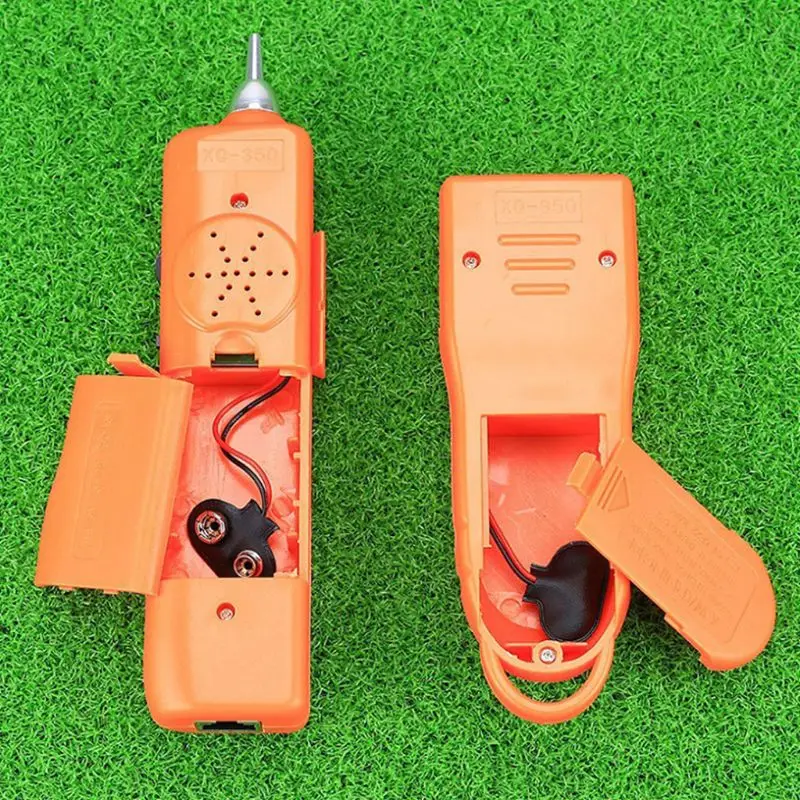

Power: DC 9V battery (NOT included)

Battery life: 50 hours continuously

Shell material: ABS

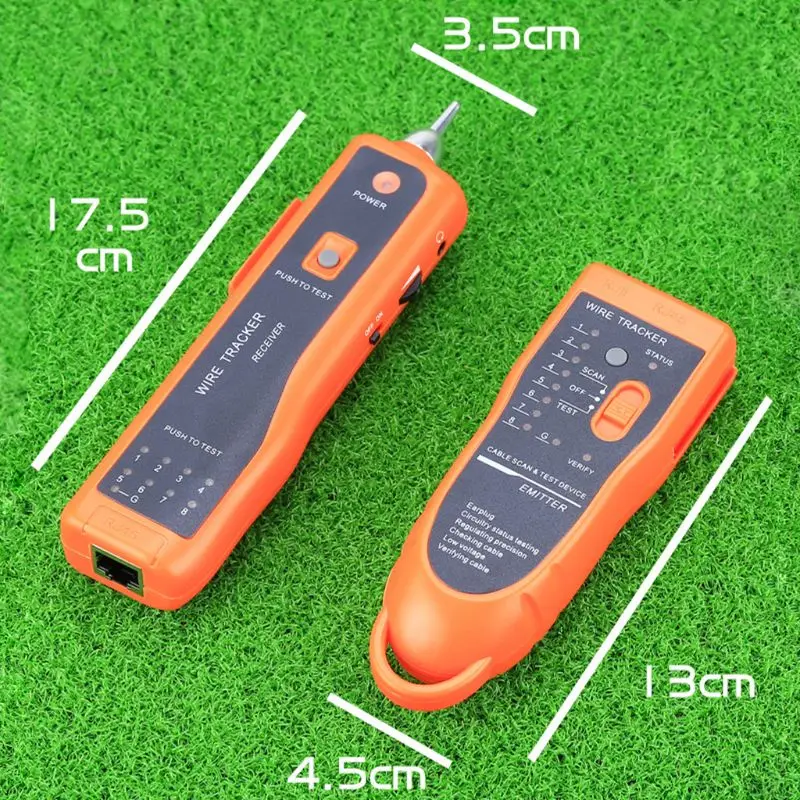

Dimensions: Receiver: 17.5x3.5cm/6.89x1.38inch, Emitter: 13x4.5cm/5.12x1.77inch

Color: Orange & balck

Quantity: 1 Set

Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

          2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

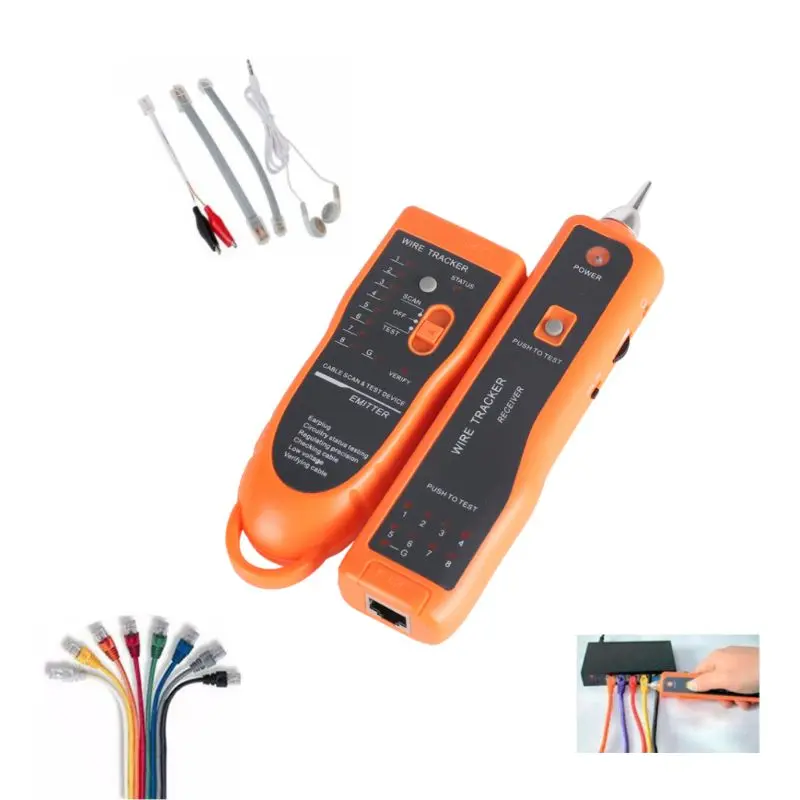

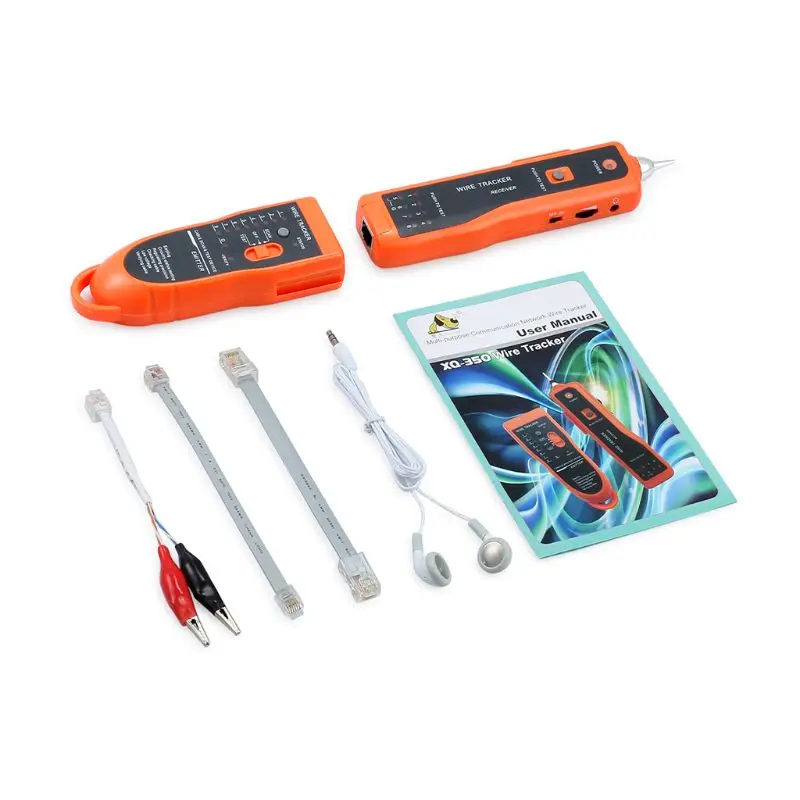

Package includes:

1 x Cable Transmitter

1 x Cable Receiver/Tracker

1 x RJ45 Cable

1 x RJ11 Cable

1 x Cable with crocodile clamp

1 x Instruction manual

1 x Earphone
