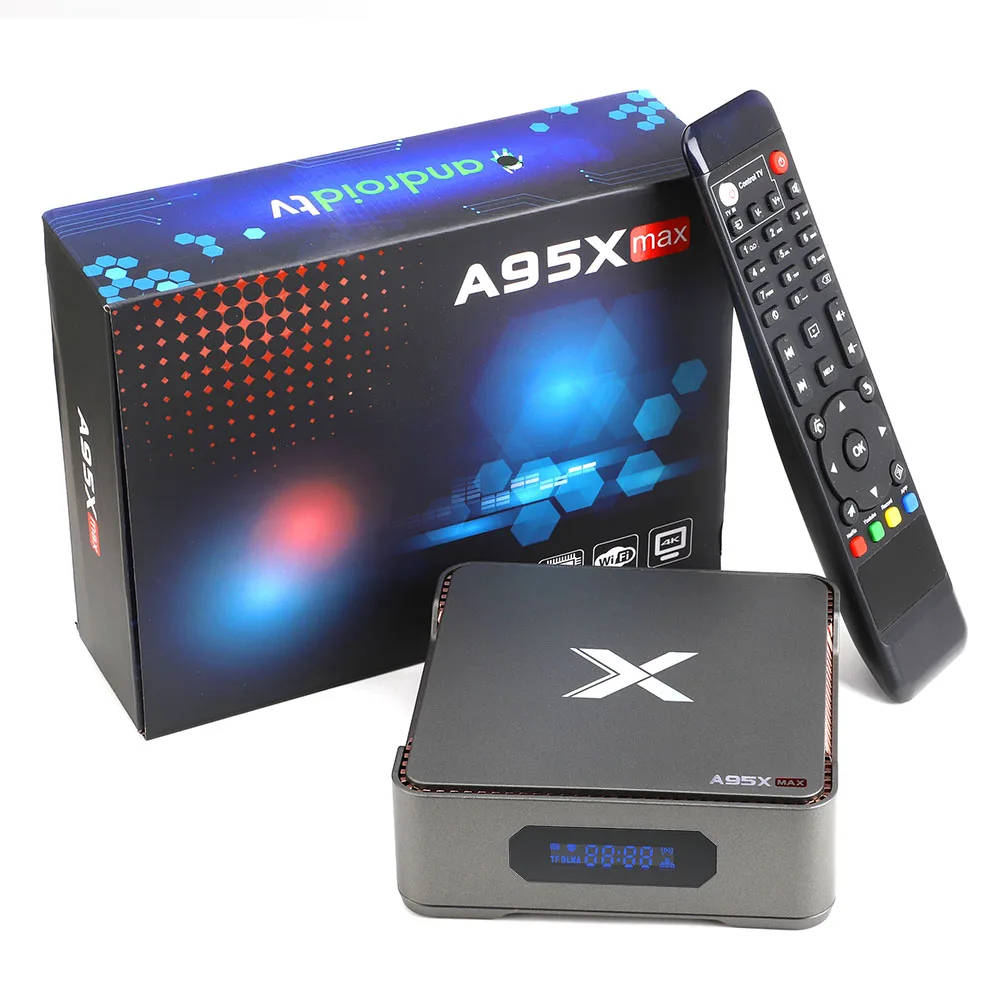

A95X MAX PVR Video Recording Android 8.1 TV Box Amlogic S905X2 Quad Core 4GB 64GB 2.4G 5G Wifi BT4.2 1000M H.265 4K Set Top | Электроника

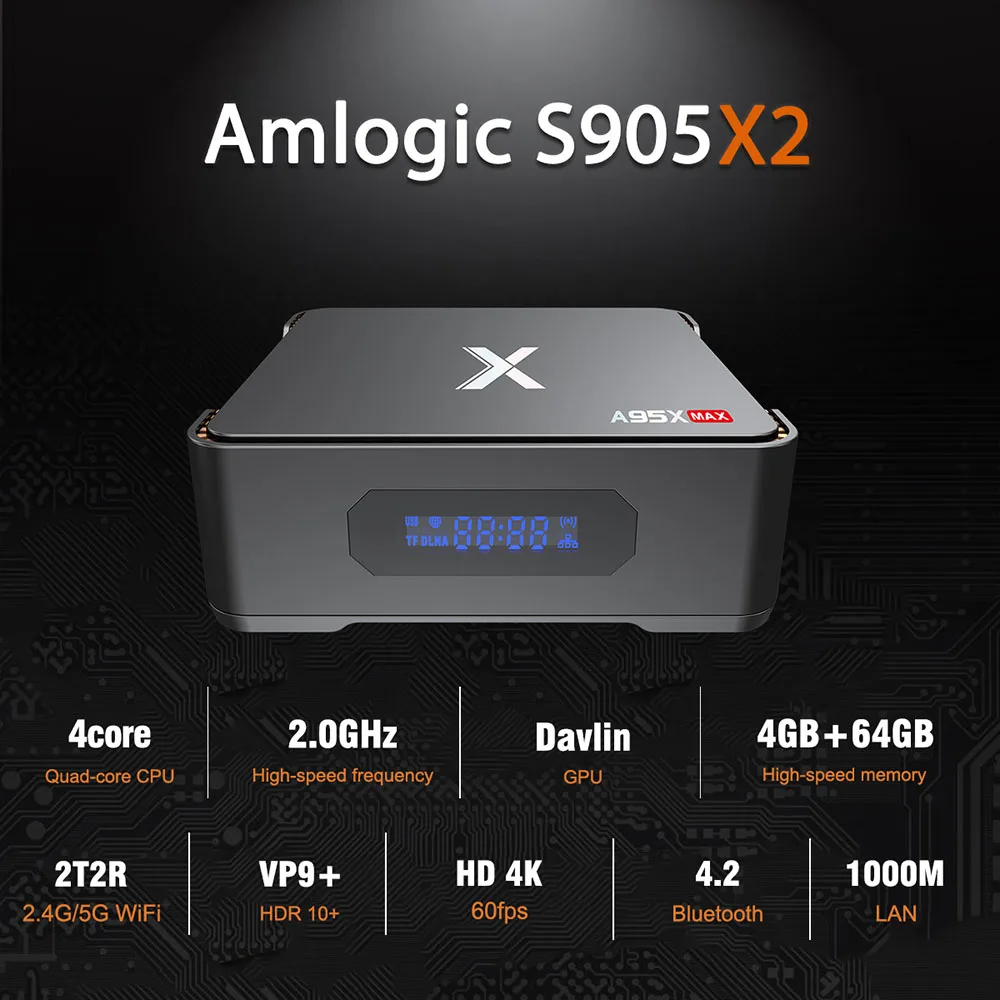

System hardware configuration

CPU

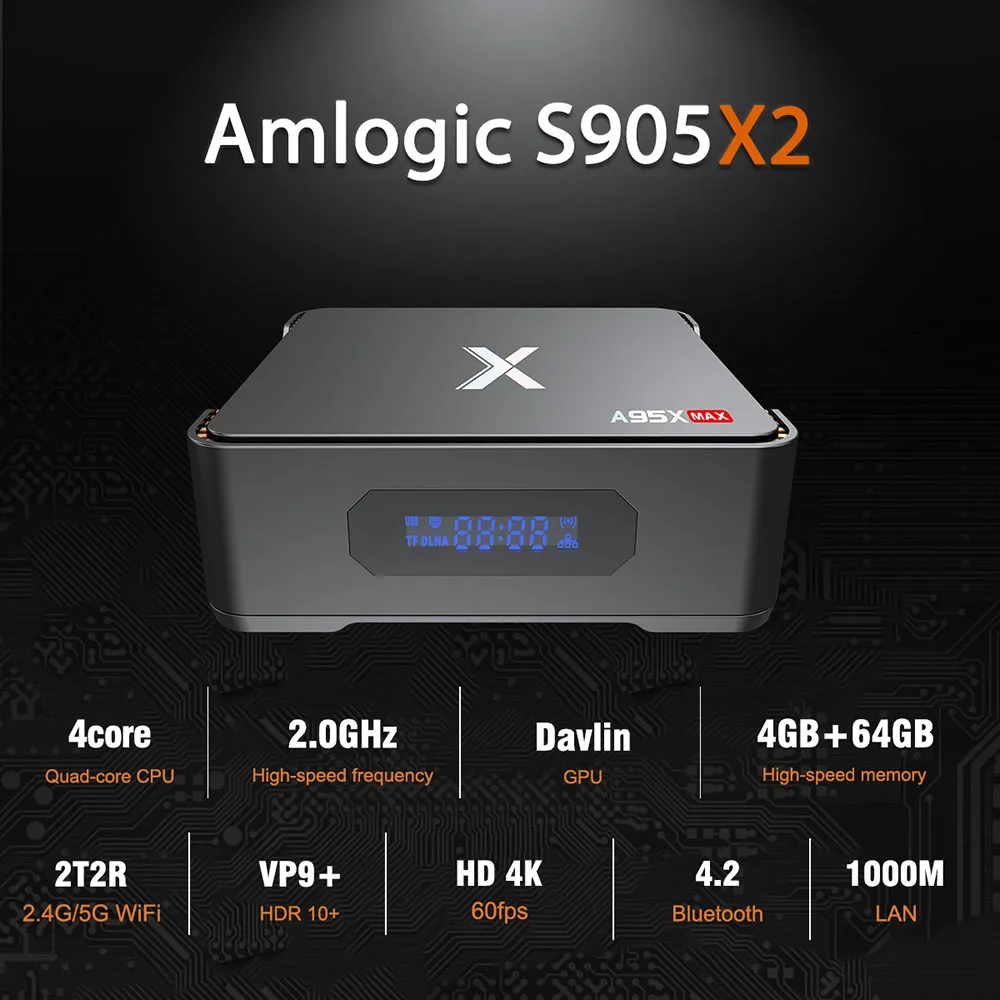

Amlogic S905X2 Quad-core Cortex-A53

GPU

ARM Mali-G31MP

RAM

2GB/4GB

ROM

EMMC 32GB/64GB

Network Connections

Wifi

2T2R IEEE 802.11 a/b/g/n/ac(2.4G&5G), Support 20MHz/40MHz/80MHz, 300Mbps in 802.11n, 876Mbps in 802.11 ac

Bluetooth

V4.2, Support 4.2+HS, BLE, ANT and compatible with V1.2, 2.X

Network

RJ45, IEEE 802.3 10/100M/1000M

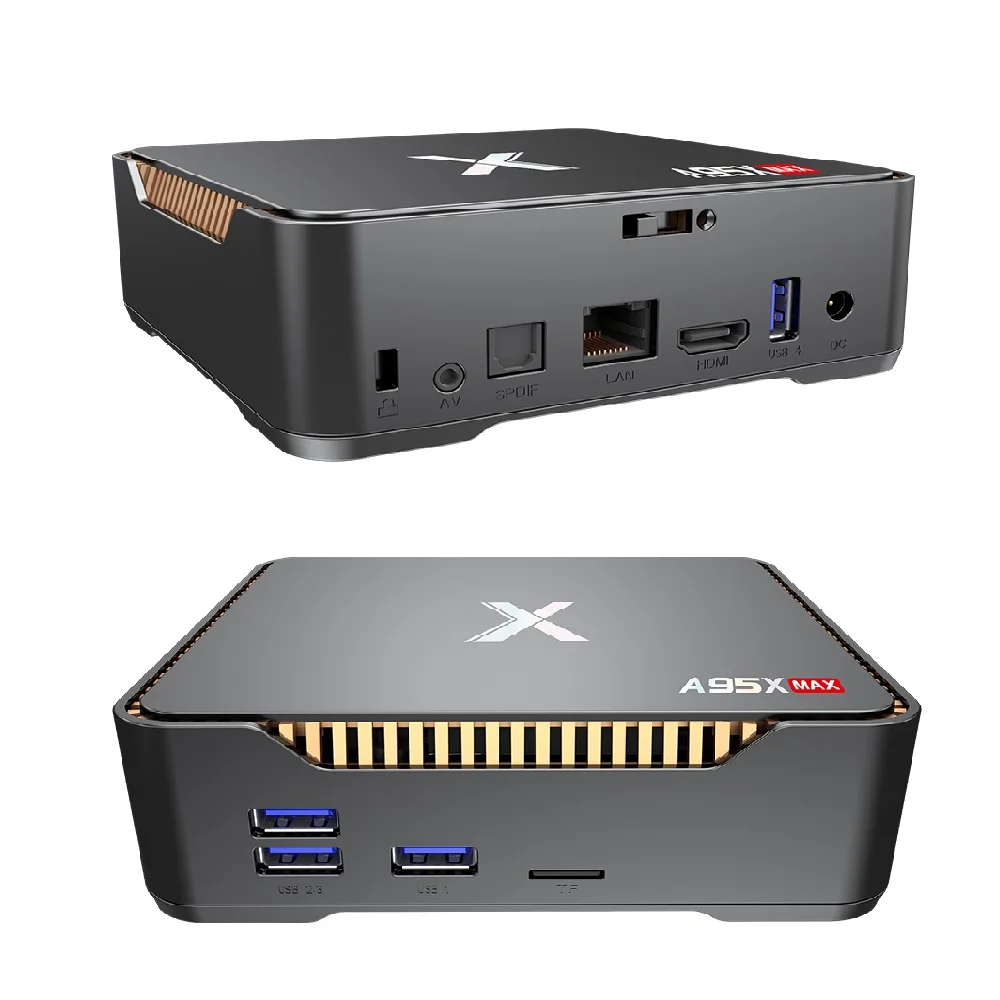

Interface Configuration

Memory Card Socket

External memory:  SDHC/SDXC  Support 4GB/8GB/16GB/32GB/64GB

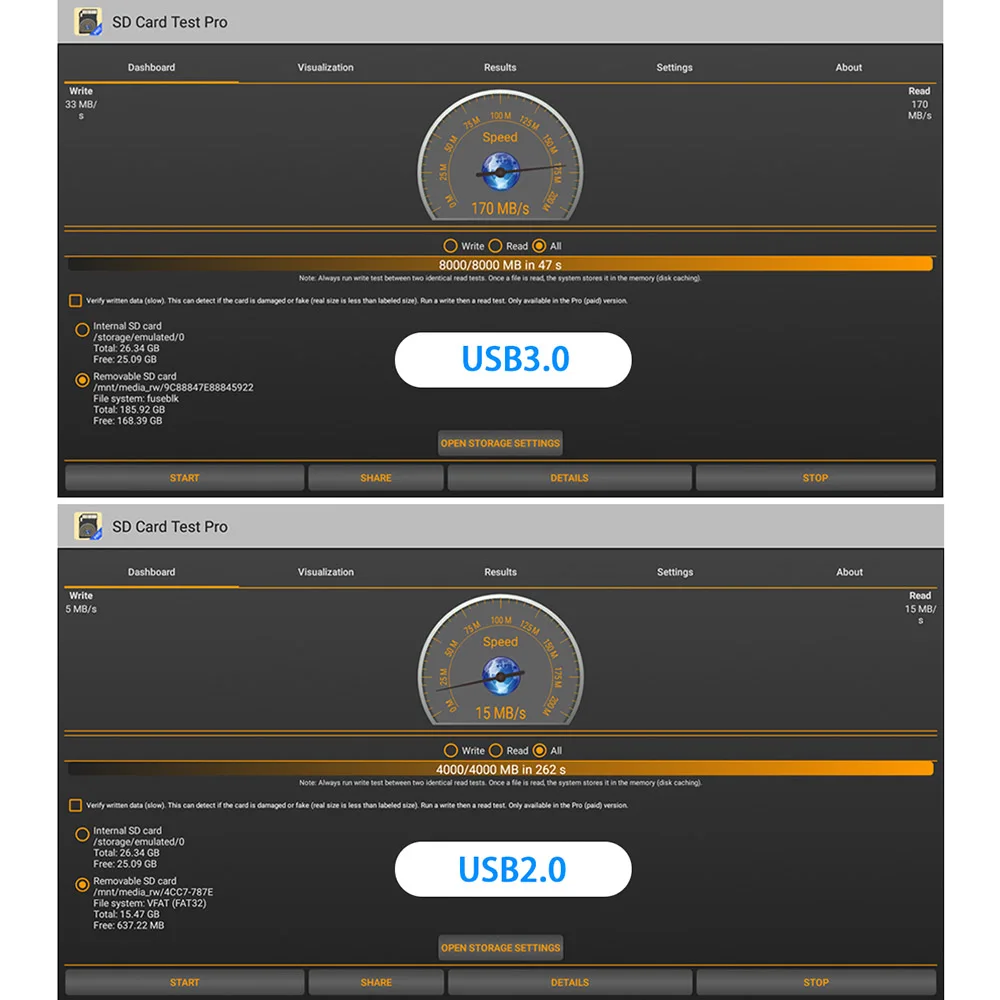

USB Interface

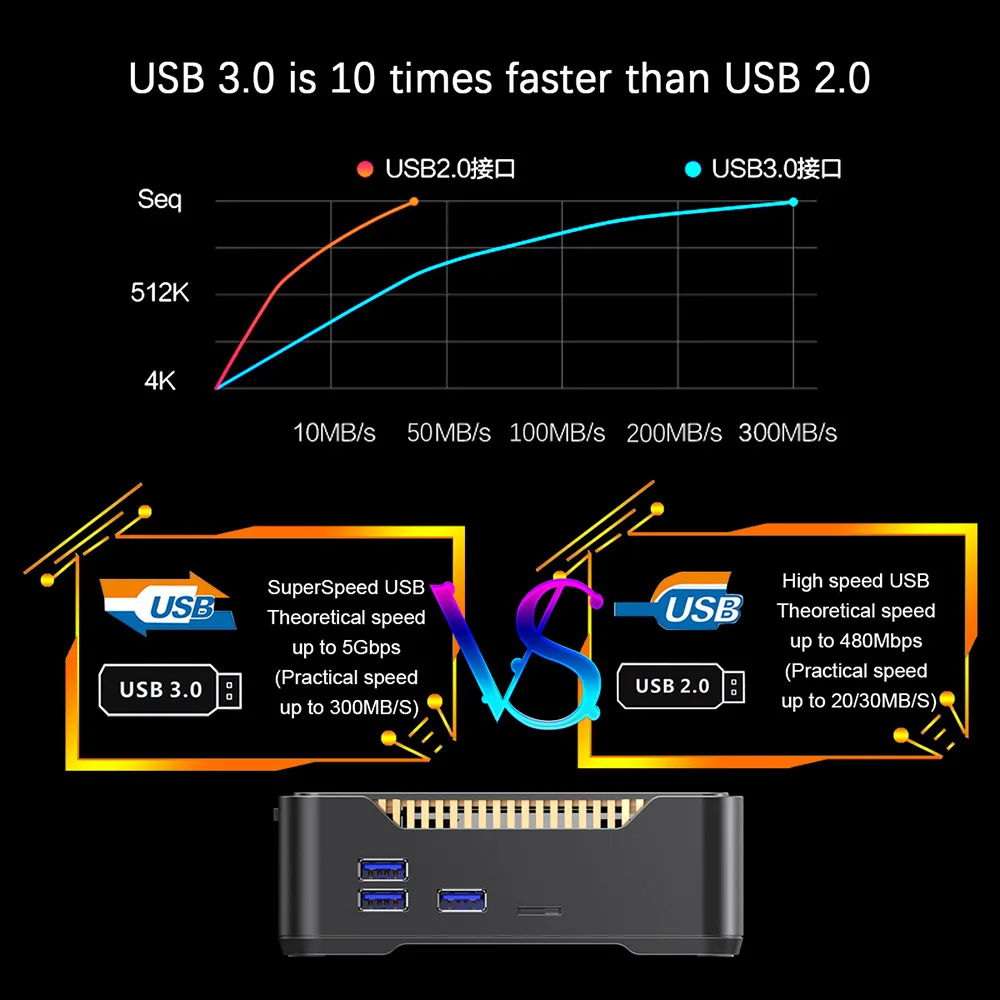

Data transfer supportive: USB2.0x1   USB3.0x3

AV Jack

∮3.5mm jack  CVBS 480i/576i standard definition output

DC Connector

∮5.5mm jack

HD Interface

HD 2.1 ,4Kx2K 75 max resolution output.
Support transmitter with 3D, Dynamic HDR ,CEC and HDCP 2.2

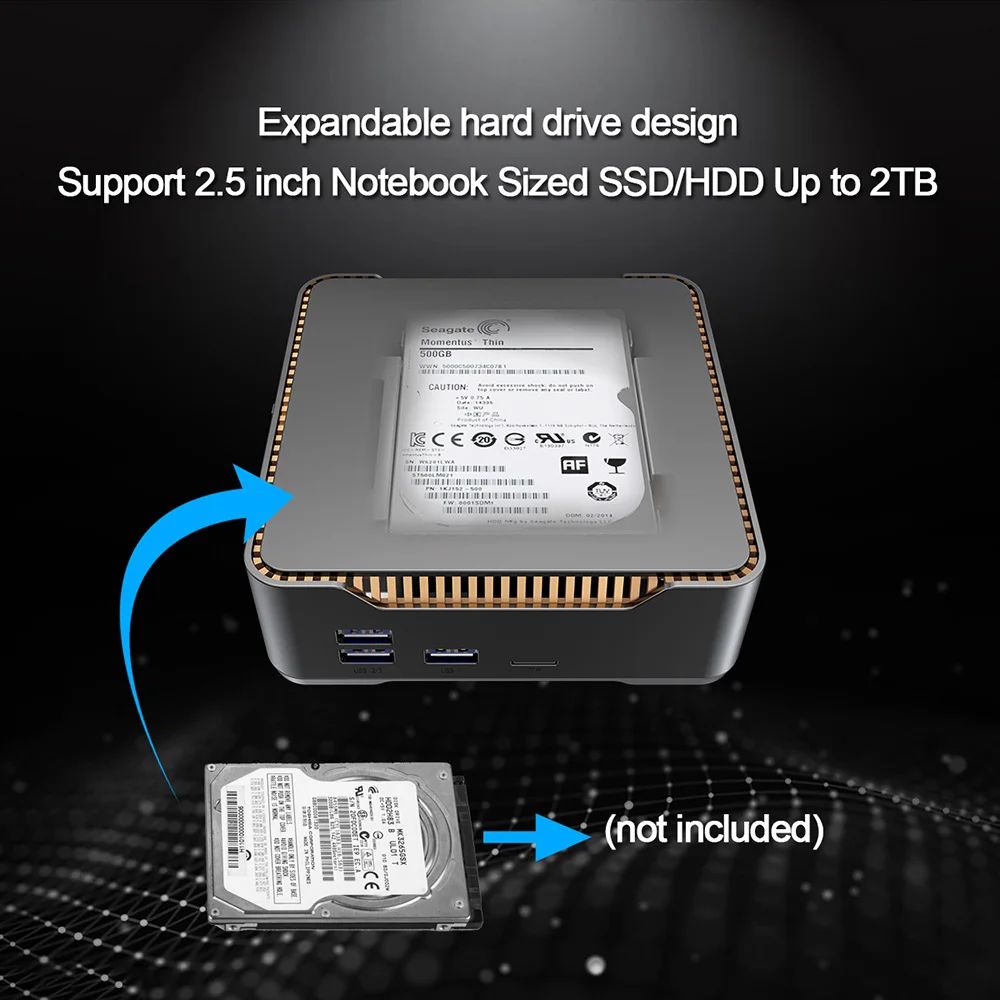

SATA Jack

support2.5〃HDD 500G/1T/2T(Power consumption<4W)

S/PDIF Jack

Support

Software Configuration

System

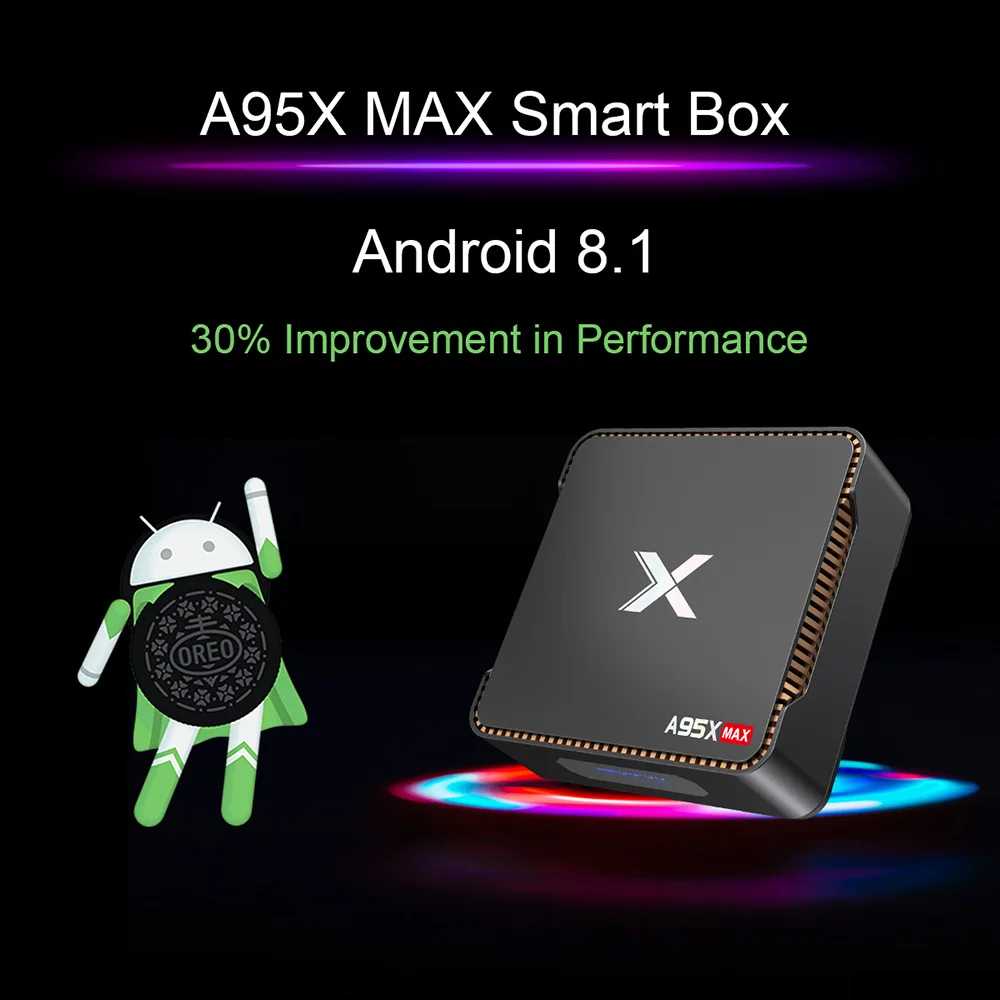

Android 8.1

VIDEO

  Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
  Support multi-video decoder up to 4Kx2K 60fps+1x1080P 60fps
  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
  Video/Picture Decoding
-  VP9 Profile-2 up to 4Kx2K 60fps
-  H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps
-  AVS2-P2 Profile up to 4Kx2K 60fps
-  H.264 AVC HP L5.1 up to 4Kx2K 30fps
-  H.264 MVC up to 1080P 60fps
-  MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496)
-  WMV/VC-1 SP/MP/AP up to 1080P 60fps
-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps
-  MPEG-2 MP/HL up to 1080P 60fps (ISO-13818)
-  MPEG-1 MP/HL up to 1080P 60fps (ISO-11172)
-  RealVideo 8/9/10 up to 1080P 60fps
-  Multiple language and multiple format sub-title video support
-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
-  Supports JPEG thumbnail, scaling, rotation and transition effects
-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Video/Picture Encoding
Independent JPEG and H.265/H.264 encorder with configurable performance/bit-rate
JPEG image encording
H.265/H.264 video encording up to 1080P 60fps with latency

AUDIO

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM


HD JPEG、BMP、GIF、PNG、TIF

Language

English French German Spanish Italian etc multilateral languages
