AIYIMA 12V Bluetooth MP3 Decoder Board WAV WMA Decoding Player Receiver Dot Screen With Lyrics Display Car | Электроника

---



Product description:

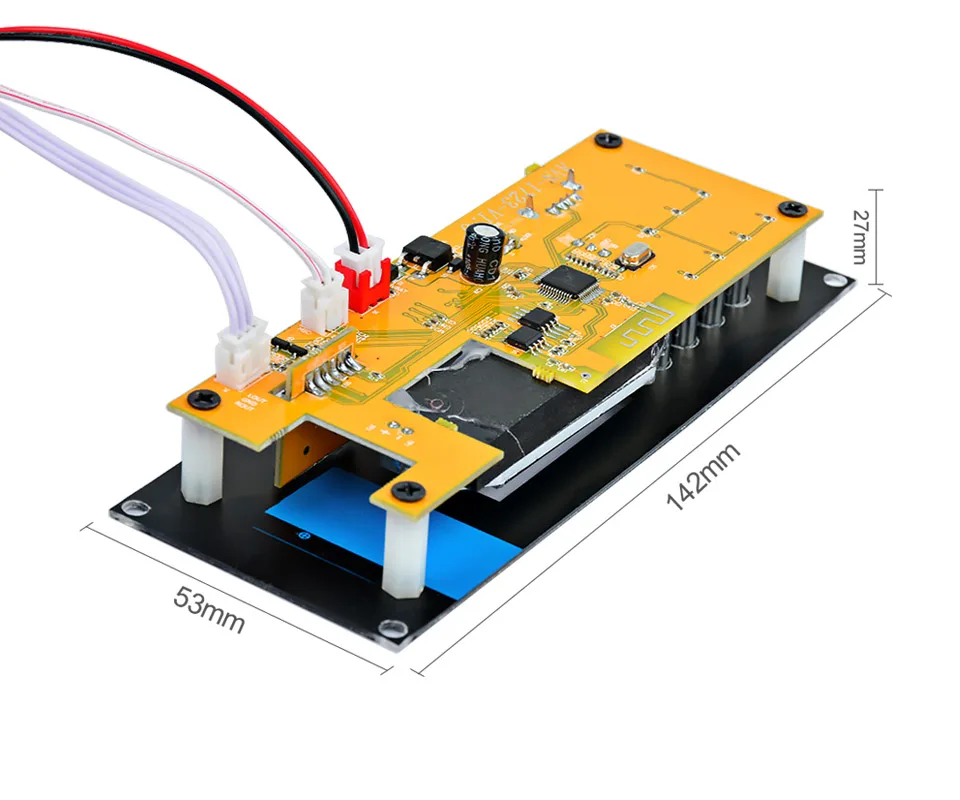

Power type; DC9-12V power supply (3.7-5V power supply optional)   Appearance size: 142.44*52.9MM   Output amplitude: more than 500MV   Rated input: 12V/0.2A   Rated power consumption: USB playback current less than 120MA ,other status less than 80MA   Operating temperature: -20 ° C -60 ° C     Main feature:   1. Support stereo Bluetooth speaker function, that is, mobile phones and other devices can send music to speakers (A2DP) via Bluetooth;   2. Support the speaker terminal to control the up and down music through the Bluetooth control mobile phone and other devices, adjust the volume;   3. Bluetooth is based on CLASS2 power level, adopts Bluetooth 2.1+EDR specification, compatible with Bluetooth 3.0 and below, and the transmission speed can reach 3Mbit/s;   4. Supports playing music on SD/MMC Card and U disk. The music formats are: MP3, WMA, WAV (excluding license);   5. Support FM, the frequency band is: 87MHZ- 108MHZ;   6. Support AUX input, that is, external audio source can access the speaker through AUX and adjust the volume on the speaker;   7. Support speaker status broadcast.   8. Support function switching hotkey (one button in Card, u disk, AUX IN, FFM Bluetooth playback) (MODE button on the remote control is the function switch button);   9. Support firmware encryption;   10. Support USB connection to the electric culvert for firmware upgrade;   11.FAT16, FAT32, ExFAT/Fat64 file system support;   12. Support directory level: 8 level subdirectories;   13. Number of supported files: The number of files is not controlled under the single directory, and the total number of music files is less than 99999;   14. Support SD/MMC;   15. Support USB2.0, fully compatible with USB1.1;   16.32 level sound volume   17. Support UX/FM/MIC recording;   18. Support 128*64 dot matrix screen display working status and playing time as well as song name and singer name, lyrics synchronization;   19. DC input for 9V to 12V power supply;   20. Higher security: anti-power reverse design, even if the power is reversed, it will not burn the product.


Package included:

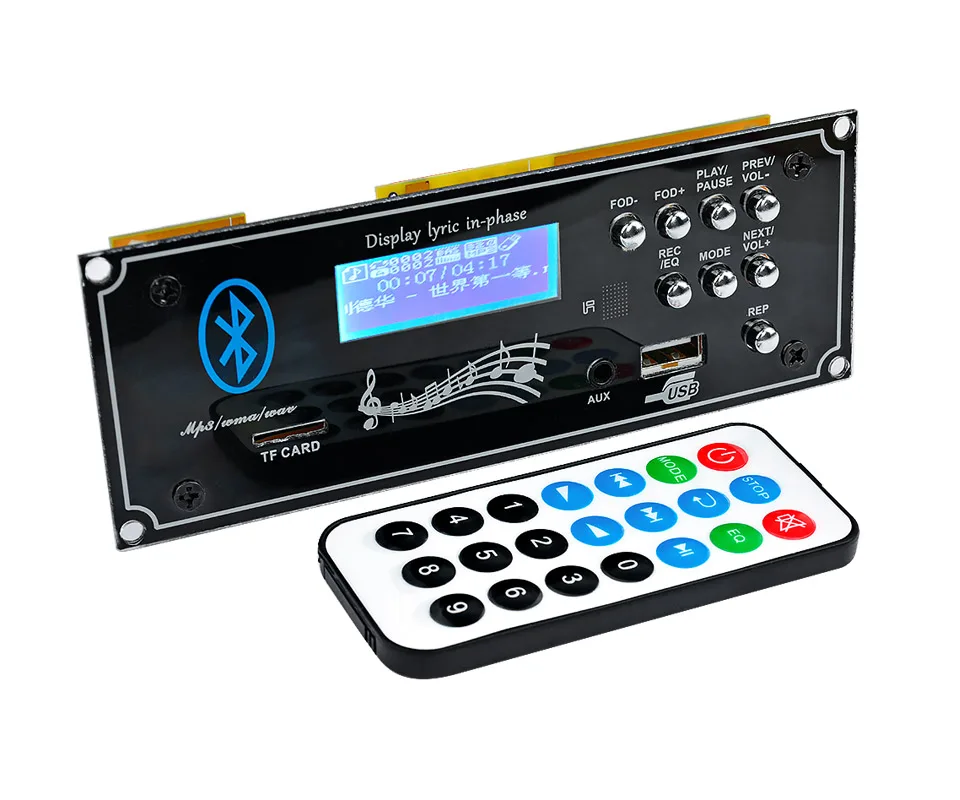

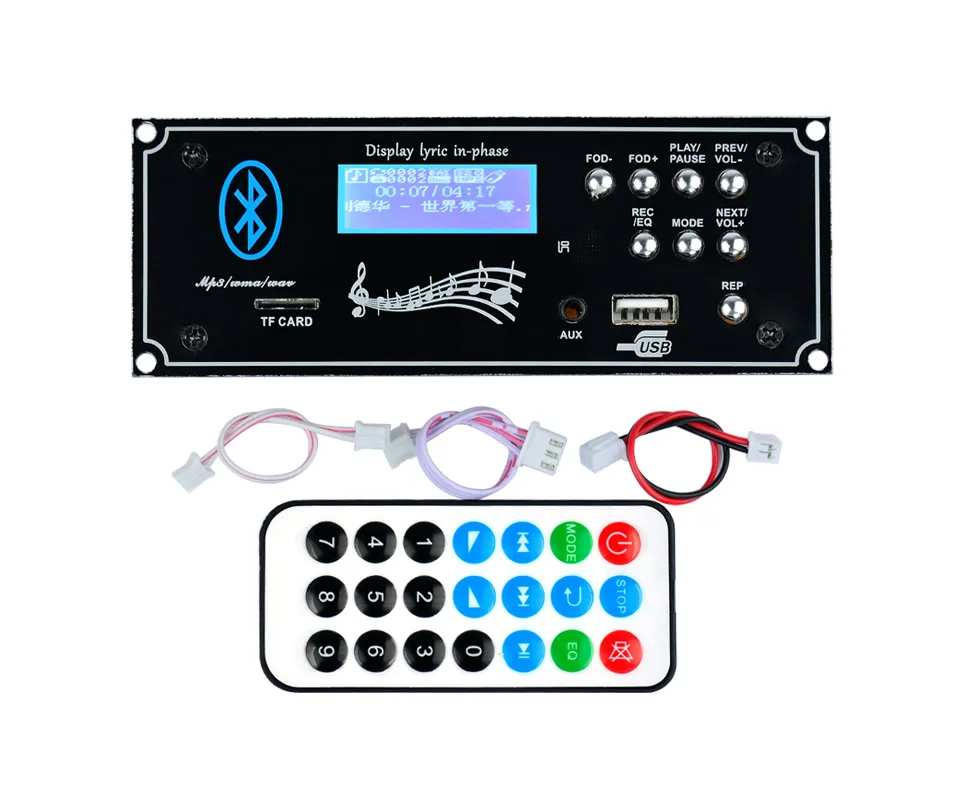

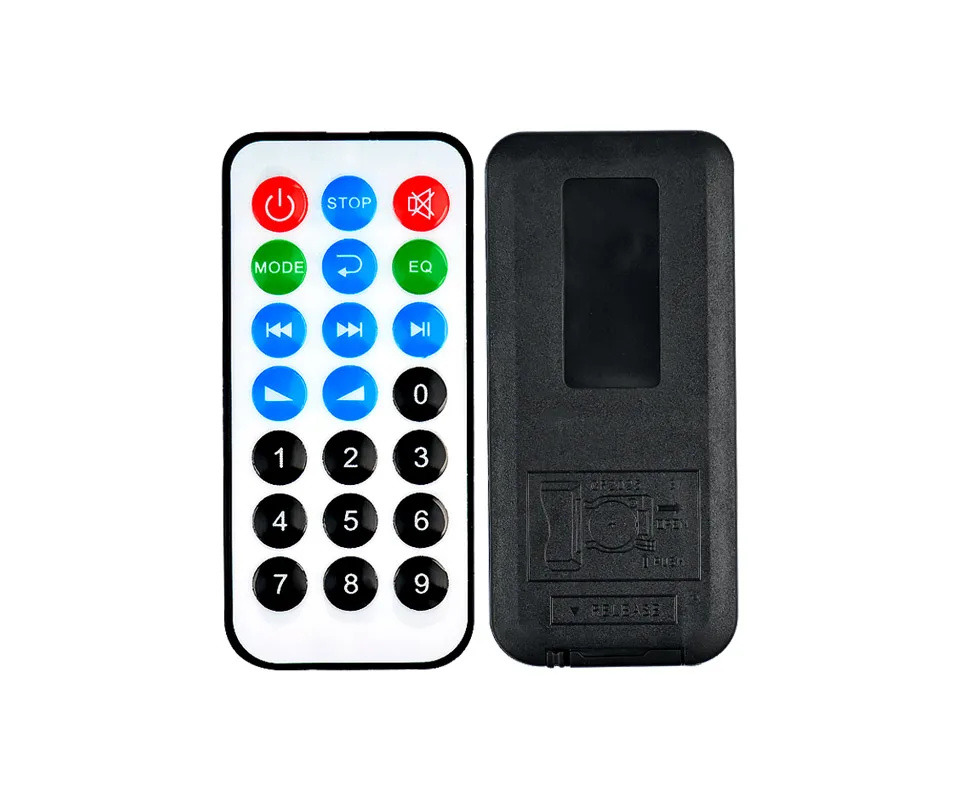

1PC MP3 Decoder Board + Remote Control + Cable
