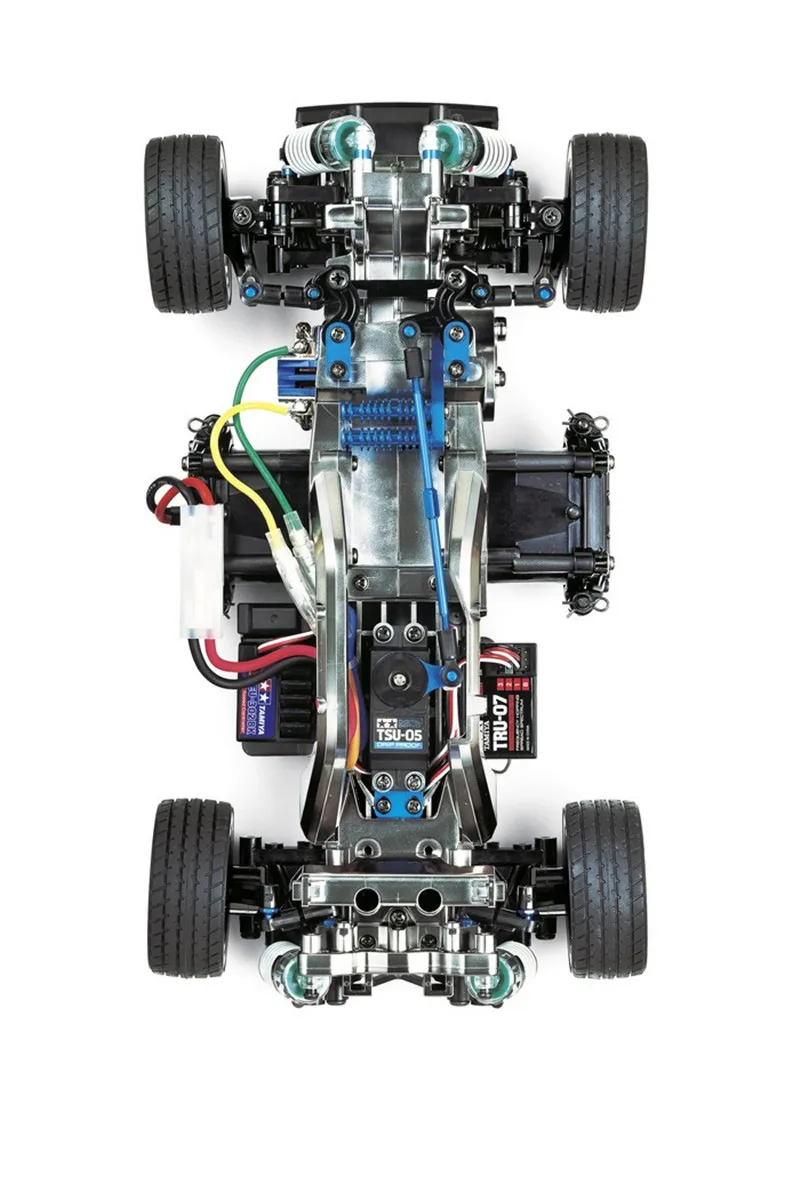

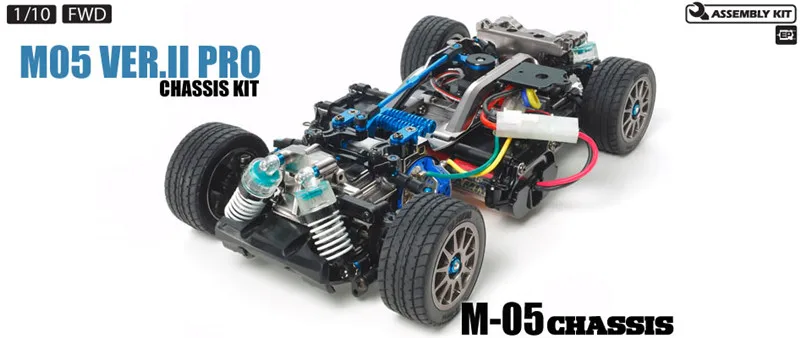

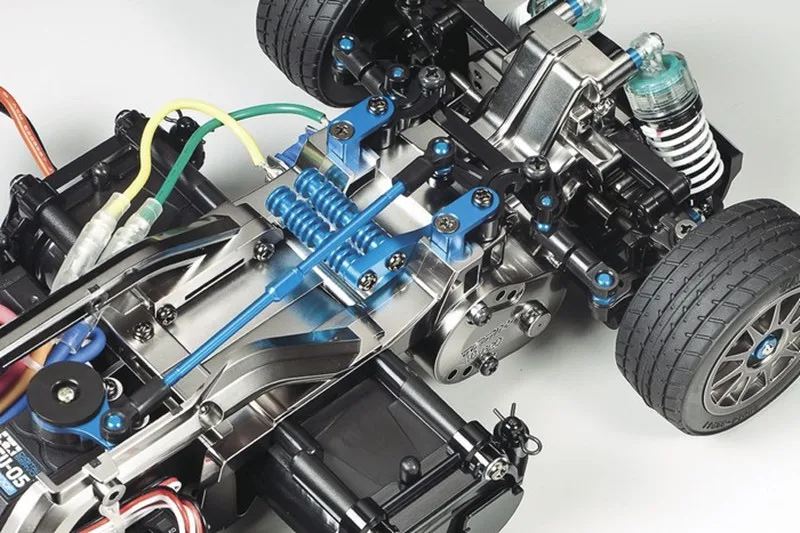

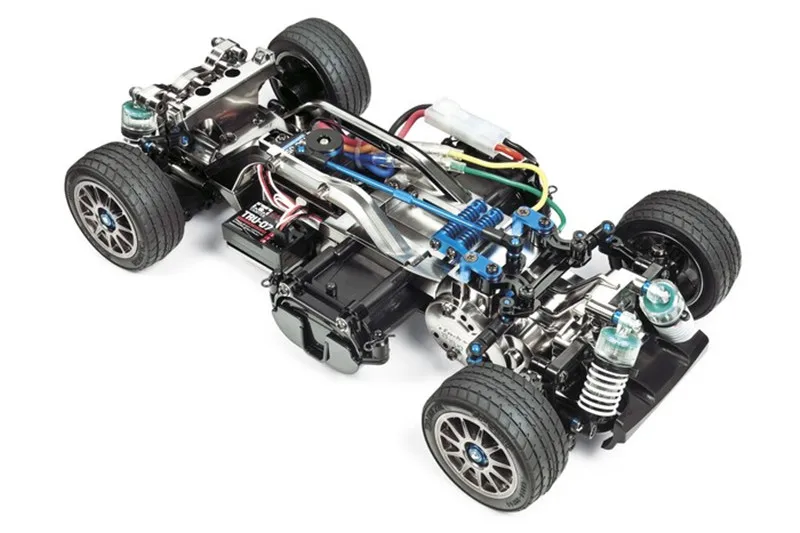

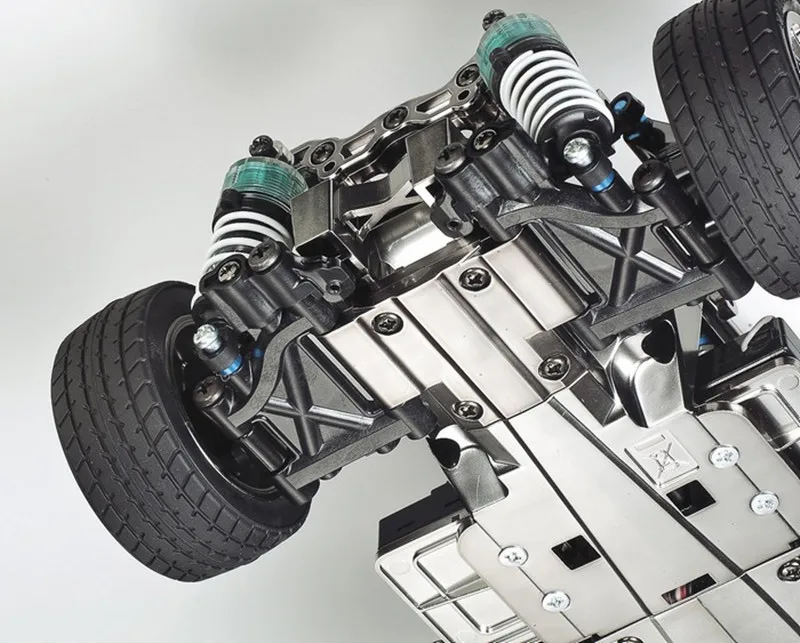

Tamiya 58593 1:10 KIT RC M-05 Pro Ver. II Chassiskit Bausatz



Type	Detail
Scale	1/10
Construction type	Assembly kit
Terrain use	On-Road
Drive-train	2WD FWD
Drive type	Gearbox
Drive line	Dog bone
Differential type	Gear
Suspension	Fully independent double wishbone
Steering mechanism	Bell-crank
Shock damper	Oil-filled damper
Shock damper material	Plastic
Tire type	Not included
Tire tread	N/A
Body material	Not included
Chassis material	Plastic
Electronic Speed Control (ESC)	Not included
ESC model	N/A
LED Light buckets	No
LED lights	No
Motor	N/A
Bearings	Shielded ball bearing
Adjustable camber	Fixed
Adjustable toe angles	Front only
Adjustable ground clearance	Yes
Adjustable gear ratio	Yes
Adjustable wheelbase	Yes
Adjustable track width	Fixed
Adjustable shock angle	Fixed
Special feature 1	New Feature: The chassis is compatible with square-shaped battery packs.
Special feature 2	New aluminum motor mount designed specifically for the M-05 V.2 chassis.
Special feature 3	Chassis, D parts (arm stays and damper stays, etc.) and wheels have a Semi-Gloss Black metal-plated finish.
Special feature 4	The motor is fitted to a newly-designed mount and has been moved 4.5mm closer to the center of the chassis when compared to the original M-05.
Special feature 5	Improved weight distribution and sharper steering response.
Special feature 6	New suspension arms: one-piece suspension arms are made from reinforced plastic.
Special feature 7	New suspension arms have rebound adjustment with the use of a simple set screw.
Special feature 8	Low Profile Servo Compatibility.
Special feature 9	The servo attachment position has been shifted 8mm downwards to secure a lower center of gravity.
Requires A	2-channel radio gear & electronic speed control
Requires B	7.2 battery & charger
Requires C	Body set
Requires D	Tires

Pictures for reference only.
