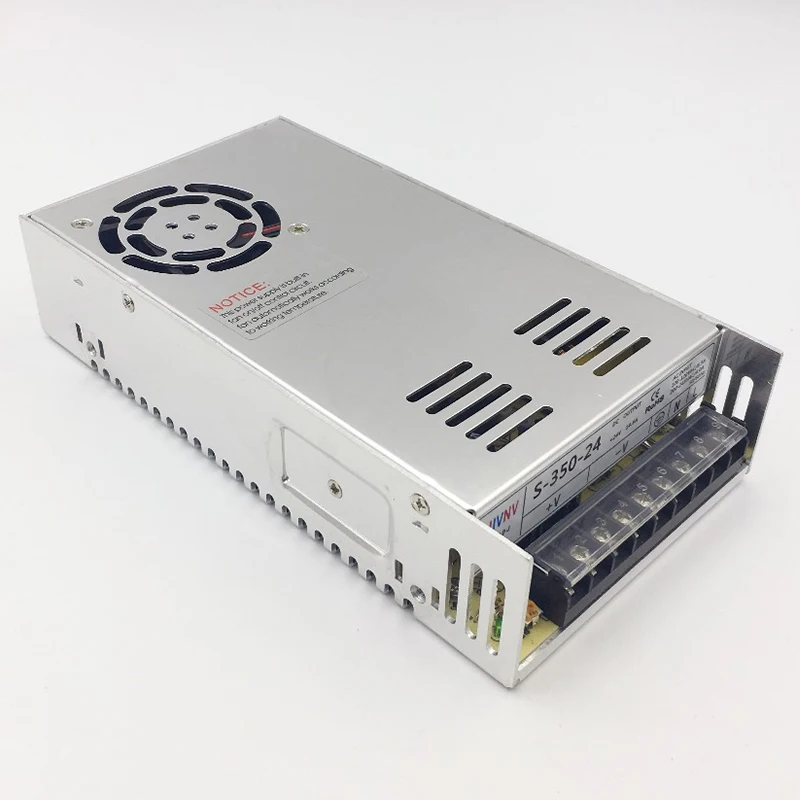

Новый S-350-24 импульсный источник питания 350 Вт 24V14.6A AC/DC трансформатор драйвер

---

high reliability. 105 Celsius degree output capacitor. Universal AC input. High efficiency and low operation temperature. Soft-start current can reduce the AC input impact effectively. With short-circuit and overload protection. Compact size,light weight

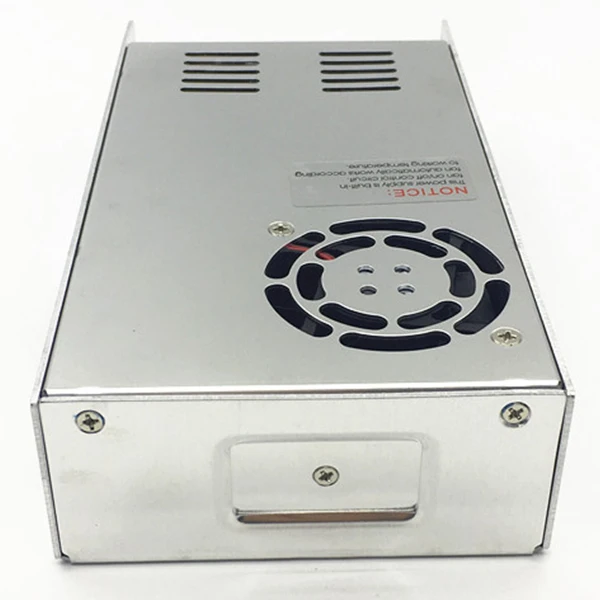

100% full-load burn-in test. Install with EMI filter,minimum wave. Forced air cooling by built -in DC fan
Saftey Standards Design refer to UL1950 Design refer FCC PART15 J Conduction class. We do not include any power cables with this power supply; however any power cable can be used.

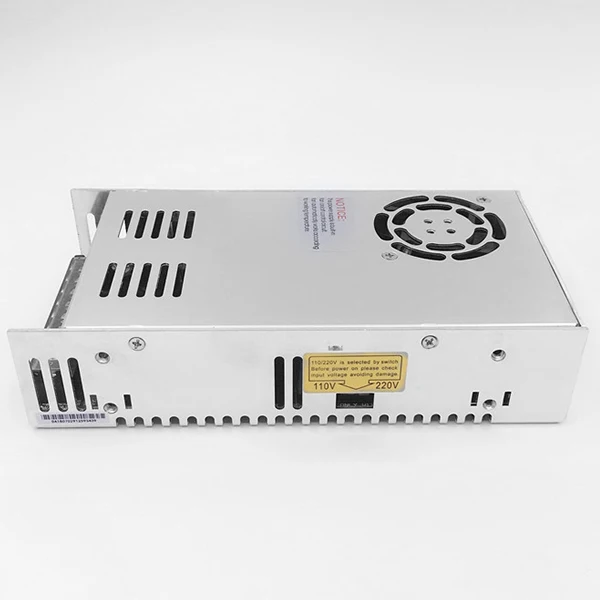

Store temperature and humidity -20 Celsius~+85 Celsius,10%~95%RH; Input Voltage Range 85~132VAC/180-264VAC selected by switch, 47-63Hz;254-370VDC; Overload protection 105%~150% Type: pulsing hiccup shutdown Reset: auto recovery; AC inrush current: Cold stat ,15A/115VAC 30A/230v AC; Vibration: 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes; Withstand voltage Input and output internal: 1.5KVAC,Input and enclosure: 1.5KVAC,Output and enclosure: 0.5KVAC;
Isolation resistance Input and output internal: Input and enclosure, Output and enclosure: 500VDC/100ME; High-temperature protection ERH1: Greater than equal 65 Celsius Fan on, Less than equal 55 Celsius Fan off, Greater than 70 Celsius,Cut off output(5~15); ERH1 Greater than equal 70 Celsius Fan on, Less than equal 5 Celsius Fan off, Greater than equal 80 Celsius,Cut off output(24~48V)
Weight: 1.15Kgs
Output: DC Voltage 24V
Rated Current: 14.6A
Current Range: 0 - 14.6A
Rated Power: 350W
Ripple & Noise: (max) 150mVp-p
Voltage Adjustment Range: 20-26.4V
Voltage Tolerance: +/-1.0%
Line Regulation: +/-.5%
Load Regulation: +/-.5%
Setup / Rise Time: 200ms / 50ms at full load
Hold up Time: (typ) 20ms at full load
Efficiency: 83%
Input current: 6.5A/115V 4A/230V
Leakage current: Less than 3.5mA/240VAC
Temperature coefficient: +/-0.03%/ Celsius(0~50%)
Setup rise hold up time: 200ms,100ms,20ms
DC adjustment range: +/-10%
Over voltage protection: 115%~135% 27.6~32.4V fold back current limitting, auto-recovery
Setup,rise,hold uo time: 200ms ,80ms,20ms at full load and 230vac
Withstand voltage: i/p-o/p: 1.5KVAC,I/P-FG: 0.5kVAC 1minute
Working tempure: -10 Celsius~+60 Celsius 20%~90%RH(5~7.5V,0-45 Celsius)
Safety standars: Design refer to UI1012
EMC standards: Design refer to FCC part 15

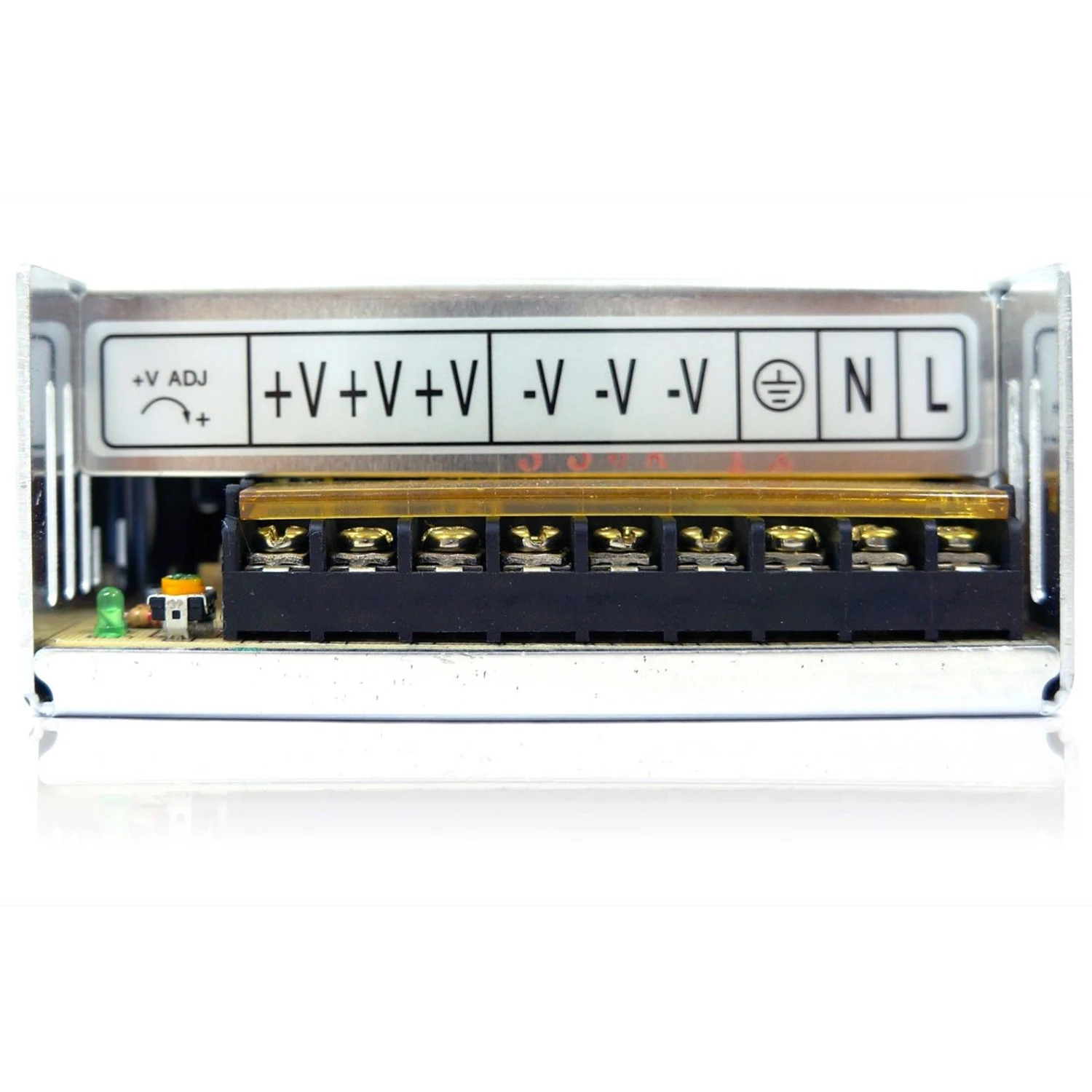

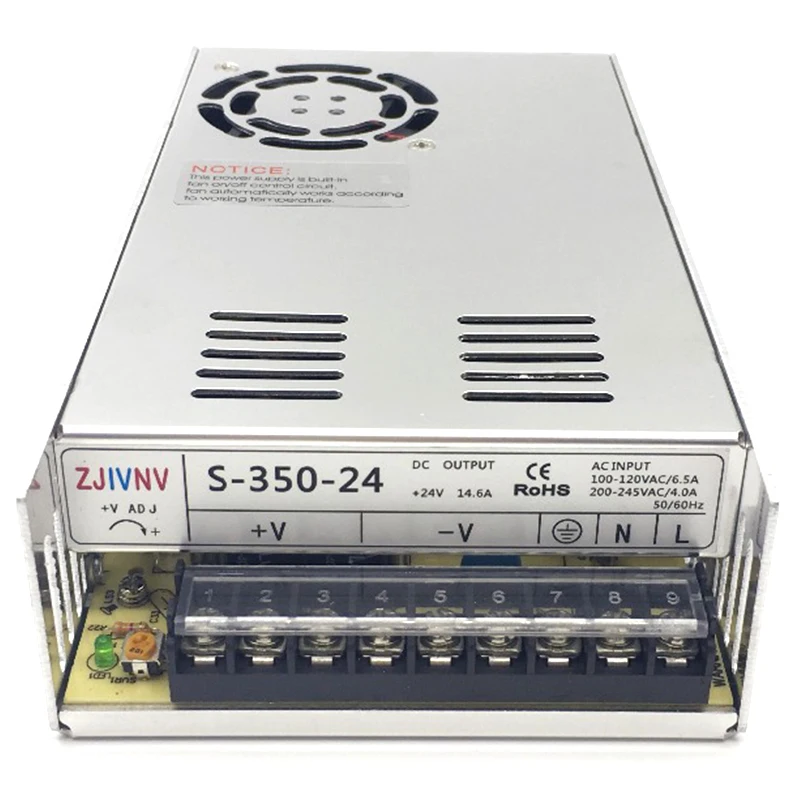

Connection: 7p /9.5mm pitch terminal block
Model Number Output Tol R&N Effi pp
S-350-24 24V,O~14.6A +/-2% 150mV 78% 135
colour: Silver
Material: Electronic components + metal
size: 21.5*11.5*5cm
Package Contents:
1*AC to DC transformer
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
