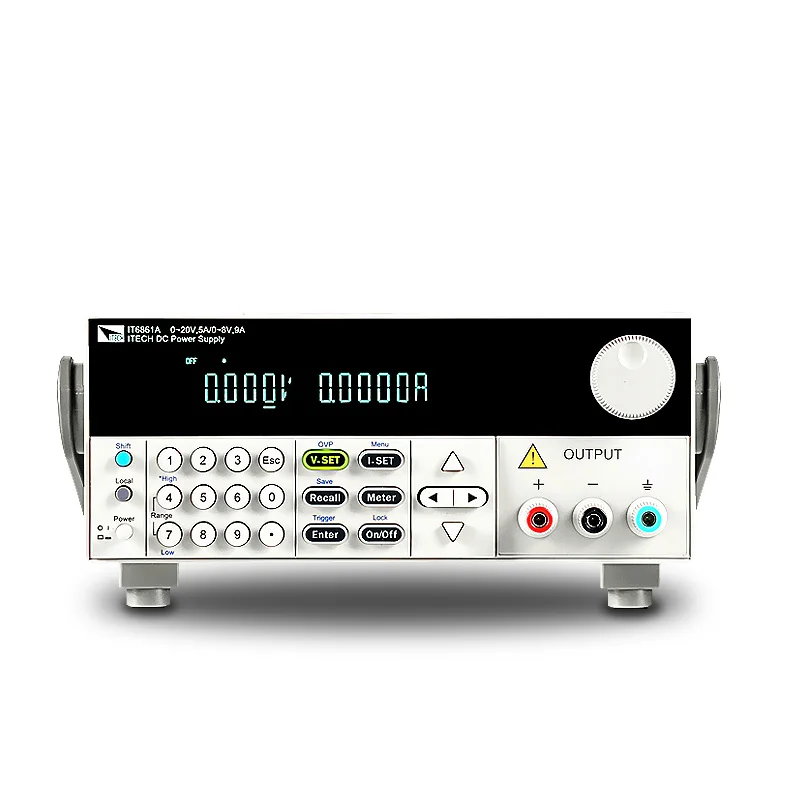

ITECH IT6861A 20V/5A/100W 8V/9A/72W Single Output Dual Range Programmable DC POWER SUPPLY

  IT6860A Dual-range DC Power supplyIT6860A series (72~108W) power supplies are programmable dual-range output power supplies.Voltage 8V~150V,current 1.5A~9A.With high resolution of 1mV, 0.1mA,which can test the products with different power range.You can adjust the voltage/current stepping by pressing the left and right keys to moving the cursor.It supports output timer function and programs by the front panel,which will bring great convenience.Their built-in RS232 and USB communication interfaces make the communication much faster.Each power supply has 2 voltage output ranges and 2 current output ranges,one set of IT6860A can work as two sets of the traditional supplies.Greatly saving your cost and operation space.   Features:   ·Dual range ouput ·Convenient data entry via knob or numerical key pad ·High accuracy and high resolution ·Low ripple and low noise ·Intelligent fan control, energy conservation, noise reduction ·Timer function (0.1~9999.9S) ·Built-in RS232/USB communication interface ·Support SCPI command,compatible IT6800 frame formate protocol   DC Output Ratings:   Maximum 100/72 W Maximum Output voltage: 0-20 V, 0-8 V Resolution: 1 mV Current: 5 A, 9 A Resolution: 0.1 mA Ripple: <2 mVpp 0.5 mVrms, <3 mVpp 1 mVrms Setup Accuracy:   Voltage: <0.04% + 8 mV Current: <0.1% + 5 mA Feature set:   Intelligent fan control. Low acoustic noise. Accurate readback of current and voltage CC and CV mode OVP and OCP protection Terminals on the rear and front. Remote sense List mode Timer function Low ripple Rack mount kit available Connectivity:   RS232 and USB SCPI and register programming
