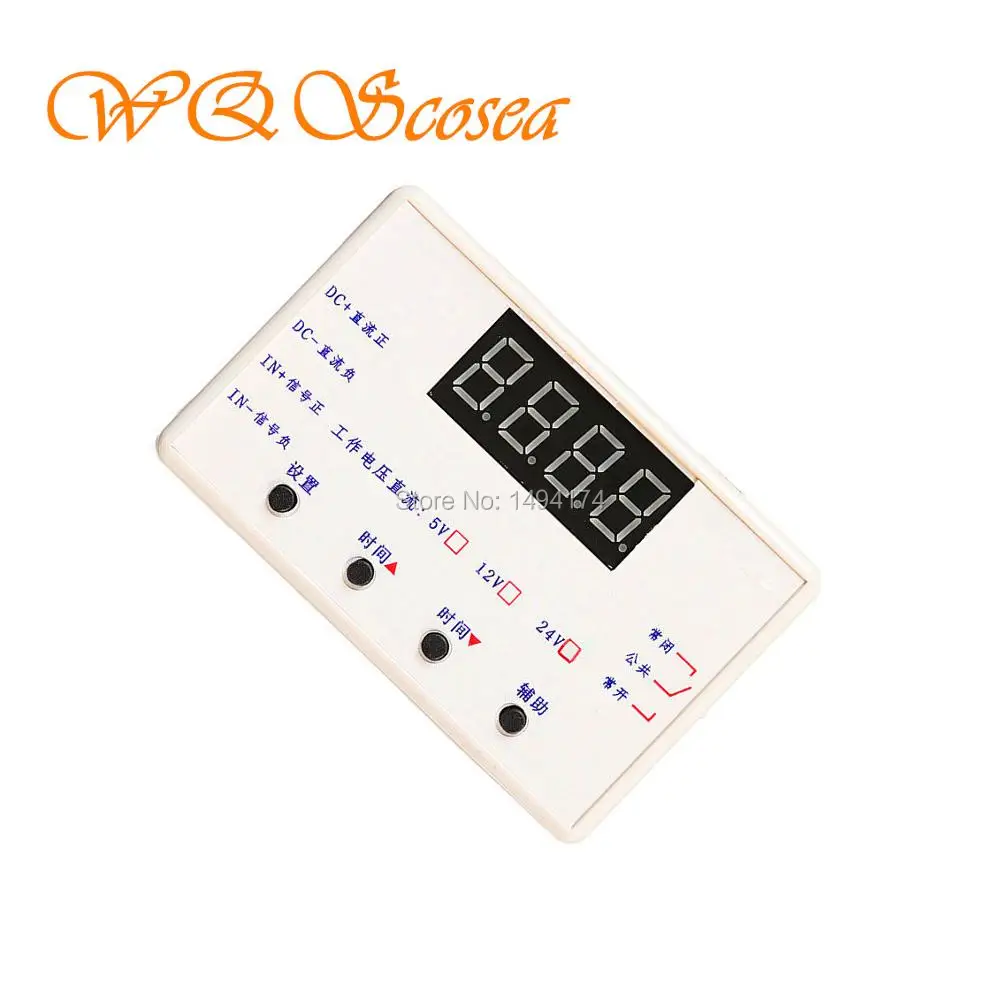

Description:   1. With Case and Digital Time LED Display 2. Cycle Delay Time is adjustable from 0.01 seconds (10ms) To 999 minutes at any time 3. The setting parameters can be memorized after power off.. 4. Adjustable Time / Multifunction Trigger Delay Timing Relay / Power On Off Module / Cycle Delay Timer / Self-lock PLC Home Automation Delay Time Switch  5. 24 kinds of commonly used multifunction; can control the solenoid valve, water pump, motor, lights, etc.     Feature:   1. New upgrades to simplify,to meet customer needs. 2. Increase the supply anti-reversefunction. 3. The use of opto isolated input and output,enhanced anti-jamming capabilit consumption. 4. The setting parameters can be memorized after power off.. 5. Signal terminal voltage signal can be maintained for a long time. 6. to ensure stability,industrial grade board,class PLC.     Specifications:   Display: LED Digital Display Input voltage: DC 5V Output power: can control the the DC Load within 5A or the AC load Relay Specifications:AC 220V 10A or DC 30V 10A. Delay time range: 0.01 seconds (10ms) To 999 minutes adjustable at any time (0.01 seconds to 9.99 seconds / 0.1 seconds to 99.9 seconds / 1 second to 999 seconds / 1 minute to 999 minutes) life:about100,000times,Working temperature:-40-85°C Size: 65.79 * 40.51mm(L * W)     Wiring port Terminal Description:   1. DC +: Input positive DC power supply 2. DC -: Input negative DC power supply 3. IN +: Signal input positive 4. IN -: Signal input negative 5. NO: Normally open relay interface, the relay hanging before pull-in, after pulled shorted connect to COM  6. COM: Relay Common Interface 7. NC: Normally closed relay interface, the relay is shorted connect to COM before pull-in, after pulled hanging   Function list:   P-11: Jog (offer signal to relay pull-in, the signal disappears, the relay stop) P-12: Self-locking (offer signal to pull, give a signal again to stop relay) P-13: Offer signal, the relay will stop automatically for A second; trigger will be invalid during the delay time P-14: Offer signal, the relay will stop automatically for A second; trigger re-timing during the delay time P-15: Offer signal, the relay will stop automatically for A second; trigger superimposed during the delay time P-16: Offer signal, the relay will stop automatically for A second; trigger reset during the delay time P-17: Offer signal, relay pull-in, input signal is disconnected, start counting time after A second power off, during the delay period offer signal again to keep output, timing stop P-18: When power is on, the relay will pull in immediately and power will be off after A second delay; until the next power-on P-21: Offer signal, delay A seconds, the relay pull P-22: Offer signal, more than A seconds, the relay pull, the signal disappears, the relay stops P-23: After the signal disappears for more than A second, the relay will be closed, the signal will disappear and the relay will stop P-24: When the signal is over A second, the relay will be closed and the relay will stop after the signal disappears for more than A seconds P-25: When the signal is over A second, the relay will pull in. If the signal is over A seconds again, the relay will stop P-26: When the signal pull is over A second and stop, signal disappear and relay pull again, after A second stop P-27: Detection of pulse signal, the relay stops; no pulse signal, the relay delay A seconds then pull; (continuous signal or signal disappear are regarded as no pulse signal) P-28: After power on, after a second delay, the relay will be pulled until it is powered off P-31: After power on, relay pull A seconds, off B seconds, infinite loop; power off to stop P-32: With signal, start P-31 infinite loop; signal disappears, terminates loop P-33: Give a signal, start P-31 infinite loop; give a signal again to terminate the loop P-34: After the power on, the relay will pull in after A second delay and will stop after B seconds P-35: With signal, delay A seconds later, the relay pull, after pull B seconds stop P-36: With signal, more than A seconds, the relay pull, after pull B seconds the relay stop, the signal disappears, the timer cleared to stop P-37: With signal, the relay automatically stop A seconds, and then timing B seconds again, duiring A + B signal trigger is invalid P-38: With signal, the relay pull A seconds automatically stop, stop re-time after B seconds, again pull A seconds to automatically stop   Key Settings Description: Power display "----" means to enter standby mode   Press the first K1, (more than 1 second effect to prevent false triggering) Display: P -11: K2 adjust the main mode, K3, K4 adjustment function Press the second K1, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit) Press the third K1, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjust the decimal point (time unit) Press the fourth K1, "----" indicates that the standby state Press K4 in standby mode to permanently turn off / on the display and switch to low power mode   Decimal point time unit Description:   X.XX timing range: 0.01 seconds to 9.99 seconds XX.X timing range: 0.1 seconds to 99.9 seconds XXX timing range: 1 second to 999 seconds XXX. timing range: 1 minute ~ 999 minutes   Package includes:

1 PCS * WQScosea Q8S335 5V 5A LED Self-lock Trigger Power On Off Cycle Delay Time Relay PLC Automation Delay Timer Switch Module + Case
