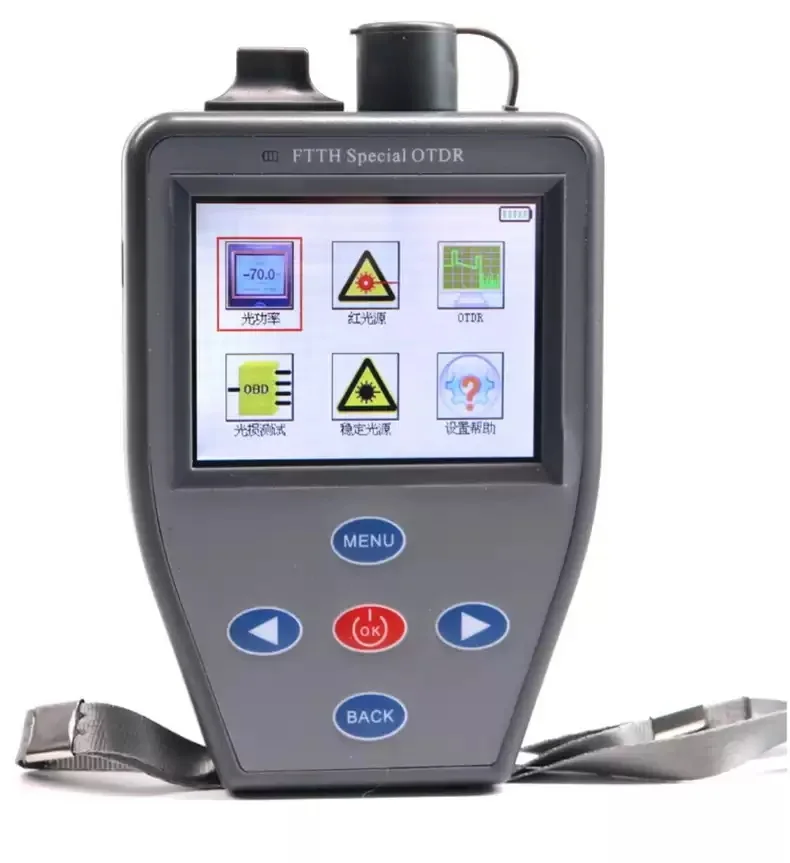

100% New FTTH OTDR mini with Optical power meter VFL stable light source Multifunction Fiber Finding Fault Measure Active Fibe | Мобильные
US $279.90
Новое поступление
5 м LC SC FC ST UPC OM3 волоконный соединительный кабель симплексный перемычка 1 ядро
430,39 - 463,50 руб.
FTTH Komshine QX35 SM OTDR 1550 нм 30 дБ Бесплатный кабель запуска 500 м FC/UPC-SC/UPC | Мобильные
121 998,63 руб.
5 шт./лот 12 нитей 9/125 волоконно-оптический свиной хвост 1 м SC/APC одиночный режим |
Внешний бронированный одножильный волоконно-оптический кабель 170 9/125 м |
51 315,57 руб.
Автомобильный GPS-локатор устройство записи отслеживания Gps-трекер Голосовое
IMC-101G | Мобильные телефоны и аксессуары
US $480.00
SC Одномодовый одиночный волоконный 2 Волоконно-оптический al порты 3 rj45 Ethernet
Характеристики
Free Shipping ONU EPON SFF module FTTH 1GE 1port ONT OLT 1.25G epon ZTE chipset fiber to home | Мобильные телефоны и
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 0.27 руб. | 0.84 руб. | 0 руб. |
| Feb-20-2026 | 0.8 руб. | 0.46 руб. | 0 руб. |
| Jan-20-2026 | 0.95 руб. | 0.59 руб. | 0 руб. |
| Dec-20-2025 | 0.64 руб. | 0.50 руб. | 0 руб. |
| Nov-20-2025 | 0.28 руб. | 0.57 руб. | 0 руб. |
| Oct-20-2025 | 0.95 руб. | 0.38 руб. | 0 руб. |
| Sep-20-2025 | 0.95 руб. | 0.59 руб. | 0 руб. |
| Aug-20-2025 | 0.67 руб. | 0.9 руб. | 0 руб. |
| Jul-20-2025 | 0.75 руб. | 0.80 руб. | 0 руб. |
Описание товара
1. Overview
EPON ONU single-user ONU is designed for ONU in deferent FTTH solutions , The carrier- class FTTH application provides date service access. this EPON ONU adopts high-performance and low-consumption chips, and supports CTC 3.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices. EPON ONU is designed by ZTE chipset.2.Functional Feature
1 Color is While
2 Router mode supports PPPoE/DHCP/ static IP
3 Support port-based rate limitation and bandwidth control;
4 In compliant with IEEE802.3ah Standard
5 Up to 20KM transmission Distance
6 Support data encryption, group broadcasting, port Vlan separation, etc.
7 Support Dynamic Bandwidth Allocation (DBA)
8 Support ONU auto-discovery/Link detection/remote upgrade of software;
9 Support VLAN division and user separation to avoid broadcast storm;
10 Support power-off alarm function ,easy for link problem detection
11 Support broadcasting storm resistance function
12 Support ACL and SNMP to configure data packet filter flexibly
13 Specialized design for system breakdown prevention to maintain stable system
14 Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
3.Hardware Specification
| Item | Parameter | |
|
|
| |
|
Interface | PON Interface | 1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric1.25Gbpsupstream/downstream SC single-mode fiber split ratio:1:64 Transmission distance 20KM |
| User Ethernet Interface |
1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | |
| Power Interface | 12V DC Power supply | |
| Performance Parameters |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1～4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber |
|
Data Transmission Parameter | PON Throughput: Downstream 950Mbps; Upstream 930Mbps， 1000Mbps
Packet Loss Ratio:<1*10E-12 latency: <1.5ms | |
|
Gateway | Router mode supports PPPoE/DHCP/ static IP WAN support Route rand Bridge mode WAN support Internet、VoIP、IPTV、TR069
LAN supports DHCP and static IP Support NAT and NAPT Support UPnP | |
|
|
Business Capability | Layer 2 wire speed switching
Support VLAN TAG/UNTAG，VLAN conversion
Support Port-based speed limitation Support Priority classification Support storm control of broadcast |
|
Network Management |
Management
Mode | Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management | |
|
Indicator |
LED Indicator | PWR: Power up or down SYS: System instructions LOS: Optical Link Status PON：ONU Registered
LINK/ACT: Link Status of Ethernet Interface |
|
Physical Features | Shell | Plastic casing |
|
Power | External 12V 0.5A AC/DC power supply adapter
Power consumption: <2W（FD101HC）,<2.3W(FD111HC) | |
|
Physical Specifications | Item Dimension：130mm(L) x 100mm(W) x 26mm (H)
Item weight：0.1kg | |
|
Environmental Specifications | Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
