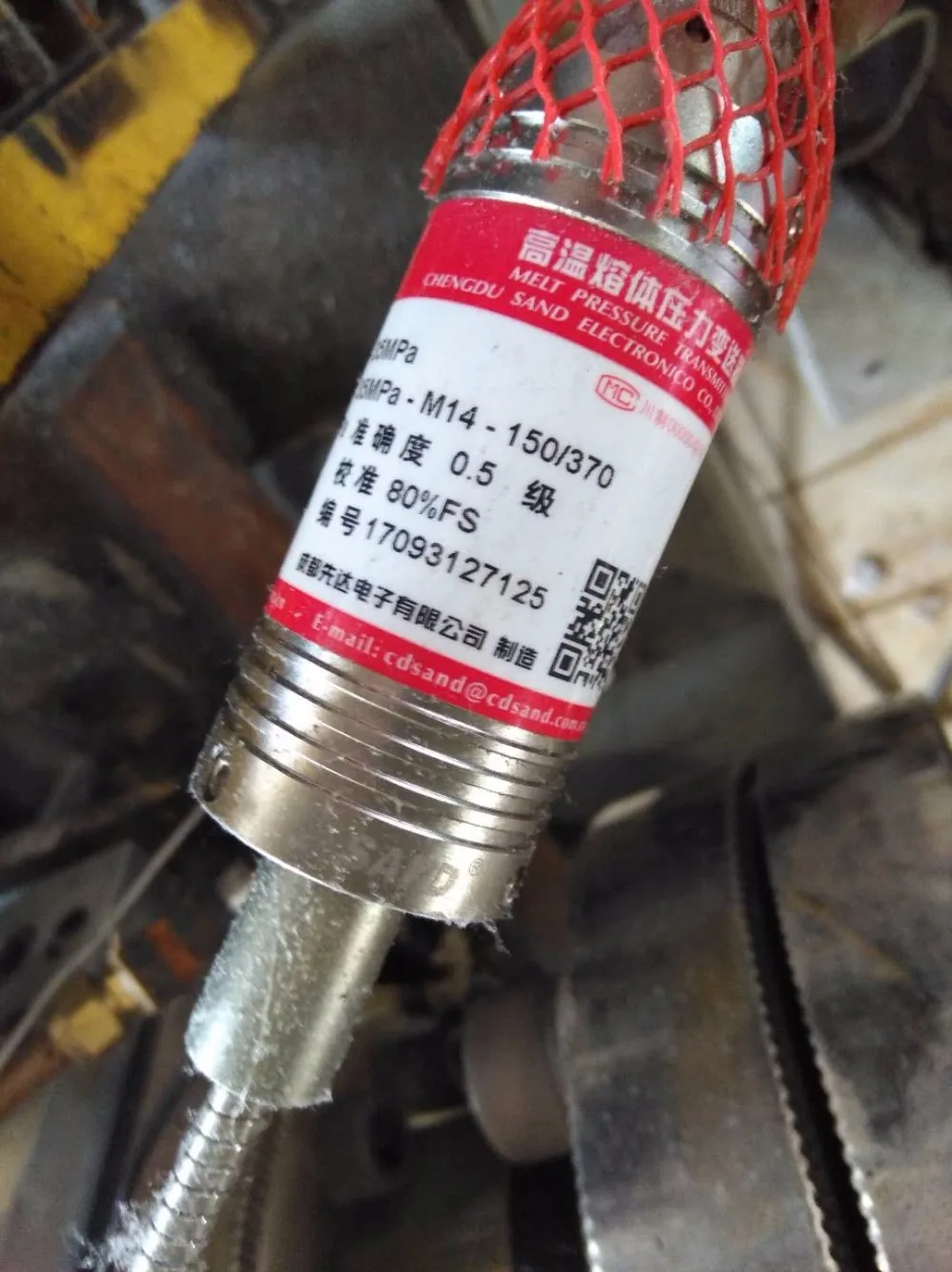

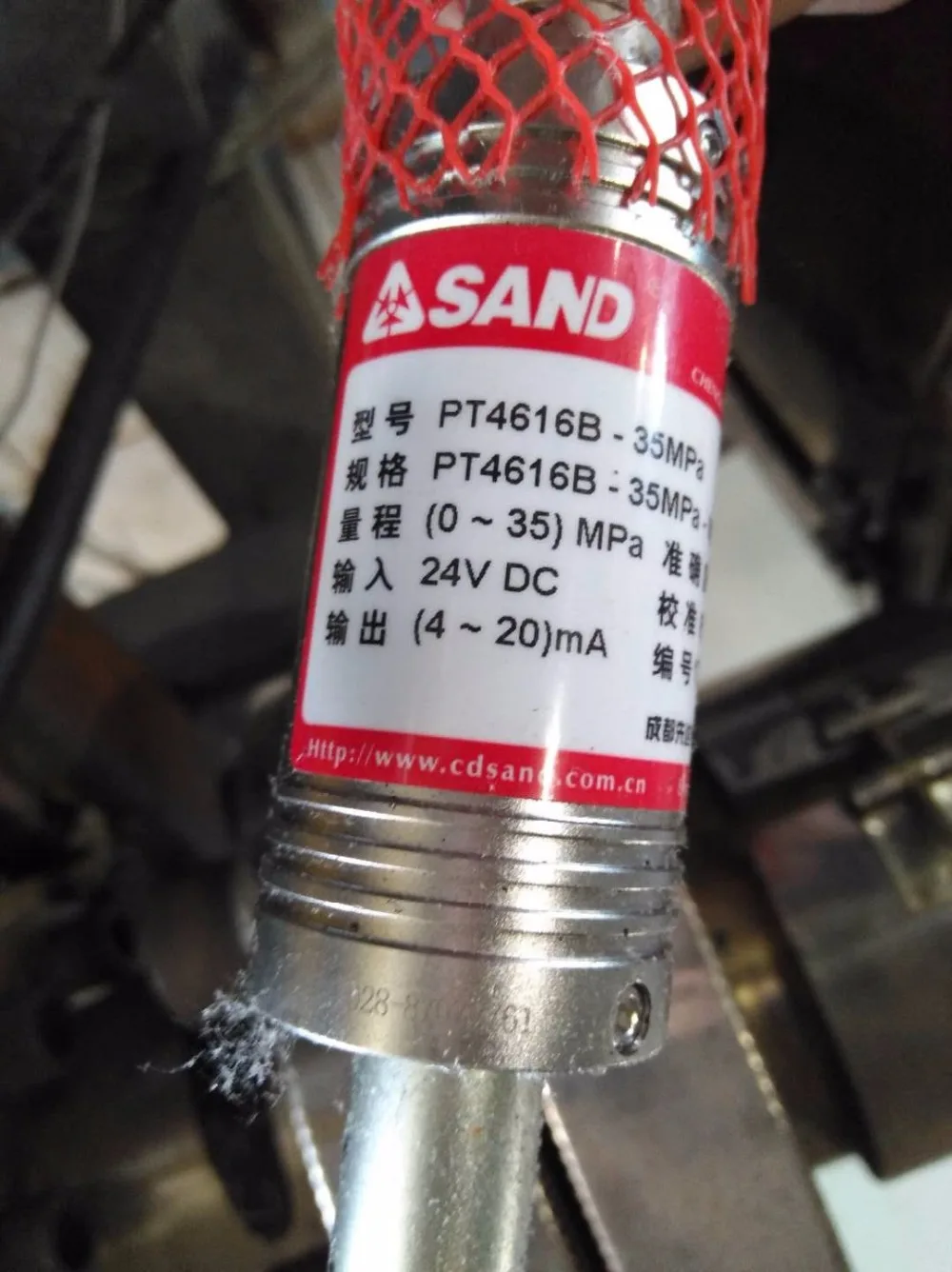

PT4616B series high temperature melt pressure transmitter - Product Introduction: PT4616B series high-precision low temperature drift type high temperature melt pressure transmitter, widely used in petrochemical, chemical fiber spinning, non-woven fabric, nonwovens, plastic, rubber, extrusion equipment and other industries, mainly for high precision pressure measurement. Special material and high performance alloy elastic diaphragm are used for fine machining and debugging production of precision components. In the practical application, it has the obvious advantages of high precision, small temperature drift, and its performance index completely hits the level of foreign high-end products of the same kind. It is the first choice to replace the imported high end melt pressure transmitter. Prefix = o ns = "urn:schemas-microsoft-com:office:office" PT4616B series high temperature melt pressure transmitter - performance index: 1. pressure range: 0 to 0.5MPa to 200MPa; 2. accuracy: + 0.5%FS; 3. power supply: 24V DC (9 to 36V DC); 4. output signal: 0 ~ 10V, 1 ~ 10V, 4 ~ 20mA, etc. 5. probe temperature resistance: 400 C; 6. temperature drift: less than 0.15MPa/100 C; 7. electrical connection: using * class six core (SD02106 core) gold-plated connector. 8. mechanical connection: 1/2 "-20UNF, M14 x 1.5, M22 x 1.5, G3/4" and other multi thread installation dimensions (optional); 9. anticorrosive and wearable coating: it is suitable for pressure measurement in high concentration rough medium, and it can increase service life by 3~5 times (optional). 10. special requirements can be made and the delivery date is 7~15 working days.
