24 inch 16:9 wide NEW Type IR touch frame multi touch points 2/4/6/10 touch points- Standard ship 2 touch points. Windows/linux/android supported. USB plug and works. 3mm vandal proof glass with anti sunshine

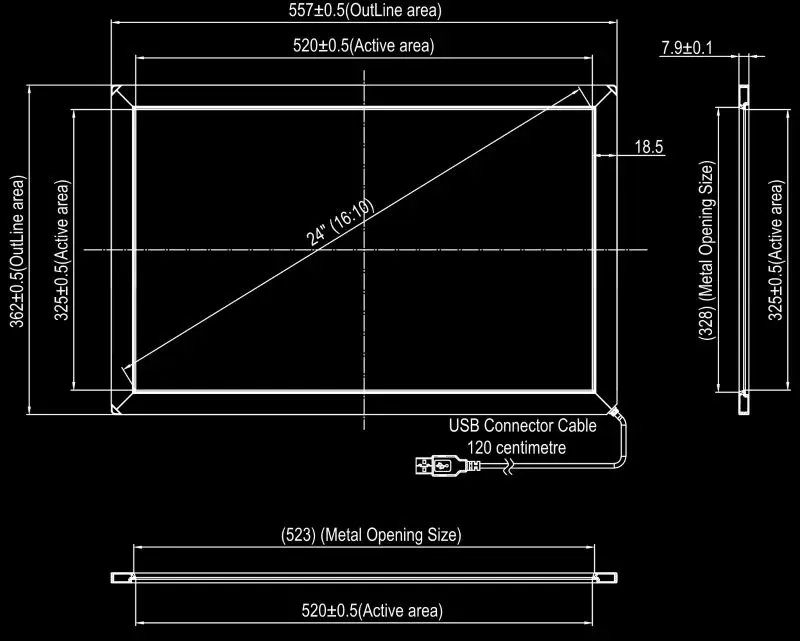

IR Touch Frame Bezel Drawing:
Drawing for Touch Bezel
Support Operation system
*APPLE OS PLS LET US NOW BEFORE ORDER. We will use different firmware ..
IR touch frame Specification
| MECHANICAL | |
| P/N | Obeytec Slim Version |
| Overlay Thickness | 8mm |
| Overlay Frame Width | Top 17.0 mm/Buttom 18.5 mm |
| Glass | 3 mm Vandal proof Glass |
| Housing | Aluminum frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | 2/4/6/10 (Standard 2 touch points) |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge | Touch Discharge，Grade 2：Lab Vol 4KV |
| (Standard :B) | Air Discharge，Grade 3：Lab Vol 8KV |
| ENVIRONMENT | |
| Temperature | operating：-10 °C ~ 60 °C |
| storage：-30°C ~ 70 °C | |
| Humidity | operating：20% ~85% |
| storage：0%~95% | |
| Relative Humidity | 40 °C，90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Detection Method | Infrared rays |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and Semi-outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| SOFTWARE | |
| Scanning | Auto full screen scanning |
| Operate system | Window xp,Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Plug and works |

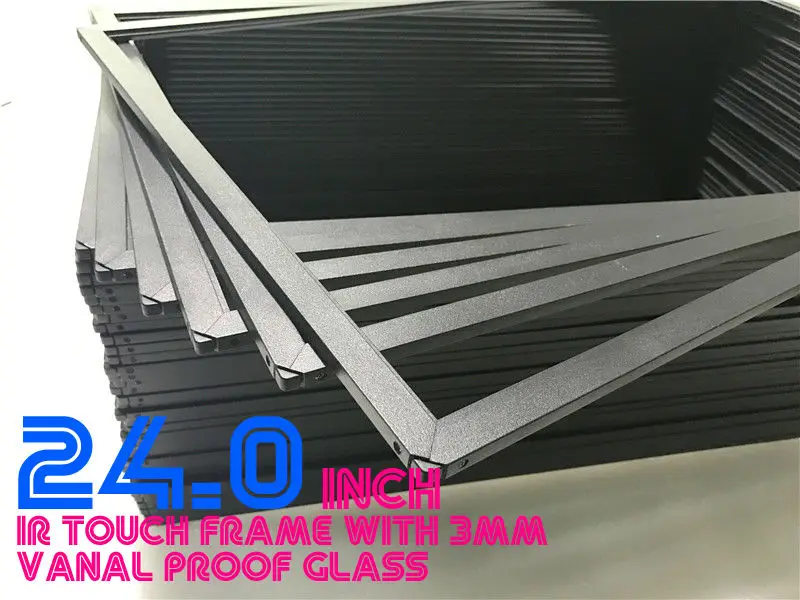

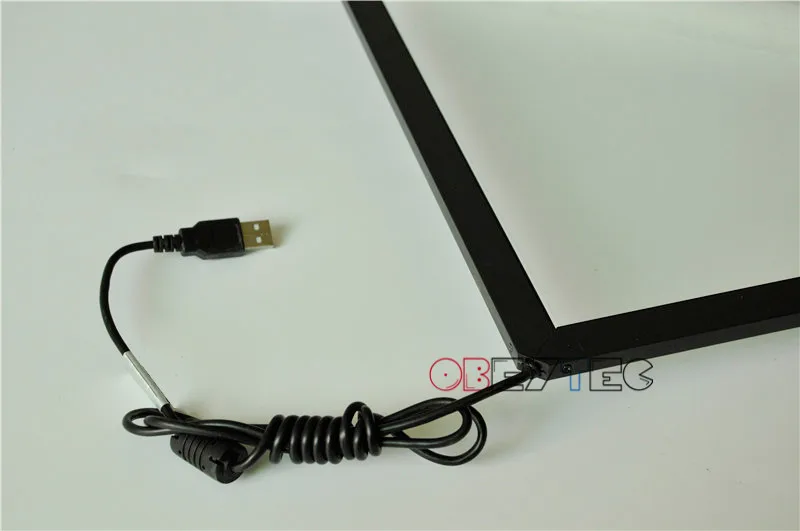

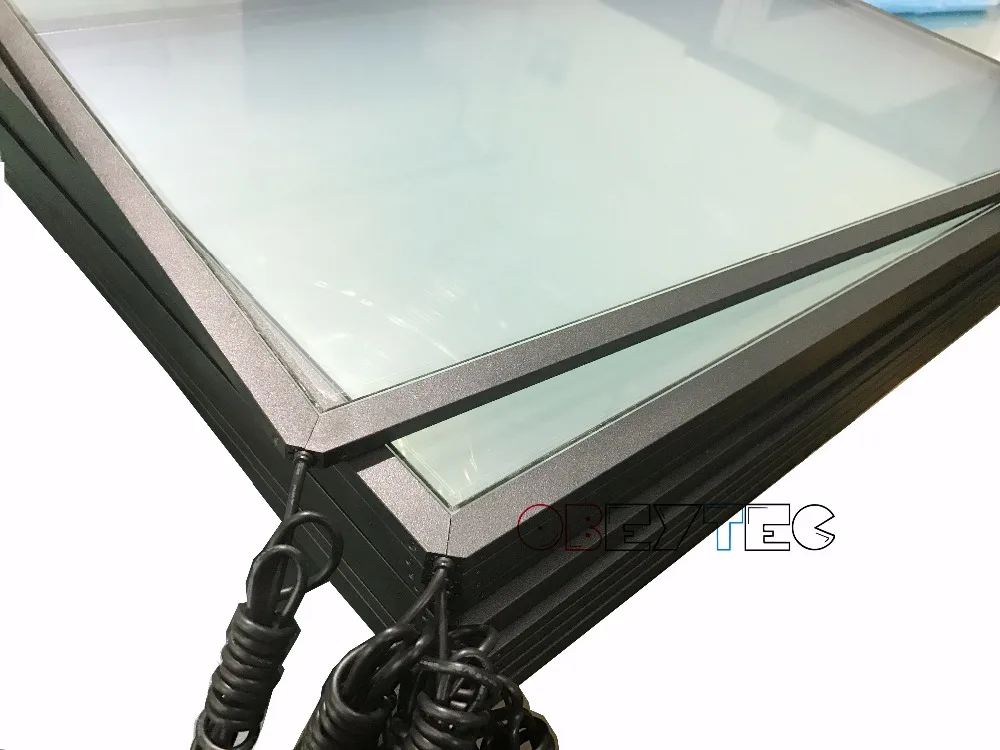

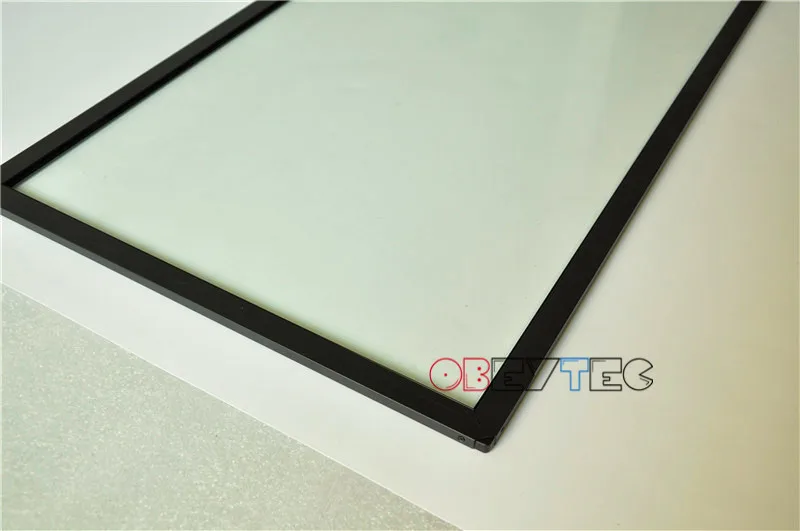

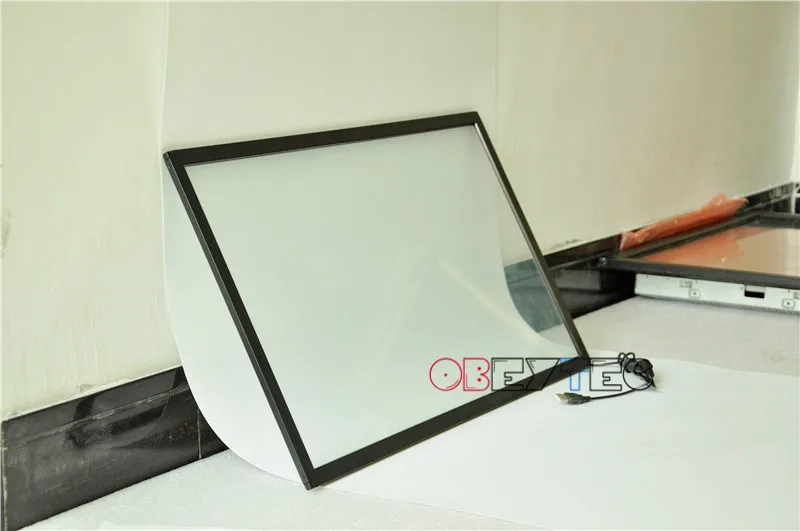

Ir touch frame photos
IR touch frame testing before shipments
Photos of productions
Shipping method
Ship with Glass Normally. For Sizes Over 32 inches we ship without glass. Because shipping too expensive. If you want ship with glass and disassembly packed into Tube Packaging. Pls contact if you need ship with glass.
