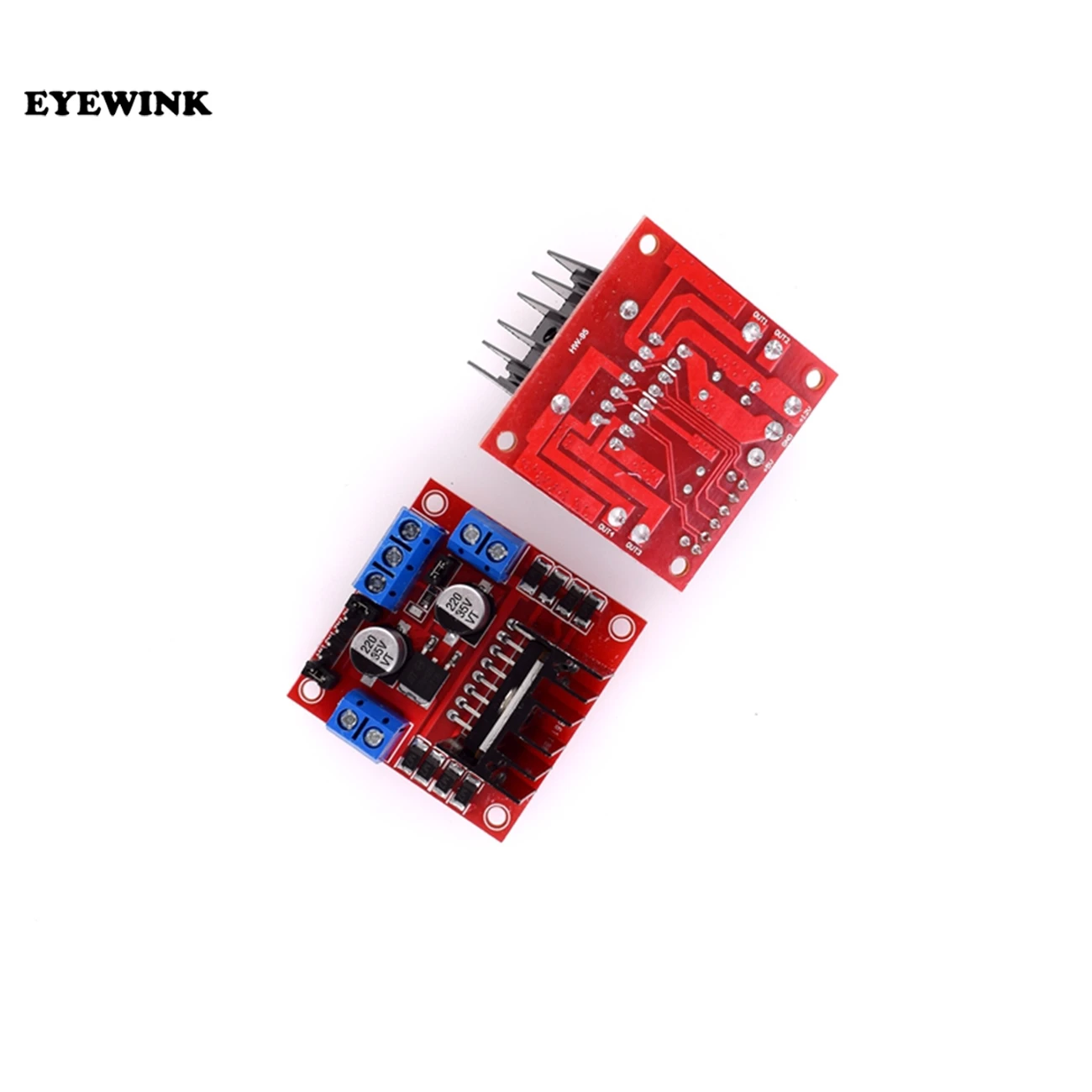

50PCS L298N motor driver board module L298 stepper smart car robot | Электронные компоненты и принадлежности

50PCS L298N motor driver board module L298 stepper smart car robot | Электронные компоненты и принадлежности

Data download: http://pan.baidu.com/s/1c0tgyC4

L298N is a high voltage, high current motor drive chip. The chip is packaged in 15 feet. The main features are: high working voltage, maximum working voltage of 46V; The output current is large, the instantaneous peak current can be triple-a, and the constant current is 2A. Rated power 25W. The high voltage large current full bridge drive with two H Bridges can be used to drive the inductive load such as dc motor and stepper motor and relay coil. Adopting standard logic level signal control; Having two enabling control terminals that allow or prohibit device work without the influence of input signals with a logical power input terminal that enables the internal logic circuit to work under low voltage; Electrical resistance can be detected and the change is feedback to the control circuit. Using the L298N chip drive motor, the chip can drive a two-phase stepping motor or four-phase step motor, and can also drive two dc motors.

Product description:
Work mode: H bridge drive (double road)
Main control chip: L298N
Logical voltage: 5V
Drive voltage: 5v-35v
Logical current: 0mA - 36mA
Driving current: 2A (MAX single bridge)
Storage temperature: - 20 ° to + 135 °
Maximum power: 25W
Weight: 30 g
Peripheral dimensions: 43 * 43 * 27mm

You can enter the speed and direction of the PWM signal from IN1 IN2
The speed and direction of the motor 2 can be driven from IN3 IN4 input PWM signal

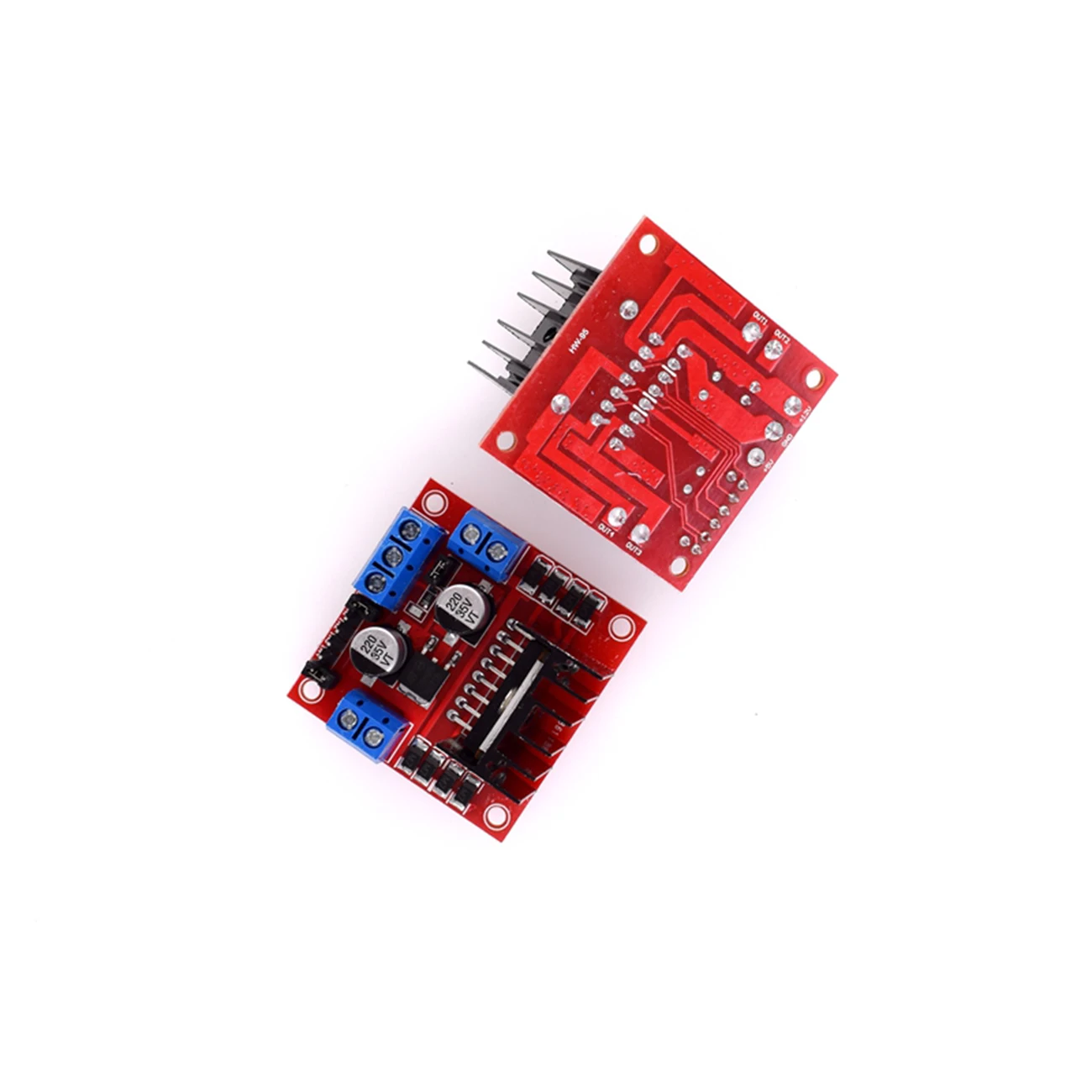

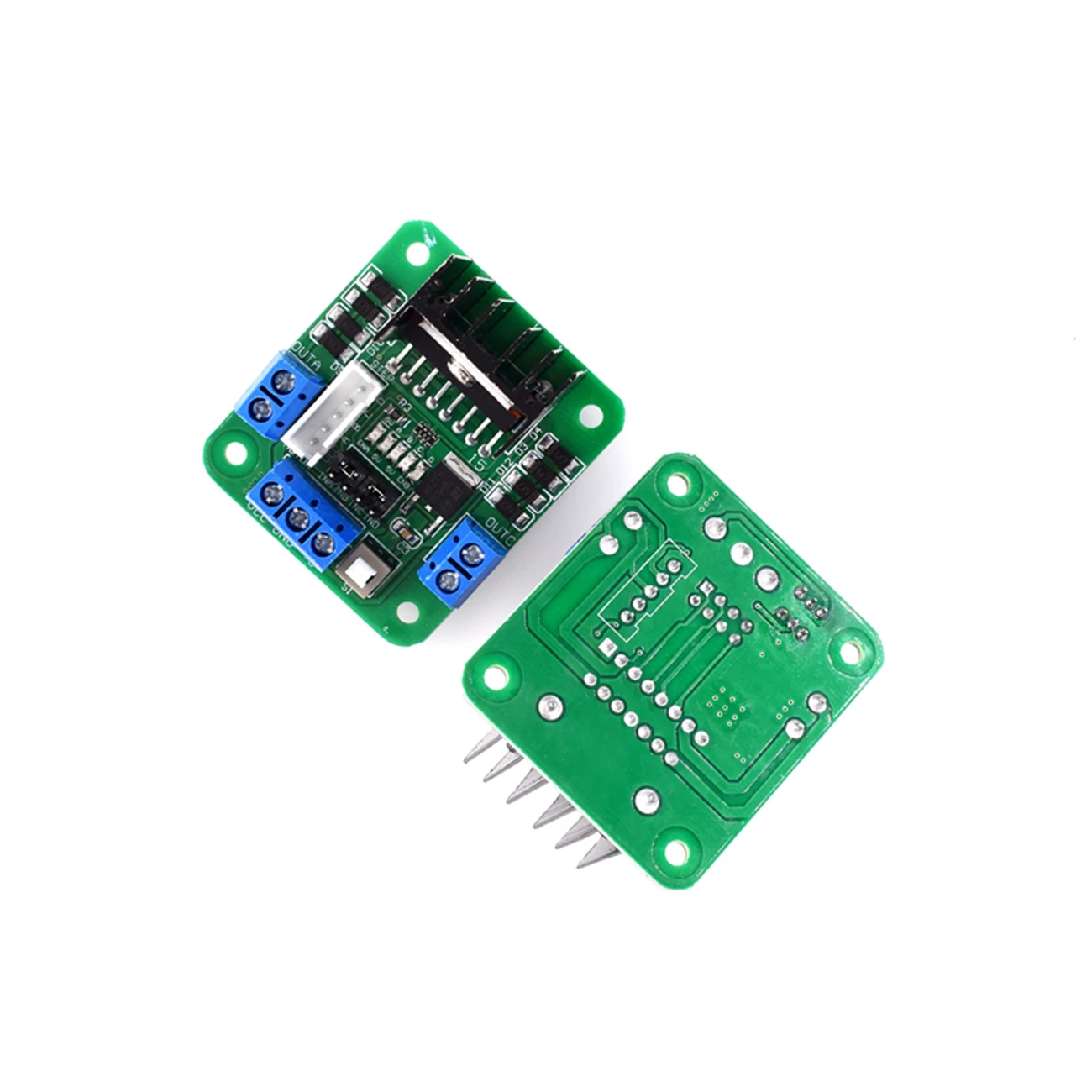

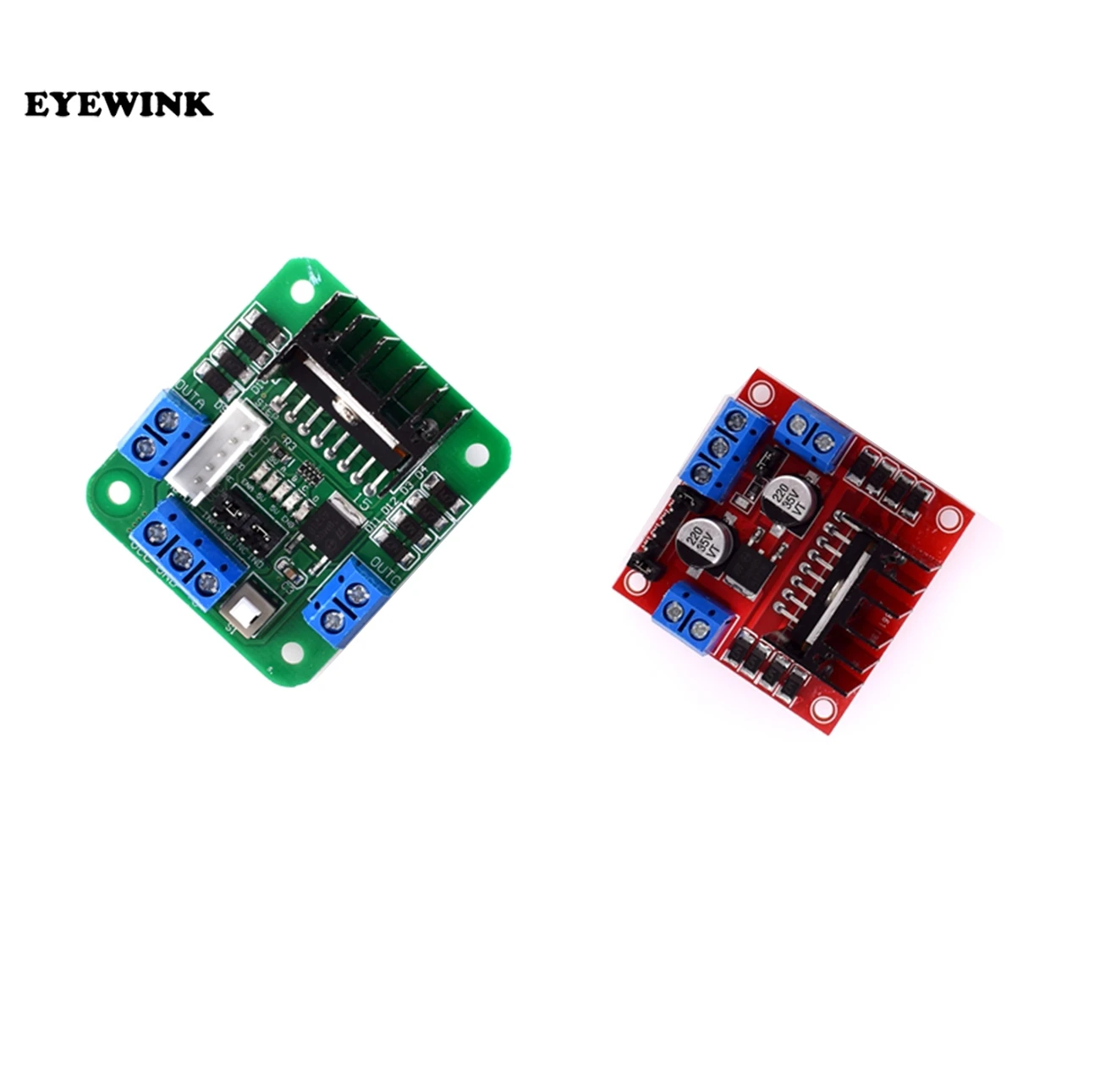

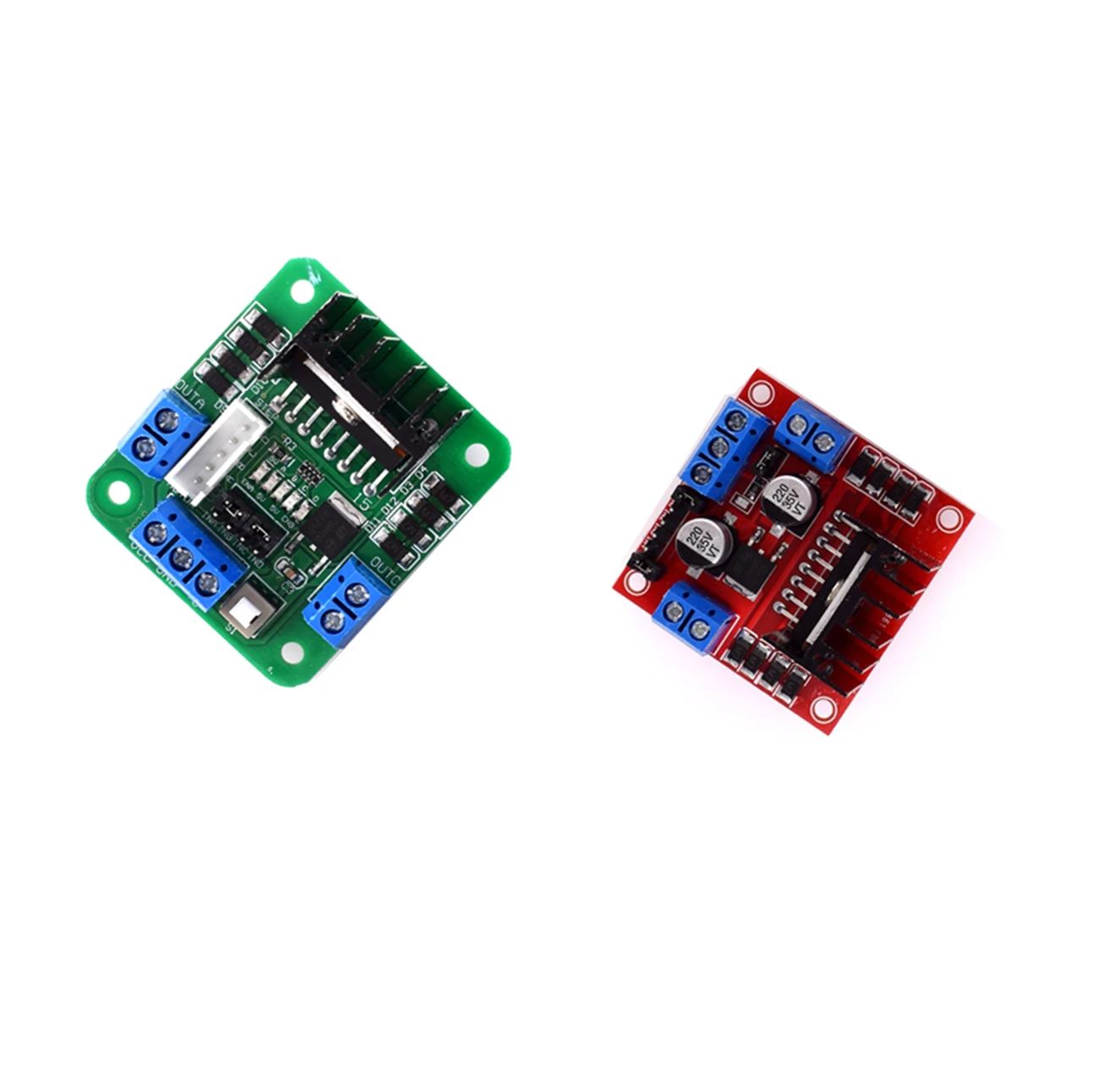

 GReen：

 Product parameters:

1. Driver chip: L298N double H bridge DC motor driver chip

2. The power supply range vs of the driving part terminal is + 5V ～ + 35V; if the power supply in the board is needed, the power supply range vs is + 7V - + 35V

3. Driving part Peak Current IO: 2A

4. Terminal power supply range of logic part VSS: + 5V ～ + 7V (in board power supply + 5V)

5. Working current range of logic part: 0 ～ 36ma

6. Control signal input voltage range:

Low level: - 0.3V ≤ VIN ≤ 1.5V

High level: 2.3V ≤ VIN ≤ VSS

7. Input voltage range of enabling signal:

Low level: - 0.3 ≤ VIN ≤ 1.5V (invalid control signal)

High level: 2.3V ≤ VIN ≤ VSS (control signal valid)

8. Maximum power consumption: 20W (at t = 75 ℃)

9. Storage temperature: - 25 ℃ - + 130 ℃

10. Drive plate size: 48mm * 43mm * 33mm (with fixed copper column and fin height)

11. Weight of driving plate: 33g

12. Other extensions: control direction indicator light, power interface in logic part board.

instructions:

Step motor drive: ENA and ENB on the board are effective at high level, where the level refers to TTL level. ENA is the enabling end of A1 and A2, and ENB is the enabling end of B1 and IB2. BJ is connected to the common terminal of stepper motor.

The control logic of stepper motor is shown as follows, in which a, B, C and D are the four coils of stepper motor, 1 means that there is current passing through, and 0 means no current flowing through. The coil wiring diagram is shown in the figure below (taking four phase stepping motor as an example).
