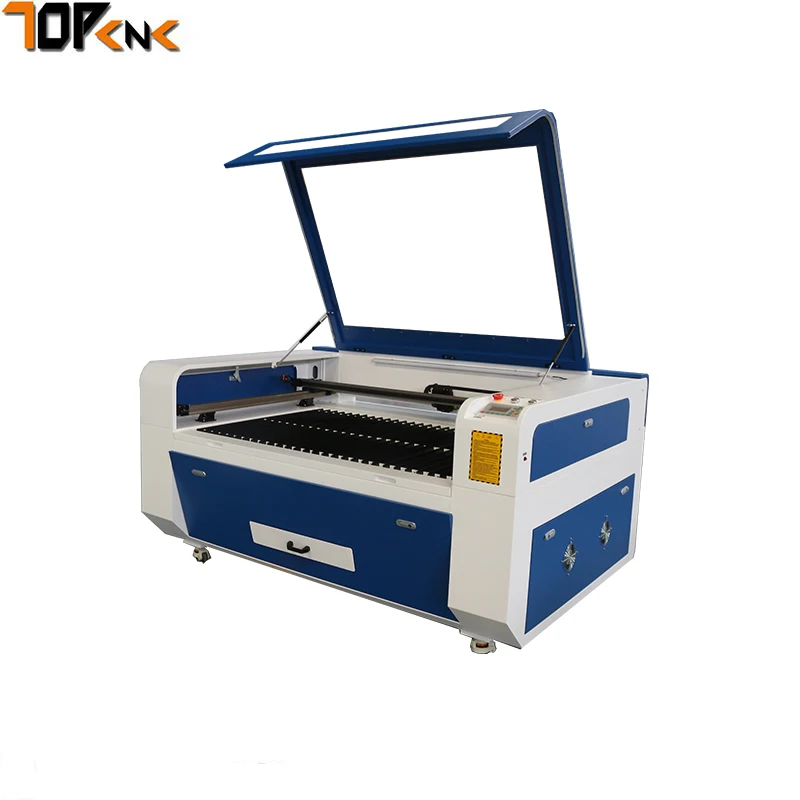

 CO2 Laser Laser Engraving co2 laser engraving machine

Product Description
Laser engraving machine Features

1, U flash Disk Supported: Read files directly from U-flash disk, you can work even without PC!

2, Red Dot Pointer: Provides a visible means of determing engraving location.

3, Air Assist: Remove heat and combustible gases from the cutting surface.

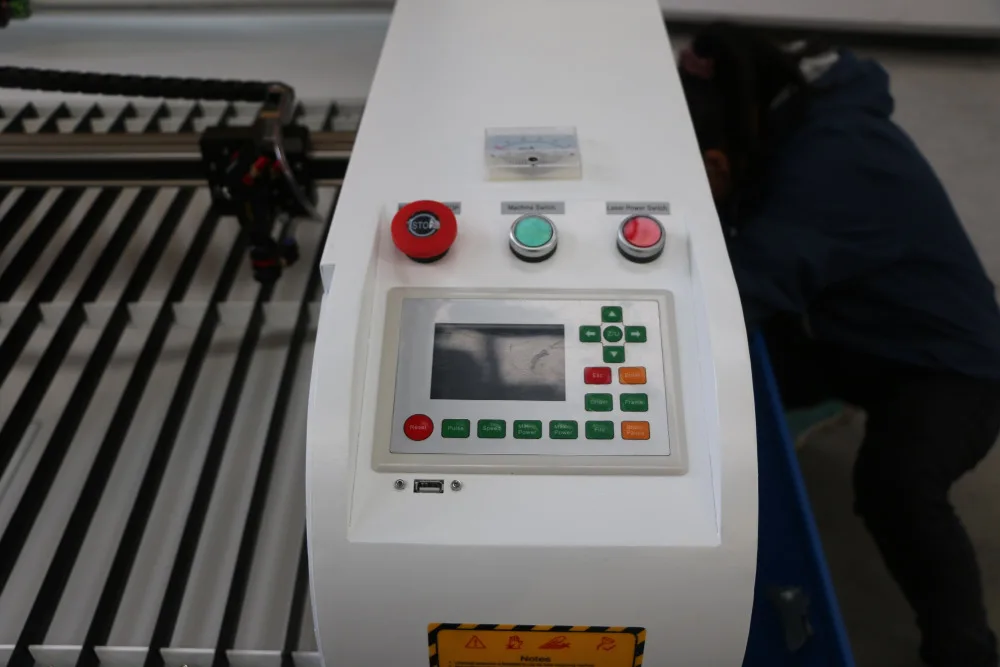

4, Intuitive Control Panel: Speed, power, and more controls directly from the laser.

5, Raster/Vector Color Mapping: Change your engraving speeds and power by using color settings.

6, RECI brand laser power, ensures long lifetime and high cutting engraving speed.

Laser engraving machine PARAMETERS

Model

TPL 1390 ( 4060/6090/1610/ option)

X,Y Working Area

1300x900mm

Laser power

80/100/130/150/280/300W

Laser type

CO2

Laser head NO.

One ( two heads option)

Reflector and focus mirrors

Imported

Linear rail

Taiwan PMI

Table type

Knife and Honeycomb table

Cooling system

Water  chiller cw3000

Other accessories

Air pump,  Exhausted system,

Engraving Speed

0-60000mm/min

Cutting speed

0-36000mm/min

Resetting position accuracy

±0. 01mm

Control system

RD system

Software

Laser work

Graphic format supported

BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF

Software supported

CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut

Laser Output

1-100% Software Setting

Operating temperature

0 - 45

Operating humidity

5 - 95%

Working Mode

3-phase Stepper motor

Dichroic Cutting

Up to 256 colors

Gross power

<2200W

Minimum shaping character

English 1 x 1mm

Working Voltage

220V/50HZ -60HZ; single phase ( 110v option)

Machine Size

1670X1310X1050mm

Packing Size

1780X1420X1260mm

N.W

380KGS

G.W

480KGS

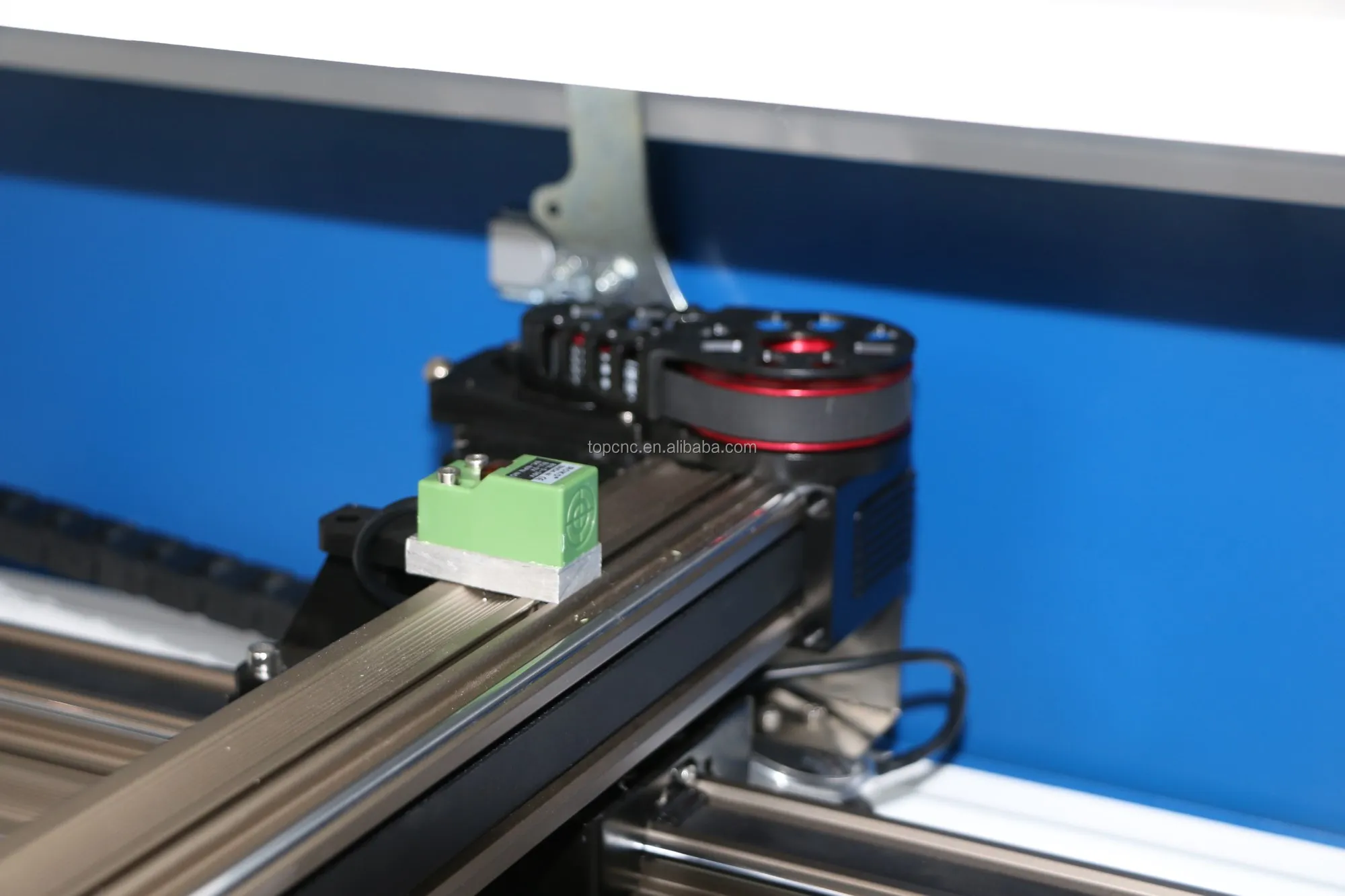

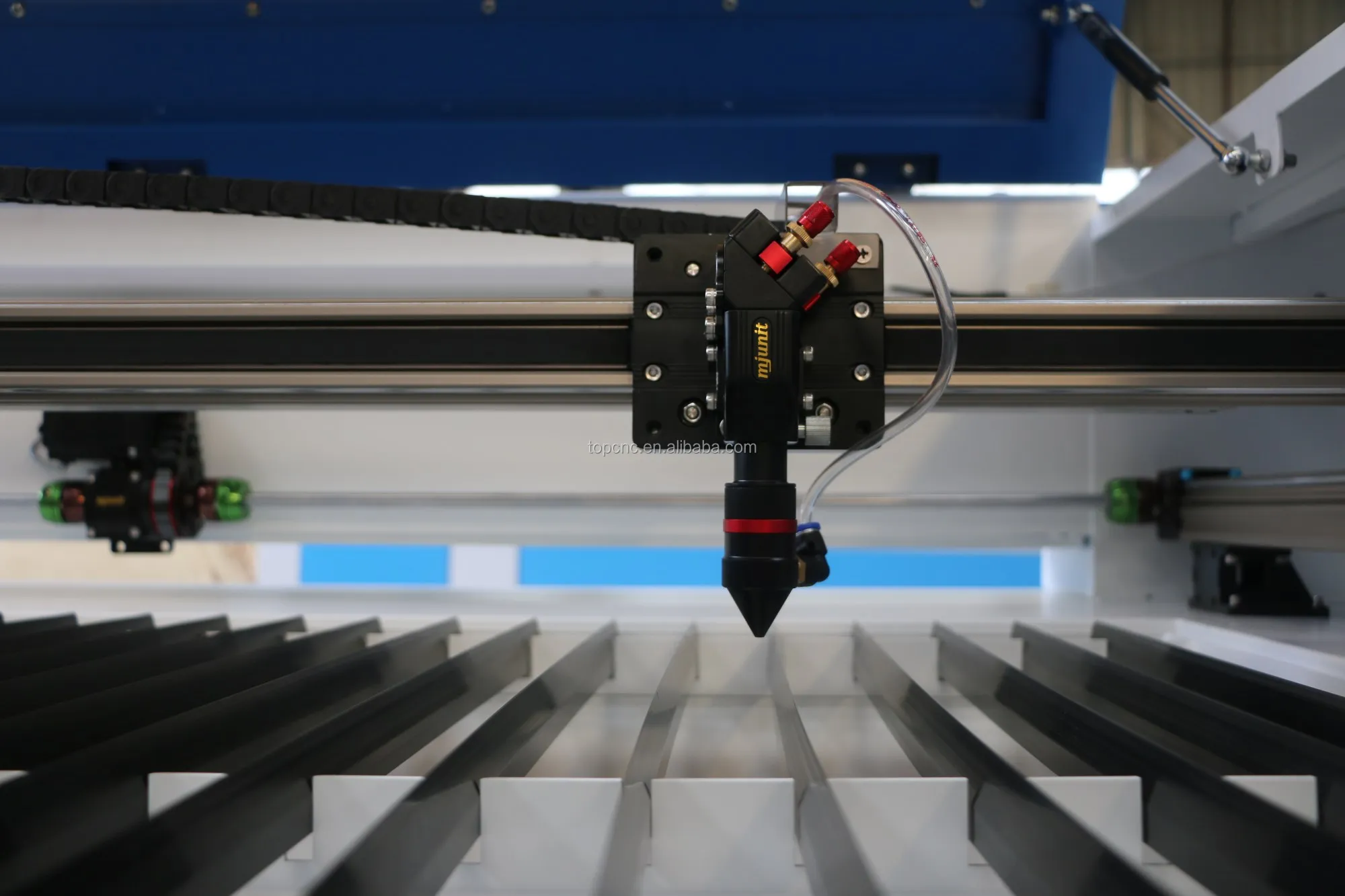

Laser engraving machine Pictures


Laser engraving machine Application
 Applicable materials
non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite
and tiles, leather etc.
Applicable industry
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc.

Material

   Cut

 Engrave

Acrylic | Plexiglass | PMMA | Perspex

  √

Organic board | Double color sheet

  √

Wood | Plywood | Veneer | MDF | Balsa

  √

Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather

√

  √

Fabric | Cloth | Textile

  √

Carpet | Mat | Rug | Wool Felt

  √

Paper | Cardboard | Chipboard | Press Board

  √

Ceramic | Tile | Marble | Glass

  √

Plastic

  √

Fiber Glass | Filter Cloth

  √

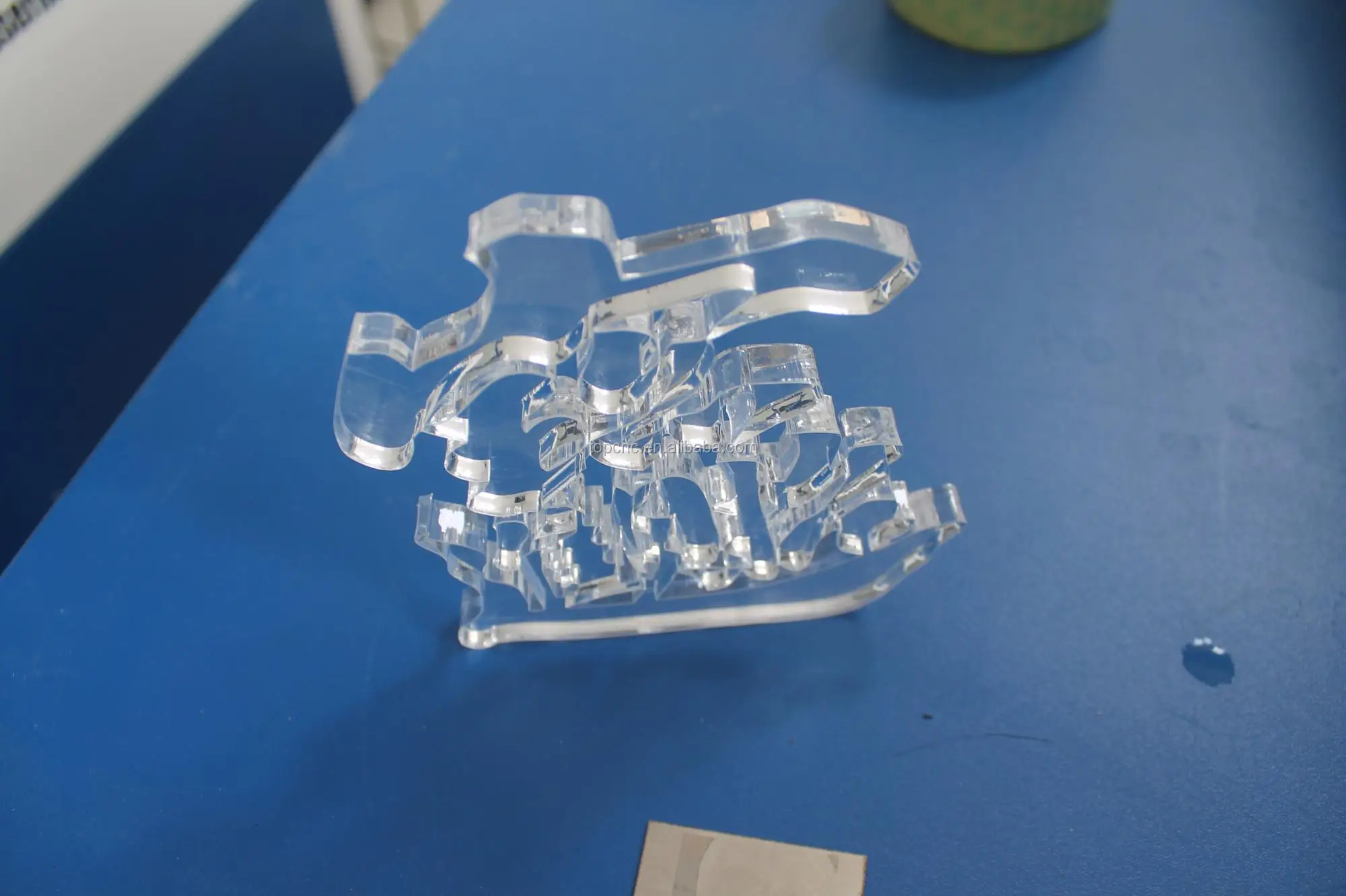

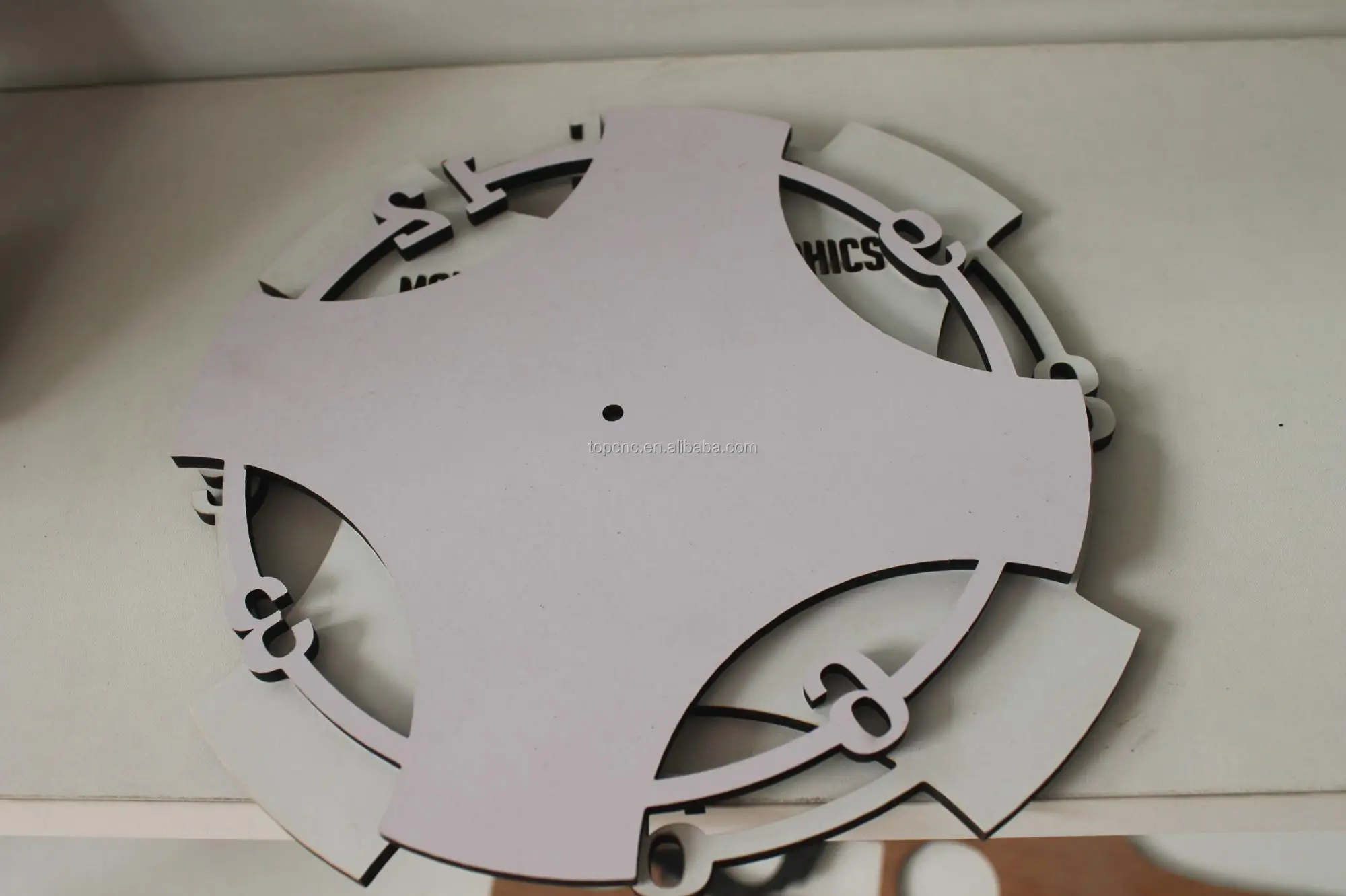

Laser engraving machine  Samples
FAQ
Laser engraving machine FAQ :

1. What can our Co2 Laser Engraving Cutting Machine do?

--Engraving all non-metals with high accuracy

--Cutting Non-metals with different cutting thickenss; such as 0-20mm wood/

MDF/Plywood; 0-35mm Acrylic; Leather; Plastic; Paper; Foam; Shoes; Fabric

2. How to Choose a Suitable Laser Machine?

Two Important Points

1). Which Working area I can choose?

It depend on Max. Length & Width of your processing materials.

Small working area: 400*300mm; 500*300mm; 600*400mm

Medium working area: 900*600mm; 1200*900mm; 1300*900mm; 1400*900mm

Large working area: 1400*1000mm; 1600*1000mm; 1300*1800mm;

1300*2500mm; 1500*2500mm; 1500*3000mm;2000*3000mm

2). What laser power I should choose?

It depend on your processing materials & cutting thickness

40w/60w: mainly for engraving and cutting thin materials

80w/90w/100w: mainly for engraving & cutting

130w/150w/180w: mainly for cutting

3. MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly,

please tell us your port name. There will be best shipping freight and machine

price send to you

Packaging & Shipping

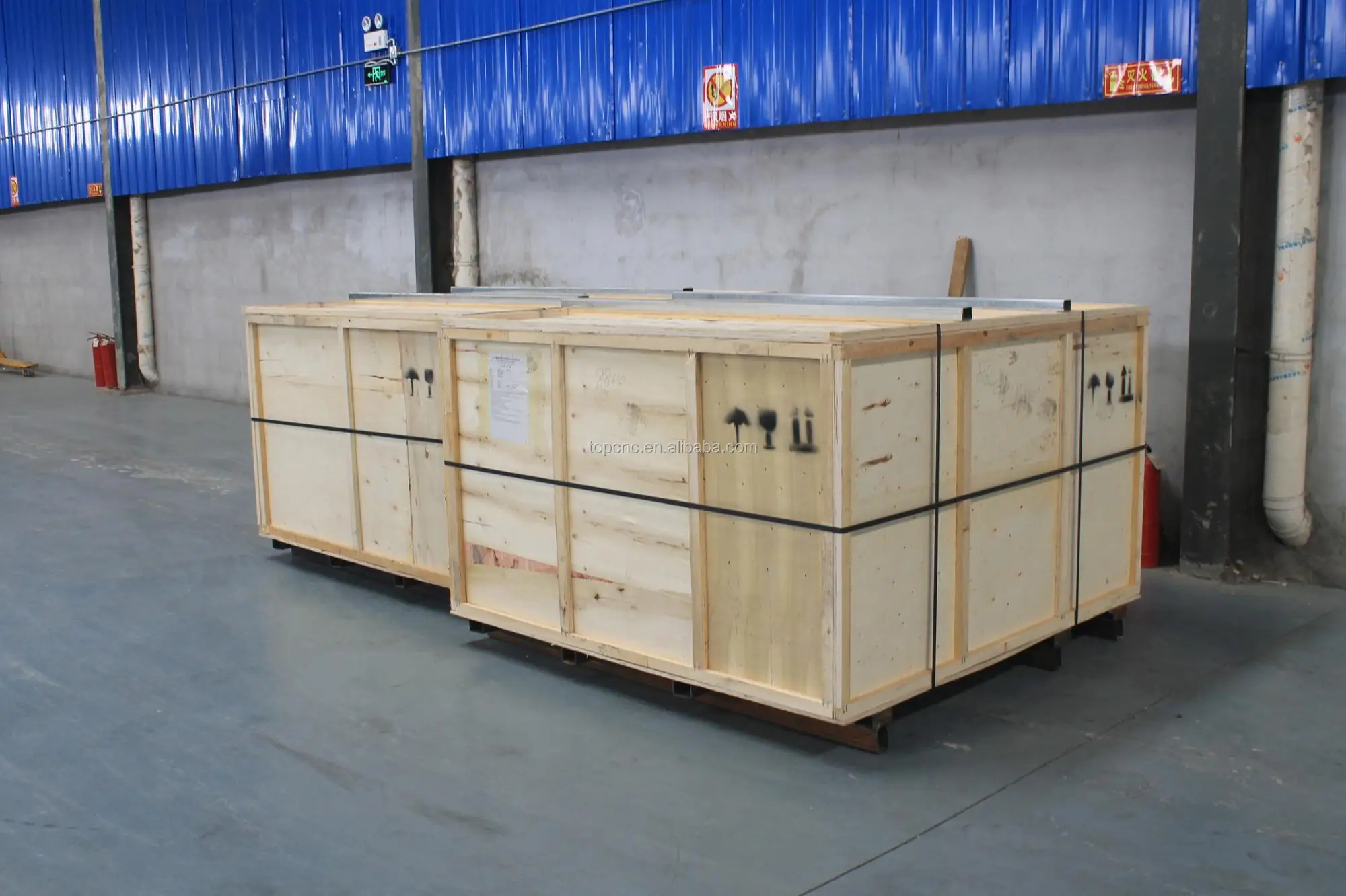

Laser engraving machine Packaging

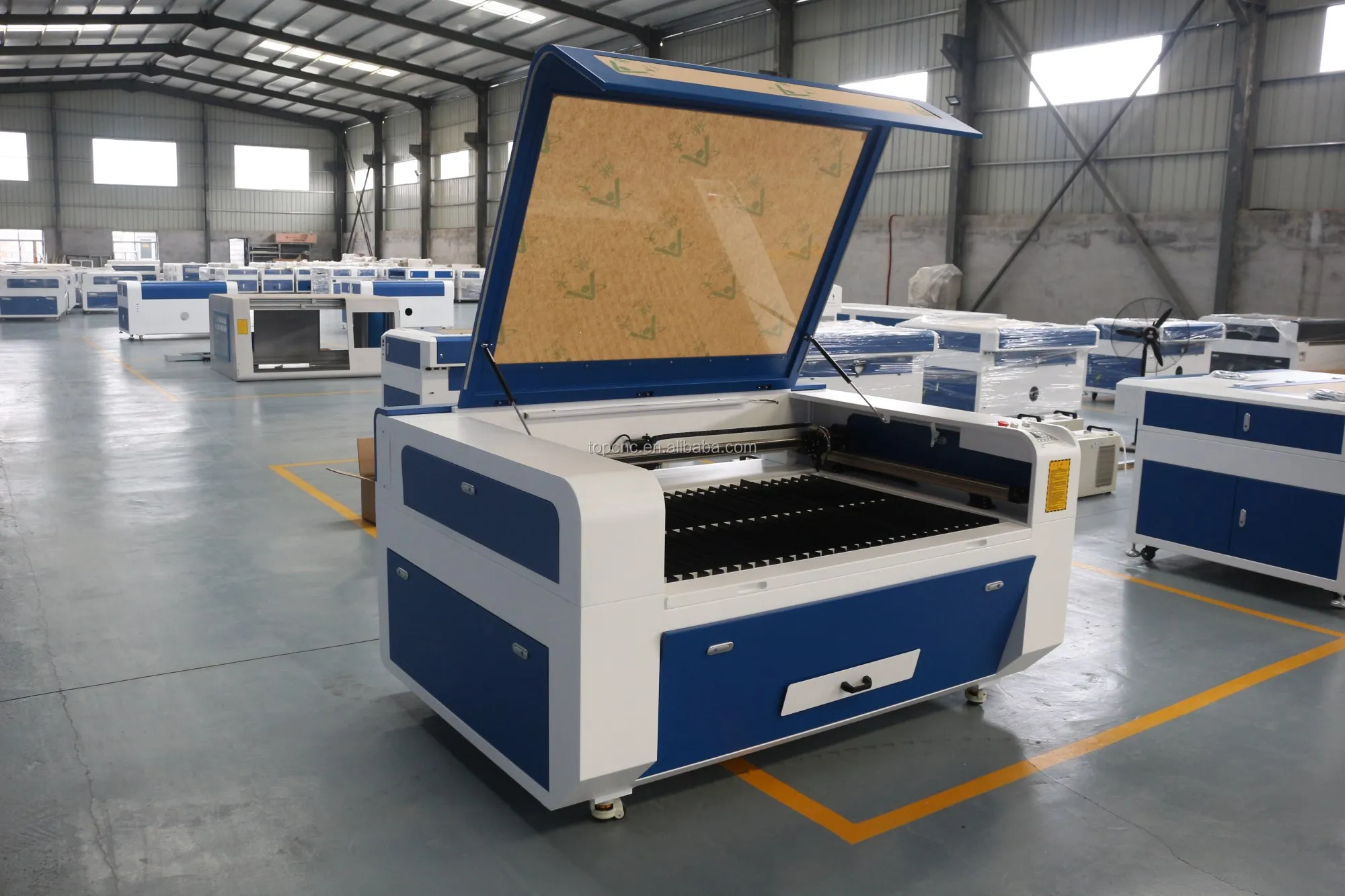

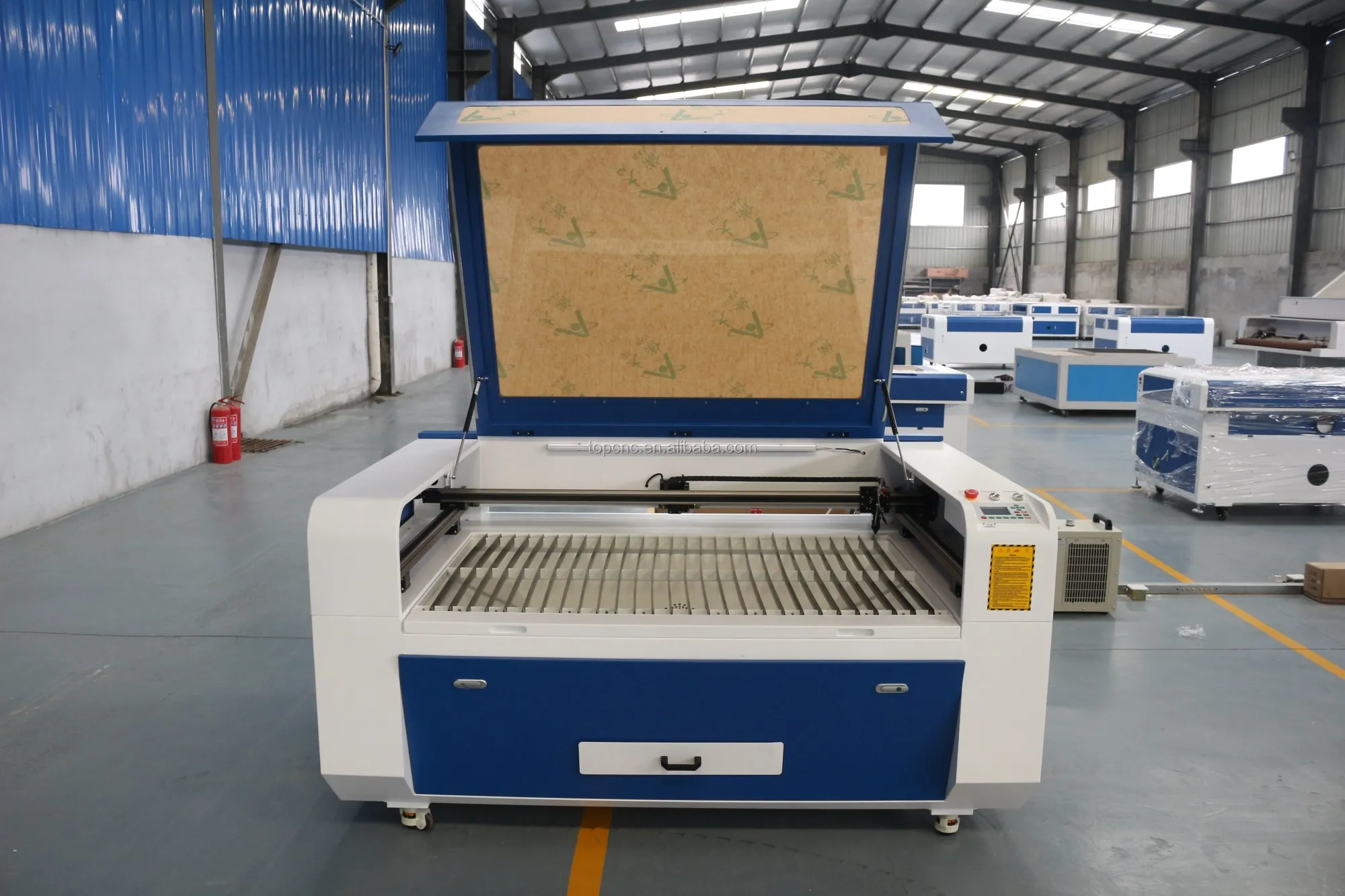

Factory

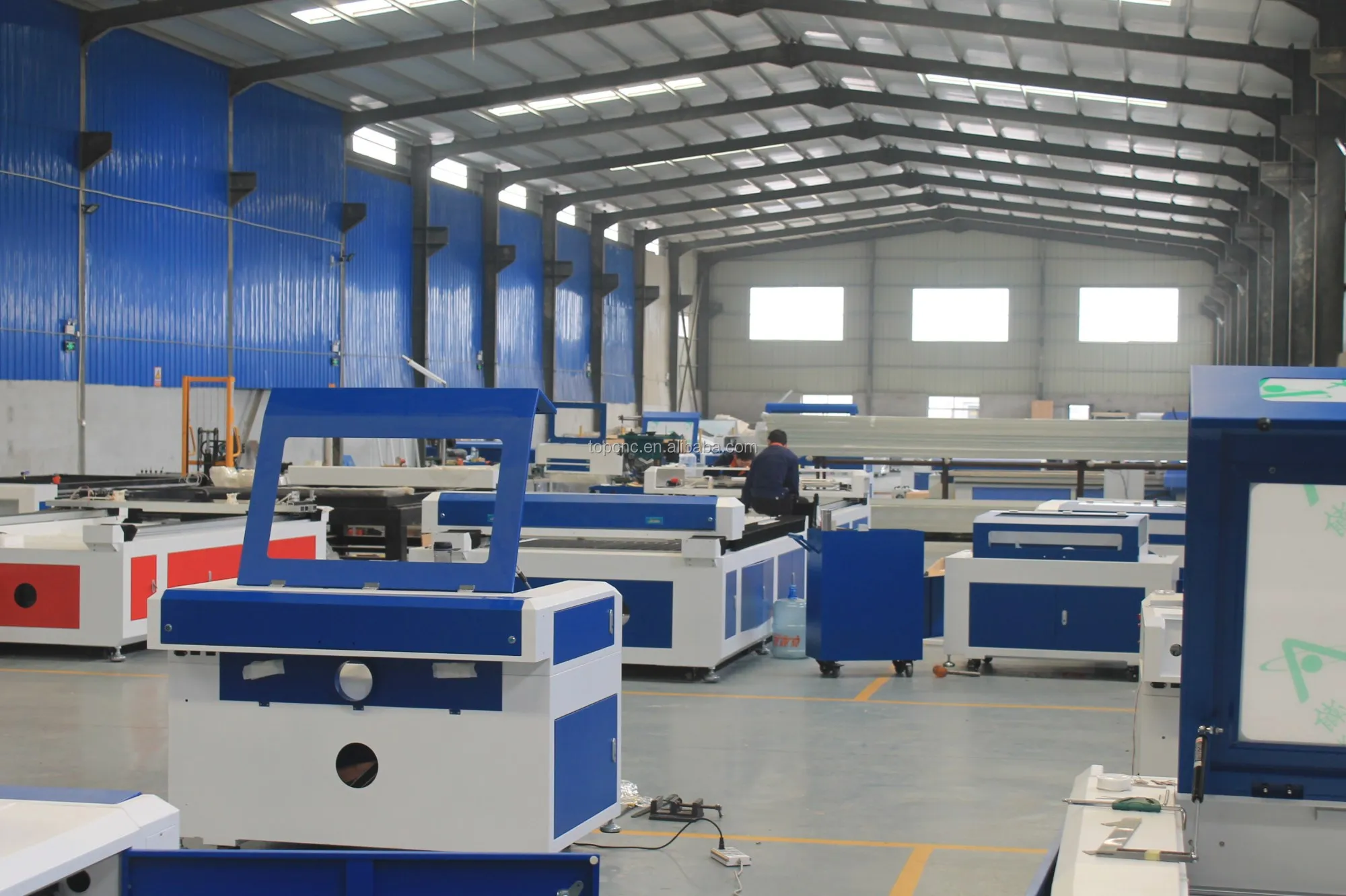

Laser engraving machine  Factory
Contact
