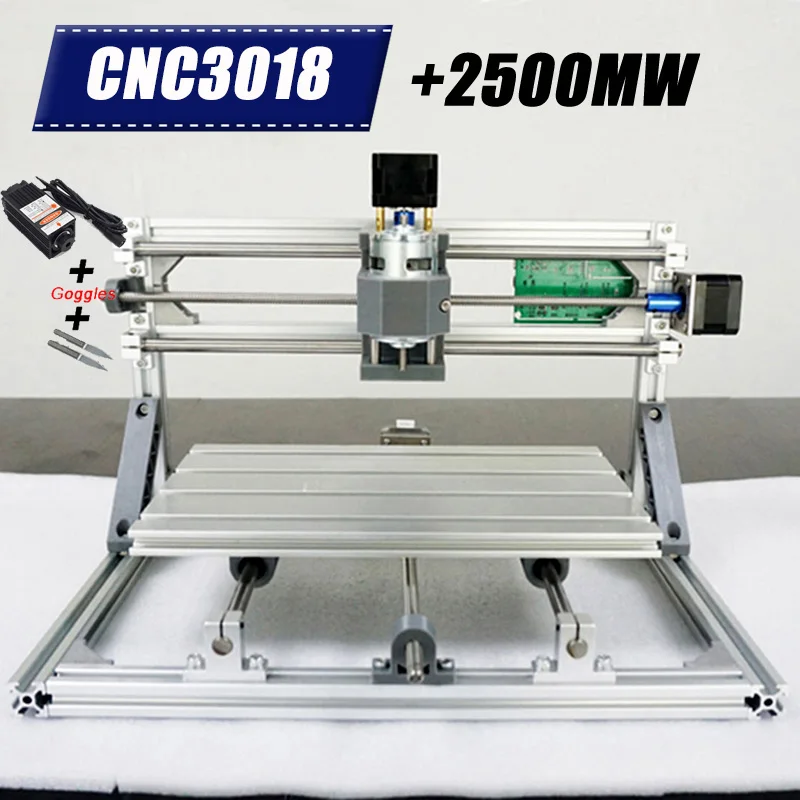

CNC 3018 grbl 3 оси печатных плат фрезерный станок мини лазерная гравировка с ЧПУ DIY
Низкая цена 3-осевой фрезерный станок с ЧПУ/фрезерный ЧПУ 6090 600*900 мм T-slot + ПВХ плата
527 890,00 руб.
1325 cnc router for cabinet making 4ftx8ft 3D carving and cutting | Инструменты
119 975,00 - 460 704,00 руб.
Профессиональное производство автоматической подачи ткани одежды текстиля 1610 Cnc
345 550,08 руб.
500w 750w 1000W Raycus/IPG cnc fiber laser cutter machine 1500mm x 3000mm sheet metal cutting Stainless Steel | Инструменты
1 636 459,00 руб.
3D model for cnc carved figure sculpture machine in STL file format The Chinese culture Dragonfish | Инструменты
383,92 руб.
CNC маршрутизатор 6040 рамка Комплект гравер DIY 3 4 оси мини Гравировальный фрезерный
Характеристики
Blue Elephant 1325 1530 2030 Multi Spindle Wood CNC Router Vacuum Table Machine | Инструменты
История изменения цены
*Текущая стоимость US $18,200.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-21-2026 | 21.46 руб. | 22.82 руб. | 21.5 руб. |
| Feb-21-2026 | 21.60 руб. | 22.97 руб. | 21.5 руб. |
| Jan-21-2026 | 18.66 руб. | 19.37 руб. | 18.5 руб. |
| Dec-21-2025 | 21.34 руб. | 22.85 руб. | 21.5 руб. |
| Nov-21-2025 | 18.99 руб. | 19.38 руб. | 18.5 руб. |
| Oct-21-2025 | 21.7 руб. | 22.94 руб. | 21.5 руб. |
| Sep-21-2025 | 20.12 руб. | 21.77 руб. | 20.5 руб. |
| Aug-21-2025 | 20.1 руб. | 21.24 руб. | 20.5 руб. |
| Jul-21-2025 | 20.1 руб. | 21.8 руб. | 20.5 руб. |
Описание товара

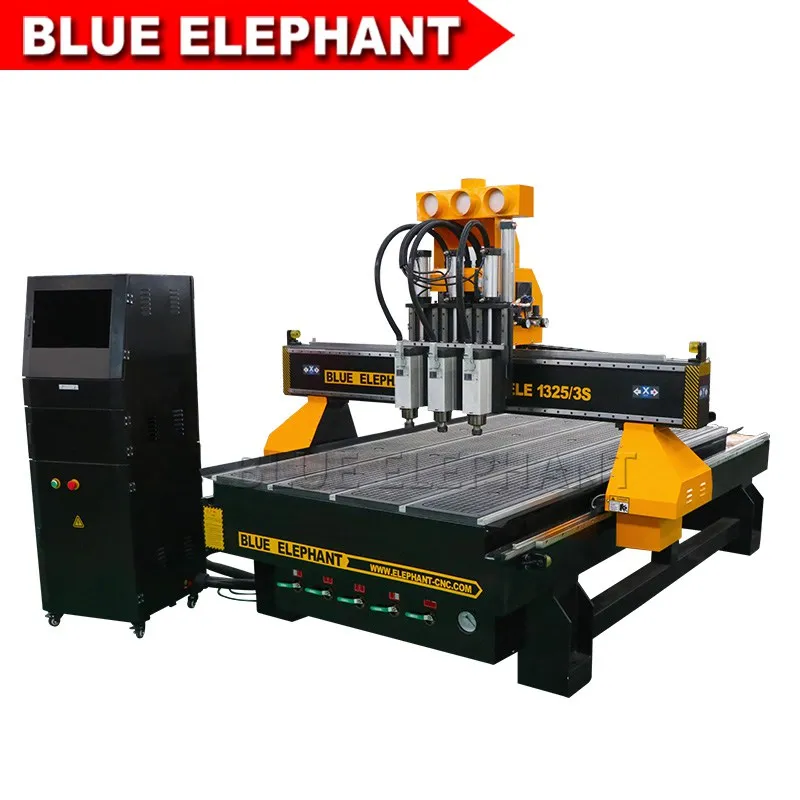

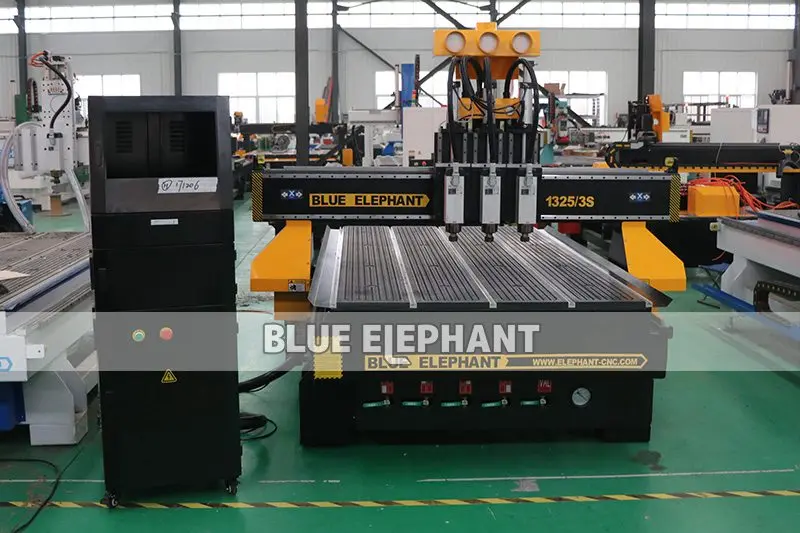

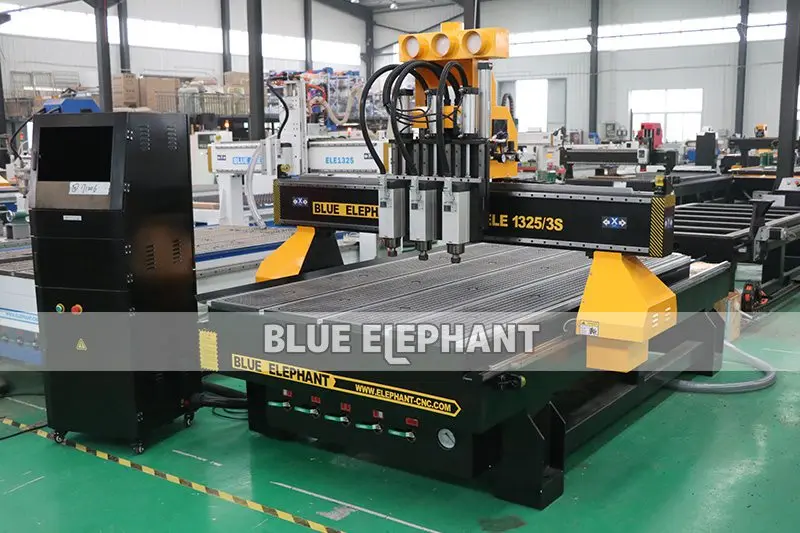

Blue Elephant 1325, 1530, 2030 Multi Spindle Wood CNC Router Vacuum Table CNC Machine
Parameters of cnc router 1325
| Description |
Parameter |
| X,Y,Z Working Area |
1300*2500*200mm |
| X,Y, Z Traveling Positioning Accuracy |
± 0.03/300mm |
| X,Y,Z Re positioning Accuracy |
± 0.03mm |

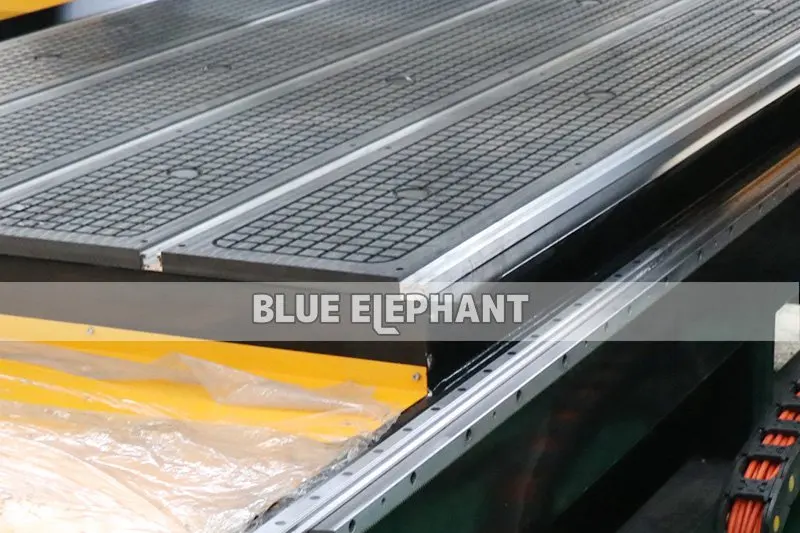

| Table Surface |
Vacuum and T-slot working table |
| Frame |
Welded structure |

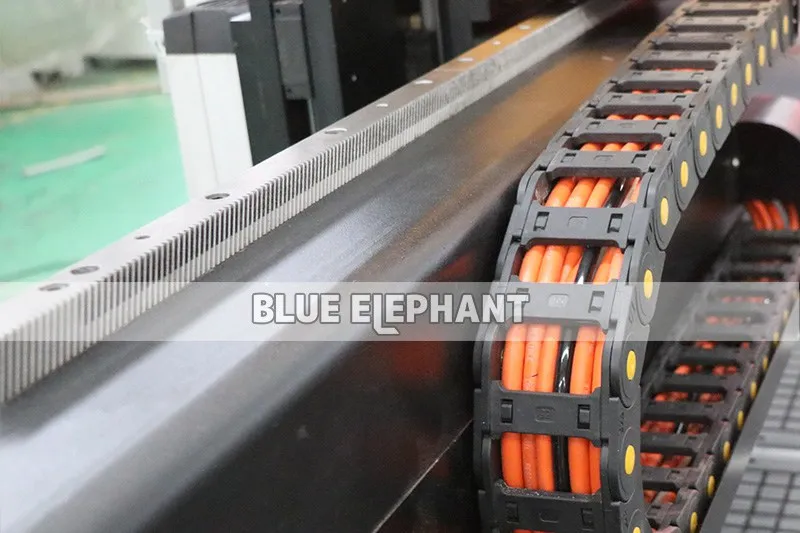

| X,Y Structure |
Helical rack and pinion drive, Hiwin Rail Linear Bearing |
| Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption |
(Without Spindle) 3.2kw |
| Max. Rapid Travel Rate |
33000mm/min |
| Max. Working Speed |
25000mm/min |

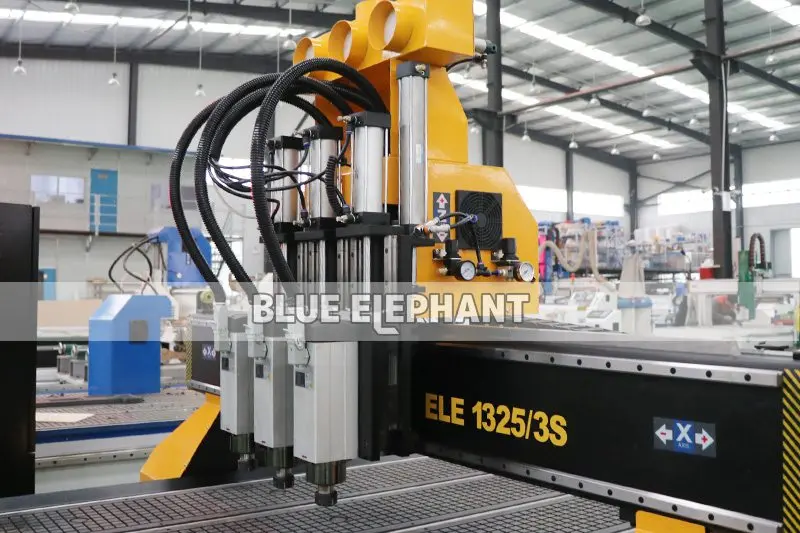

| Spindle Power |
9.0kw Italy HSD ATC air cooling spindle |
| Spindle Speed |
0-24000RPM |
| Drive Motors |
Servo Motor |
| Working voltage |
AC380V/50/60Hz,3ph(Option:220V) |
| Command Language |
G Code |
| Operate System |
DSP control system |
| Flash Memory |
128M(U Disk) |
| Collet |
ER25 |
| X,Y Resolution |
<0.01mm |
| Software Compatibility |
Type3/UcancameV9 Software, (Option: Actcam software) |
| Running Environment Temperature |
0-45 Centigrade |
| Relative Humidity |
30% - 75% |
| Optional Parts |
Air Cooling Spindle |
| Syntec Control System |
|
| Dust Collection System |
|
| Vacuum Pump |
|
| Rotary System |
|
| Mist-Cooling system |
|
| 850w YASKAWA servo/750w DELTA Servo Motors |
DSP control system

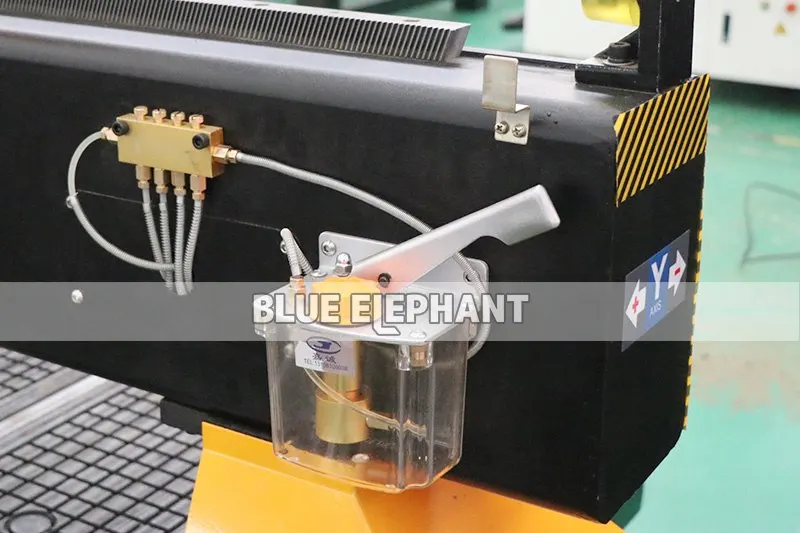

#Oil lubrication system is very important to all mechanical parts including Gears, Racks, Ball Screws, Runner Blocks, Bearings and so forth.
Due to the fact that so many components require lubrication regularly, we have installed the one push lubrication system that ensures the lubrication of every component on our machines
Warranty:
12 months for the whole machine. Within 12 months under normal use and maintenance. If something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock.
2, Friendly English version manual and operation video CD disk.
3, Engineer available to service machinery overseas.
After sale service:
Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
What will our Routers cut?
MDF, plywood, hardwood, melamine laminate, Solid Surface materials, foam core, corrugated plastic, aluminium, di-bond and soft metals.
How thick can cut?
The thickness of the material is all down to the tooling. The machine has a gantry height of 200mm and we can produce different Z axis height according to your special request.
Warranty:
1. 12 months guarantee of the whole machine and all parts, we will provide the consumable parts at an agency price when you need replacement.
2, Lifetime tech support
