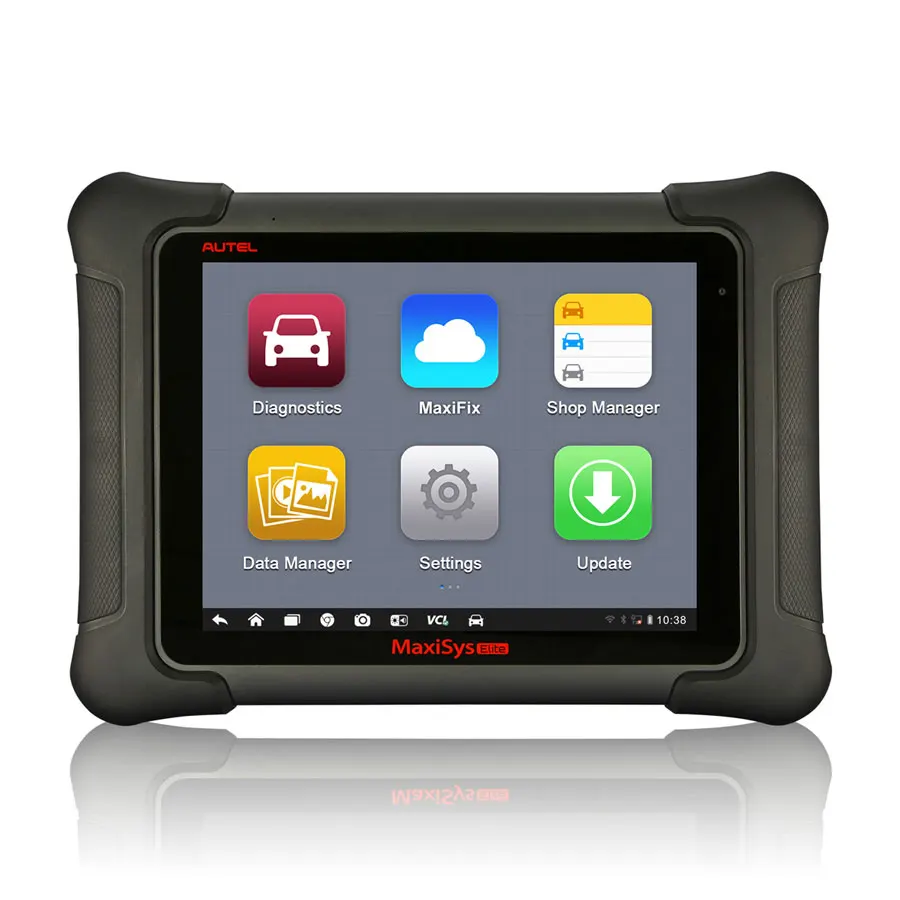

The MaxiSys Elite, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android operating system. Powered by NVIDIA’s Tegra® 4, the world’s fastest mobile processor, its visually stunning 9.7” Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications.
Latest AUTEL MaxiSys Elite with J2534 ECU Preprogramming Box

The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

MaxiSys Elite Features:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

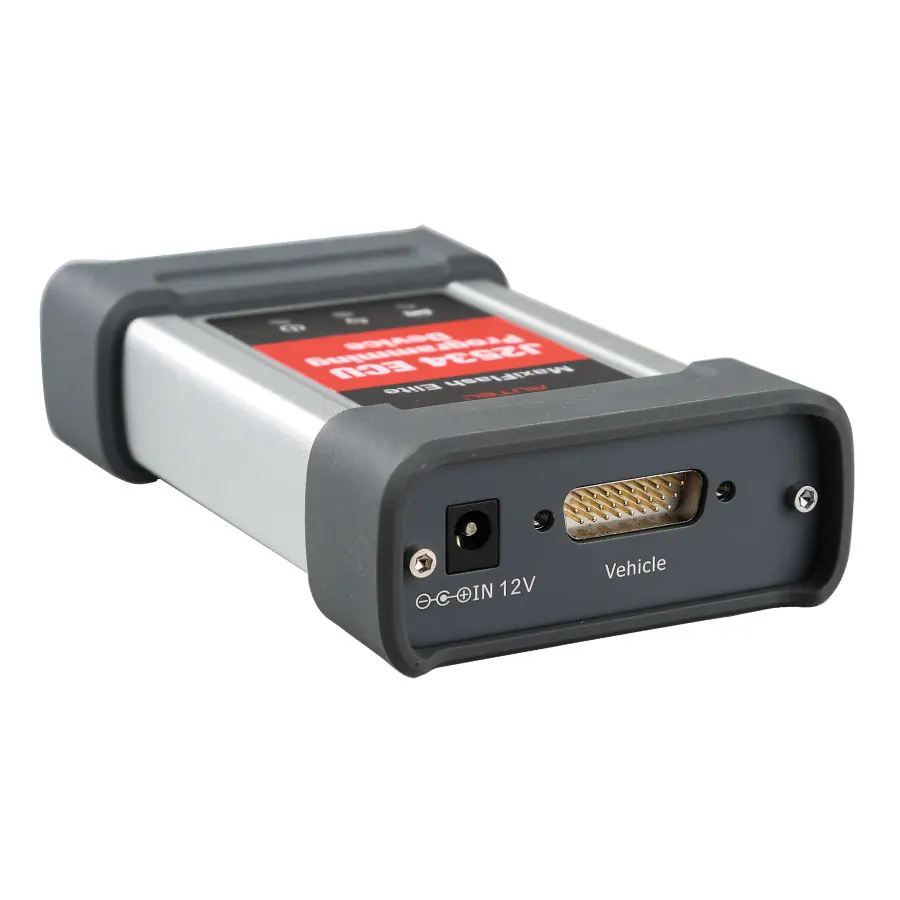

3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
4. Automatic system and software updates with real-time push message notifications via internet
5. Instant remote control tech support anytime, anywhere
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing
9. Hardware running speed is twice than Maxysys MS908P.

MaxiSys Elite Specifications:


Operating System		Android 4.4.4 KitKat
Processor		NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU
Memory		2GB RAM & 32GB Embedded Memory
Display		9.7” Retina display with 2048X1536 resolution & Capacitive touch screen
Connectivity		802.11a/b/g/n/ac WIFI Version 2.1 3Mbs Bluetooth RJ45 Ethernet Connection 3.0 USB (2.0 Compatible) HDMI 1.4a SD Card (Support up to 32GB)
Camera		Rear: 8.0 Megapixel, Autofocus with Flashlight Front: 2.0 Megapixel
Sensors		Ambient Light Sensor, G-sensor
Audio Input/Output		Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery		3.7V/13600mAH Lithium-polymer battery DC/12V/3A Power Supply
Input Voltage		DC/12V/3A
Power Consumption		Max 20W
Operating Temperature		-10 to +55°C
Storage Temperature		-20 to +70°C
Dimensions (W x H x D)		309 X 225 X 35 (mm)
Weight		1.59 kg
Protocols		ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

Maxysis Elite Vehicle List:

AUDI, BENZ, BMW, DACIA, EU FORD, AU Ford, Ford, Holden, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.

Comparison between Autel Diagnostic System:


Comparison	Maxisys Elite	Maxisys MS908P	Maxisys MS908	Maxisys Mini MS905
CPU	NVIDIA Tegra® 4 1.8GHZ	Samsung Exynos Quad 1.4GHZ	Samsung Exynos Quad 1.4GHZ	Samsung Exynos Quad 1.4GHZ
OS	Android 4.4.4 KitKat	AndroidTM 4.0 ICS	AndroidTM 4.0 ICS	AndroidTM 4.0 ICS
SSD HD	32GB	32GB	32GB	32GB
Touch Screen	9.7” 2048X1536 LCD Capacitive	9.7" 1024x768P LED capacitive	9.7" 1024x768P LED capacitive	7.9" 1024x768P LED capacitive
Connectivity	USB 3.0/WLAN/BT	USB 2.0/WLAN/BT	USB 2.0/WLAN/BT	USB 2.0/WLAN/BT
Dual Brand Wifi G/N	≥10GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz
Internal Battery	Y	Y	Y	Y
Weight	3.5lb	3.12lb	3.12lb	1.54lb
Camera(Rear)	8.0 Megapixel/AF/Flash	5.0 Megapixel/AF/Flash	5.0 Megapixel/AF/Flash	5.0 Megapixel/AF/Flash
Wireless BT VCI	USE J2534	USE J2534	Y	Y
Optional Lab Scope	Y	Y	Y	Y
Optional Video Scope	Y	Y	Y	Y
Boot Up Time	15 secs	20 secs	20 secs	20 secs
Autel's Powerful OEM Level Coverage	Y	Y	Y	Y
AUTO VIN Technology	Y	Y	Y	Y
Maxifix Cloud Based Info System	Y	Y	Y	Y
Shop Manager	Y	Y	Y	Y
ECU Coding	Advanced	Advanced	Y	Y
ECU Flash Porgramming	Y	Y	Optional W/ Maxiflash Kit	N
1996-2001 Connector Kit	Complete Connector kit	Complete Connector kit	Complete Connector kit	OBDII Connector Kit Optional Connector Kit
J2534 Hardware	Included	Included	Optional	N

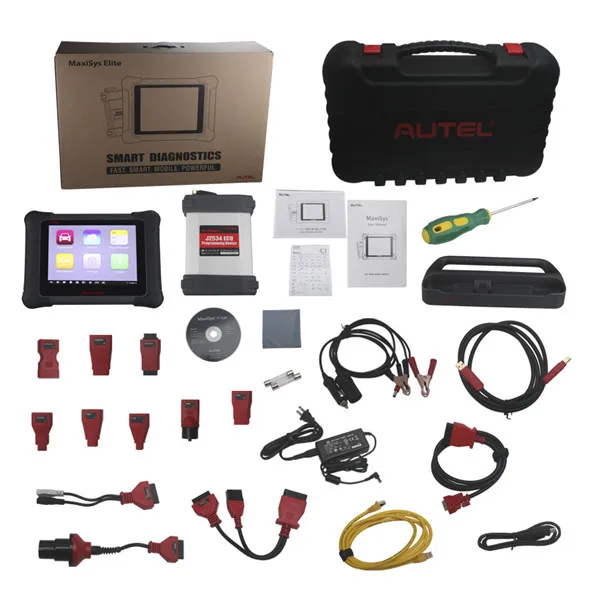

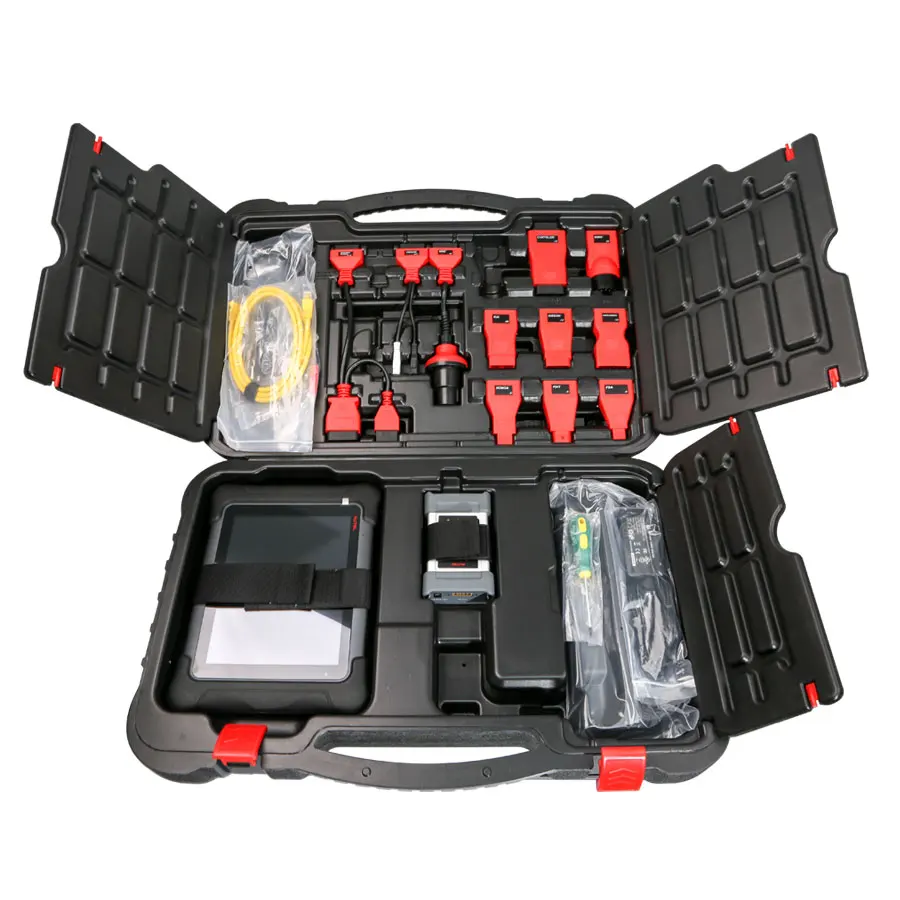

Package Including:

1pc x Maxisys Elite Interface

Accessories as follows:



1pc x Lighter Fuse
1pc x GM/Daewoo-12 adaptor
1pc x PSA-2 adaptor
1pc x Fiat-3 adaptor
1pc x BMW-20 adaptor
1pc x Benz-38 adaptor
1pc x Kia-20 adaptor
1pc x Mitsubishi/Hyundai-12+16 adaptor
1pc x Nissan-14 adaptor
1pc x Honda-3 adaptor
1pc x USB Cable
1pc x Cigarette Lighter
1pc x Compact Disc (CD)
1pc x AC/DC External Power Adapter
1pc x Clipper Cable
1pc x Screwdriver
1pc x VW/AUDI-2+2 adaptor
1pc x Chrysler-16
1pc x Benz-14 (Optional)
1pc x Mini USB Cable
1pc x Ethernet Serial Cable
