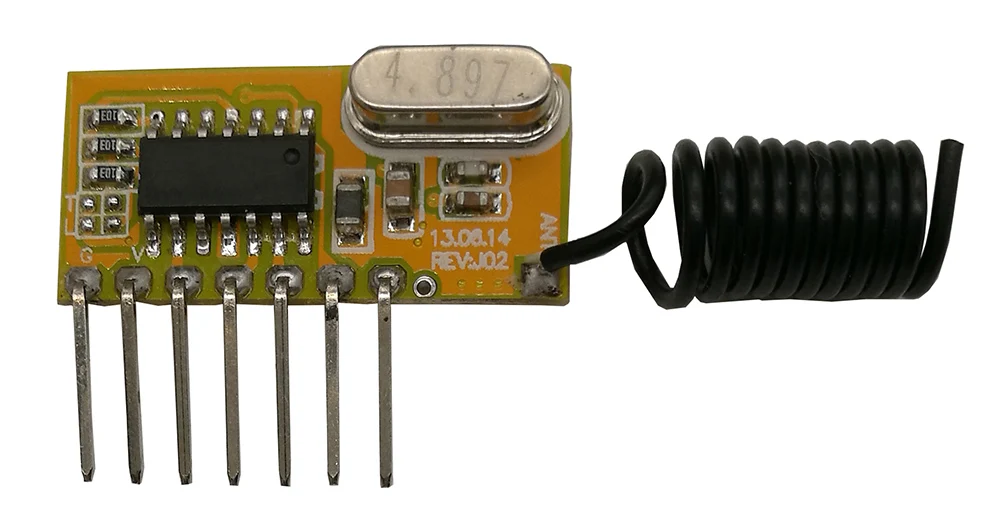

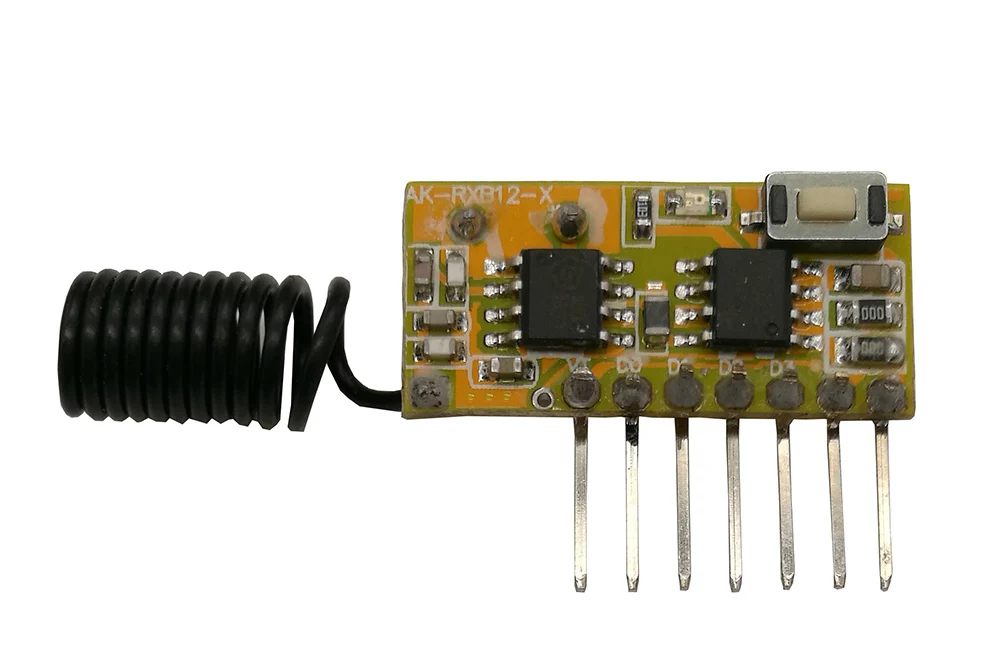

Mini Size Super-Heterodyne Decoding 4CH Receiver Module

Working Voltage: DC3V-5V ( the best DC5V)

Size: 26*13*5mm

Working Frequency: 433.92MHZ

Working Current: ≤3mA (5.0V DC)

Modulation Mode: ASK

Sensitivity: -105dBm (50Ω)

Remote Distance: 10-100 meters (open space)

Output Data : 4CH High Level Signal TTL

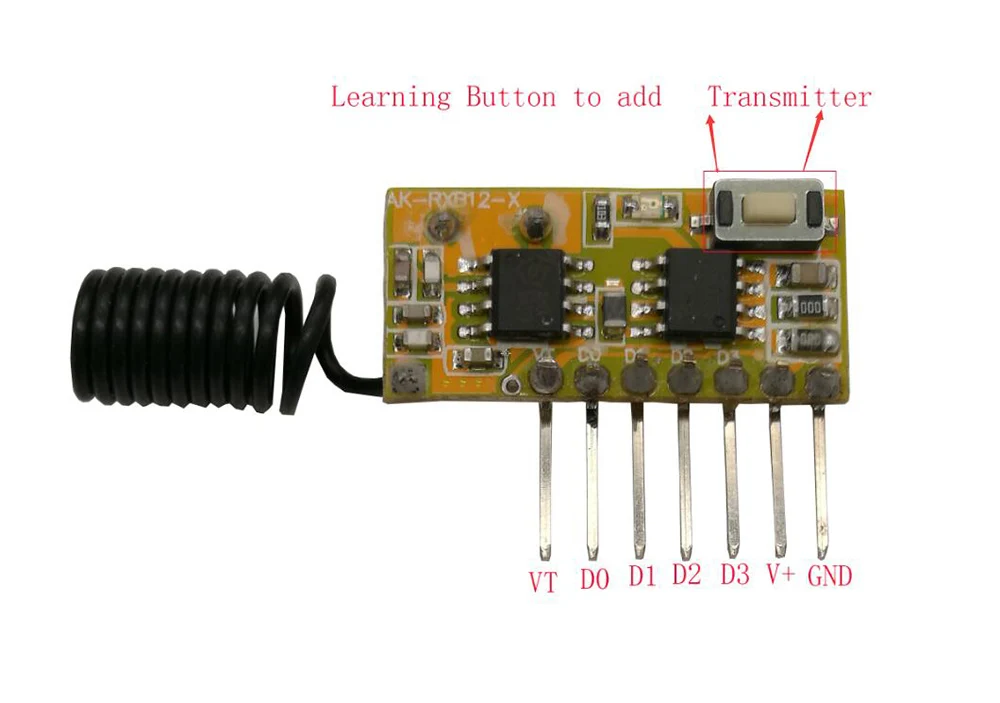

Encoding Type: Learning Button to add Transmitter

Working Mode: Momentary Toggle Latched adjustable

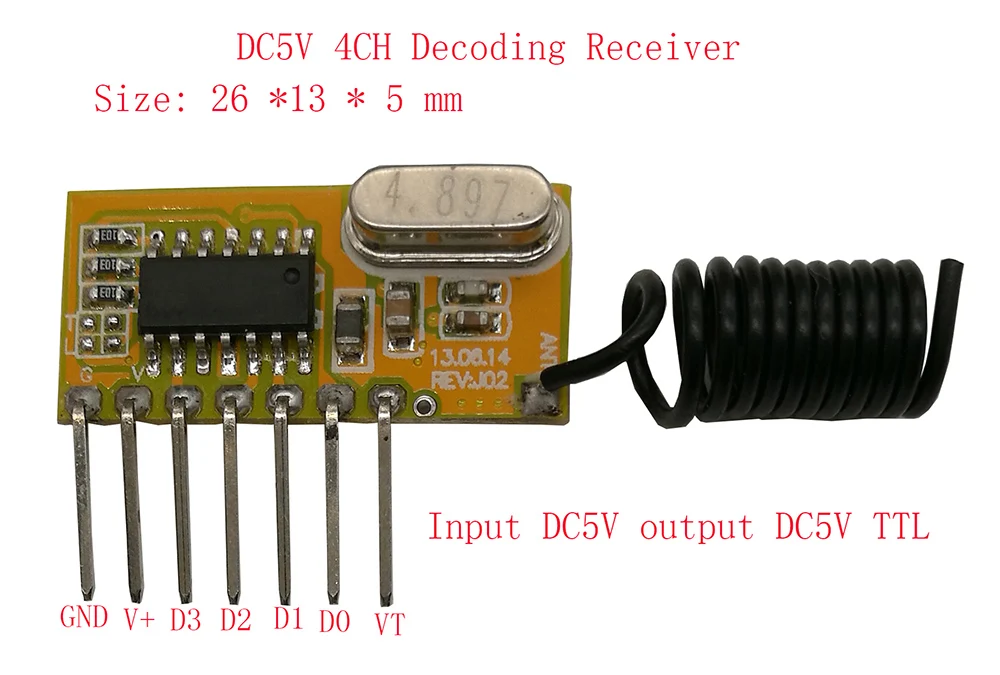

Pin No. Pin Name Instruction

1 VT Output Status Indication

2 D0 Data Output

3 D1 Data Output

4 D2 Data Output

5 D3 Data Output

6 5V Power+

7 GND Power-

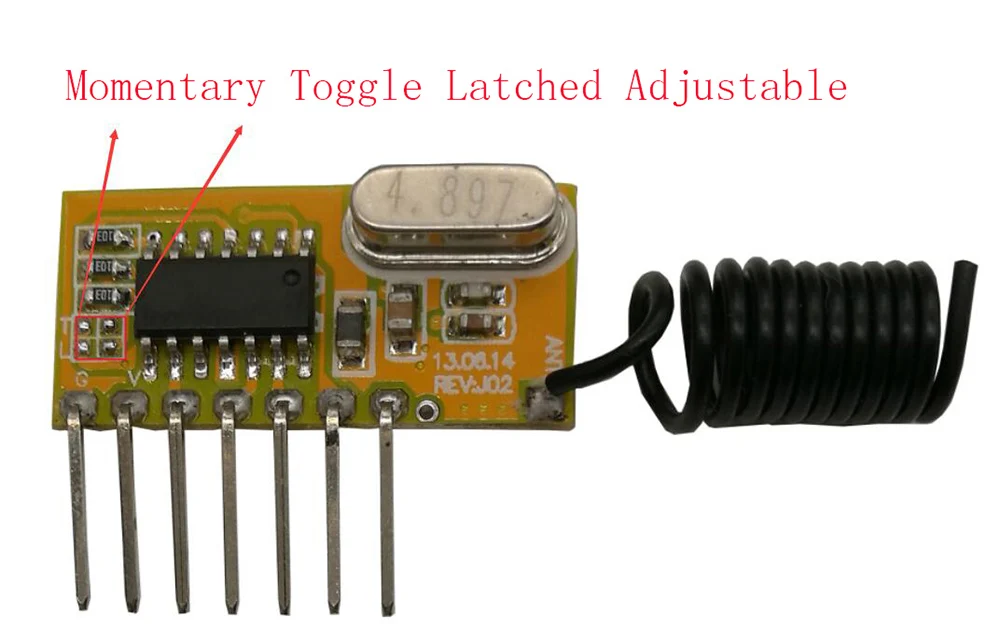

Momentary .Toggle .Latched Adjusted by the Dot on the Receiver .

Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D

Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D.

Latched------------------

Press transmitter button A, the receiver relay A is ON, the relay B/C/D is OFF.

Press transmitter button B, the receiver relay B is ON, the relay A/C/D is OFF.

Press transmitter button C, the receiver relay C is ON, the relay A/B/D is OFF

Press transmitter button D, the receiver relay D is ON, the relay A/B/C is OFF.

It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.

When drive the MCU directly ,the I/O port cant connect the pull-up or pull-down resistors because the drive current of RXB12-X data output pin is weak.Also the inner pull-up or pull-down resistors of MCU should be disabled.

    pacote inclued:

A:

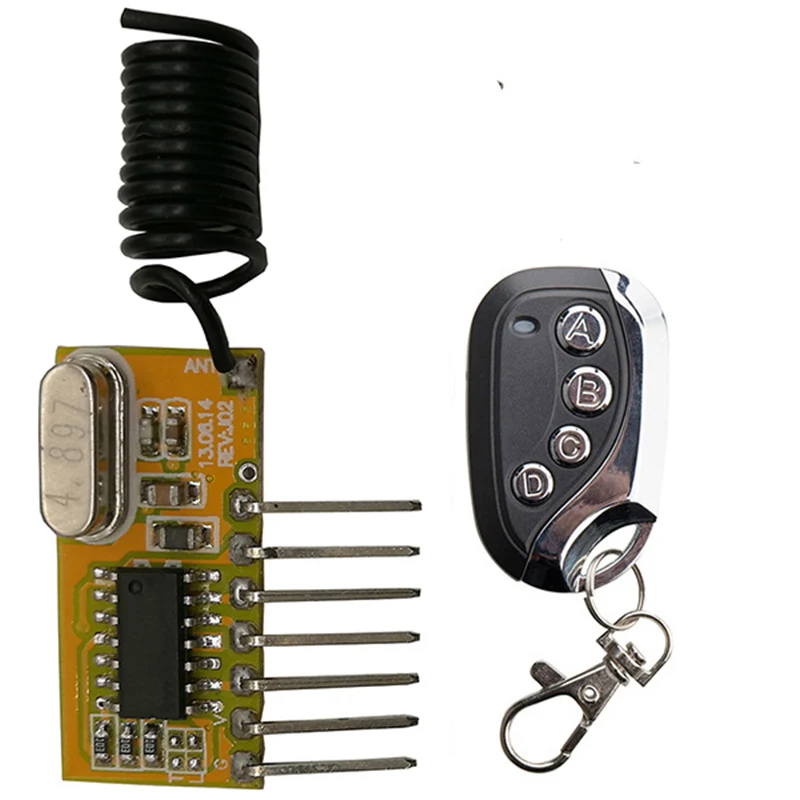

1x Super-heterodyne Receiver Module

1 x Transmitter(with battery)

B:

1 xSuper-heterodyne Receiver Module

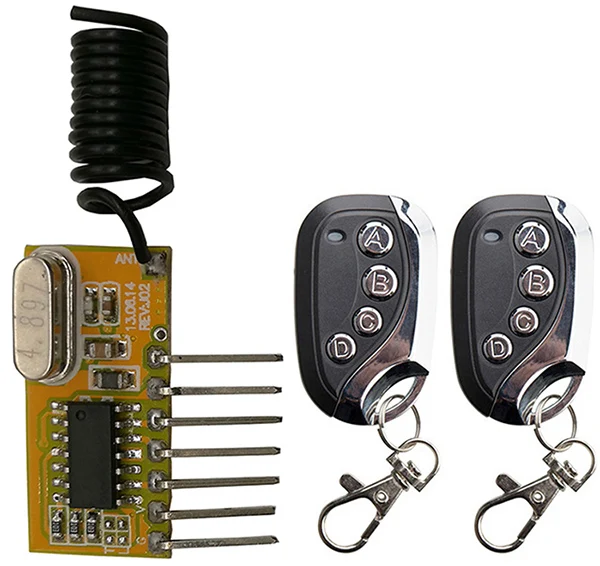

2 x Transmitter(with battery)

C:

1x Super-heterodyne Receiver Module

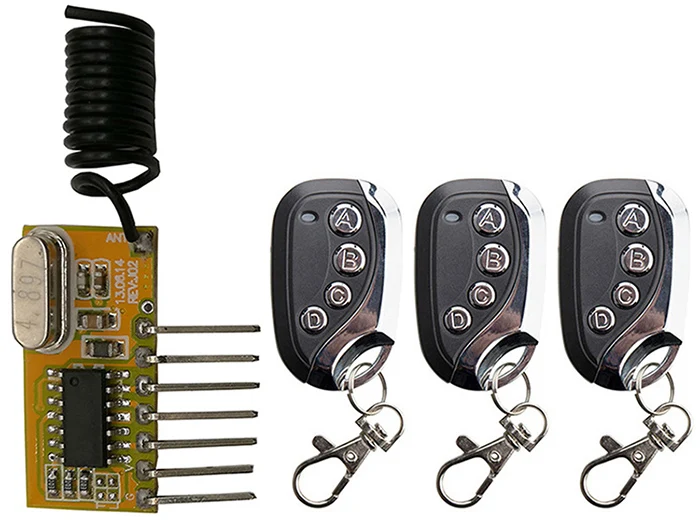

3x Transmitter(with battery)

D:

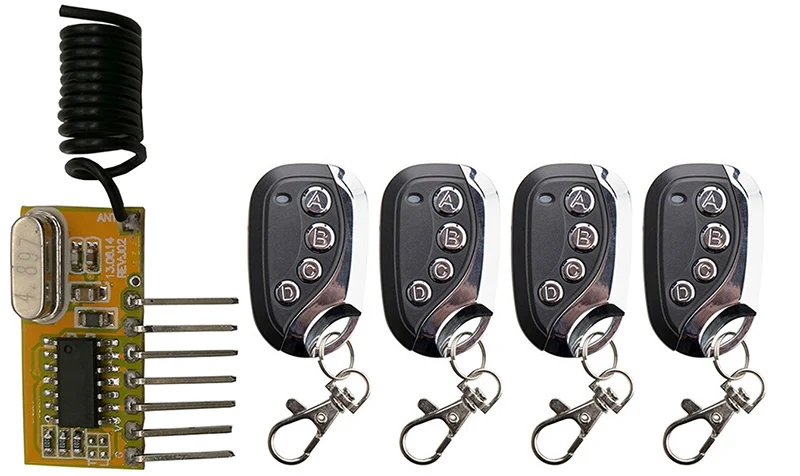

1x Super-heterodyne Receiver Module

4x Transmitter(with battery)
