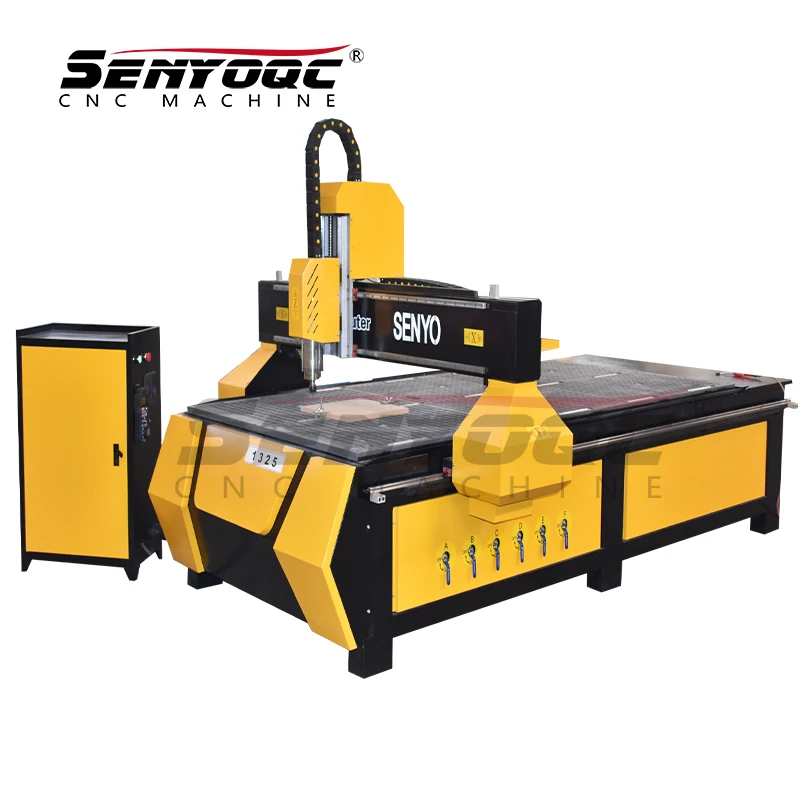

factory cheap price cnc router 3 axis 1325 multihead wood carving for musical nesting machine | Инструменты
260 831,59 руб.
auto tool changing cnc router atc 4x8 ft 1325 2030 2040 woodworking machine price | Инструменты
US $3,599.00 - 12,999.00
Cheap Price Nesting CNC Router Four Spindle ATC Milling Machine With Loading System 1325 Sheet Wood Cutting | Инструменты
119 301,54 - 624 574,00 руб.
Flexible Shaft Fits Rotary Grinder Tool for Dremel 400W Tools 110mm with 6 Chuck Accessories Promotion | Инструменты
770,04 руб.
Promotion! Flexible Shaft Fits Rotary Grinder Tool for Dremel 400W Tools 110mm with 6 Chuck Accessories | Инструменты
838,04 руб.
China 3 Axis 1325 Wood MDF Furniture ATC CNC Router Machine Woodworking Nesting Cutting Auto Price | Инструменты
1 155 857,20 руб.
Характеристики
4 axis atc cnc routers for guitar furniture with best nesting machine price | Инструменты
История изменения цены
*Текущая стоимость 1 739 320,00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-24-2026 | 2069791.55 руб. | 2173281.92 руб. | 2121536 руб. |
| Feb-24-2026 | 2052398.59 руб. | 2155018.53 руб. | 2103708 руб. |
| Jan-24-2026 | 1721927.93 руб. | 1808023.64 руб. | 1764975 руб. |
| Dec-24-2025 | 2017611.47 руб. | 2118492.27 руб. | 2068051.5 руб. |
| Nov-24-2025 | 1756713.75 руб. | 1844549.90 руб. | 1800631 руб. |
| Oct-24-2025 | 1982825.49 руб. | 2081966.6 руб. | 2032395.5 руб. |
| Sep-24-2025 | 1965432.56 руб. | 2063704.41 руб. | 2014568 руб. |
| Aug-24-2025 | 1948038.35 руб. | 2045440.52 руб. | 1996739 руб. |
| Jul-24-2025 | 1930645.35 руб. | 2027177.6 руб. | 1978911 руб. |
Описание товара

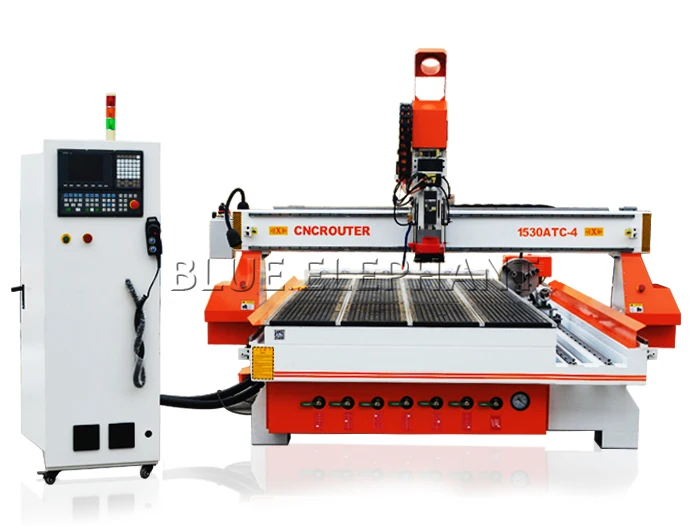

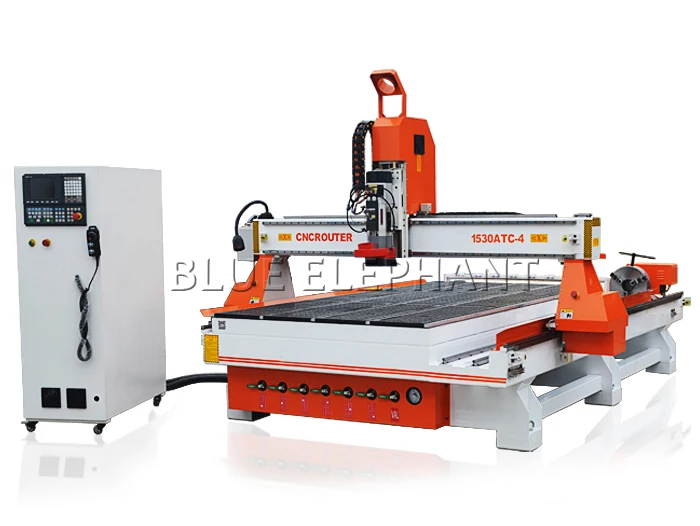

4 axis atc cnc routers for guitar, furniture with best cnc nesting machine price

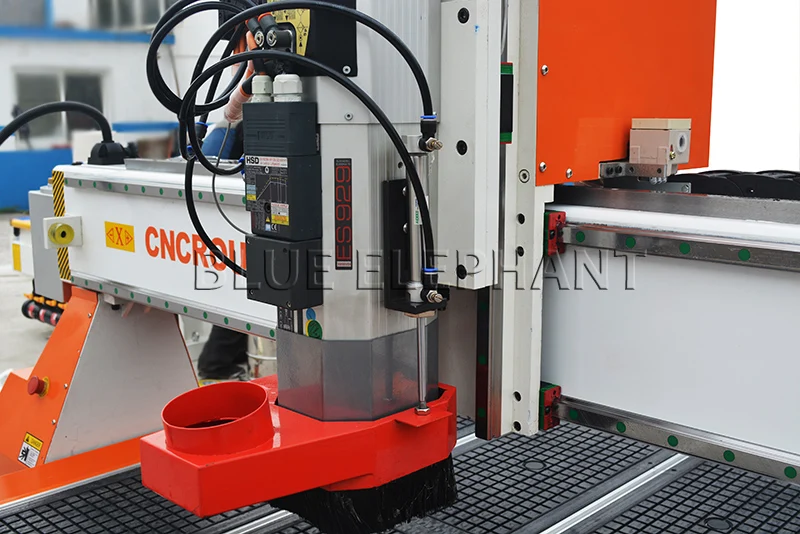

4 axis atc cnc routers for guitar, furniture with best cnc nesting machine price : 1).9 kw HSD ATC air cooling spindle from Italy 2).11kw DELTA inverter from Taiwan 3).Original Taiwan SYNTEC control system 4).850w Japan YASKAWA servo motor 5).Vacuum and T-slot working table 7).3 kw double bag dust collector. 8).300mm diameter,2500mm length rotary axis. 9).25#HINWIN square linear guide 10)Automatic lubrication system 4 axis atc cnc routers for guitar, furniture with best cnc nesting machine price Parameters:
| Number |
Description |
Parameter |
| 1 |
X,Y,Z Working Area |
1500x3000x200mm |
| 2 |
Table Size |
1500×3000mm |
| 3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
| 4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
| 5 |
Table Surface |
Vacuum and T-slot working table |
| 6 |
Frame |
Welded Structure |
| 7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 |
Z Structure |
Hiwin Rail Linear Bearings and TBI Ball Screw |
| 9 |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
| 10 |
Max. Rapid Travel Rate |
33000mm/min |
| 11 |
Max. Working Speed |
25000mm/min |
| 12 |
Spindle Power |
9kw Italy HSD ATC air cooling spindle |
| 13 |
Spindle Speed |
0-24000RPM |
| 14 |
Drive Motors |
850W Japan YASKAWA servo motor |
| 15 |
Working Voltage |
380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
| 16 |
Command Language |
G Code |
| 17 |

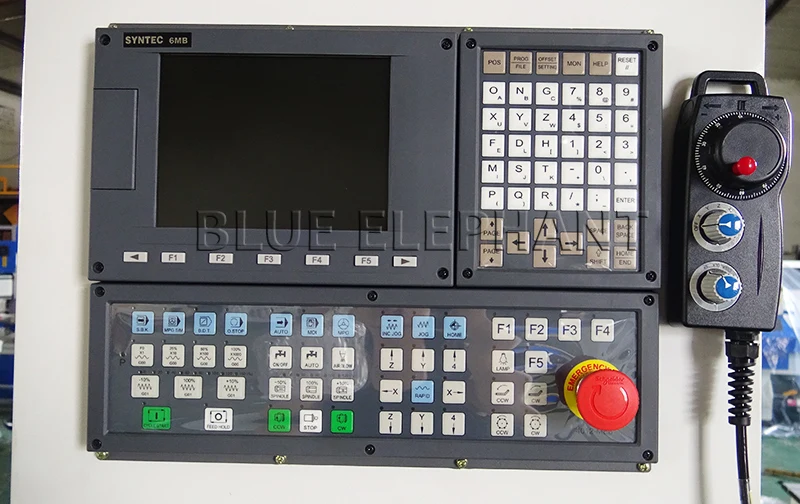

Operating System |
Taiwan SYNTEC control System |
| 18 |
Computer Interface |
USB |
| 19 |

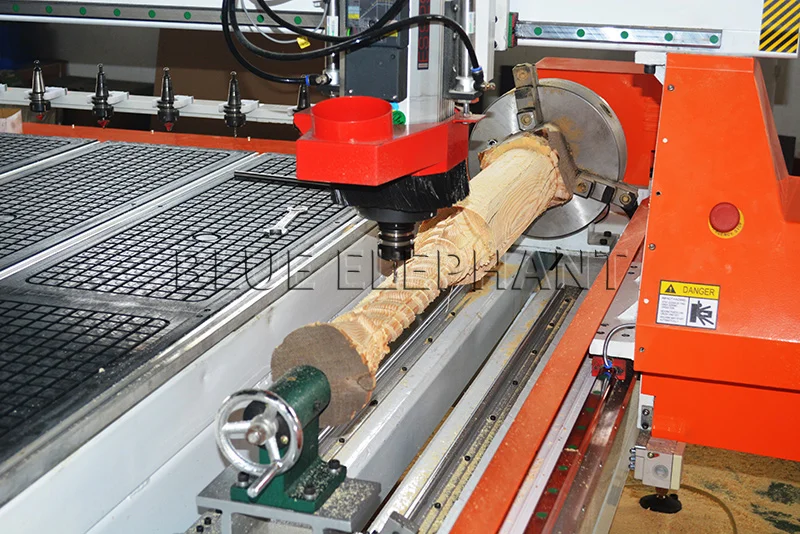

Rotary device |
300mm diameter*2500mm length |
| 20 |
Collet |
ISO 30 |
| 21 |
X,Y Resolution |
<0.01mm |
| 22 |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
| 23 |
Running Environment Temperature |
0 - 45 Centigrade |
| 24 |
Relative Humidity |
30% - 75% |
4 axis atc cnc routers for guitar, furniture with best cnc nesting machine price

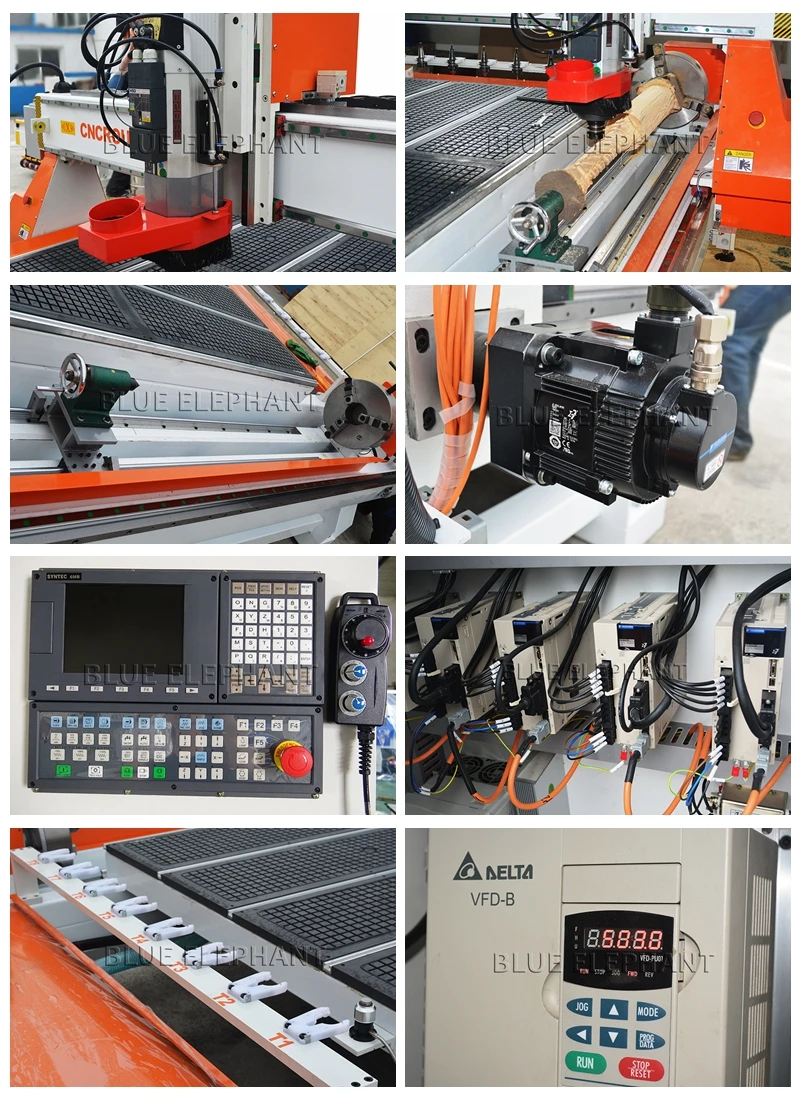

Main parts:

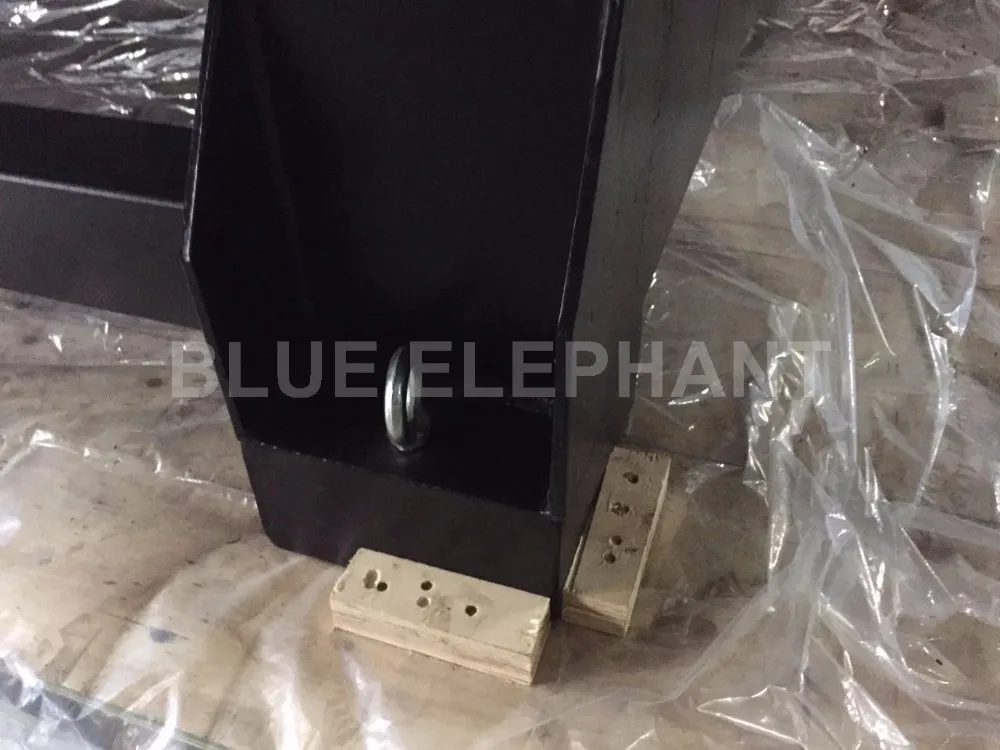

Packaging Details: 1.Outside package:Standard marine export plywood case. 2.inner package:Stretch film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20 working days after payment.
Guarantee and After-sale service: 12 months for the whole machine.
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
