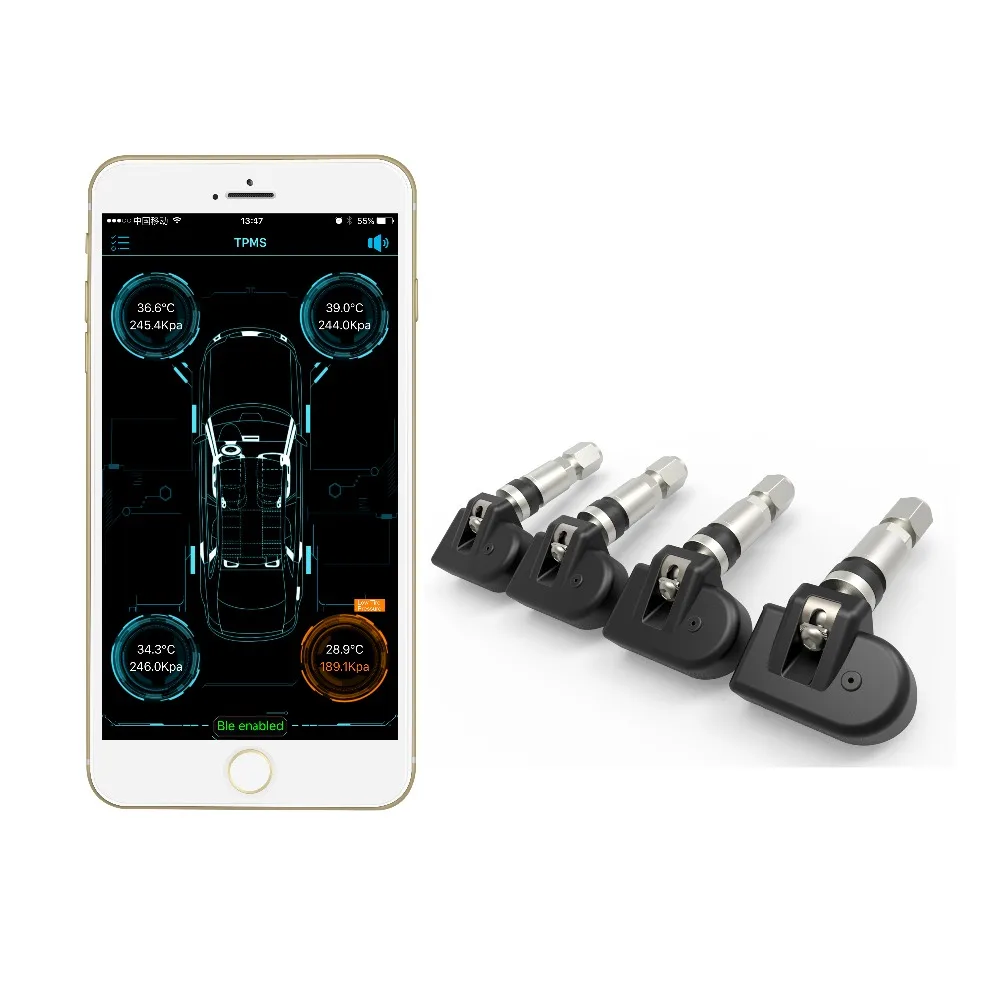

Auto Car Wireless TPMS Tire Pressure Monitoring System with 4 Sensors Battery Simple Installation Version | Автомобили и

Auto Car Wireless TPMS Tire Pressure Monitoring System with 4 Sensors Battery Simple Installation Version | Автомобили и

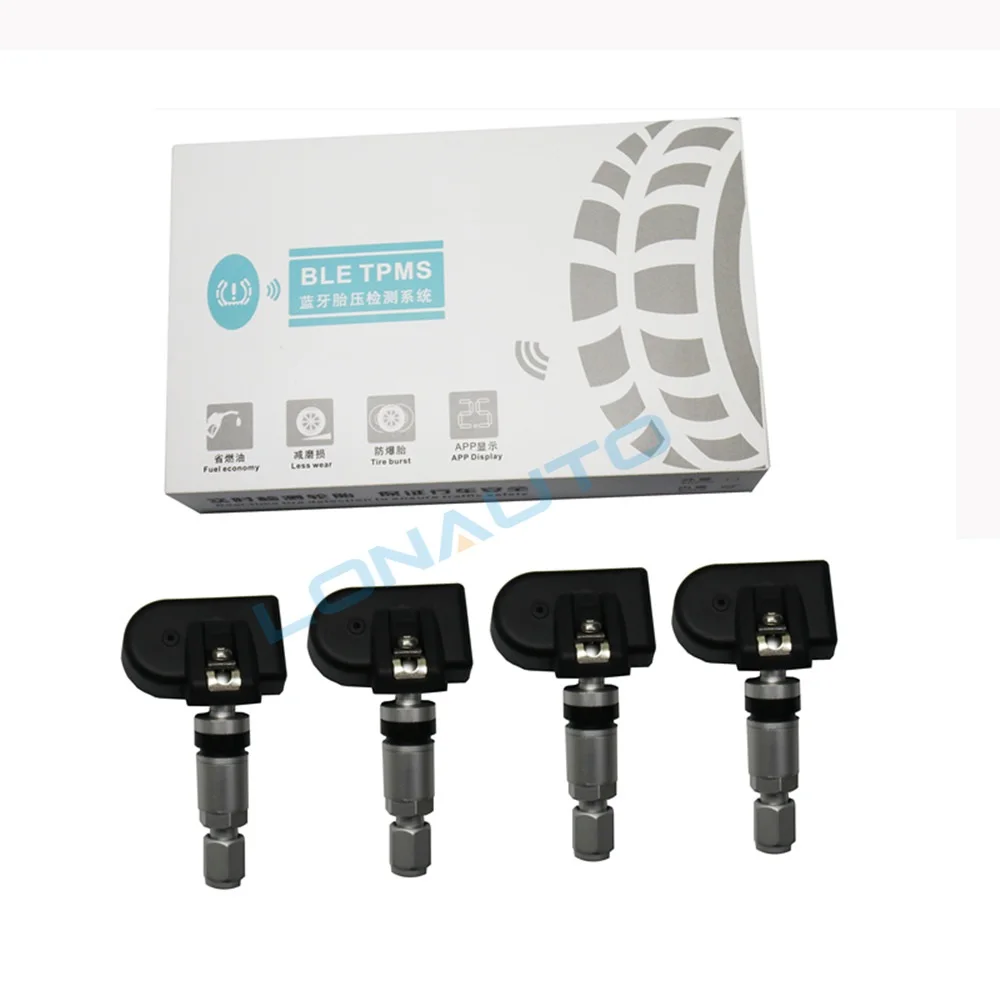

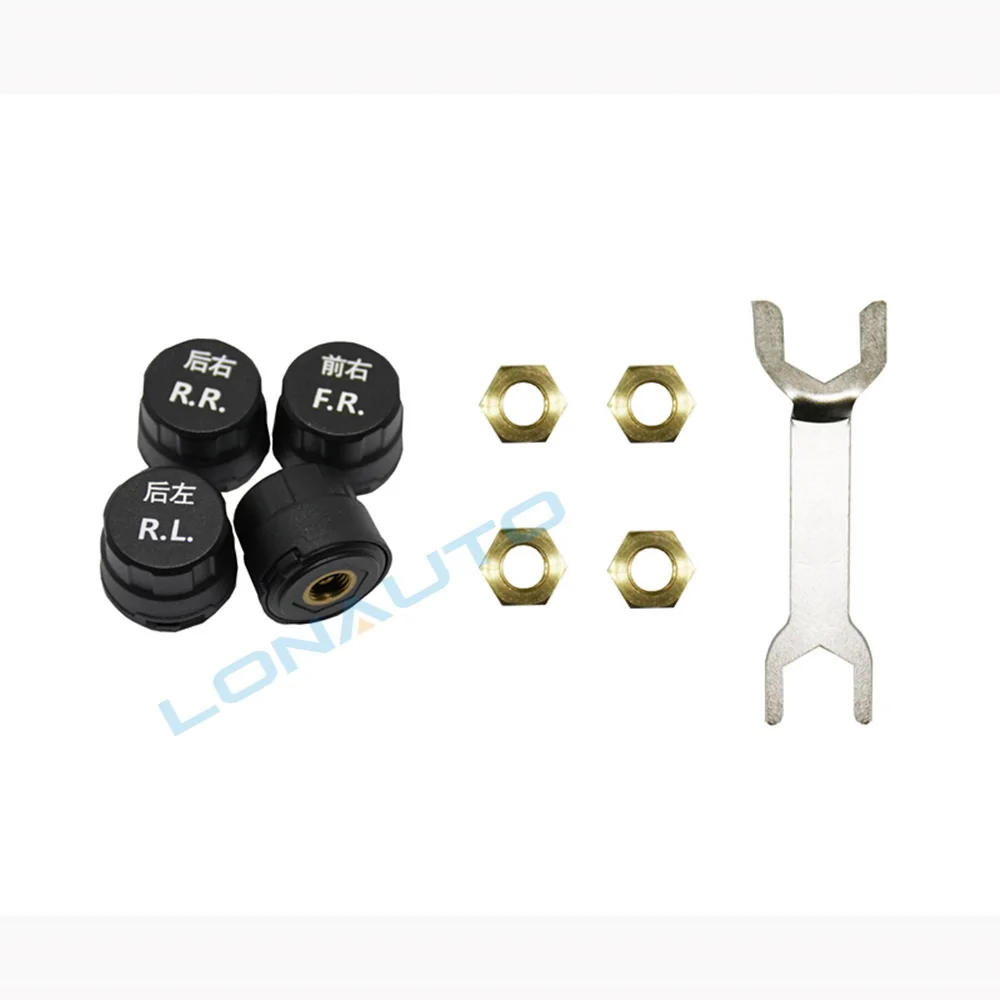

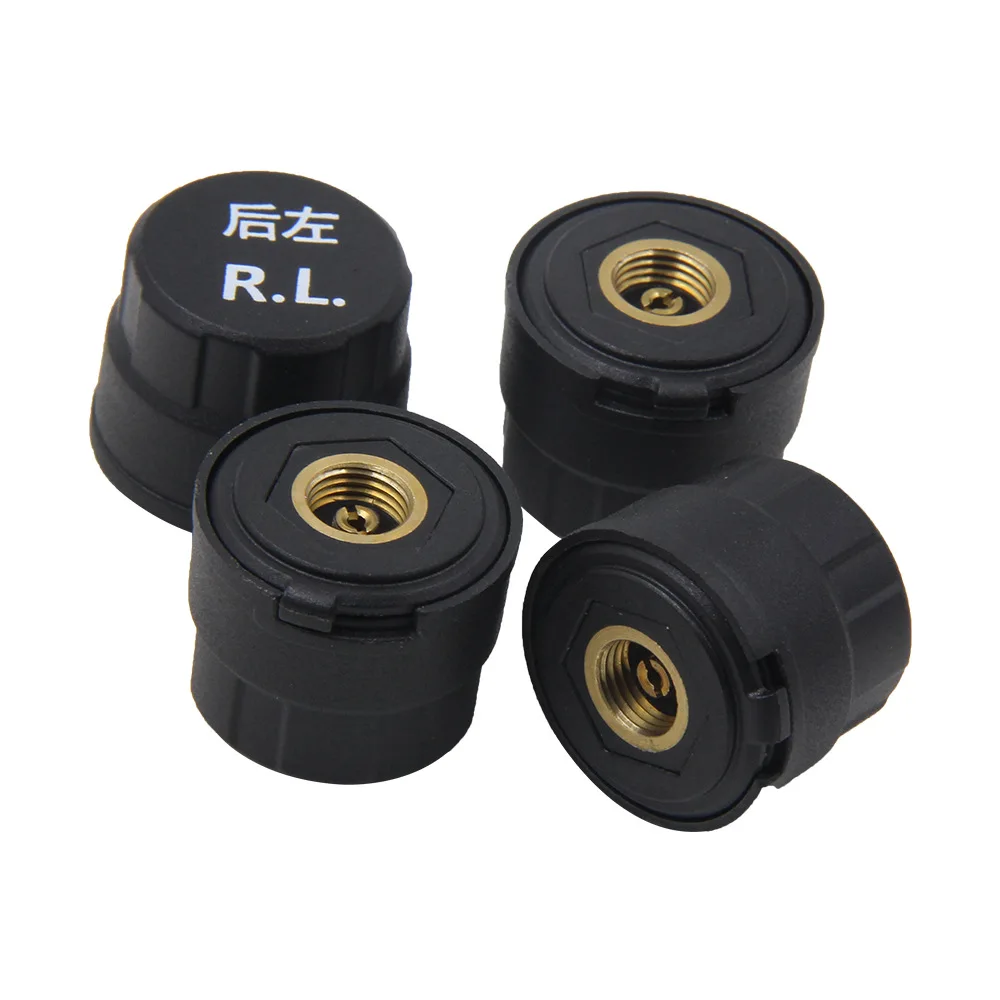

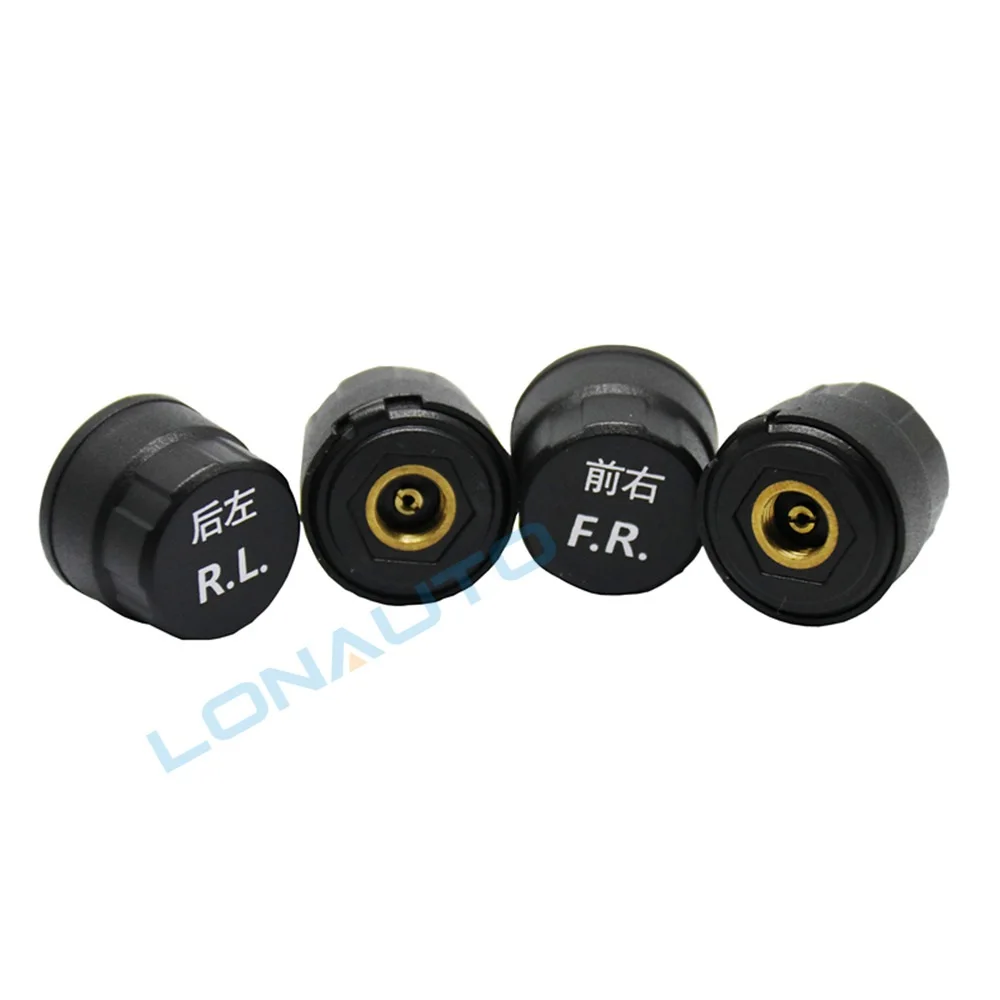

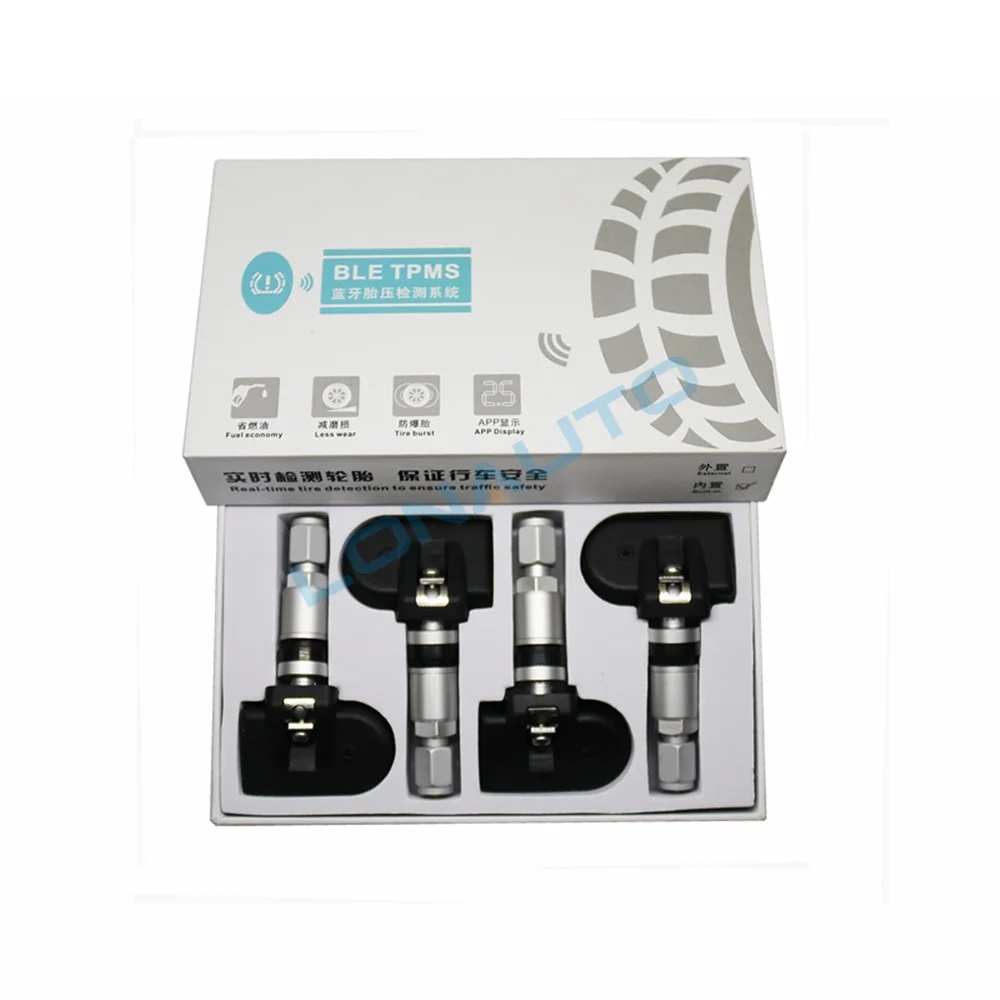

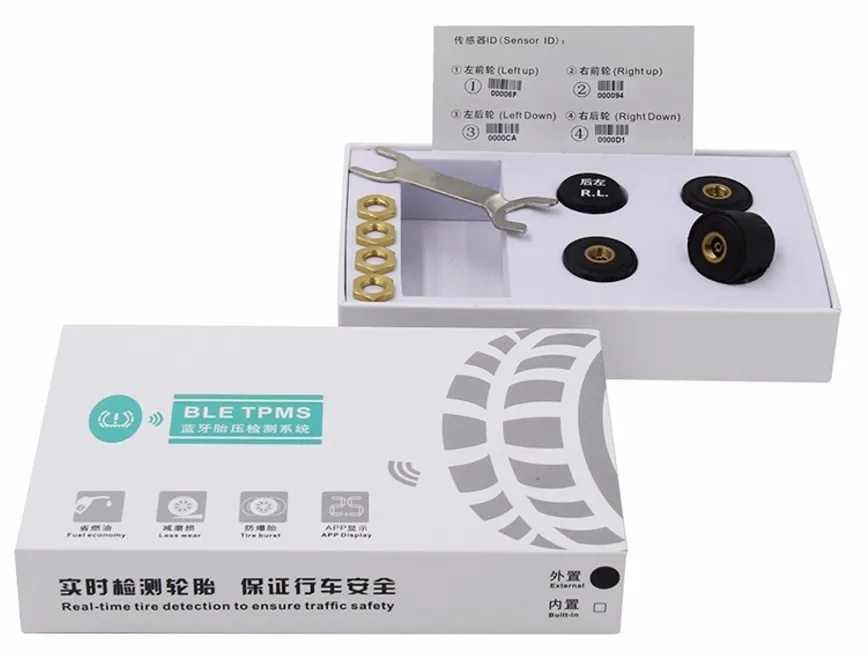

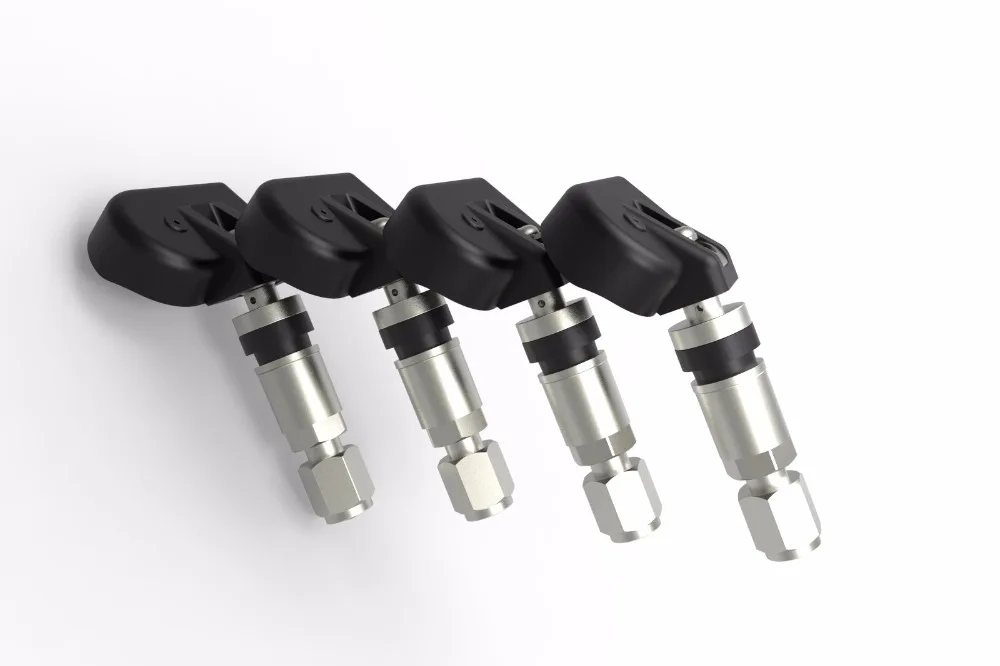

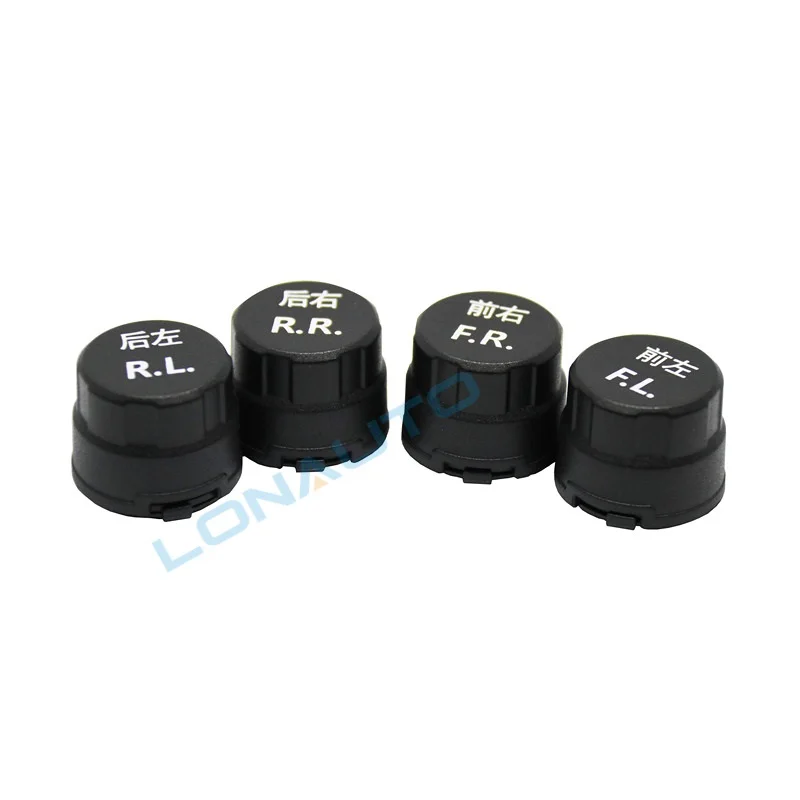

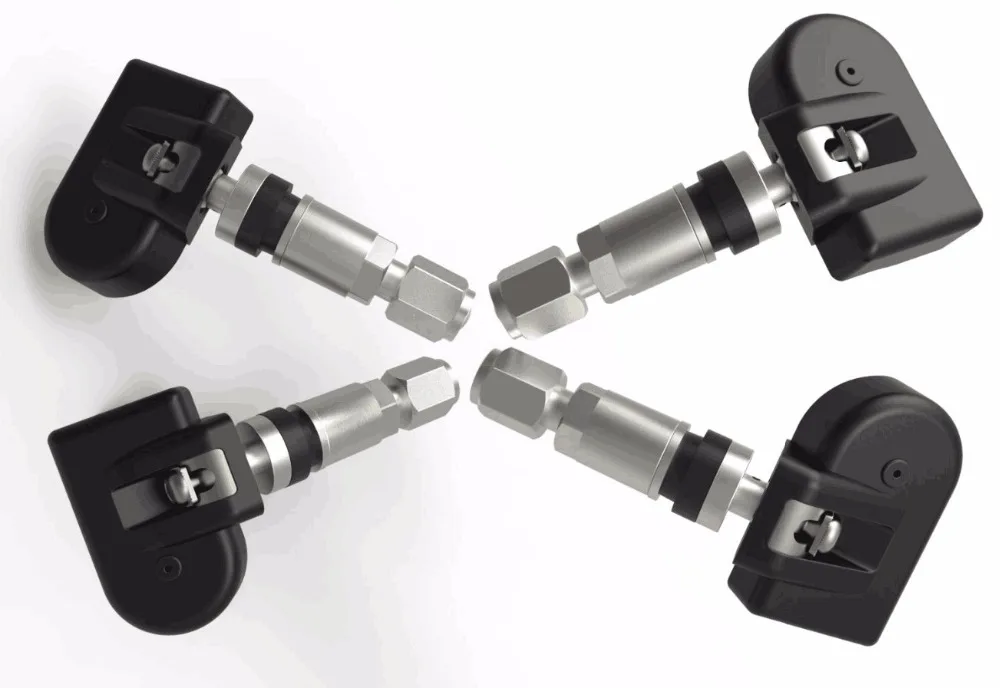

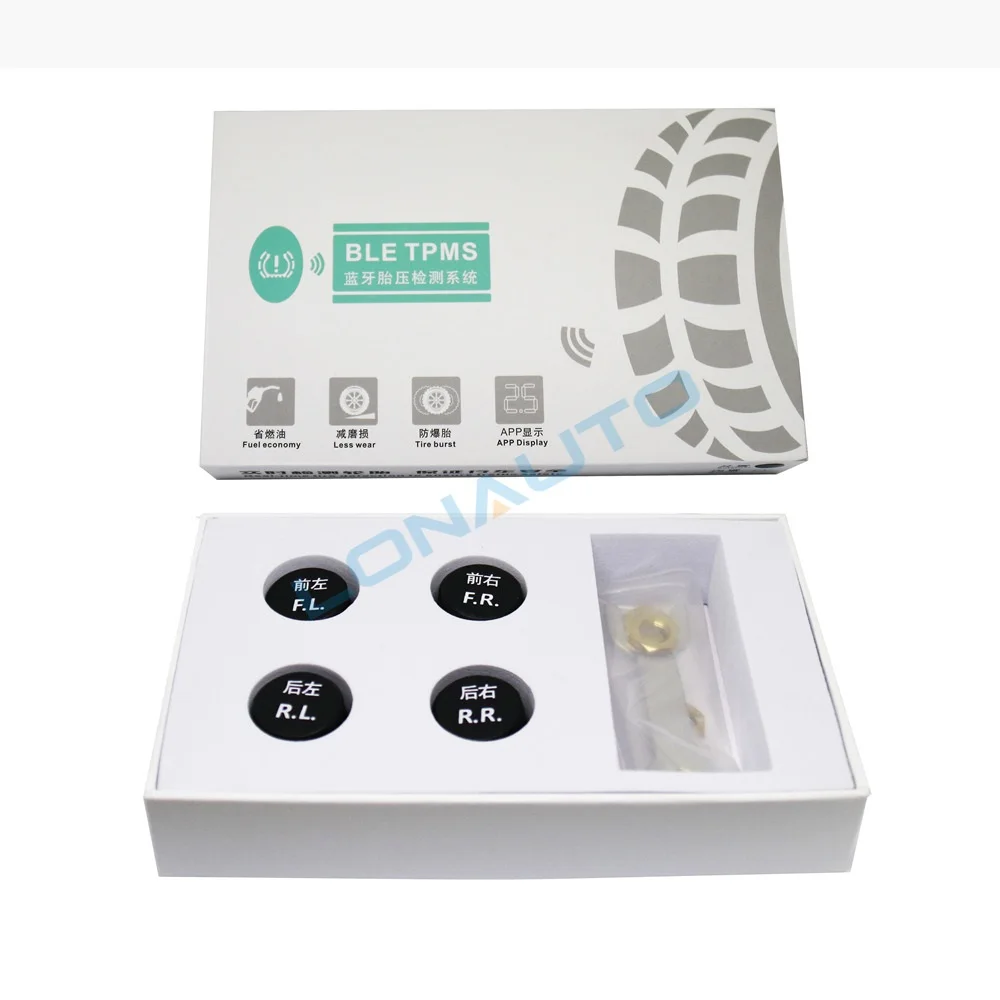

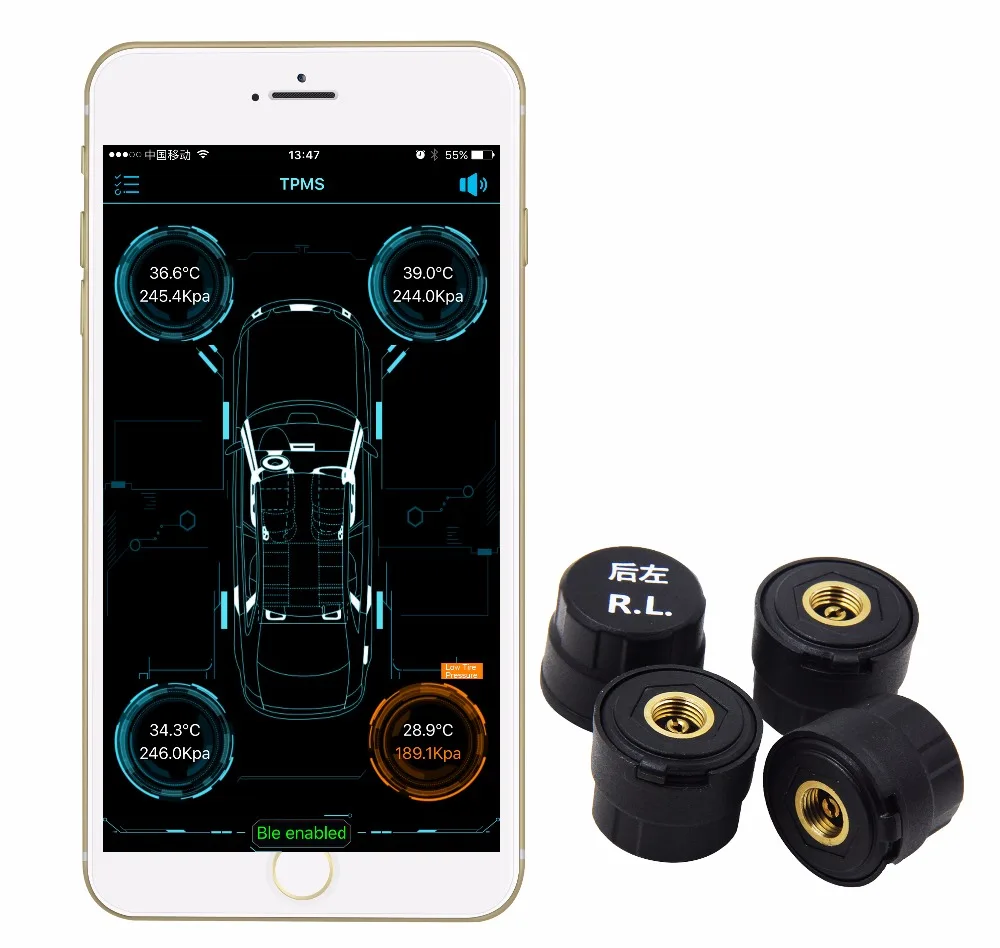

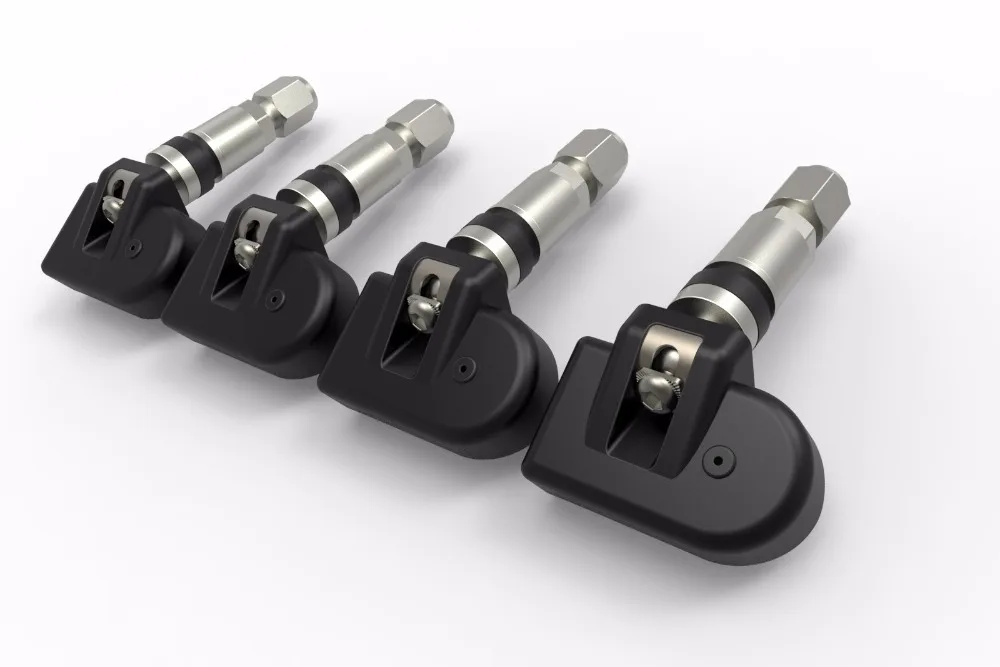

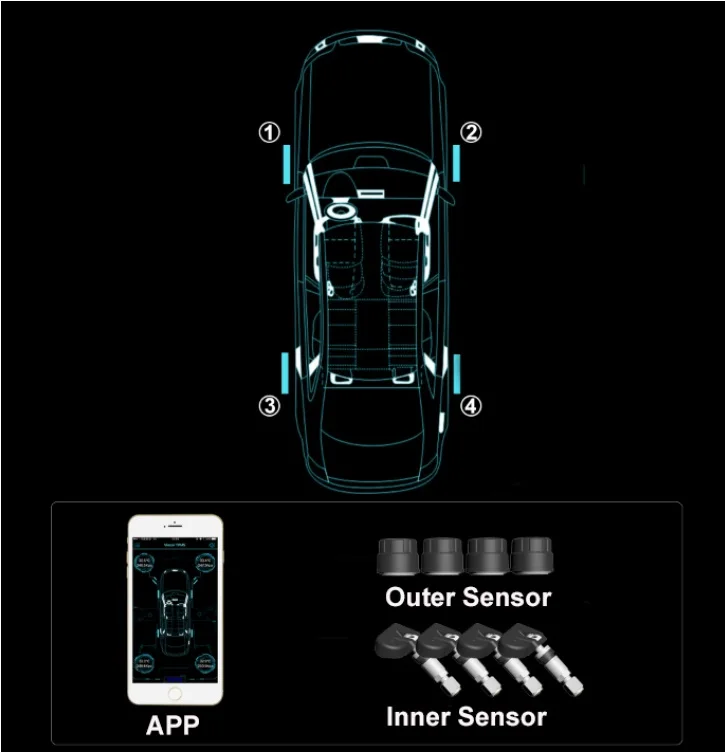

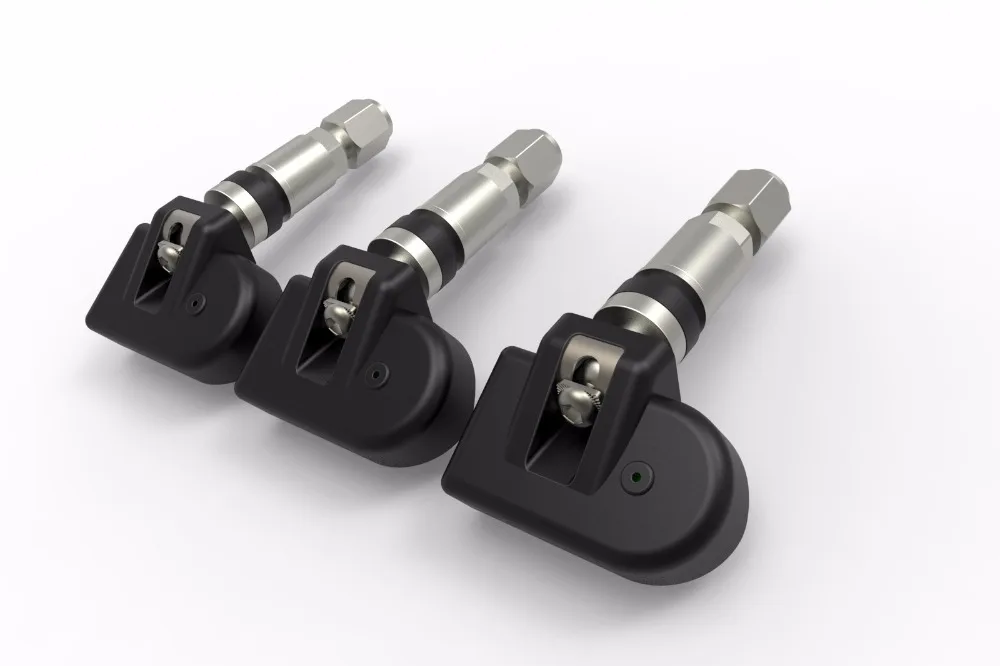

INNER OR OUTER?

TPMS is mainly used for real-time monitoring of vehicle tire temperature and pressure, when the pressure and temperature beyond or below the standard value range, the system will issue an alarm signal, which effectively avoid traffic accidents.

Bluetooth 4.0 (Bluetooth Low Energy) Technical features:

 High efficiency discovery mechanism:

low-power Bluetooth technology only 3 channels to do the broadcast channel, allowing milliseconds to quickly establish a connection, the efficiency is much higher than the traditional Bluetooth 32 channel mode.

 Less data channel and wide channel spacing:

 the traditional Bluetooth has 79 data channels, the channel spacing is 1MHz; low-power Bluetooth has 40 data channels, the channel spacing is 2MHz.

Low operating current and ultra low sleep current:

the traditional Bluetooth peak current is generally 35mA, sleep current is 0.01mA. While the low power consumption of the Bluetooth peak current is less than 15mA, sleep current is 0.004mA.

 Low-power Bluetooth with anti-interference ability, data transmission faster, more efficient, with the mobile phone / computer connection and other advantages, with unparalleled technology and market advantages, especially for close, small amount of data, Non-frequent operation of the application scenarios, such as medical, fitness monitors, wrist devices / watches, home appliances remote control, toys, mobile phones, computers and accessories, industrial automation, video games.


 Explosion-proof tire:

real-time monitoring of tire pressure and temperature, take preventive measures.
 Fuel:

Keep the correct tire pressure and reduce fuel consumption.
Wear less:

 lack of pressure, will cause excessive wear (eating tires), shorten the tire life.
Low cost:

just a Bluetooth 4.0 equipped with intelligent display terminal and install the appropriate APP program, after the link, you can monitor the received data in real time, eliminating the need to buy the display terminal, and has a very good portable operation.

Product Parameters:

Kernel: ARM M0
Working voltage: 3V
Operating current: 300μA
Sleep current: ≤ 2.2μA
Bluetooth operating frequency: 2.4GHz
Bluetooth Transmit Power: 0dBm MAX

Response time: ≤ 5s ≤ 5s ≤ 5s ≤ 5s

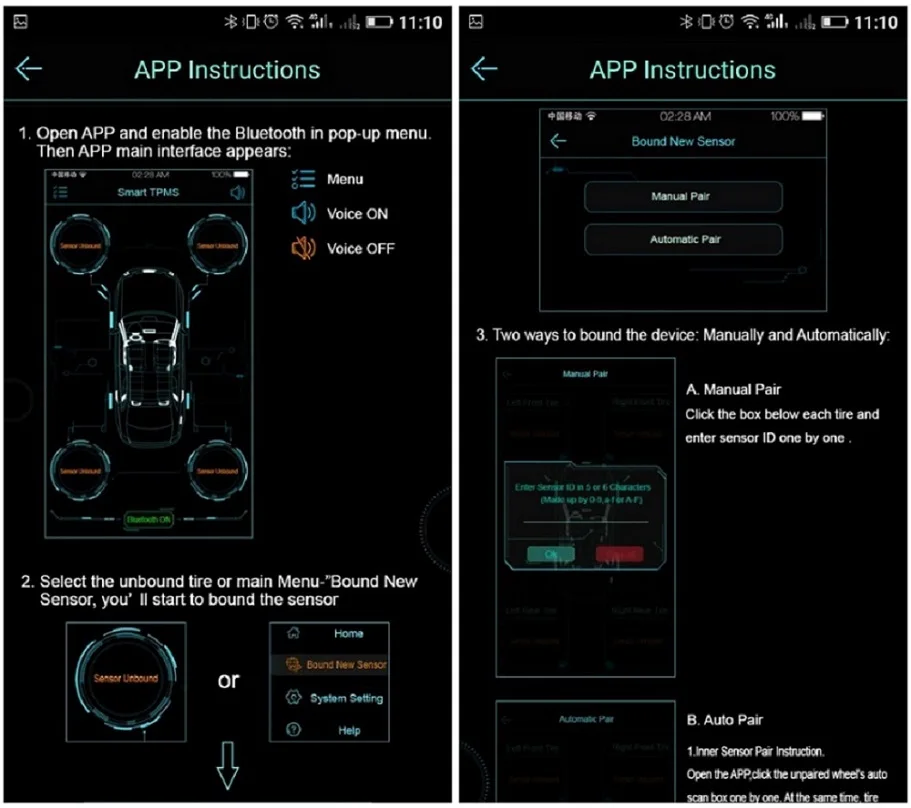

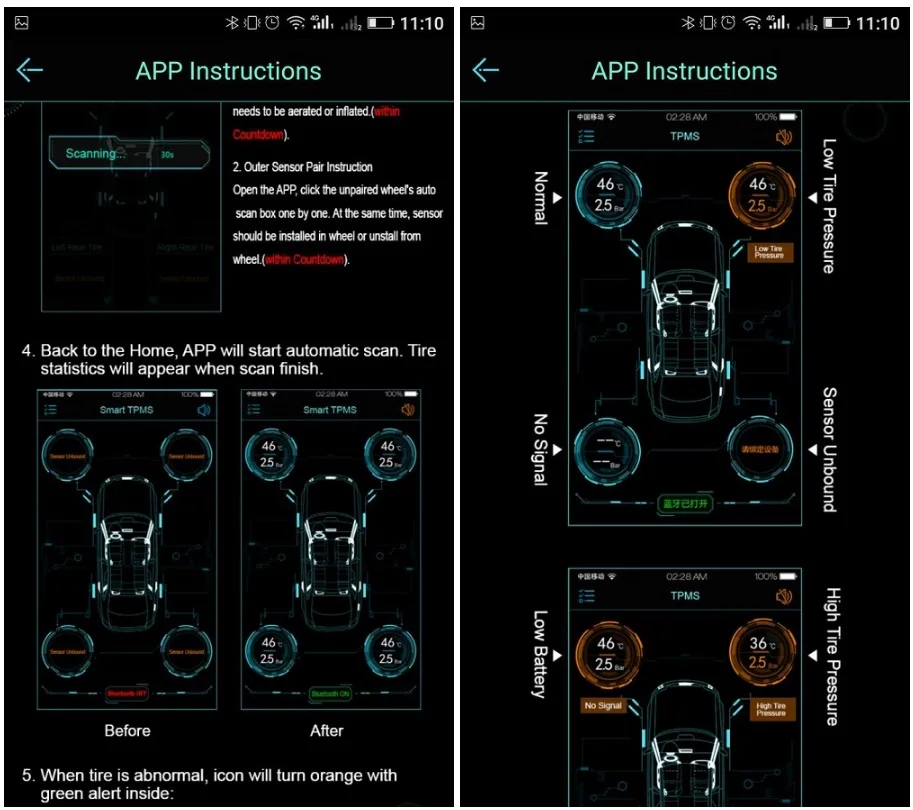

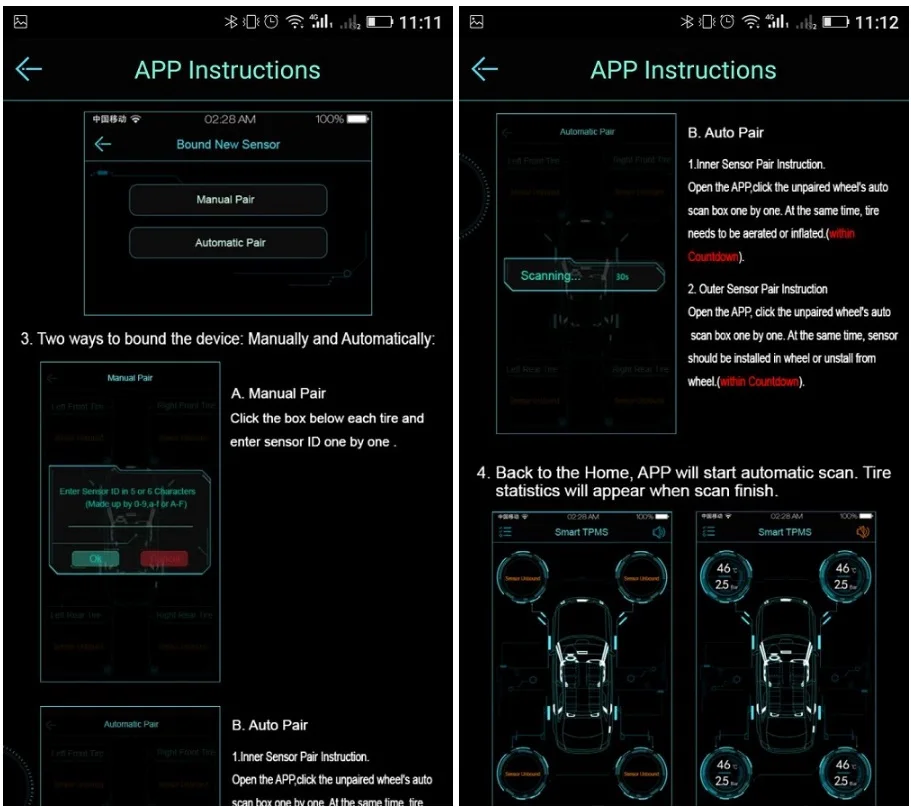

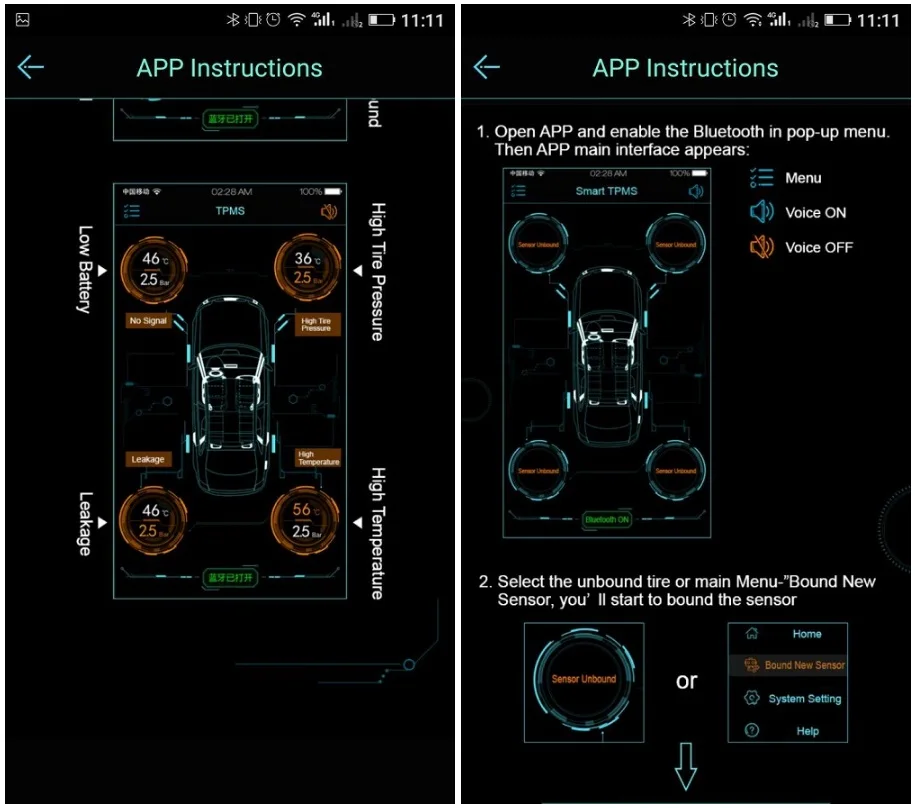

Display: APP way
Waterproof rating: IP67
Operating Humidity: 95% MAX
Tire pressure detection range: 100-1300kPa
Tire pressure detection accuracy
Accuracy: ± 10kPa ± 10kPa ± 10kPa ± 10kPa ± 10kPa ± 10kPa ± 10kPa
Tread temperature detection accuracy: ± 3 ± 3 ± 3 ℃
Operating temperature: -40 ℃ ~ +85 ~ +85 ~ +85 ~ +85 ~ +85 ℃ (built-in)
Storage temperature: -45 ℃ ~ +125 ~ +125 ~ +125 ~ +125 ~ +125 ~ +125 ℃
Battery capacity: 330mAh330mAh330mAh330mAh330mAh330mAh
Battery life: 1200120012001200 days (built-in) days around (built-in) days or so

Weight: 30g ± 1g30g ± 1g30g ± 1g30g ± 1g30g ± 1g30g ± 1g
