5.7mm/s Speed 450mm 18" Stroke Linear Actuator 12Volt DC Motor W/ Forward Reverse Control System for Car/Sofa/Bed/Window/Medical |

---

5.7mm/s Speed 450mm 18" Stroke Linear Actuator 12Volt DC Motor W/ Forward Reverse Control System for Car/Sofa/Bed/Window/Medical



Here for sale is 1PCS DC 12V 450mm/18" Stroke 1500N/330lbs max push load 5.7mm/s speed Linear Actuator, It comes with 1 Set of Wireless Remote Control Kits for easy installation and convenient operation.   The control kit comes with a wireless remote which is very small in size, convenient for operation.

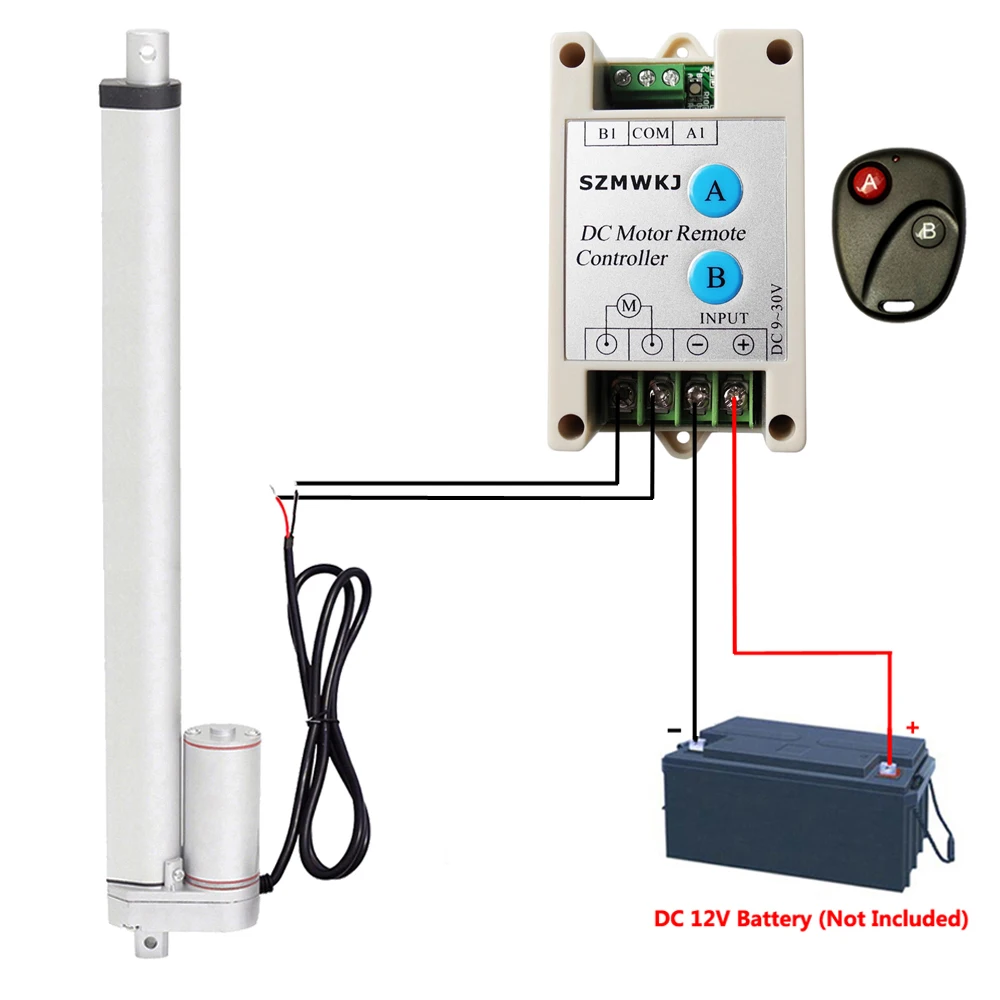

Note 1: The battery in the photo is only for reference and is not included in the package.

Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 3A.

Note 3: If there is no reaction after correct wiring, pls try to exchange the positive and negative pole of the power cord.



*1PCS 450mm/18" Stroke DC 12V 5.7mm/s Speed Linear Actuator.

*1Set of Wireless Remote Controller (Electronic Controller Box+Wireless Remote).



Note: The power supply in the photo is only for reference and is not included in the package.



Product Name	Linear Actuator
Condition	100% New
Input Voltage	DC 12V

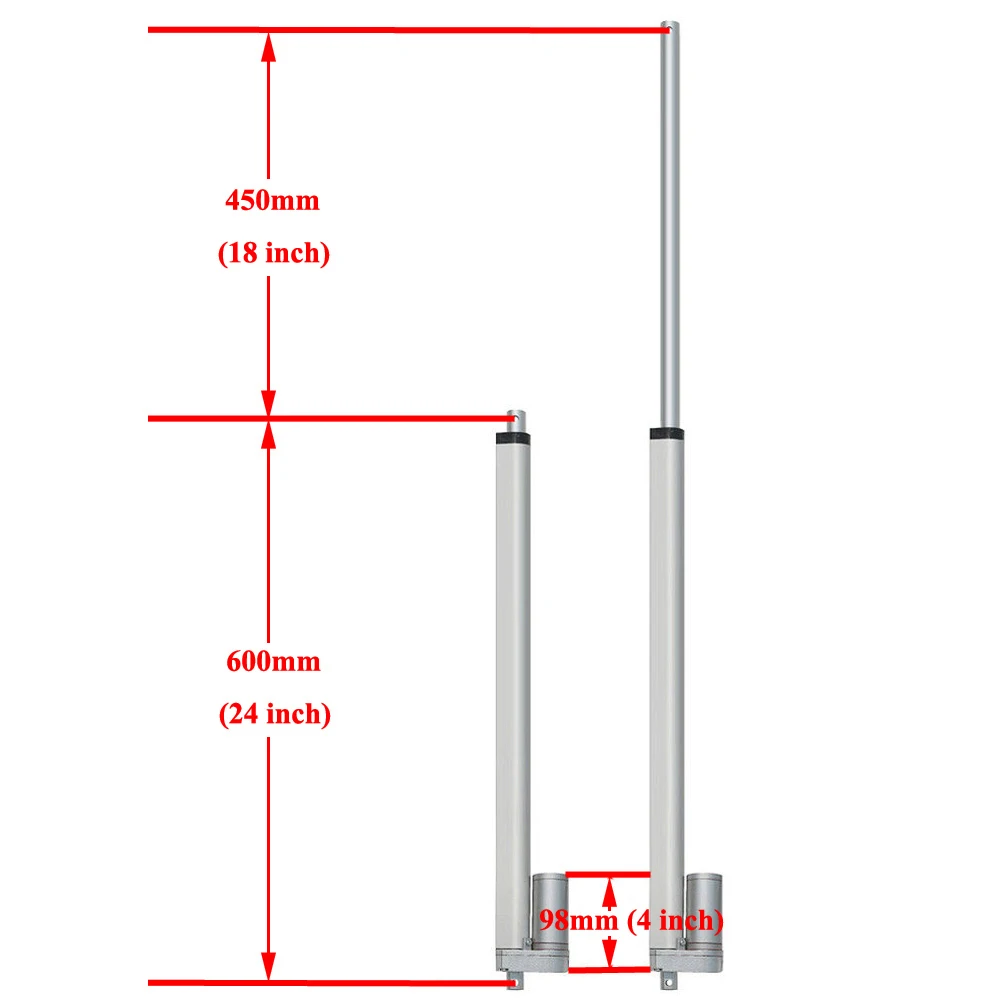

Stroke Length	450mm/18"
Retracted Length	600mm/23.62"
Extended Length	1050mm/41.34"
Max Push Load	1500N/150KG/330lbs
Max Pull Load	1200N/120KG/264lbs
Speed	5.7mm/s (0.22"/s)
Power Cord Length	1.5Meters/59"
Duty Cycle	25%
Operating Frequency	20%
Material	Aluminum Alloy
Color	Silver Grey
Operation Temperature	-26 ° C ~ +65 ° C
Protection Class	IP65
No-load Current	< 0.5A
Max load Current	3A
Certification	CE&SGS
Warranty	Standard 1 year
Built-in Limit Switch	Yes



* 100% Brand New and high quality

* With CE&SGS certification

* Heavy Duty and Long Lasting Motor

* High quality aluminum alloy material

* High performance motor

* Built-in high quality limit switch

* The low noise design, noise level below 60 dB

* Multiple Purpose Applications Linear Actuator

* Commonly Used In Automotive, Medical Devices and Engineering Industry

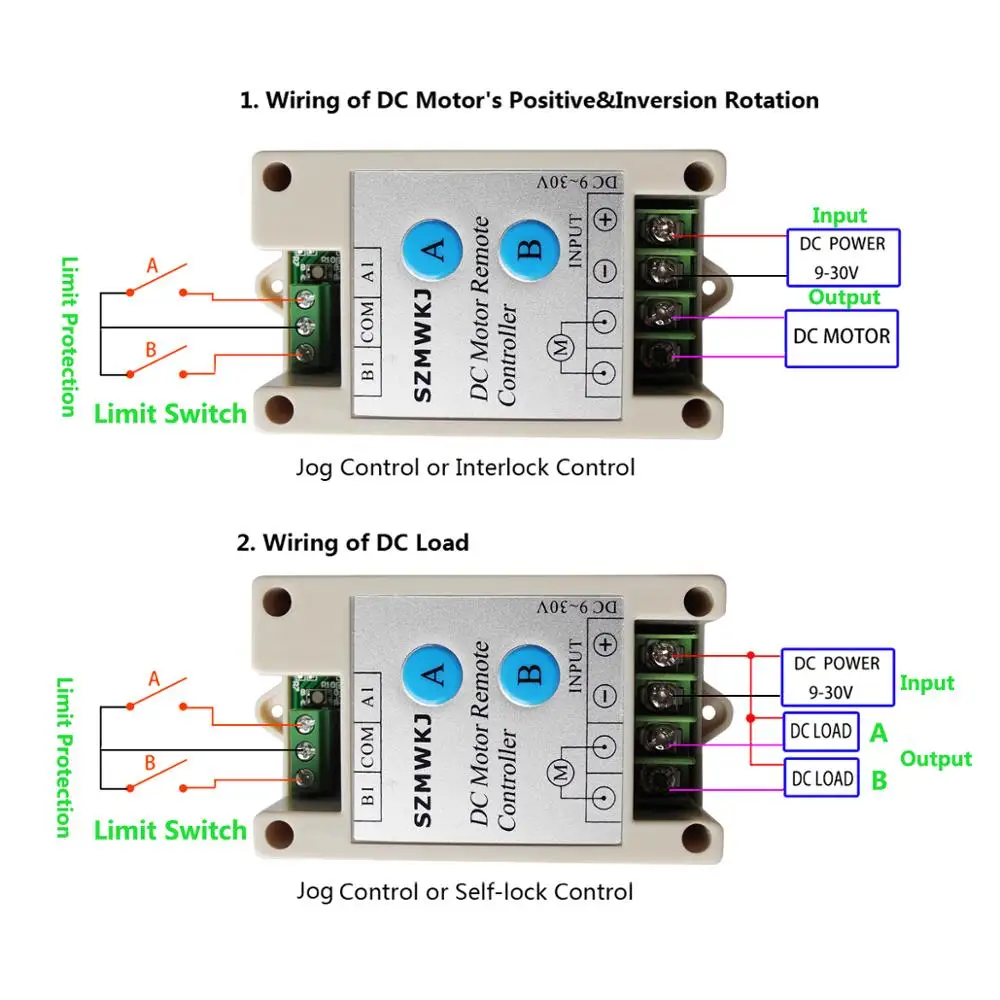

This controller can control DC motor’s positive inversion rotation, it can also control two-way DC loads. The controller can be operated by the wireless remote control or the manual buttons on the controller box which is very convenient for use. There are 3 operation modes: Jog Control, Self-Lock Control and Interlock Control, the 3 modes can be switched by the manual buttons, users can set and choose any of the three modes based on actual requirements.





Specification:



Brand	SZMWKJ
Model	TK005-2
Operating Voltage	9-30V DC
Max Discharge Current	10A
Fuse	10A/30V
Control Mode	Jog /Self-lock / Interlock Control
Manual Buttons	Yes
Wireless Remote	Yes
Frequency	433MHZ
Control Distance	> 80Meters
Protection Class	IP42
Operating Temperature	-20℃ to + 60℃
Controller Dimension	97*50*32mm/3.8*1.96*1.25inch
Net Weight	96g
Package Weight	140g
Warranty	Standard One Year

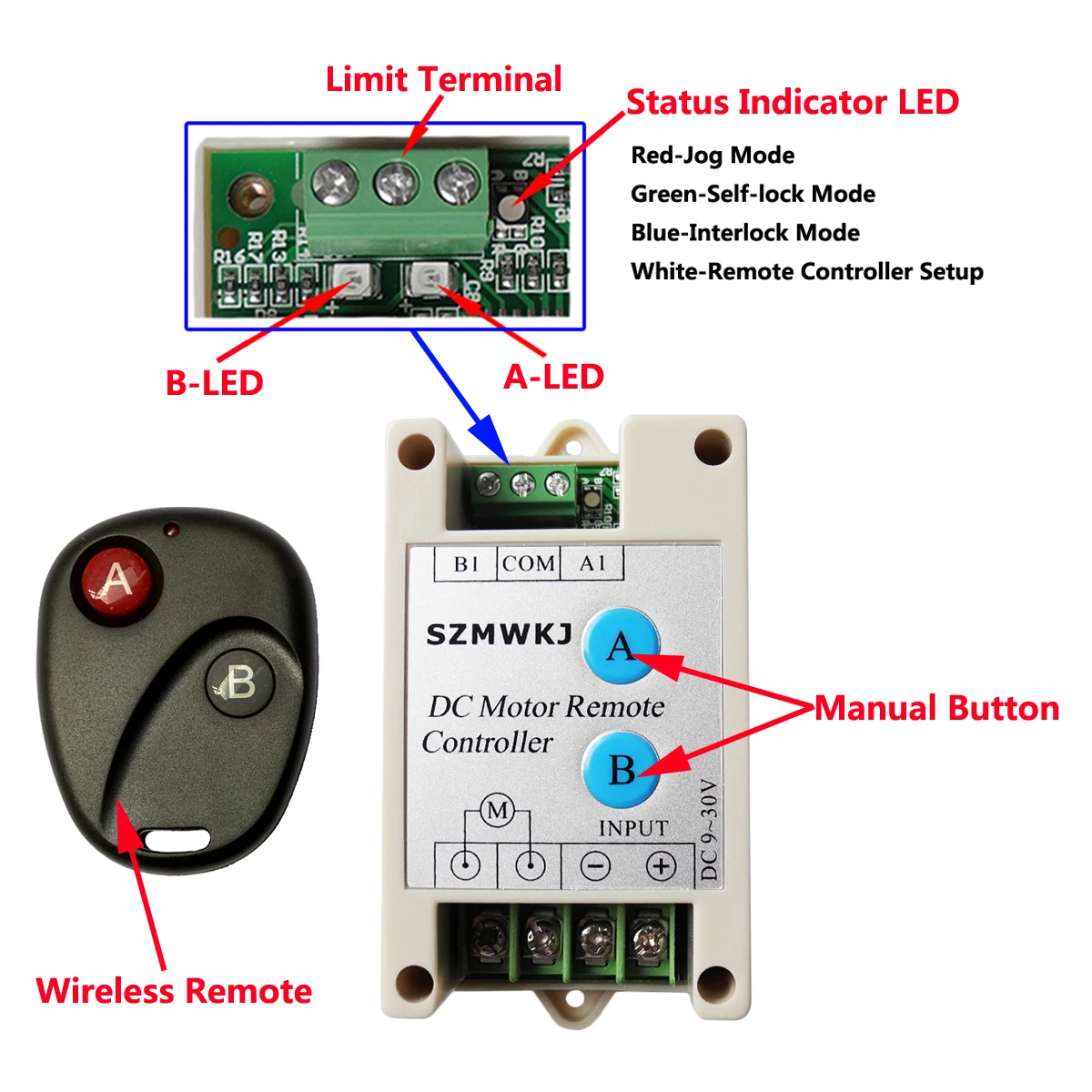

Features:



* Wide voltage design, operating voltage range is DC 9-30V.

* Two channels output, can control DC motor’s positive inversion rotation or control two-way DC loads.

* Three control modes (Jog Control, Self-Lock Control, Interlock Control) are switchable, easy for operation.

* The internal fuse is with over-current, over-load and short-circuit protection.

* With manual buttons and wireless remote, convenient for use.

* Can be operated by the wireless remote or the manual buttons on the controller box.

* The wireless remote is with learning function, easy for coding.

* With million groups address coding which are independent, high reliability and industrial design.

* With highly sensitive receiver, remote control distance is more than 80meters.

* With limit terminal, users can add external limit switch for actual needs.









* Autos;

* The wedding system;

* Solar tracking system;

* Agricultural machinery;

* Industrial electric lifting system;

* The medical electric bed, surgical bed, traction bed;

* Chair for medical use: Electric wheelchair, Massage Chair, dental chair

* Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc;
