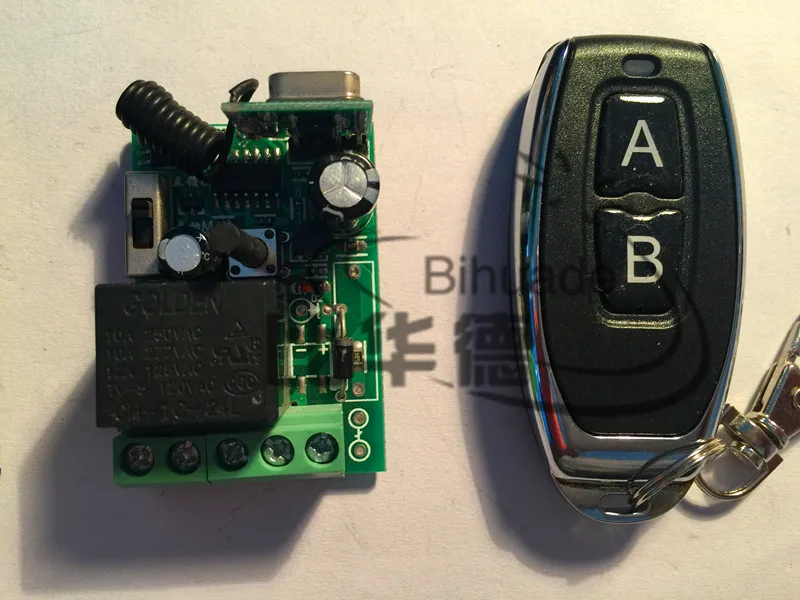

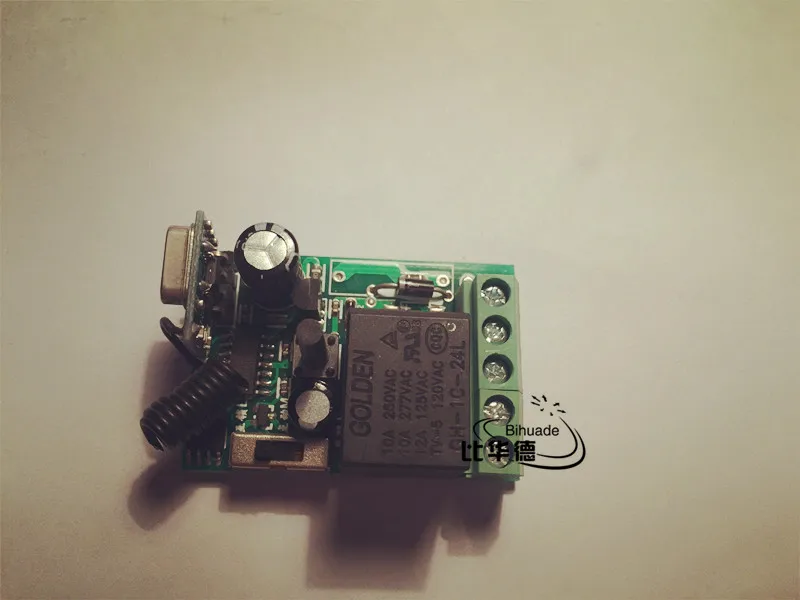

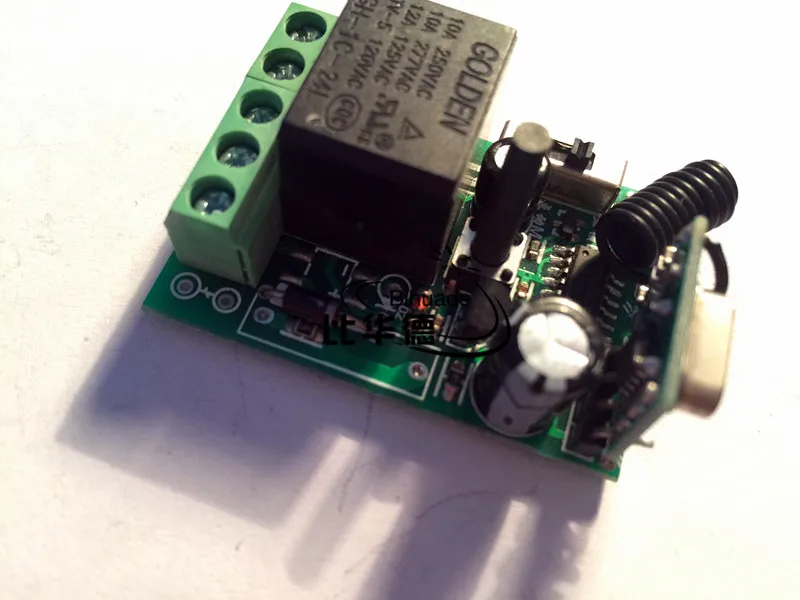

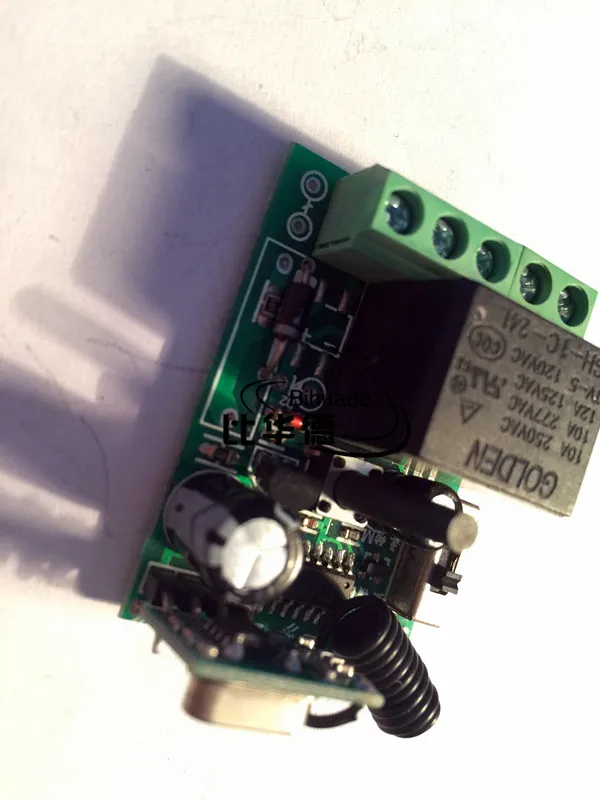

315Mhz Universal Wireless Remote Control Switch DC12V 10A 1CH relay Receiver Module with RF Remote

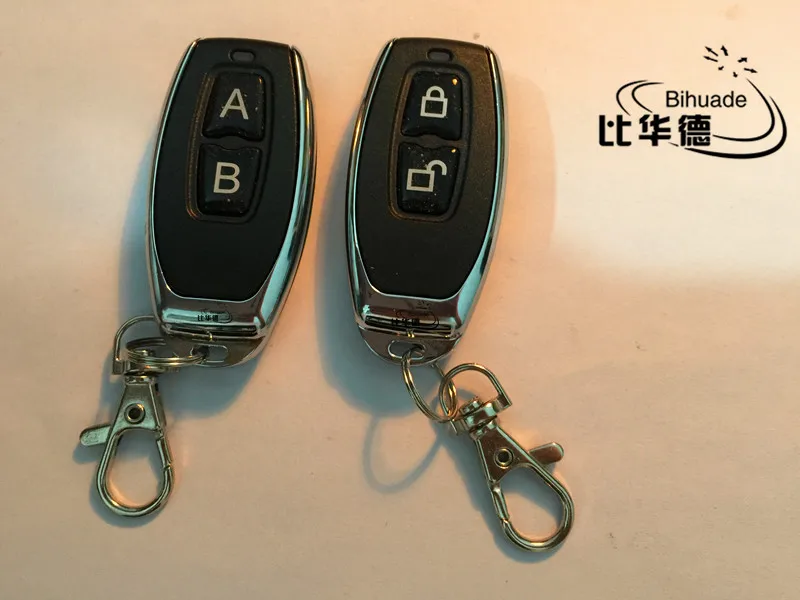

315Mhz Transmitter with 4-button Intelligent Learning code 1527

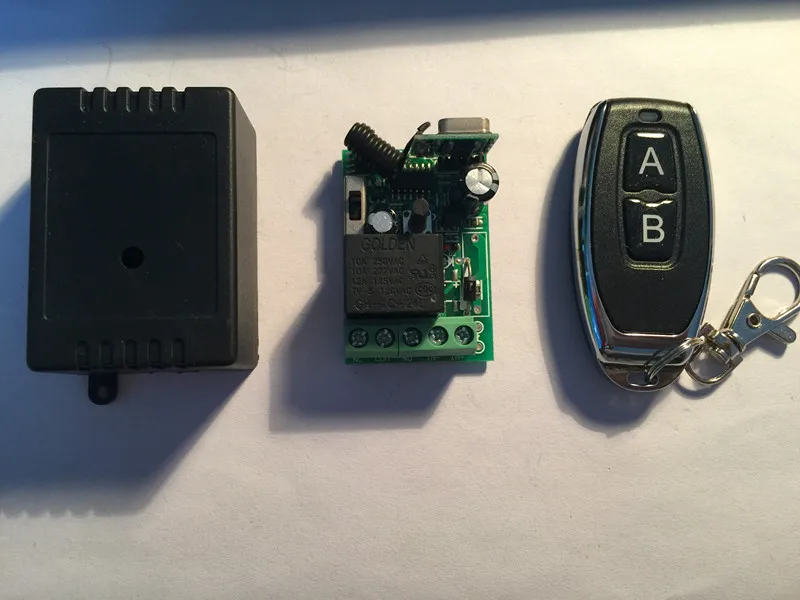

Package Included:

Technical Data:

Input Power:DC10V-14V

Standby Current:<5MA

RF Frequency:315M or

RF working mode:superheterodyne

Receive sensitivity: >97dbm

Transmitting distance:>100m ( open space)

Decoding mode:MCU software decoding

Remote storage:50pcs

Support remote type: Learning code

Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

Wiring type:fixed terminal

Output Terminal :NO , NC , COM

Dimension of PCB:35*30*18mm (L,W,H)

Wiring diagram 1:

+V : 12V + input ;

- V: 12V - input ;

NO: Output , normal open;

COM:Output , common ;

NC: Output , normal close;

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically .

Clearing the code :

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearning the code, all the remote control cannot work any more.

Learning the code :(momentary)

Push the learning key on the receiver once time , it comes into momentary setting mode .

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button , LED indicator on the receiver board will flash then come off .

After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )

Push the learning key on the receiver twice time , it comes into toggle setting mode

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button,LED indicator on the receiver board will flash then come off.

After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code :( Latching )

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for "ON", the second time learnt for "OFF".

For example : button A = ON , button B = OFF

Push the learning key on the receiver triple time , it comes into latching mode .

Wait for a moment , the LED indicator on the receiver board will flash then come off.

Push the remote button A .

LED flash for 5 times .

Push the remote button B .

Led flash for 5 times .

After 3 seconds , the LED indicator will be on again , learning successfully.

A = ON , B = OFF .

Learning the code :( Time delay mode )

Push the learning key on the receiver forth time , the time dealy for 5 seconds .

Push the learning key on the receiver fifth time , the time delay for 10 seconds .

Push the learning key on the receiver sixth time , the time delay for 15 seconds .

The LED indicator will be off .

Push the remote button , LED flashes and off .

After 3 seconds , the LED indicator will be on again , learning successfully .

NOTE: The system can store for 50 pcs of remotes , if the remote get more than 50pcs , the initial remote control will be lost .
