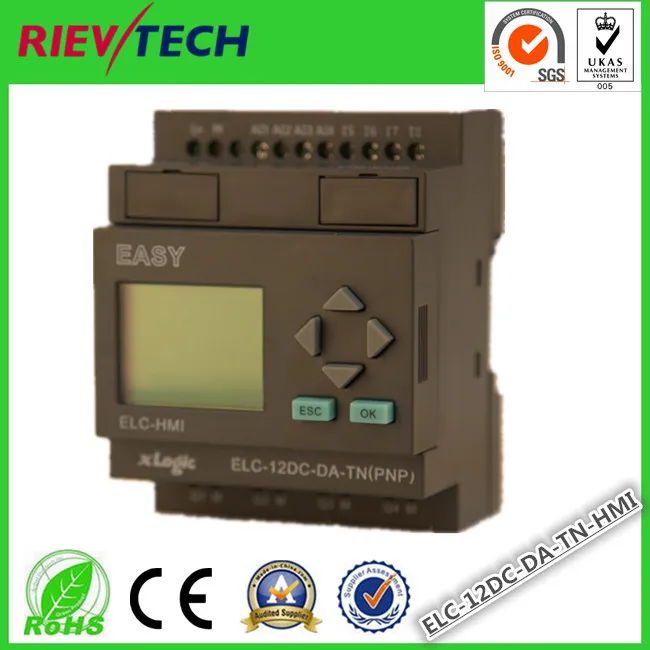

xLogic intelligent controller programmable logic mini PLC ELC-12DC-DA-TN-HMI | Компьютеры и офис
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-21-2026 | 0.58 руб. | 0.38 руб. | 0 руб. |
| Feb-21-2026 | 0.51 руб. | 0.50 руб. | 0 руб. |
| Jan-21-2026 | 0.89 руб. | 0.54 руб. | 0 руб. |
| Dec-21-2025 | 0.29 руб. | 0.0 руб. | 0 руб. |
| Nov-21-2025 | 0.6 руб. | 0.36 руб. | 0 руб. |
| Oct-21-2025 | 0.16 руб. | 0.5 руб. | 0 руб. |
| Sep-21-2025 | 0.41 руб. | 0.10 руб. | 0 руб. |
| Aug-21-2025 | 0.12 руб. | 0.54 руб. | 0 руб. |
| Jul-21-2025 | 0.74 руб. | 0.72 руб. | 0 руб. |
Описание товара
Tips!
Pleased to inform you that our micro plc is developed 100% by ourself ,and they are incompatible with any other brands plc's programming cable. so we strongly suggest you also purchase the programming cable when you purchase the CPU units,we have two types programming cables,one is ELC-USB cable,and another is ELC-RS232 cable.Without programming cable, you can not set up connection/communication between PC and PLC, further, you naturally can not make programme via PC, and surely unable to download your programme to our PLC.
Description
ELC-12 range is advanced level model, incorporating a good mix of digital & analogue IO , Integrated High Speed inputs and PWM output, counters, timers,real time clock and time switch functions, removable keypad LCD, 3 built-in communication ports including expansion one. Available in 120V/240VAC or 12V/24VDC versions ; Easy to configure with drag-and-drop function blocks or ladder using FREE xLogicSoft software.
ELC-12 range offers 4-line detachable LCD display and keypad for manual programming without PC, program modification or display and control whilst program is running. An expansion port allows the connection of up to 8 expansion modules, extending the I/O channel count and adding Ethernet capabilities. Now it is also possible to use the analog output module to solve simple closed-loop control tasks. Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control, ramp response and analog multiplexer.
xLogic ELC-12 Series(standard type) highlights at a glance:
Removable LCD with keypad for manual programming, operator interface or maintenance troubleshooting ( Learn more)
v Customizable Start-up page / screen
v 4-line, 10-character configurable backlighting display
v Manual programming via Keypad panel without PC capability (optional)
v Various blocks’ different parameters can be displayed on one screen / page simultaneously
v Randomly specify a specific page to display the IO status of the ELC 12 or expansion module attached
v Ethernet capability available .
v Alarm page can record and display the exact alarm occurrence time
v Programmable up to 64 (user defined) screens / pages
v Optional metal mounting plate offers mounting to the rear of the control panel door.
v Modbus RTU &ASCII protocol supported.
v Unit Size allows for DIN-rail mounting together with commonly used breakers in building automation applications.
v Retentive memory capability standard feature on the ELC-12 model.
v Powerful communication capability(1 RS232 port and 2 RS485 ports built-in)
v It’s optional for xLogic to act as slave or master in Modbus RTU communication network.
v Extra large program capacity ( 512 function blocks available)
v HMI(LCD) separate installation available, e.g. xLogic can be installed inside electric cabinet and HMI/LCD mounted in it’s front panel for easier observation and convenient operation.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

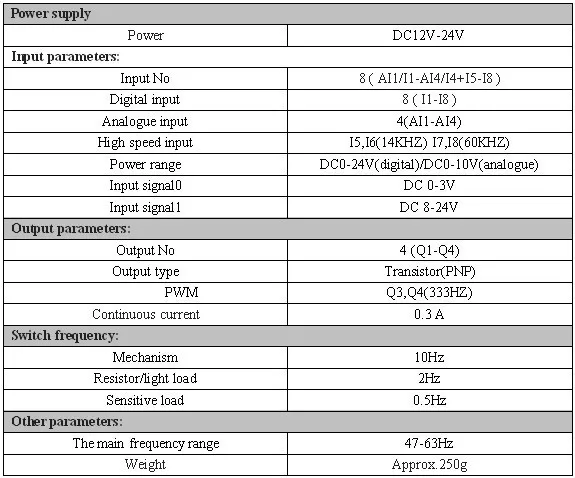

GENERAL SPECIFICATIONS
Timers : 512
Counters : 512
Function Blocks : 512 Operation temp. : 0 °C -55 °C Storage :-40 °C -70 °C Protection : IP20(Non-waterproof) RTC accuracy : MAX ±5S/day RTC time intervals : 512 RTC Backup at 25 °C : 100 hours, Li-ion battery (optional) Power-off retentivity : Yes Dimensions : 72*90*68 (Unit, mm) Certificate : CE Installation : 35mm-DIN rail or screw for installation Manual programming via keypad LCD: yes Expansion capacity : 8 IO extensions +1 ELC12-E-RS485/ELC12-E-ETHERNET-DC/AC Password protection : Multiple password protection Communication interface : 1 Program/RS232 port ( TTL interface) +2 RS485 ports Communication protocol : Modbus RTU/ASCII It’s optional for xLogic to be either slave or master in Modbus network.
