Introduce:

Using 32-bit high-speed processor that can capture every detail of the music and displayed.
This spectrum of ranks are using a dedicated chip driven, dynamic display.
Timeliness and accuracy of the spectrum is very good, excellent visual effects.
Power: DC 5V, using a common USB interface, all devices with USB interface can be powered, such as computers, cell phone chargers and power bank.

Feature:

MIC (electret microphone) and LIN (line input) two kinds of signal acquisition mode;
With professional pure hardware AGC peripheral audio processing circuit.
This product can be used car music spectrum, since cars generally do not have an audio output port, this product built-in high sensitivity MIC collection, just need power with USB port can be used (if no USB interface need a (12V to 5V) cigarette lighter to USB converter).
Three kinds of classic mode, single frequency spectrum, spectrum + peak hold, floating point, with power off memory;
5 level adjustable brightness, wide range adjustable brightness, luminance values ​​with power off memory;
5 level spectrum adjustable speed, can adjust according to personal preference;
Total has 24 frequency bands (marked with precise frequency), each 14 points, top 4 rows using red LED.

Description:

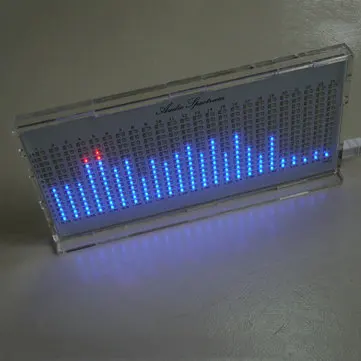

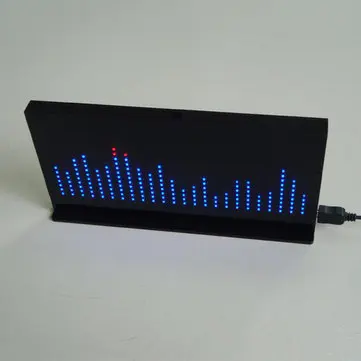

Color: White, Black (Optional)
Size: 18.5 x 9 x 1.2cm

Note: This is a DIY kit, you need to have some electronic knowledge and manual ability. (Package does not include EN instructions.)
File download : Click here to open

Package included:

1 x DIY AS1424 Music Spectrum Kit
