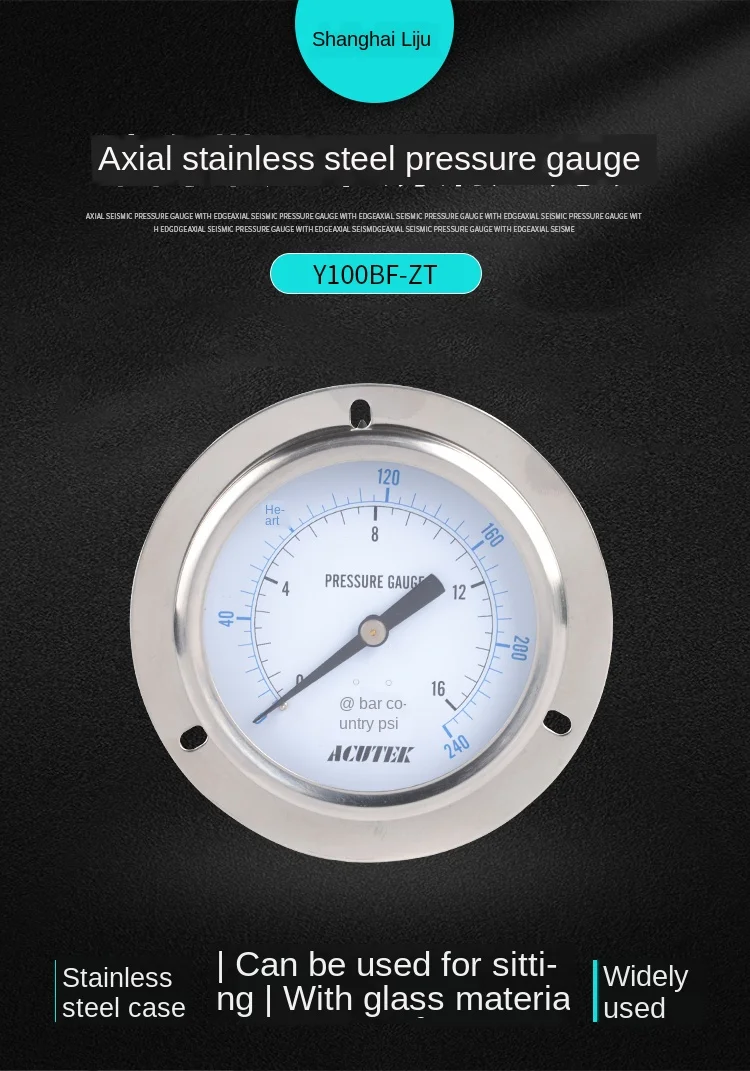

Stainless steel pressure gauge Original export Y100BF-ZT 16BAR G1/2B Material 316L Steam meter

Product specification classification:

1. -1-24bar
2. -1-15bar
3. -1-9bar
4. -1-5bar
5. -1-3bar
6. -1-1.5bar
7. -1-0bar
8. 600bar
9. 400bar
10. 250bar
11. 160bar
12. 100bar
13. 60bar
14. 40bar
15. 25bar
16. 16bar
17. 10bar
18. 6bar
19. 4bar
20. 2.5bar
21. 1.6bar
22. 1bar

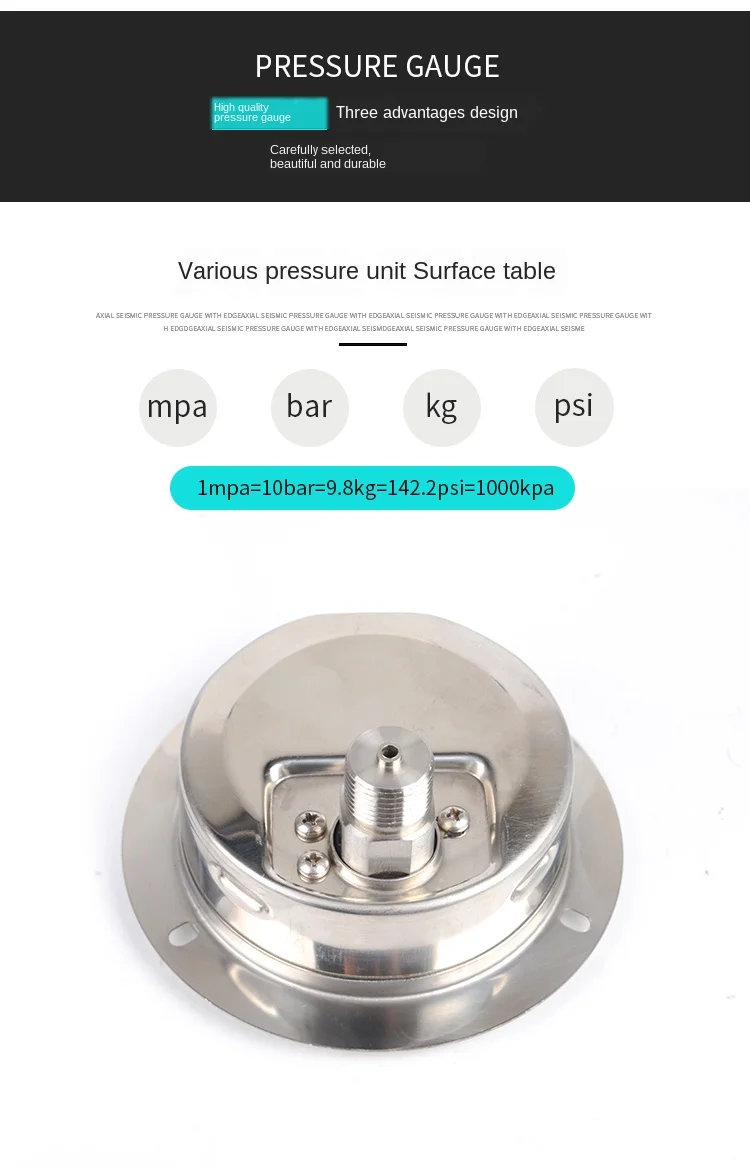

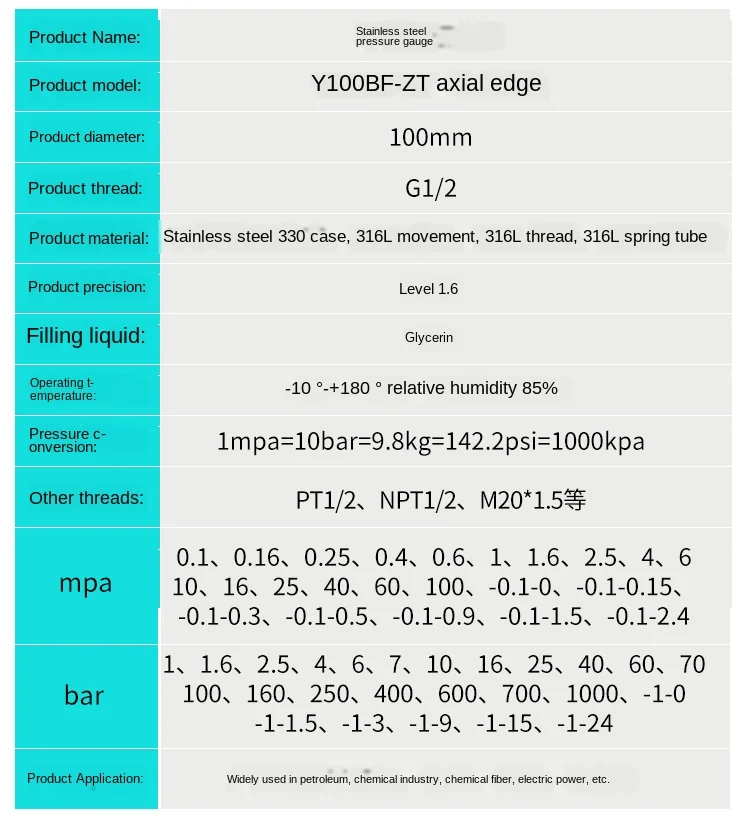

  Product Name: Stainless Steel Pressure Gauge Product model: Y100BF-ZT axial belt edge Product diameter: 100mm Product thread: 20*1.5 Product material: stainless steel 316 shell, thread, 316L movement, 316 spring tube Product accuracy: 1.6 Filling solution: glycerin Operating temperature: -10 ° - 180 °, relative humidity 85% Pressure conversion: 1mpa=10bar=9.8kg=142.2psi=1000kpa Other threads: PT 1/2, NPT 1/2, M20*1.5, etc. Mpa: 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, -0.1-0 , -0.1-0.3, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4 Bar: 1, 1.6, 2.5, 4, 6, 7, 10, 16, 25, 40, 60, 70, 100, 160, 250, 400, 600, 700, 1000, -1-0, -1- 1.5, -1-3, -1-9, -1-15, -1-24 Product application: widely used in petroleum, chemical, chemical fiber, electric power, etc.
