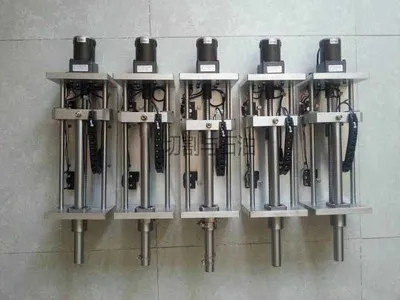

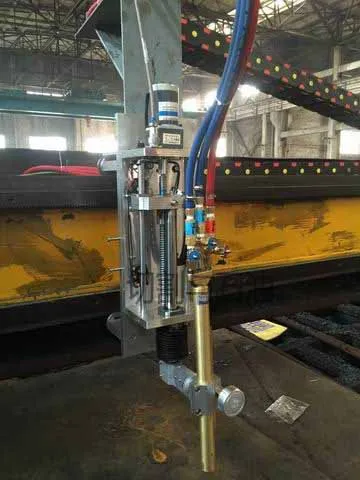

24VDC 150mm working stroke 1250mm/min CNC Flame and Plasma Cutting Lifter Z axis +Standard  Clamp

model:

JYKB-150-DC24V-GH applicable to flame and plasma cutting . the motor inside is dc motor, if need nema23 step motor, please order another link, the price is a little higher.

Packing details:

JYKB-150-DC24V-GH lifting body*1pc

4 pin plug*1pc

standard normal Clamp *1pc

If need ARC torch height controller, click this link to order.

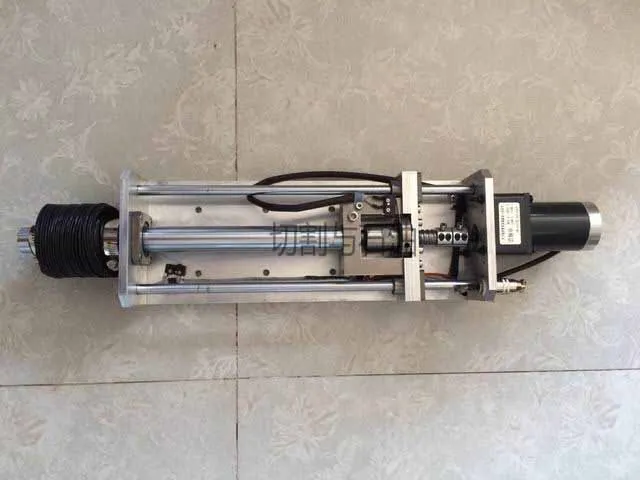

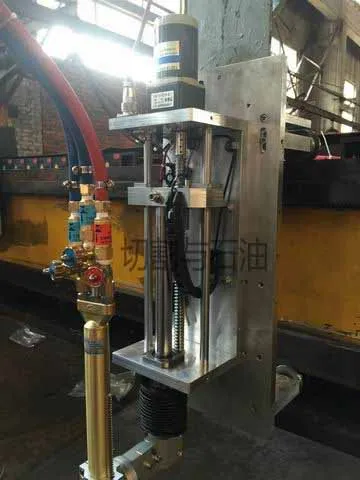

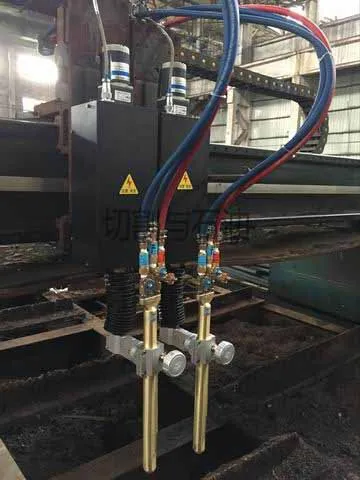

Specifications and features of CNC flame and plasma lifter- Z axis:

Taiwan TBI ball screw

CNC flame and plasma collision avoidance gun function

With plasma positioning micro switch Inside the lifting body

4- pin air plug

The telescopic shaft is optical and the straight sliding block is stable

Shell color: Black (spray)

working speed: 1250mm/min

Working travel: 150mm

Working voltage: DC24V

Load Weight: 10 kg

Clamp gun hole: 20mm-36mm (angle adjustable)

Retractable cover: high temperature resistant material

Size: L 445* W 130* H 80

Mounting hole size length 70*70*70 width 66

Definition of air plug:

1 foot --MOT+; (motor anode)

2 foot --MOT-; (motor cathode)

3 foot --Zero; (location normally open -zero signal output)

4 foot --COM; (location normally open -COM signal output)

Note: the lifting body built-in limit (10A reverse diode) don't need you connection.
