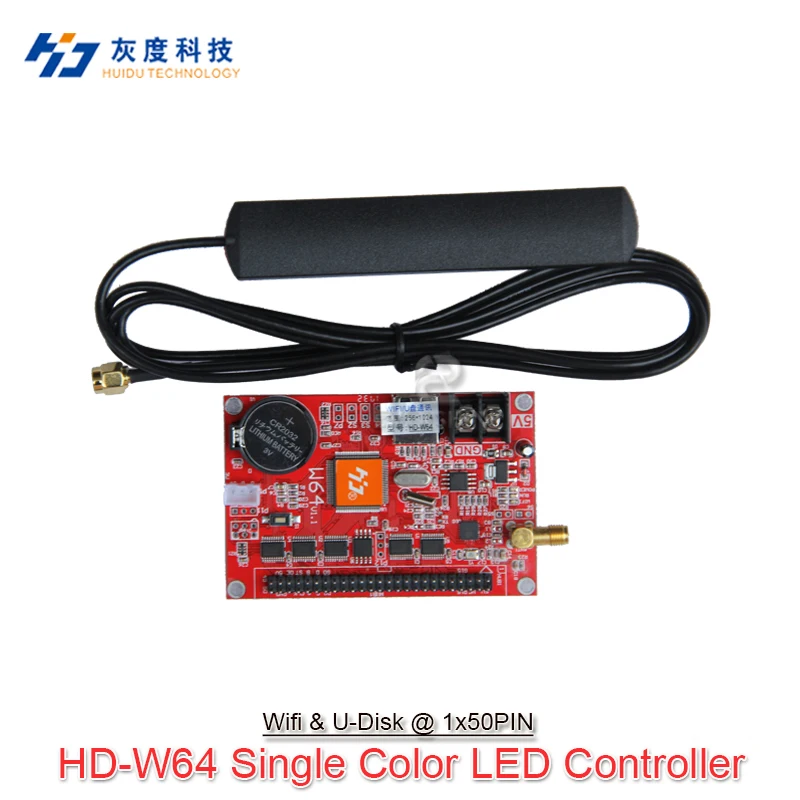

Types of control card

Single Color/ Dual Color /Tricolor

Control range

Single color : 1024W*256H  4096W*64H

Dual color : 512W*256H  4096W*32H

Tri color : 672W* 128H    2048W*32H

Scan modes

Static,1/2,1/3,1/4,1/5,1/6,1/8,1/16 common modes etc

Communication type

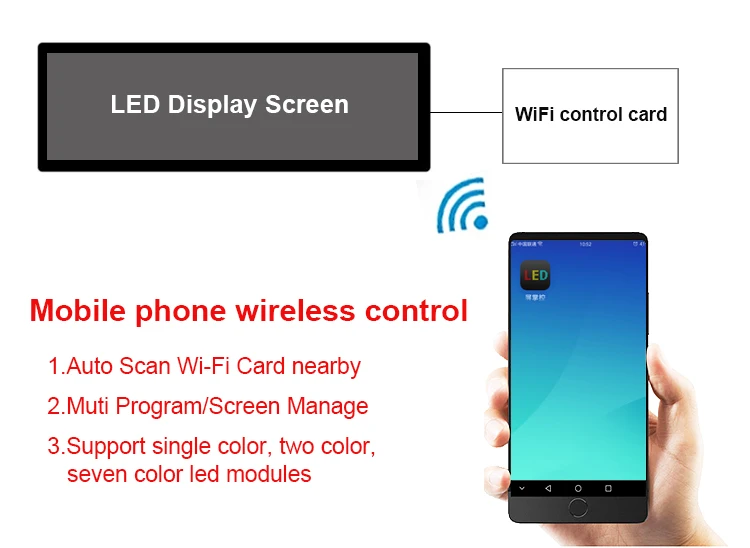

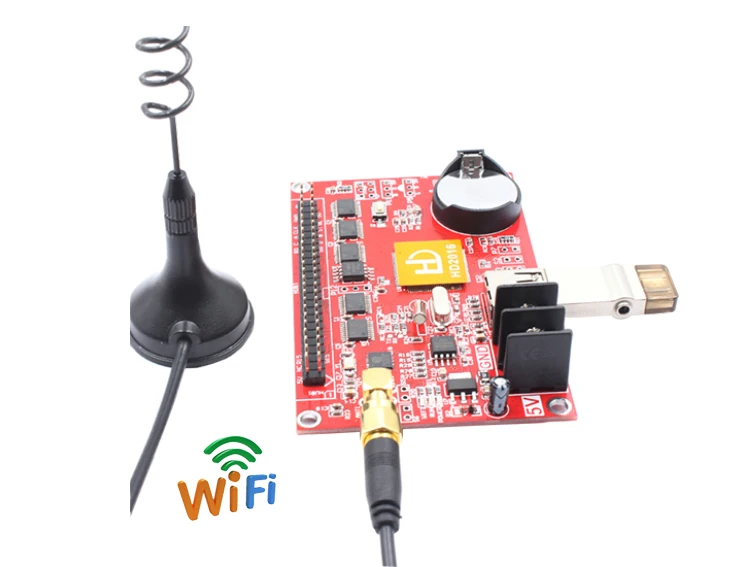

WIFI Wireless + U-Disk

Power supply

+4.2--5.5V

Power consumption

≤0.5W

Work environment

-40°c--75°c

Installation dimension

88(W) * 58(H)(mm)

Application Range

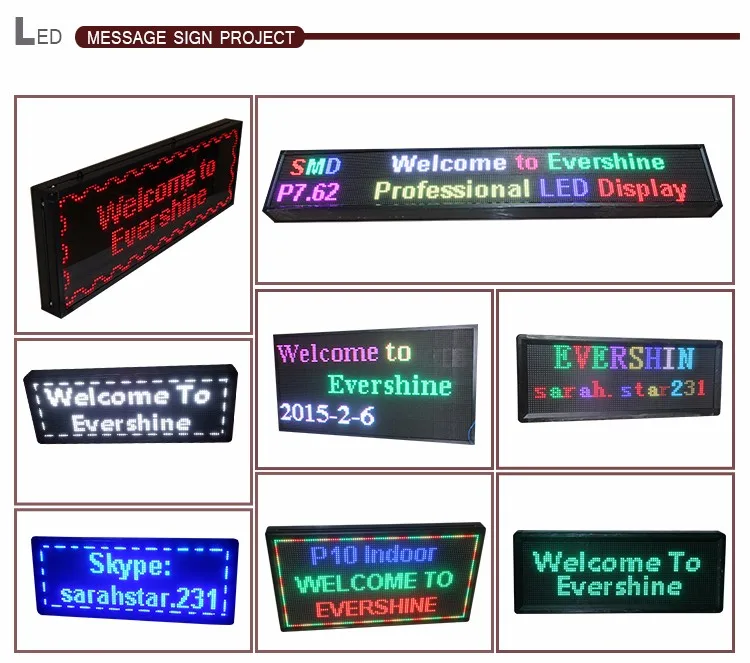

Used indoor outdoor,semi-outdoor,Led Pharmacy Cross signs Showing text,animation, time,clock etc

Languages

Support All languages

Communication distance

10-30 meter

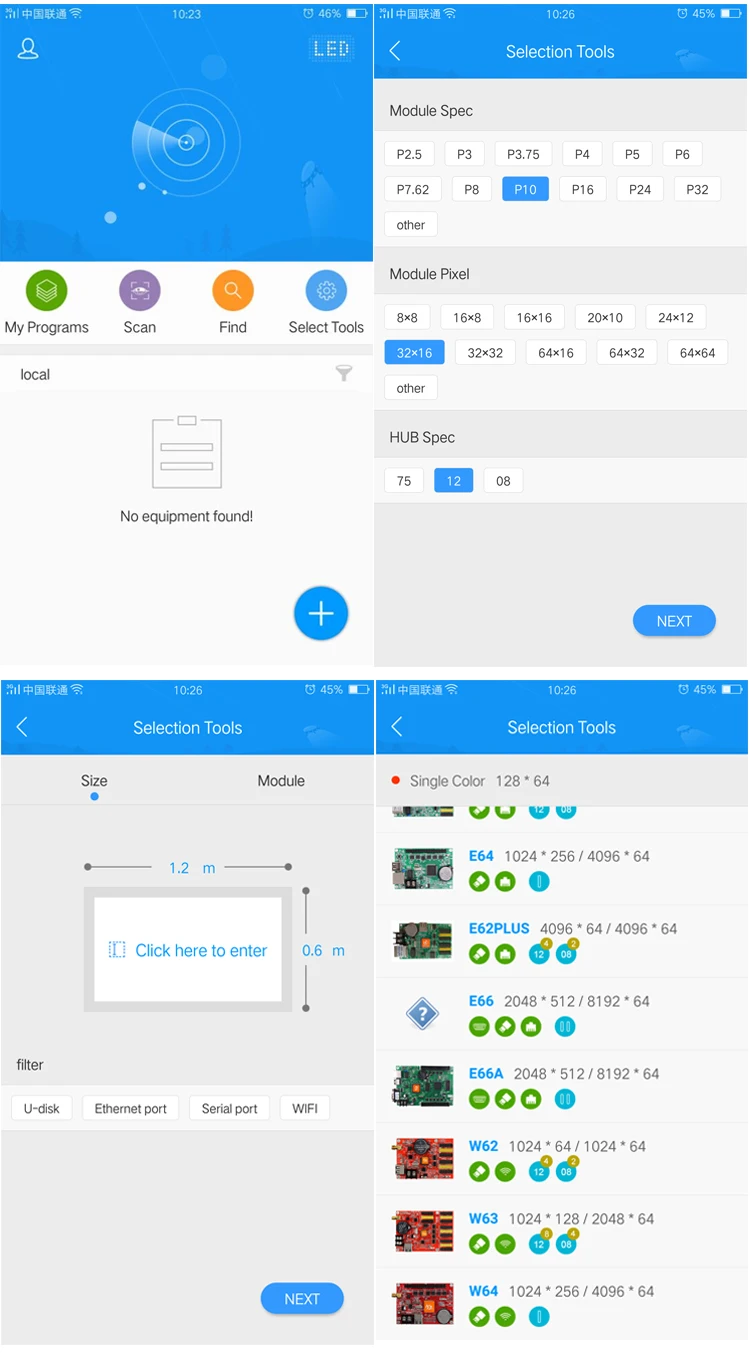

Application Software

Software HD2016

Details Parameter

Flash Capacity

2M Byte (Can be expand 8M)

Communication Port

U-Disk to edit and updated programs

Signal Port

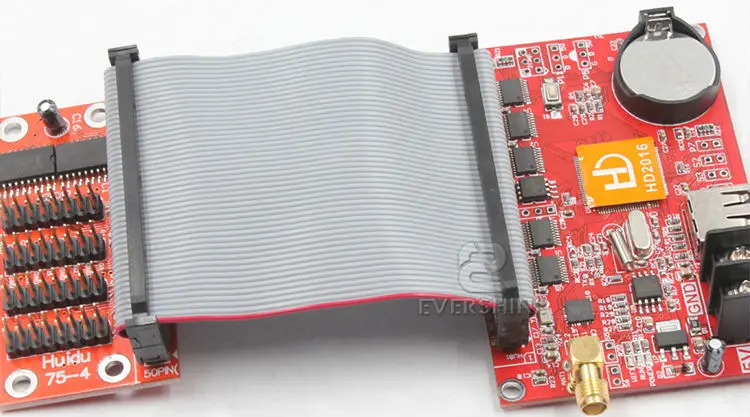

1 of 50PIN, can connect any HUB like HUB12, HUB08 etc

Program Quantity

1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)

Area Quantity

8 areas with separate zone, and separated special effects and border

Display Showing

Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc

Program Modes

Playing by Sequence or by Remoter or by Button

Display effects

1.Support all languages(Software:HD2016) 2.Support 7 color effects and 64 colors Gray level (HD-W62/W63/W64)

3. Border functions of Program border, area border and Custom design border.

4.Add Countdown /Count up, Button Countdown / Count up

5.Add Text Rotation of 90°,180°,270° for display Text function of Hollow,Stroke etc

6.Add payment collection function

7.Updated program by U-disk

8. More than 200 types showing effects

9.Support Second develop SDK

10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function

1. Support Digital Clock/ Dial Clock / Lunar Time/

2. Countdown /Count up, Button Countdown / Count up

3. The font,size,color and position can be set freely

4. Support multiple time zones

Digit Function

1. Used in Parking place,Scoring device,Calculate by piece.

2. From Minimum to Maximum, from Maximum to Minimum

Expand function

Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs

Brightness Control

Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation

Automatic close /open display

Support close /open display by time automatically
