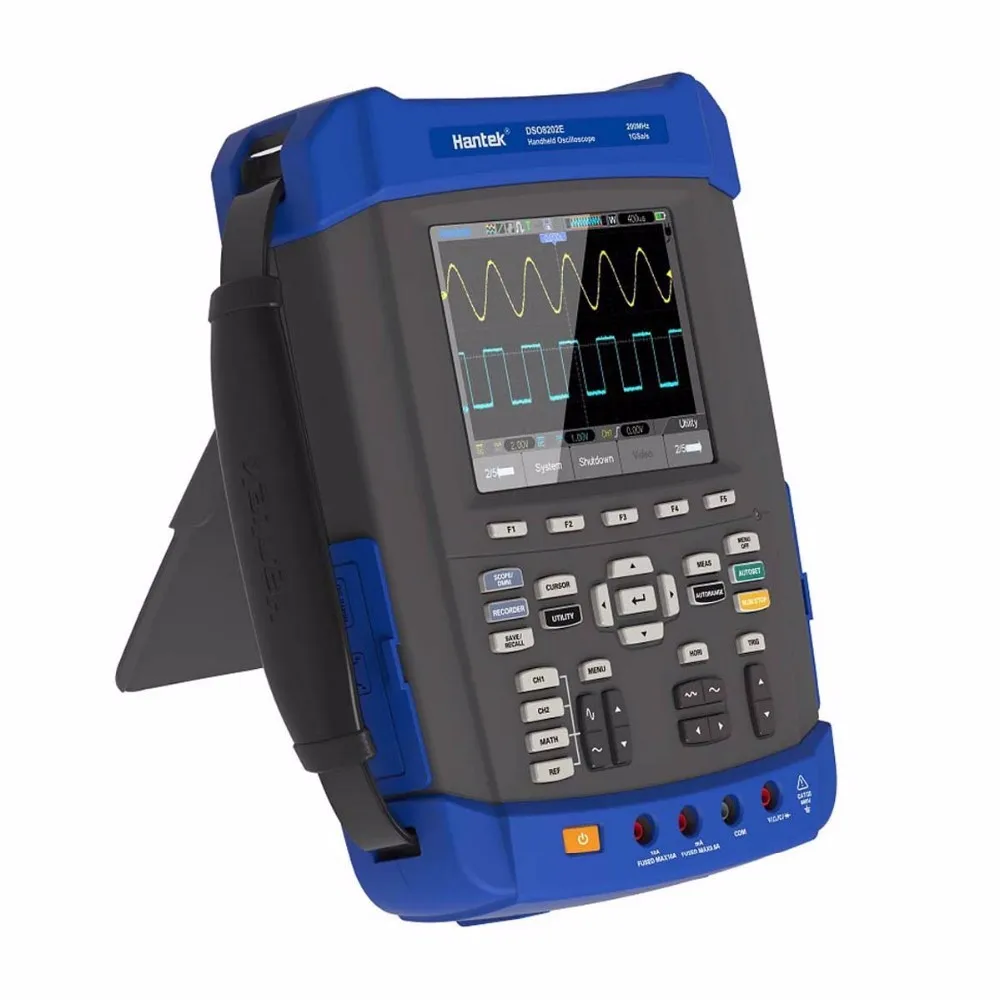

| Features: - Six in one: Oscilloscope/Recorder/DMM/ Spectrum Analyzer/Frequency Counter/Arbitrary Waveform generator.
- IP-51 rated for dust, drip and shake proof to withstand harsh environments.
- Large fuse confirms to European Safety Standard.
- Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.
- Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.
- Replaceable BNC safety joints, and additional one set of joints.
- High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
- 25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer
- 6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.
- FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.
- Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
- Record and replay of more than 1000 waveforms.
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)
- USB Host/Device 2.0 full-speed interface; support removable disk; WIFI/LAN Option, easy to control by PC or long-distance.
- Waveform data can be output in WORD, EXCEL, BMP, JPG as time and voltage.
Characteristic: | Model | DSO8072E | DSO8102E | DSO8152E | DSO8202E | | Acquisition | | Sample Modes | Real-Time Sample | | Acquisition Modes | | | Normal | Normal data only | | Peak Detect | High-frequency and randon glith capture | | Average | Wavefom Average, selectable 4,8,16,32,64,128 | | Inputs | | Inputs Coupling | AC, DC, GND | | Inputs Impendance | 1MΩ±2% ii20pF±3pF | | Probe Attenuation | 1X, 10X | | Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | | Maximum Input Voltage | CAT I and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×) | | Horizontal System | | Sample Rate Range | 1GS/s | | Waveform Interpolation | (sin x)/x | | Record Length | 2M | | SEC/DIV Range | 4ns/div~2000s/div, in a 2, 4, 8 sequence | 2ns/div~2000s/div, in a 2, 4, 8 sequence | Sample Rate and
Delay Time Accuracy | ±50ppm over any ≥1ms time interval | | Scanning Speed Range | 4ns/div to 8ns/div; (-8div x s/div) to 40ms;
20ns/div to 80μs/div;(-8div×s/div) to 40ms;
200μs/div to 40s/div;(-8div×s/div) to 400s; | 2ns/div to10ns/div;(-4div×s/div) to 20ms; | Delta Time Measurement Accuracy
(Full Bandwidth) | Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200 | | Vertical System | | Vertical Resolution | 8-bit resolution, all channel sampled simultaneously | | Volts Range | 2mV/div to 100V/div at input BNC | | Bandwidth | 70MHz | 100MHz | 150MHz | 200MHz | | Rise Time at BNC( typical) | 5ns | 3.5ns | 2.3ns | 1.8ns | Analog Bandwidth in
Normal and Average
modes at BNC or with probe,
DC Coupled | ±400V(100V/div-20V/div);
±50V(10V/div-5V/div);
±40V(2V/div-500mV/div);
±2V(200mV/div-50mV/div);
±400mV(20mV/div-2mV/div); | | Math | +, -, *, /, FFT | | FFT | Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point | | Bandwidth Limit | 20MHz | | Low Frequency Response (-3db) | ≤10Hz at BNC | | DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 100V/div to 10mV/div.
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. | DC Measurement Accuracy,
Average Acquisition Mode | Measurement Type: Average of ≥16 waveforms with vertical position at zero
Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected.
Measurement Type: Average of ≥16 waveforms with vertical position not at zero
Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]. | Volts Measurement Repeatability,
Average Acquisition Mode | Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions | | Trigger System | | Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | | Trigger Source | CH1, CH2, AC Line | | Trigger Modes | Auto, Normal, Single | | Coupling Type | DC, AC, HF Reject, LF Reject, Noise Reject | Trigger Sensitivity
(Edge Trigger Type) | DC(CH1,CH2):
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;
AC: Attenuates signals below 10Hz ;
HF Reject: Attenuates signals above 80kHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz. | | Trigger Level Range | CH1/CH2: ±8 divisions from center of screen; | | Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns | CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; | | Set Level to 50%(typical) | Operates with input signals ≥50Hz | | Video Trigger | | | Video Trigger Type | CH1, CH2: Peak-to-peak amplitude of 2 divisions; | | Signal Formats and Field Rates | Supports NTSC, PAL and SECAM broadcast systems for any field or any line | | Holdoff Range | 100ns ~ 10s | | Pulse Width Trigger | | | Pulse Width Trigger Mode | Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse | | Pulse Width Trigger Point | Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width | | Pulse Width Range | 20ns ~ 10s | | Slope Trigger | | | Slope Trigger Mode | Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope | | Slope Trigger Point | Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than the set slope.
Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. | | Time Range | 20ns ~ 10s | | Overtime Trigger | | | Over Time Modee | Rising edge or Falling edge | | Time Range | 20ns ~ 10s | | Alternative Trigger | | | Trigger on CH1 | Internal Trigger: Edge, Pulse Width, Video, Slope | | Trigger on CH2 | Internal Trigger: Edge, Pulse Width, Video, Slope | | Trigger Frequency Counter | | | Readout Resolution | 6 digits | | Accuracy (typical) | ±30ppm (including all frequency reference errors and ±1 count errors) | | Frequency Range | AC coupled, from 4Hz minimum to rated bandwidth | | Signal Source | Pulse Width or Edge Trigger modes: all available trigger sources
The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work. | | Measure | | Cursor Measurement | Manual: Voltage difference between cursors: ΔV
Time difference between cursors: ΔT
Reciprocal of ΔT in Hertz (1/ΔT);
Tracing: The valtage and time at a waveform point; | | Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, | | Waveform Generator Mode | | Frenquency Range | 1Hz(DC)~25MHz | | DAC Clock | 2K~200MHz adjustable | | Memory Depth | 4KSa | | Vertical Resolution | 12 Bits | | Stability | <30ppm | | Amplitude | ±3.5V Max. | | Output Impedance | 50 Ω | | Output Current | 50mA Ipeak=50mA | | System Bandwidth | 25M | | Harmonic Wave Distortion | -50dBc(1KHz), -40dBc(10KHz) | | General Specifications | | Display Resolution | 640 horizontal by 480 vertical pixels | | Display Contrast | Adjustable (16 gears) with the progress bar | | Probe Compensator Output | | | Output Voltage( typical) | About 2Vpp into ≥1MΩ load | | Frequency(typical) | 1kHz | | Power Supply | | | Supply Voltage | AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A | | Power Consumption | <30W | | |
|
|
|
