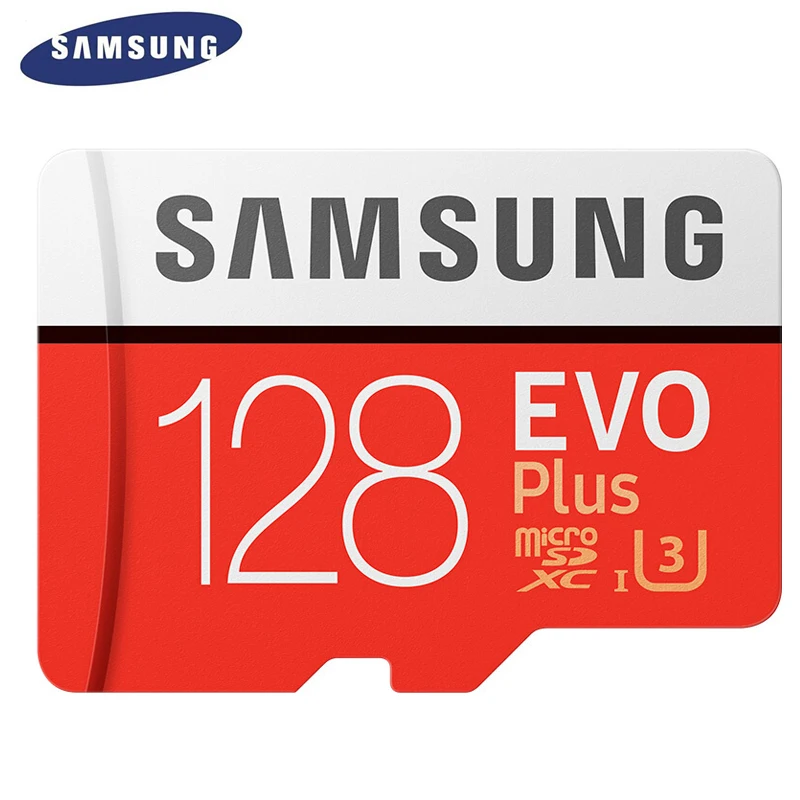

100% оригинальная карта SAMSUNG EVO Micro SD класс 10 TF 32 Гб 64 128 ГБ 100 МБ/с./с памяти для
624,47 - 2 987,13 руб.

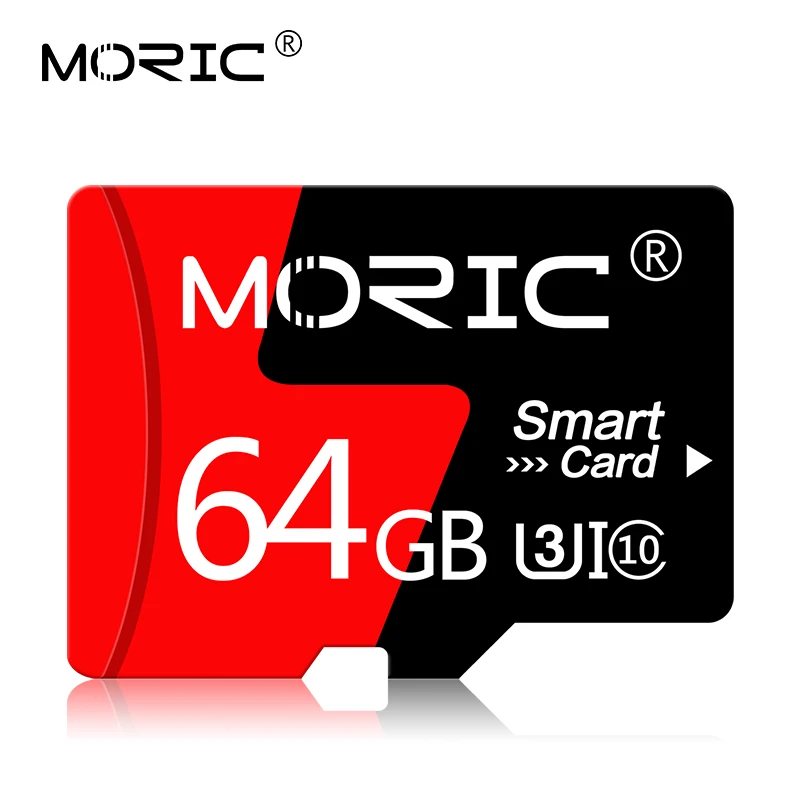

Новейший Micro SD Бесплатный адаптер 64 Гб 128 ГБ Флэш-карта sd карта cartao de memoria 4 8 16 32
67,97 - 749,21 руб.
ShanDian Original Micro SD Card 64GB Class 10 Memory microSD 8GB 16GB 32GB TF microSDHC/SDXC for Smartphone/Tablet PC | Компьютеры и
217,37 - 1 039,78 руб.
Высокоскоростная карта памяти class10 8 ГБ 16 32 micro sd 64 Гб 128 tarjeta microsd Мини TF 4 с
75,44 - 749,21 руб.
Характеристики

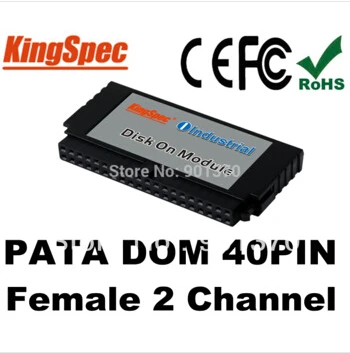

L 40PIN PATA IDE DOM Disk Female Vertical On Module 2-Channels 2GB SLC For CNC Industrial equipment | Компьютеры и офис
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-21-2026 | 0.56 руб. | 0.57 руб. | 0 руб. |
| Feb-21-2026 | 0.35 руб. | 0.98 руб. | 0 руб. |
| Jan-21-2026 | 0.2 руб. | 0.70 руб. | 0 руб. |
| Dec-21-2025 | 0.26 руб. | 0.67 руб. | 0 руб. |
| Nov-21-2025 | 0.88 руб. | 0.78 руб. | 0 руб. |
| Oct-21-2025 | 0.17 руб. | 0.65 руб. | 0 руб. |
| Sep-21-2025 | 0.86 руб. | 0.38 руб. | 0 руб. |
| Aug-21-2025 | 0.22 руб. | 0.77 руб. | 0 руб. |
| Jul-21-2025 | 0.75 руб. | 0.94 руб. | 0 руб. |
Описание товара
40PIN PATA IDE DOM Disk Female Vertical Disk On Module 2-Channels 1GB 2GB 4GB 8GB 16GB SLC Free Shipping
Application:Network PC, Communications Equipment, Network Routers, POS Machines, Embedded Devices, Automation Equipment, Industrial PC Field, Military / Aerospace Facilities, Medical Equipment, Gaming, etc.
DOM Series: Disk On Module, is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.
DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multiword DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Window series, Mac OS, and Unix versions.
| Model | IDE 40PIN DOM Vertical+Socket SLC | ||||
| General | Form factor | 59.4*23.5*6.8mm | |||
| Interface | 40PIN IDE | ||||
| Performance | Capacity | 1GB | 2GB | 4GB | 8GB | 16GB | |||
| Sustained Read | 41MB/S | ||||
| Sustained Write | 33MB/S | ||||
| Random IOPS | |||||
| 4KB Random Read IOPS | 4311 | ||||
| 4KB Random Write IOPS | 647 | ||||
| Average Access time | 0.2ms | ||||
| Storage Media | NAND Flash | SLC | |||
| Power Consumption | input Voltage | 3.3V/5V | |||
| Idle | 0.0005 W | ||||
| Active | 0.45W | ||||
| Reliability& Endurance | Write endurance | 8years 100GBytes write and erase per day at 32GB | |||
| Read endurance | unlimited | ||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | ||||
| Data Retention | 10years at 25 | ||||
| MTBF | 1,000,000hours | ||||
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | ||||
| Bad Block Management | Auto Bad Block Management in system | ||||
| Environment | Operating Temperature | 0~70 | |||
| Non-operating Temperature | -45~85 | ||||
| Shock | 2,000G(0.3ms half sine wave) | ||||
| Vibration | 20G(40-2000HZ) | ||||
| Ambient Humidity | 5-95% | ||||
| Warranty | 3years | ||||
| Available unit | Available | ||||
| Testing Platform | |||||
| Testing Software | HDBench3.4.0.3,IOMeter 2006.07.27 | ||||
| Physical Dimensions & Weight | Height(mm) | 23.5 | |||
| Width(mm) | 6.8 | ||||
| Length(mm) | 59.4 | ||||
| Weight(g) | 11 | ||||
