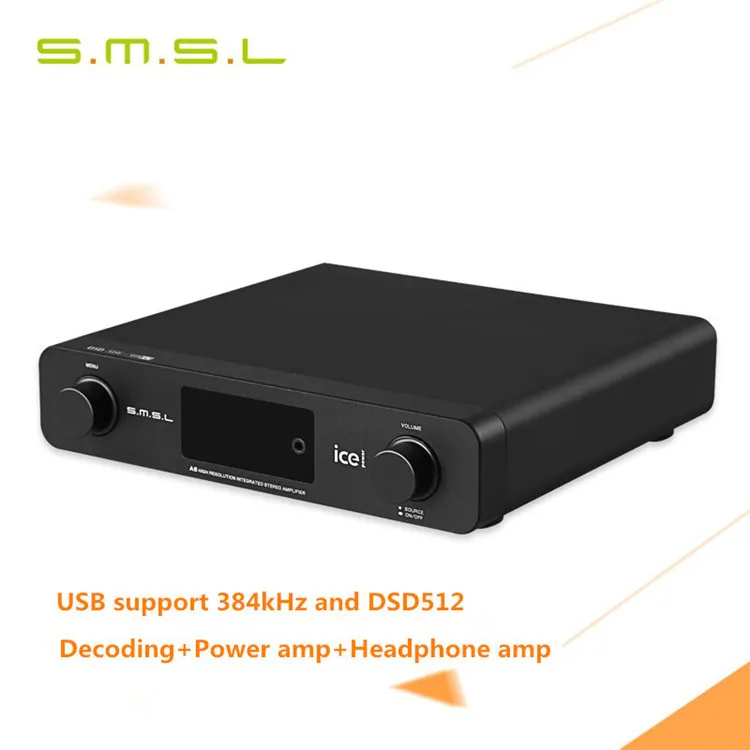

Цифровой декодер SMSL A6 50Wx2 HIFI аудио DSD512 усилитель AK4452 оптический/коаксиальный/XMOS/USB

CHIP:

Decoder chip: AK4452

Usb receiver chip: CM6632A

Electronic volume control chip: NJW1194A

Features:

1. Using ultra-low distortion electronic volume control NJW1194A, to ensure the consistency of the

symmetric channel, signal to noise ratio, reliability;

2. The five kinds of input plus three output to meet different occasions;

3. The color display plus user-friendly design can be set up to six menu colors;

4. Denmark ice power production 50W × 2 amplifier module with high power output and low distortion degree;

5. The use of ultra-high specification USB Audio program CM6632A, supports up to 32bit / 384kHz and DSD512;

6. The use of high-end audio decoder chip company AKM AK4452, dynamic range up to 115dB;

7. Built-in double wooden Salim Patent sound SDB (SMSL Dynamic Bass), can effectively enhance the reduction of the sound, the sound of the bass not only increase, but also

according to the current music signal to dynamically adjust the bass and treble to achieve good appreciate the effect!

8. Built-in low distortion amplifier turntables can be connected directly to the MM phono turntables.

9. Custom high-end aluminum remote control, easy to close, such as fine art for your desktop add artistic color

Specification:


FEATURES:



1,Uses ICEPOWER  50AS*2 SE amplifier module which get big power output and ultra-low

 distortion from B&O company in denmark.

2,Using advanced USB audio CM6632A,It support UP to PCM32/384Khz AND DSD512.

3,Well selecting the latest AK4452 chip as audio decoding chip from AKM.

4,Built-in SDB sound which patented belongs to S.M.S.L

5,Built-in Turntables amplifier

SDB:SDB Sound which patented belongs to S.M.S.L.It improves the fidecity of sound.For the best sound effects.SDB is not only improve BASS,but it will adjust dynamic for bass and treble according to input source.

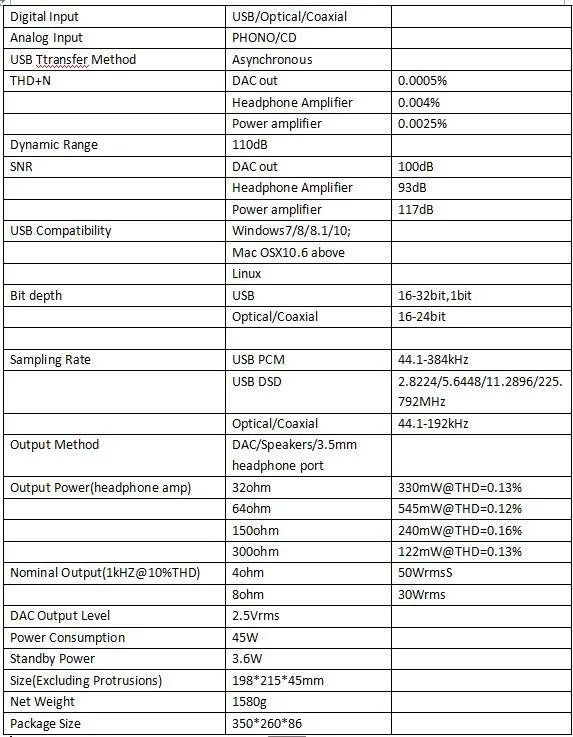

SPECIFICATION:


Input:USB/Optical/Coaxial/Analog

THD+N: DAC out: 0.0005%        PHONE OUT:0.004%   Speaker out:0.0025%

PHONO INPUT:MM

Dynamic range:110dB

SNR:DAC out:100dB    PHONE OUT:93dB   Speaker out:117dB

USB transfer mode:Asynchronous compatible

USB compatibility:Windows XP/7/8/8.1/10;

                                Mac OSX 10.6 up

                                Linux;

Samping rate:USB PCM 44.1Khz--384KHz

                       USB DSD 2.8244MHz,5.6488MHz

                                        11.2MHz, 22.5792MHz

                    Optical,coaxial:44.1KHz---192Khz

PHONE Output power:32ohm   330mW@THD=0.13%

                                     64ohm   545mW@THD=0.12%

                                   150ohm   240mW@THD=0.16%

                                   300ohm   122mW@THD=0.13%

Product size:198*215*45mm

Package included: USB cabel/AC cable/Remote control/Driver Disc/Manual/
