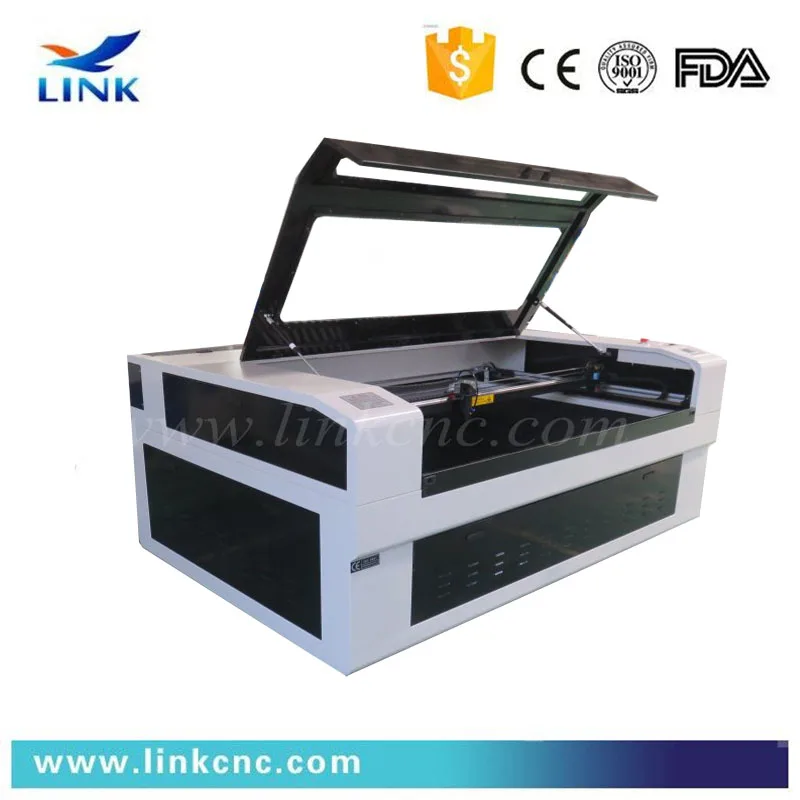

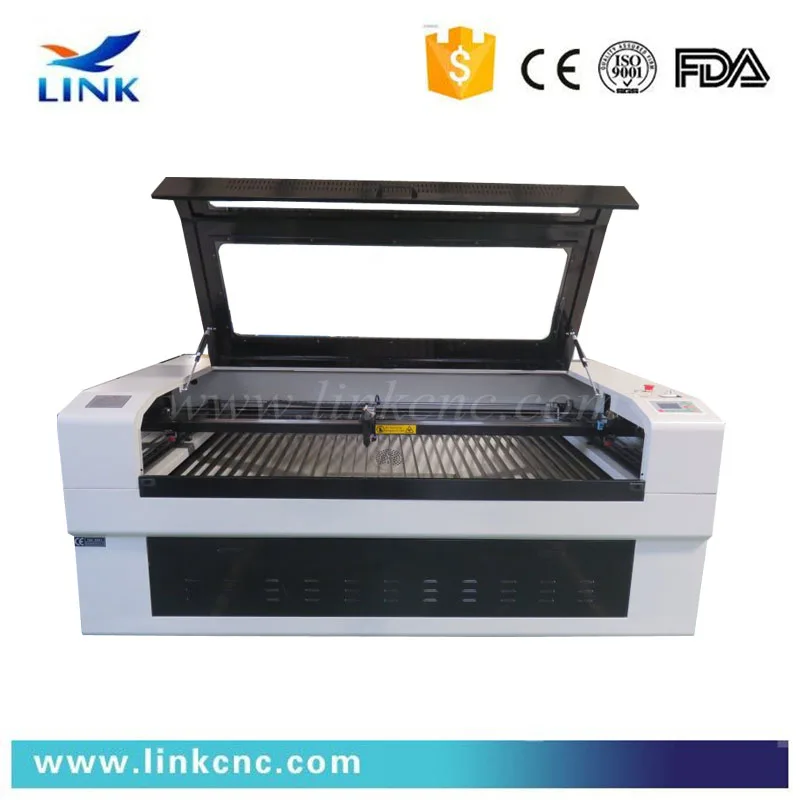

1610 high quality laser cutter/co2 machine/mini cutting machine | Инструменты

LXJ1610 laser engraving machine is developed for engraving and cutting most of the

nonmetal material.

Standard Configuration for co2 laser cutting machine

1) Working Area:1600*1000mm,this can be customized as your requirements

2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:

8000-10000 hours

3) DSP control system -  with only a few buttons very easy to use

4) Knife worktable - suitable for hard materials such as wood,acrylic,you also can choose honey comb table use for soft materials such as leather,fabric etc.

5) High resolution laser head.-good quality and long lifetime

6) Water pump-used for cooling laser tube to protect it has long life.

7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.

8) Exhaust fan - Blow away the smoke

9) USB cable-To connect the machine and computer.

10) Tool box-Included the CD,User manual,and some wrenches for your work.

Product Description

1. All the equipment parts are mouldedly made to ensure high precision and stability:

USA Imported  lens and mirror, Best square rail, and 3M belt ensures highprecision at high

 speed. Extra auxiliary  parts such as exhaust fan, air compressor are all first-level parts.

2. Transmission: coupling with spring washer for Y axis automatic correction, and middle

 transmission  of Y axis for uniform stree ensures machinery which make engraving and

cutting perfectly. Distinctive laser head design can process about 30mm thickness workpiece

 without extra updown table.

3. Special professional leveling tool helps to adjust platform level

4. Unique aluminum knife strip platfrom can be adjusted according to processing features.

5. Best controller: Leetro control card + USB 2.0 +Lasercut6.1

6. Individual electrial cabinet is specially designed to improve anti-interference Ability and meet  work stability.

Configuration of product

Available Materials with Co2 laser cutting and engraving

(Yes:work well , No: some depend on the materials)

Items

Category

Engraving Figures

Cutting

Etching Pictures

Fabric

denim, leather, polyster, cotton, nylon, pongee, sude, jeans,satin,crduroy, chiffon, tulle, fleece

Yes

Yes

Yes

Wood

Plywood ,Bamboo ,Veneer ,MDF, Polymeric materials

Yes

Yes

Yes

Plastic

PP Plastic ,ABS plastic ,PVC PIPE ,Polyester sheet ,Insulation layer

Yes

Yes

Yes

Organic

Acrylic ,rubber,resin ,epoxy resin ,silicone ,Plexiglass ,Pmma ,Perspex

Yes

Yes

Yes

Paper

Packaging material, Tin foil, Card, Cardboard, Chipboard|

Yes

Yes

Yes

Composite

Double color plate | Organic board |

Yes

Yes

Yes

Stone

Ceramic, Tile, Marble, Granite, Slate, Gravestone, Porcelain|Tombstone | Ceramic plate

Yes

No

Yes

Other

Nonmetal process material ,coating materials ,plating materials ,spraying materials

Yes

No

Yes

Our company is specialized in the production of CNC woodworking equipment and CNC advertising equipment.Our company sets the research and development, production, sales, maintenance services as a whole, specializing in manufacturing CNC woodworking engraving machine, CNC advertising engraving machine, laser engraving/cutting machine, laser marking machine, and plasma cutting machine and so on.

Q2: Do I need two laser machines to engrave and cut separately?

 The laser machines we provide are capable of both engraving and cutting.

 One machine alone can fulfill the two purposes.

Q3.How to do when the machine appeared troubles in the future ?

Call us----our enginners are online for 24-hours,and ready to serve you.Replacement of

 damaged parts for free---For more information,please readthe warranty card.The CD and

operation manual----It show the most common failure in working processing and how to

 solve this problems.
