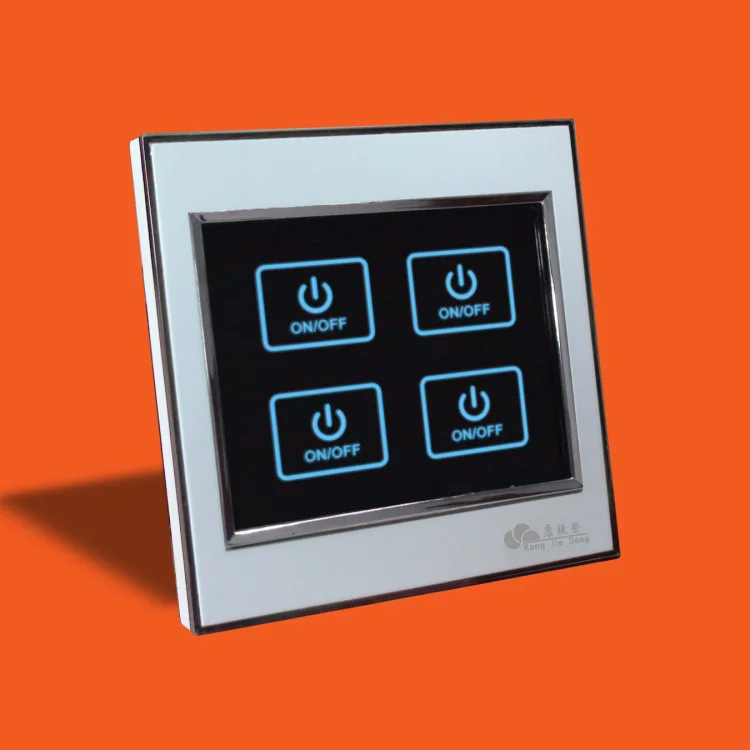

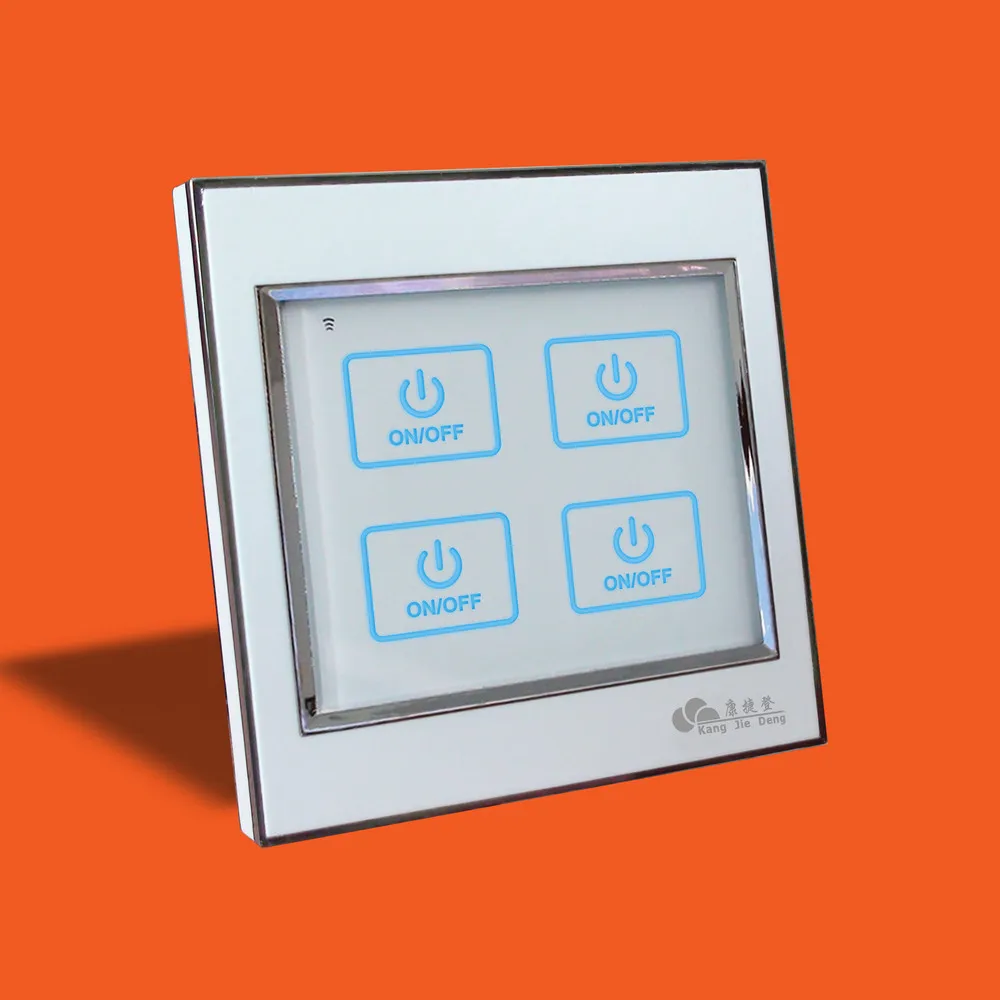

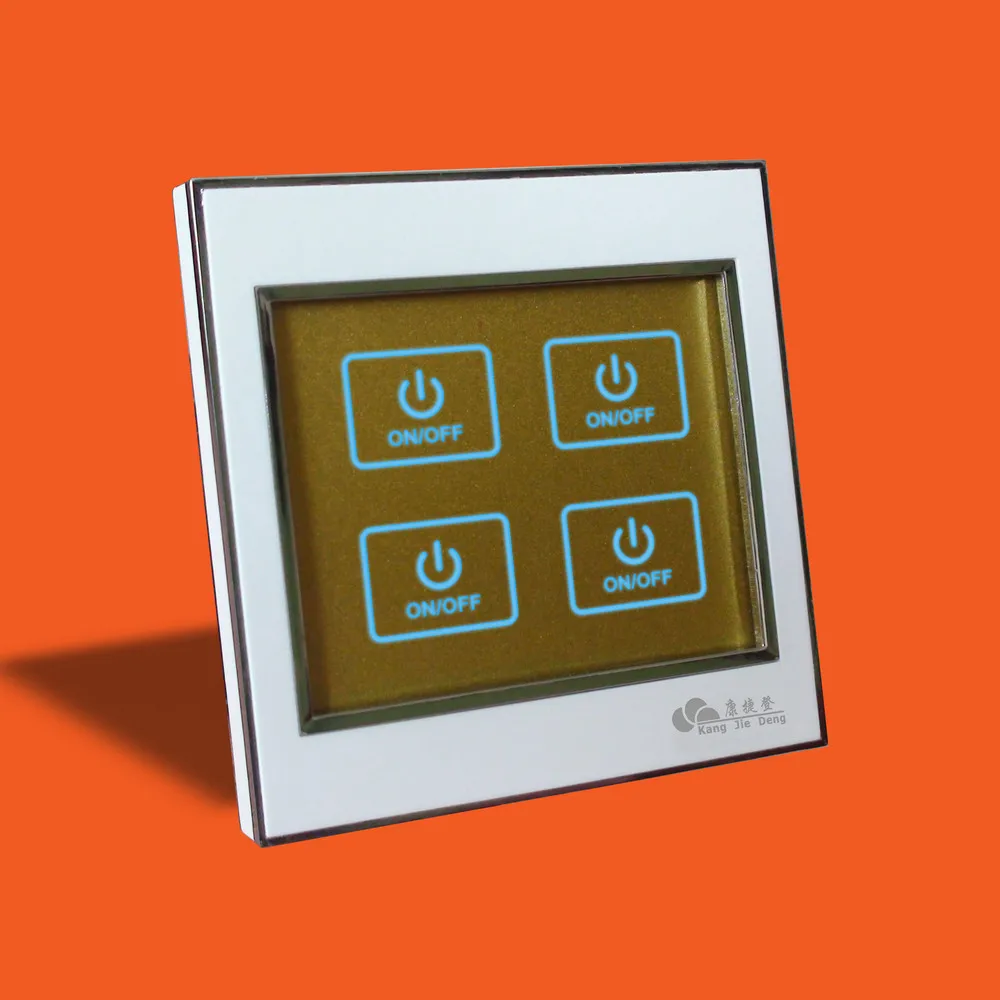

Kang Jiedeng 90-4 road home remote control switch white zero line of fire smart intelligent |

NinetyTouch remote control switch

an instruction manual

preface

Thank you for your purchase of the company's production of touch remote-control switch, please first read carefully the following instructions before use, this product on the basis of the practice of the International Electrotechnical and use at home and abroad the most advanced touch technology, electronic circuit design of electromagnetic compatibility is good, performance is stable and reliable, touch more sensitive.

Two, the scope of application:

Suitable for offices, warehouses, factories, hospitals, hotels, family villas lighting intelligent lighting; scene with remote control, to achieve total open, shut, meals, entertainment, receive visitors, rest, go home and scene features, by telephone remote controller, anti-theft alarm main machine,3GMobile phones, computers, etc.IPNetwork controller can realize the telephone or computer remote control.

Three,Technical parameter:

1,Working voltage: single lineAC220V/50Hz-60Hz,

Zero lineAC110V-250VAC/50Hz-60Hz

2,Operating frequency: optional315MHZ/433MHZ, the regular stock is315MHZ.

3,Load current:10Arelay

4,Relay service life:10Million times

5,Panel material: tempered glass quality, anti squandering, anti aging, touch more texture

6,Standby power consumption: single line switch220VStandby power consumption13.2mW

Zero line switch110VStandby power consumption154mW

Zero line switch220VStandby power consumption20.24mW

Seven,Applicable lighting: can be connectedLEDLamp, fluorescent lamp, energy saving lamp, lamp, lamp, halogen lamp, and other conventional lamps.

8,Load power: total power of single line switch1000W(resistive load), capacitive and inductive load resistance1/3

Zero line switch power1000W, capacitive and inductive load resistance1/3

9,Sensitivity: typical-102dBmThe worst-98dBm

10Working temperature:-35C ~+75C

Five,Product model name:

1,KJD-90-L1(single line of fire1Road)4,90-Product series

2,KJD-90-N1Zero line1Road)5,L1-Single line of fire1Road (otherwise2The road,3The road,4Road)

3,KJD-Company name6,N1-Zero line1Road (otherwise2The road,3The road,4Road)

Six,Registration of remote control code (code), the specific operation:

1One touch control, opening and closing function continued to switch to code - pressing any way3Seconds don't let go until the switch panel school code lights flashing a light let go, again press to be learning remote control any key, switch panel received signal followers code indication lantern again Shuo a red light, said study operation code complete.

2Total open function-Hold any one way switch continuously3The second does not let go, until the school code switch panel lights2At a red light and let go, according to be learning remote control any key, switch panel received signal followers code indicator flashes a red light, said study operation code complete. (total open function, only open)

3, the total clearance function of the code - hold down any way to continue3The second does not let go, until the school code switch panel lights3At a red light and let go, according to be learning remote control any key, switch panel received signal followers code indicator flashes a red light, said study operation code complete. (total off function, only closed)

4, clear code function operation - press and hold any way to continue3Seconds until the switch panel to school code lights flashing4After let go, said clear code operation is completed (switch clear code, remote control does not work, only to re register code)
