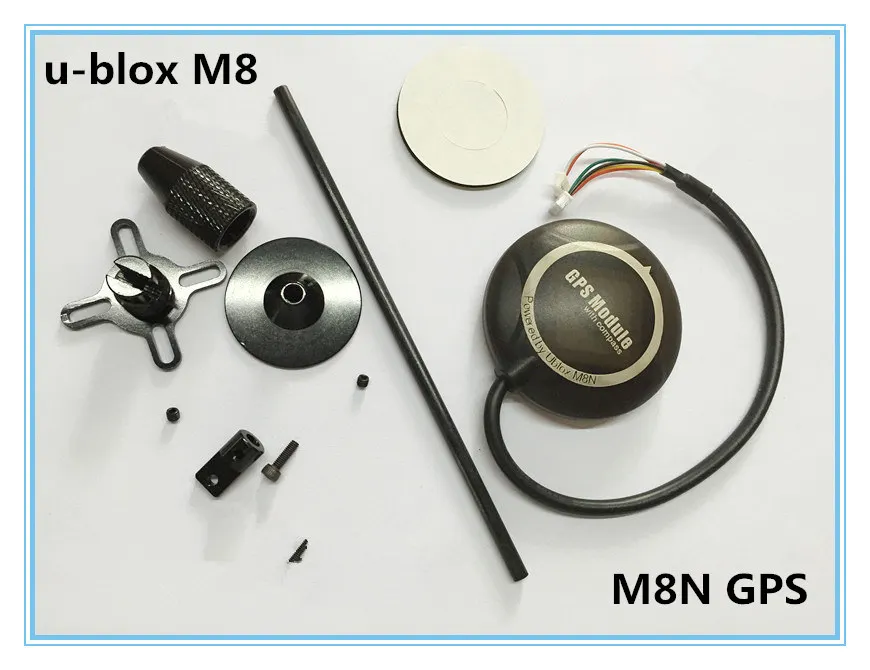

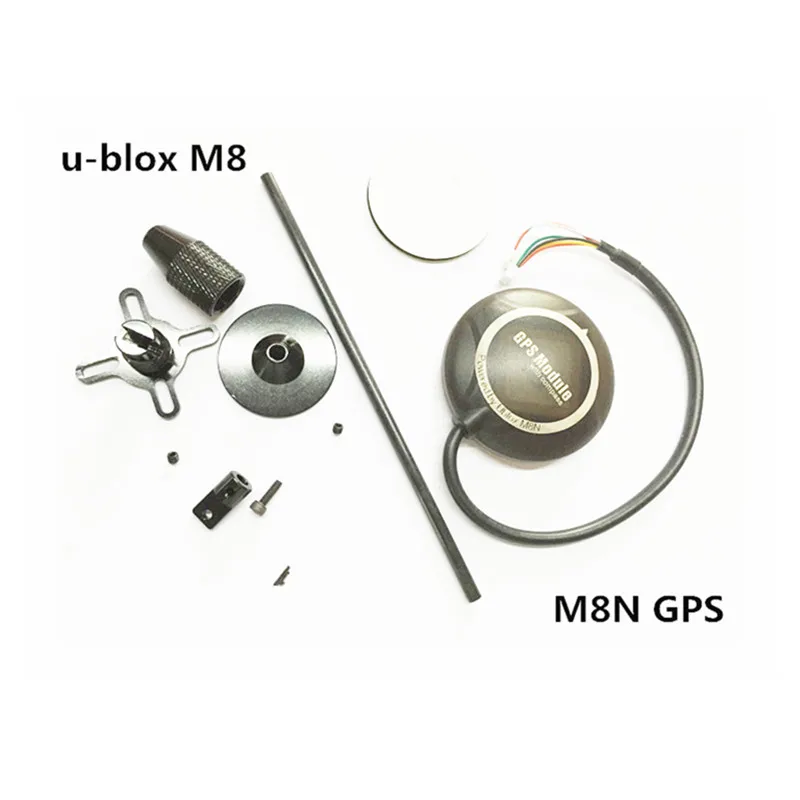

NEO-M8N u-blox M8 GPS for APM 2.8 or PIX4 flight control

DIY drone quadcopter accs

NEO-M8N u-blox M8N module   NEO-M8N series offers high sensitivity and minimum acquisition time, while maintaining low system power. NEO-M8N provide the best RF performance and ease of integration. u-blox M8, can simultaneously acquire and track different GNSS (Global Navigation Satellite) system: parallel receiving GPS (QZSS) and GLONASS or BeiDou, or while receiving GLONASS and BeiDou. This platform specially adapted to the needs of the highest availability and accuracy of GPS performance applications even under poor signal environment (particularly in urban canyons). Because GPS / SBAS operation under clear-sky conditions can achieve optimal positioning outskirts, M8 platform is also equipped with a built-in intelligent automatic switching function. According to visibility and reliability GNSS satellites automatically switch to a single GNSS operation mode.   Maximum update rate up to 18Hz For some high-speed motion, update rate relatively high demand products, which module is the best choice. * Support GPS + Compass Can be synchronized to run GPS + GLONASS or GPS + Compass, all aspects of its performance far exceeds domestic UM220-III. If China's scientific research institutions, government departments if needed Compass, choose which modules are also suitable. The future of satellite navigation, the satellite system will be more. Single GPS satellite system will be replaced slowly. Therefore, beginners can choose dual-mode satellite positioning module for learning. * Satellite number and positioning accuracy Compared to a single GPS module, MAX-M8n can search more satellites. Under normal circumstances, it is easier to search more than 15 satellites. The single GPS Module will also be able to search to 9,10 satellites. Because search to more satellites, HDOP value positioning accuracy can reach 0.5 meters to 1.0 meters. You can basically meet the requirements are not very high-level mapping requirements.       Receiver type 72-channel u-blox M8 engine GPS / QZSS L1 C / A, GLONASS L10F, BeiDou B1 SBAS L1 C / A: WAAS, EGNOS, MSAS Galileo-ready E1B / C (NEO-M8N) Nav update rate1 Single GNSS:. Up to 18 HZ Concurrent GNSS: up to 10 Hz Position accuracy2 2.0 m CEP Acquisition2 Cold starts: 26 s Aided starts: 2 s Reacquisition: 1.5 s Sensitivity2 Tracking & Nav: -167 dBm Cold starts: -148 dBm Hot starts: -156 dBm Assistance AssistNow GNSS Online AssistNow GNSS Offline (up to 35 days) 3 AssistNow Autonomous (up to 6 days) OMA SUPL & 3GPP compliant Oscillator TCXO (NEO-M8N / Q), Crystal (NEO-M8M) RTC crystal Built-In Noise figure On-chip LNA (NEO-M8M). Extra LNA for lowest noise figure (NEO-M8N / Q) Anti jamming Active CW detection and removal. Extra onboard SAW band pass filter (NEO-M8N / Q) Memory ROM (NEO-M8M / Q) or Flash (NEO-M8N) Supported antennas Active and passive Odometer Travelled distance Data-logger For position, velocity, and time (NEO-M8N)   pack age list: UBLOX NEO-M8N GPS *1 set the holder * 1 set
