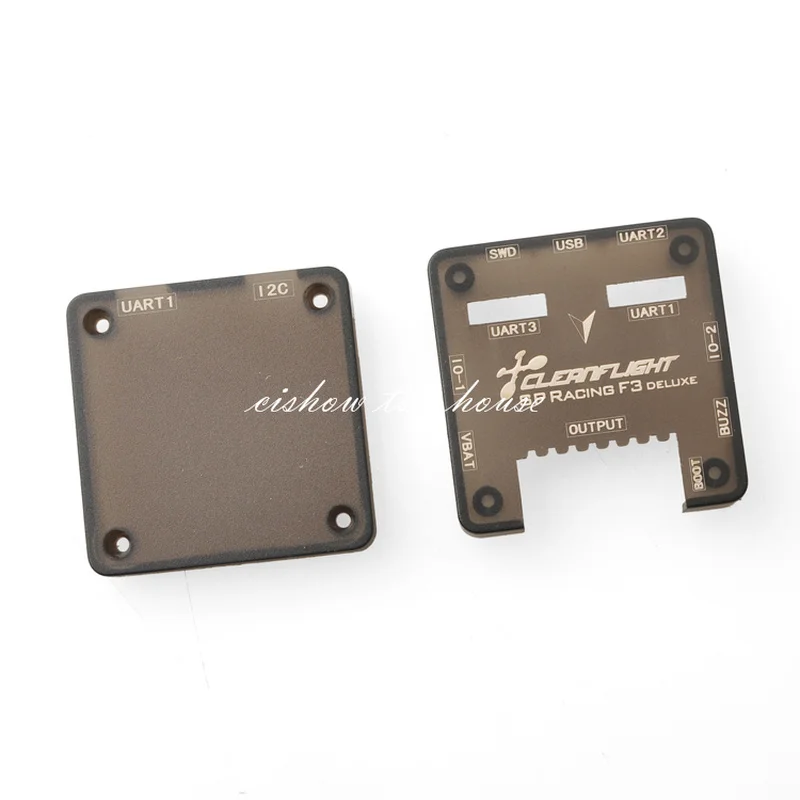

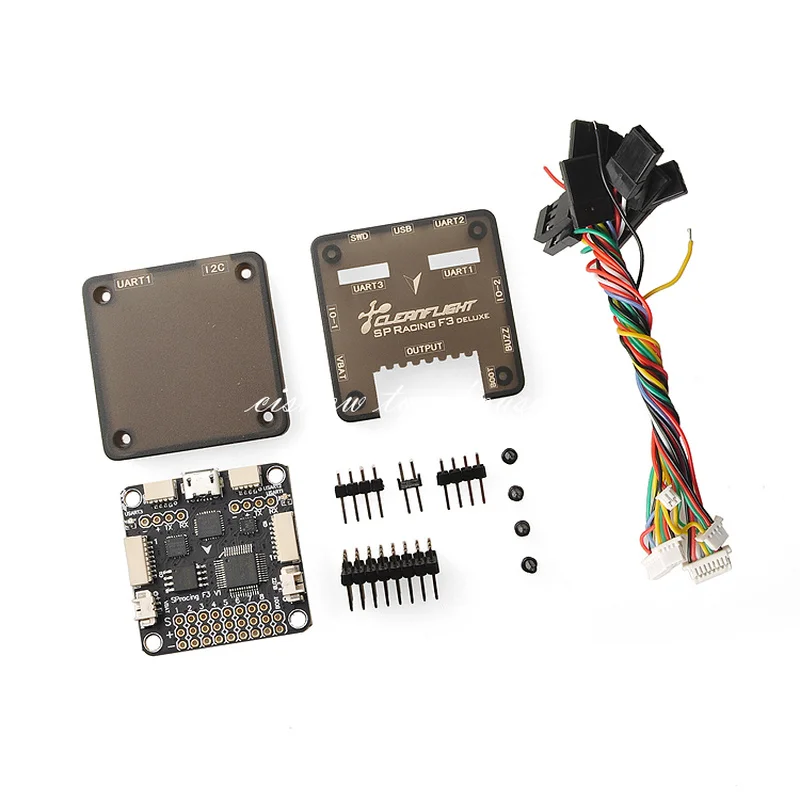

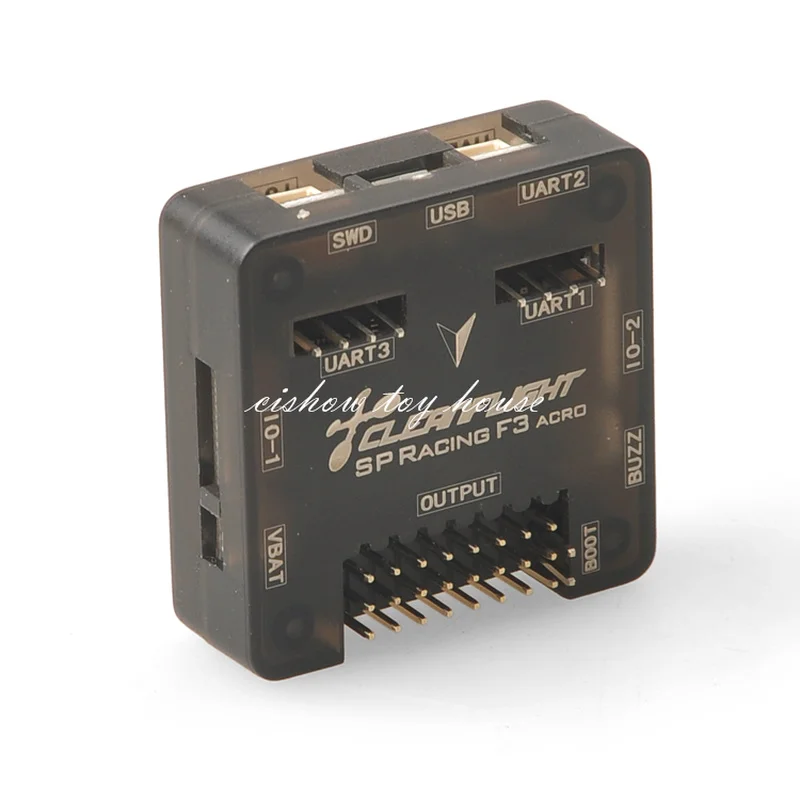

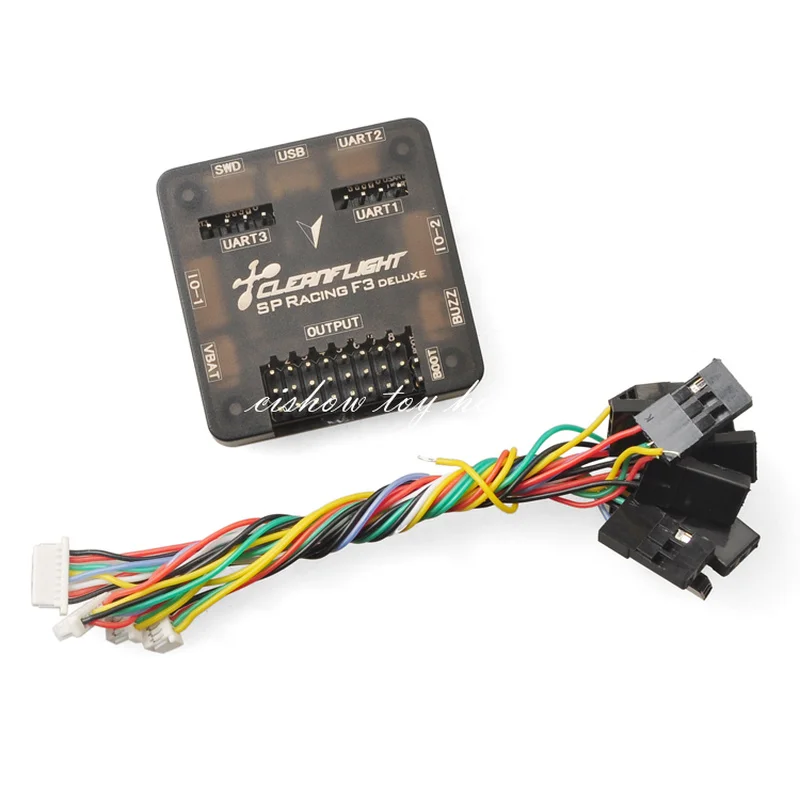

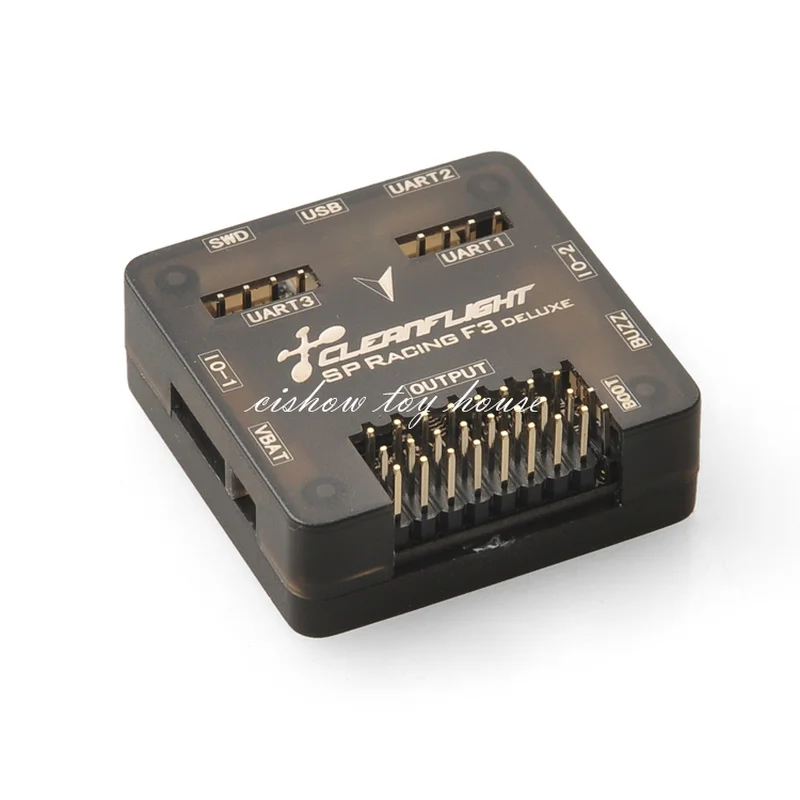

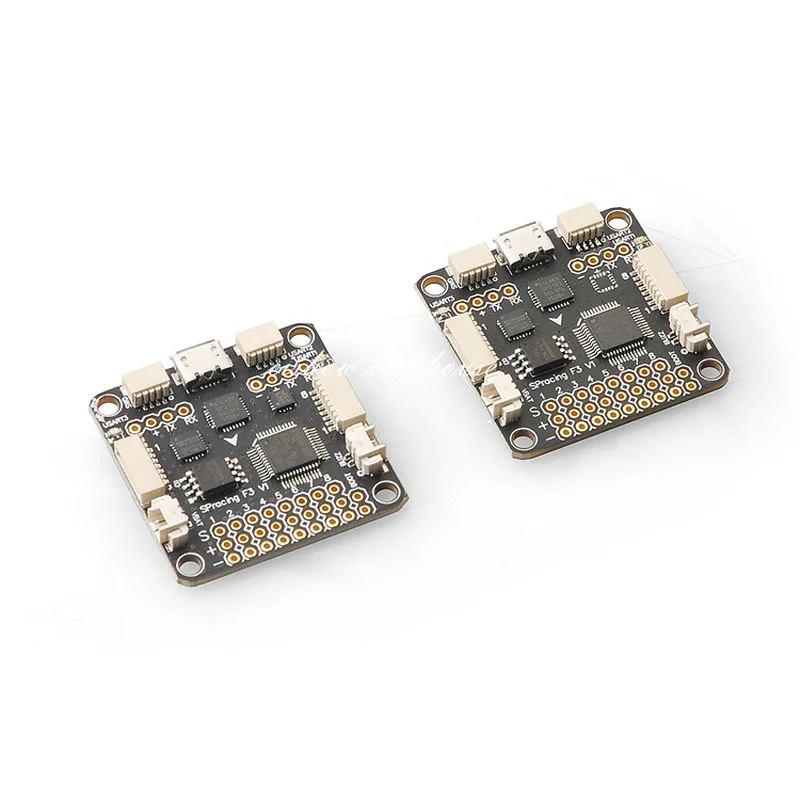

RC SP Pro Racing F3 Flight Controller Cleanflight Perfect f/ QAV250 H250 Mini 250 280 210 180 Quadcopter Better than NAZE Flip32

Based on tried and tested sensors whilst also providing unparalleled I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU. The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect. Features -No compromise I/O. Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time! -On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork ( Deluxe). -Next-generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster ARM-Cortex M4 core. -Stackable design - perfect for integrating with OSDs and power distribution boards. -16 PWM I/O lines for ESCs, Servos and legacy receivers. 8 available on standard pin headers. 8 via side mounted connectors. -Full support for OneShot ESCs for easy PID tuning and a sharper response. -Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in). -Dedicated output for programmable LEDs - great for orientation, racing and night flying. -Dedicated I2C port for connection of OLED display without needing flight battery. -Battery monitoring ports for voltage and current. -Sonar support for precision low-altitude hold. -Buzzer port for audible warnings and notifications. -Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader. -Symmetrical design for a super tidy wiring. -Wire up using pin headers, JST-SH sockets or solder pads. Use either right-angled or straight pin-headers. -Barometer mounted on the bottom of the board for easy wind isolation. -Loop times up to ~2x as fast as previous-generation STM32F1 based boards. -Configuration of the flight controller via a cross-platform GUI (Windows/OSX/Linux). -Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more. -Available in Acro and Deluxe versions. Variations Acro: Standard model for racing/acro flying. Deluxe: Additional sensors for altitude and direction. Software The SPRacingF3 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system. Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information. Ensure you reference the manual that is appropriate to your firmware version. History The hardware was designed by the lead developer of Cleanflight, Dominic Clifton, to be more capable than the STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots. Failure to adhere to these warnings will void your warranty and destroy your flight controller. WARNINGS GENERAL ADVICE Follow the advice below for best performance and long-life of your flight controller: -Observe polarity at ALL TIMES. Check and DOUBLE CHECK before applying power. -POWER OFF before unplugging, plugging in or making any connections. -Connect only one SOURCE of power to the VCC pins / Do not connect more than one source of power to two or more of the VCC pins. e.g. If you are using ESCs with BECs then remove the center RED wire from all but one ESC connector. -Do not connect GND, VCC or 3.3v to each other (short circuit). -Do not connect GND, VCC or 3.3v to any inputs or outputs unless specifically stated. -Do not connect any input or output to any other input or output unless specifically stated. -The 3.3v supply is for low-current use only. 100mA MAX. -Do not allow dirt/dust/glue/etc into the pressure sensor (barometer). -Keep magnets away from the flight controller. e.g. balance props, motors and secure everything The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect. Deluxe: Additional sensors for altitude and direction. The SPRacingF3 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system. Specs: * 36x36mm board with 30.5mm mounting holes.
