Brand NameYunlinLiModel NumberBT100S-ZY15PowerElectricUsageAir PumpTheoryOtherStandard or NonstandardStandardStructureOtherPressureLow PressureFuelOtherApplicationOtherMeasurement unitpiece/piecesEach pack1Voltage110v / 220vEnglish manualYESFlow range0.00016~570ml/minFlow Accuracy<0.5%Speed0.1~150turn/minTempareture0-40CResistance to humidity<80%Protection classIP31ModelYZ1541 922,09 ₽-8%41 922,09 ₽-8%38 568,12 ₽38 568,12 ₽there are seller's couponsAdd to CartBuy now38 568,12 ₽loader

Description

Stainless Steel Speed Peristaltic Pump Led Digital Display Low Flow Precise Variable Pump for Water Pumps Fluid BT100S-ZY15

Technical parameters:

   • Flow range: 0.00016-570 ml / min;
   • Flow accuracy error: <0.5%;
   • Speed range: 0.1 to 150 (r / min);
   • Speed resolution: 0.1 (rev / min);
   • Power supply voltage: AC 220V ± 10%, 50Hz / 60Hz (standard); AC 110V ± 10%, 50Hz / 60Hz (optional);
   • Power: less than <40W;
   • External control interfaces: external control input level 5V, 12V (standard), 24V (optional); external control analog 0-5V (standard), 0-10V, 4-20mA (optional);
   • external control Digital Communication Interface: RS485 communication, MODBUS protocol support;
   • Ambient temperature: 0 ~ 40
   • Relative humidity: <80%;
   • Degree of protection: IP31;
   • Chassis size :( L × W × H) 223mm × 150mm × 195mm;
   • Weight: 4.7KG;

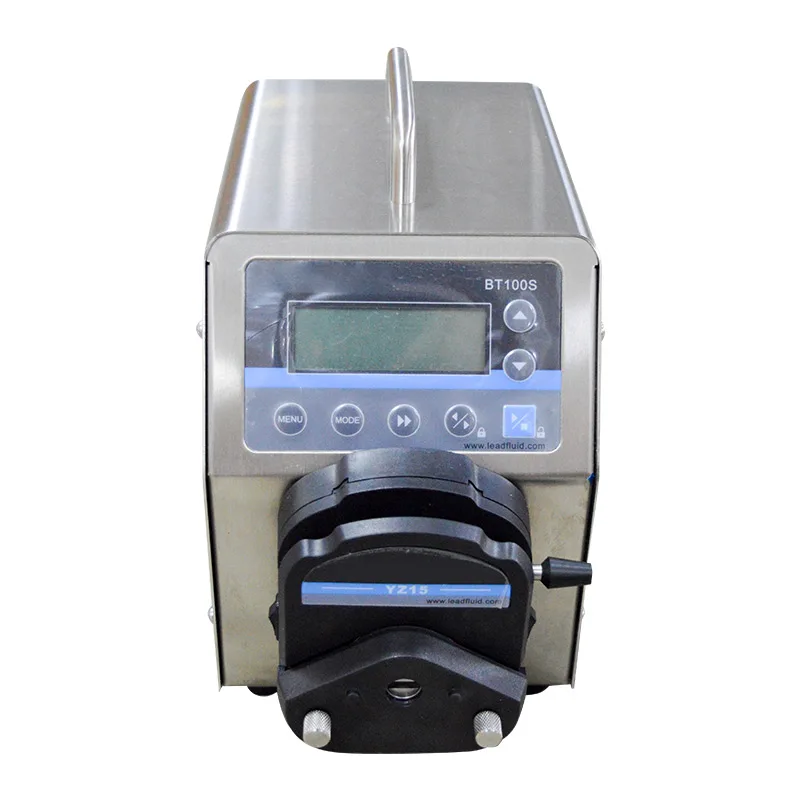

Product Showcase:

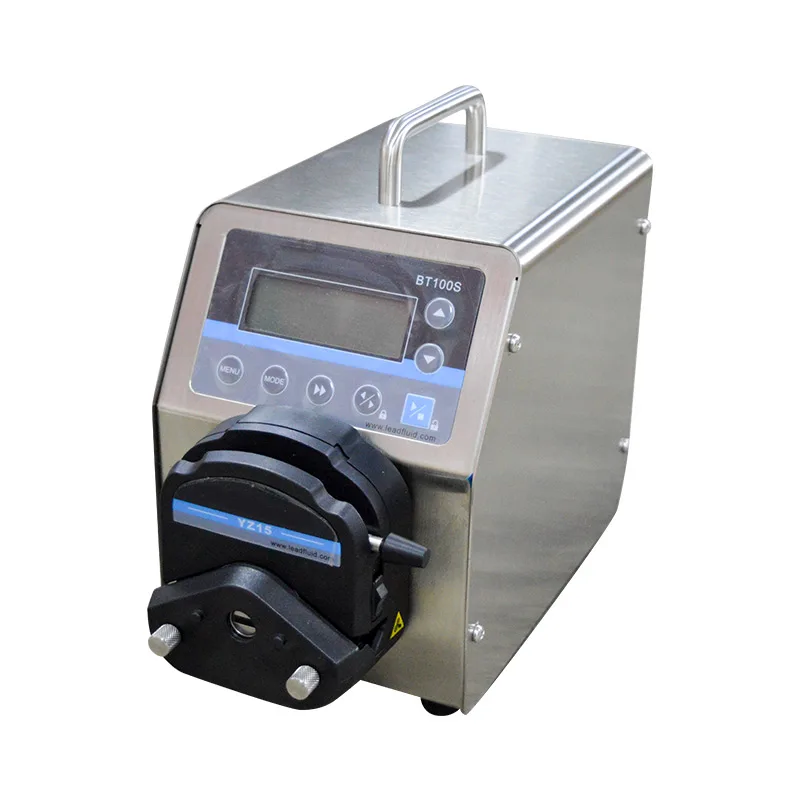

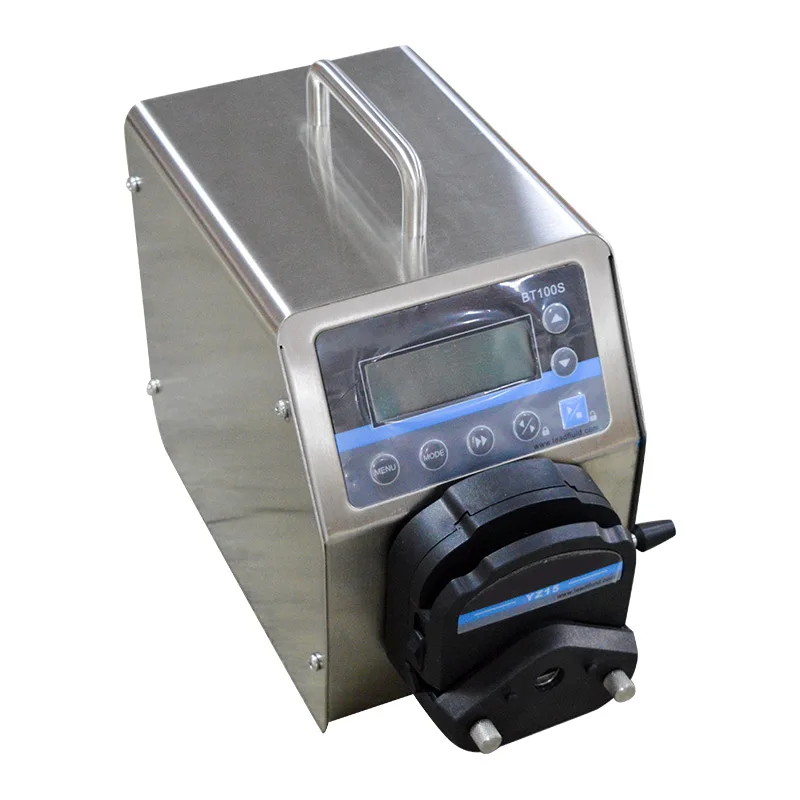

BT100S speed peristaltic pump Introduction

        BT100S speed peristaltic pump flow range 0.00016-570 ml / min; operating speed of 0.1 to 150 rev / min; with both positive and negative, start-stop, full-speed (cleaning), speed and other basic functions, the other also by "simple points mounted key "to achieve timing quantitative transmission function of the liquid. In the RS485 communications, because the use of MODBUS protocol, easier to connect with other control devices such as computers, HMI, PLC and so on.

Functions and Features

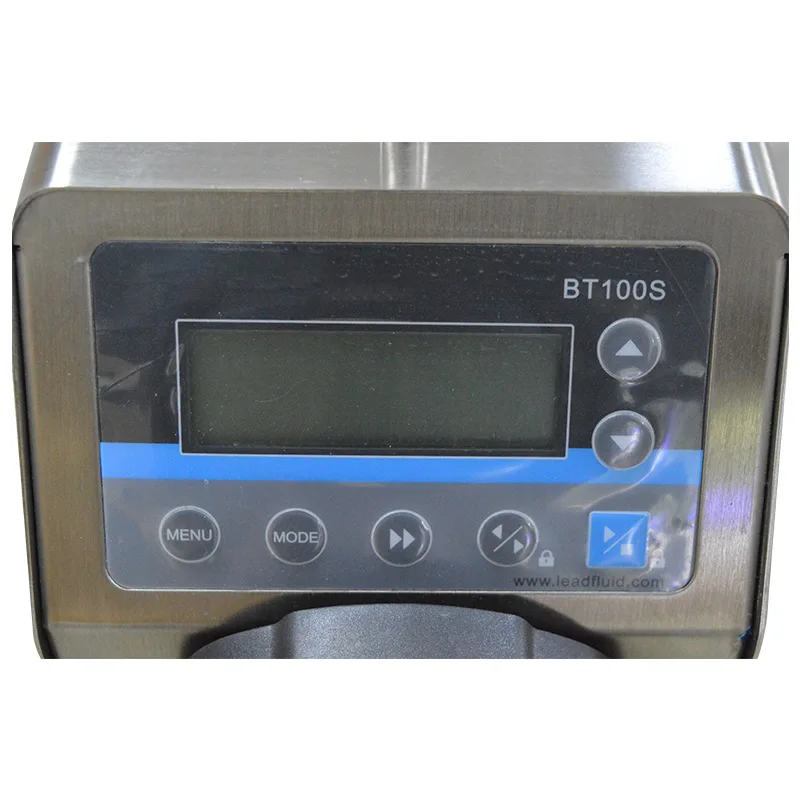

· 4 LED digital display speed and operating mode;
· LED indicators show positive and negative, internal control, external control, foot switch and other working conditions;
· Mask button operation;
* Has a start and stop, reverse, full, speed, state memory (power failure memory) and other functions;
· Easy dispensing control, repeated quantitative liquid transfer functions;
· Resolution 0.1-100 speed rev / min 0.1; 100-150 rev / min is 1;

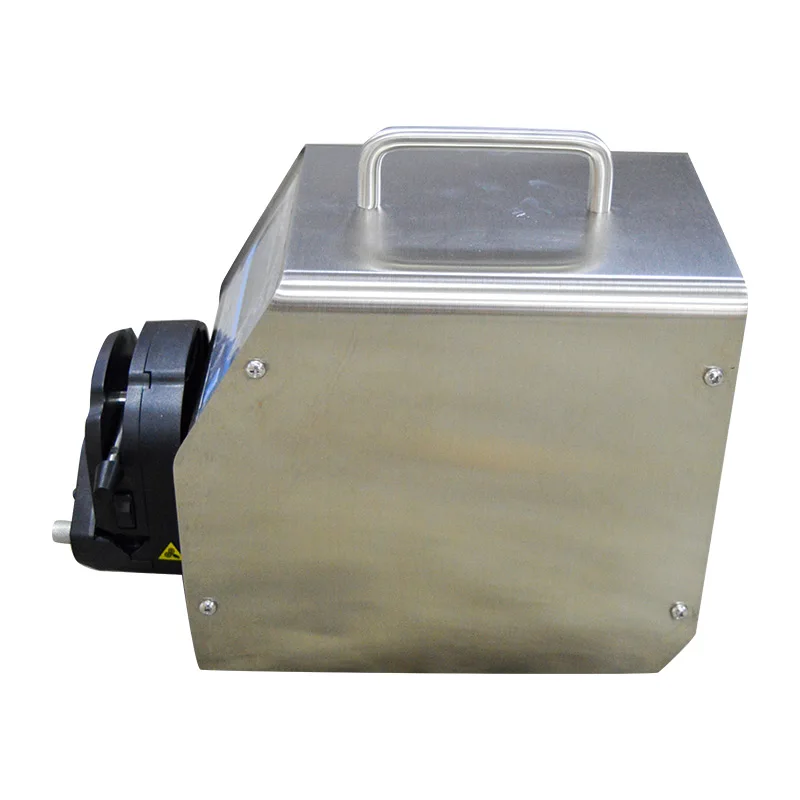

Stainless steel shell anti-acid, corrosion resistance;

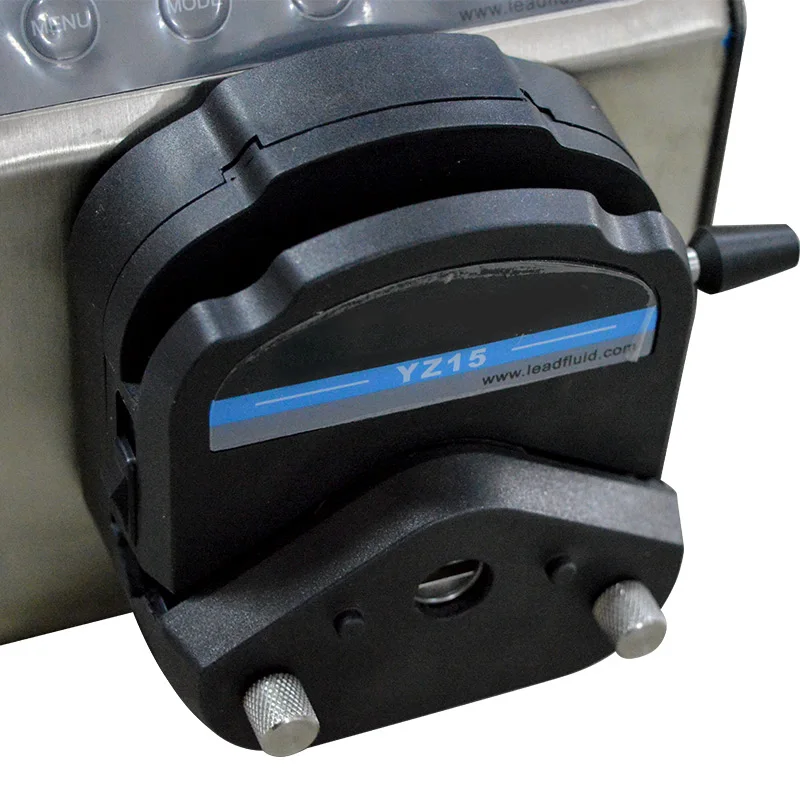

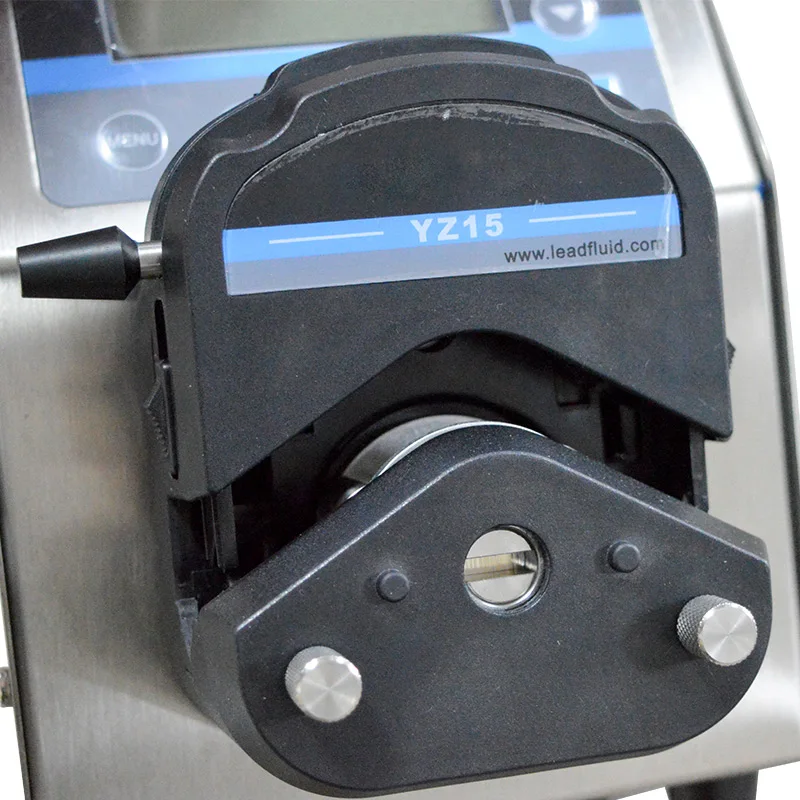

Big torque output, you can install a different head, to achieve different combinations to drive the pump head;
· Internal structure with double isolation design, circuit board with three paint spray technology, to achieve the effect of dust and moisture;
* Super anti-jamming features, wide voltage design, suitable for complex supply environment;
Outside the control of high-low control start and stop, reverse, simple packaging, opto-isolated; external control analog speed regulation;
· RS485 communication, MODBUS protocol support for easy connection to a variety of control equipment;
· Enables external foot switch or control start and stop time divider control starts and stops, filling function to achieve a simple assignment;
