Описание товара

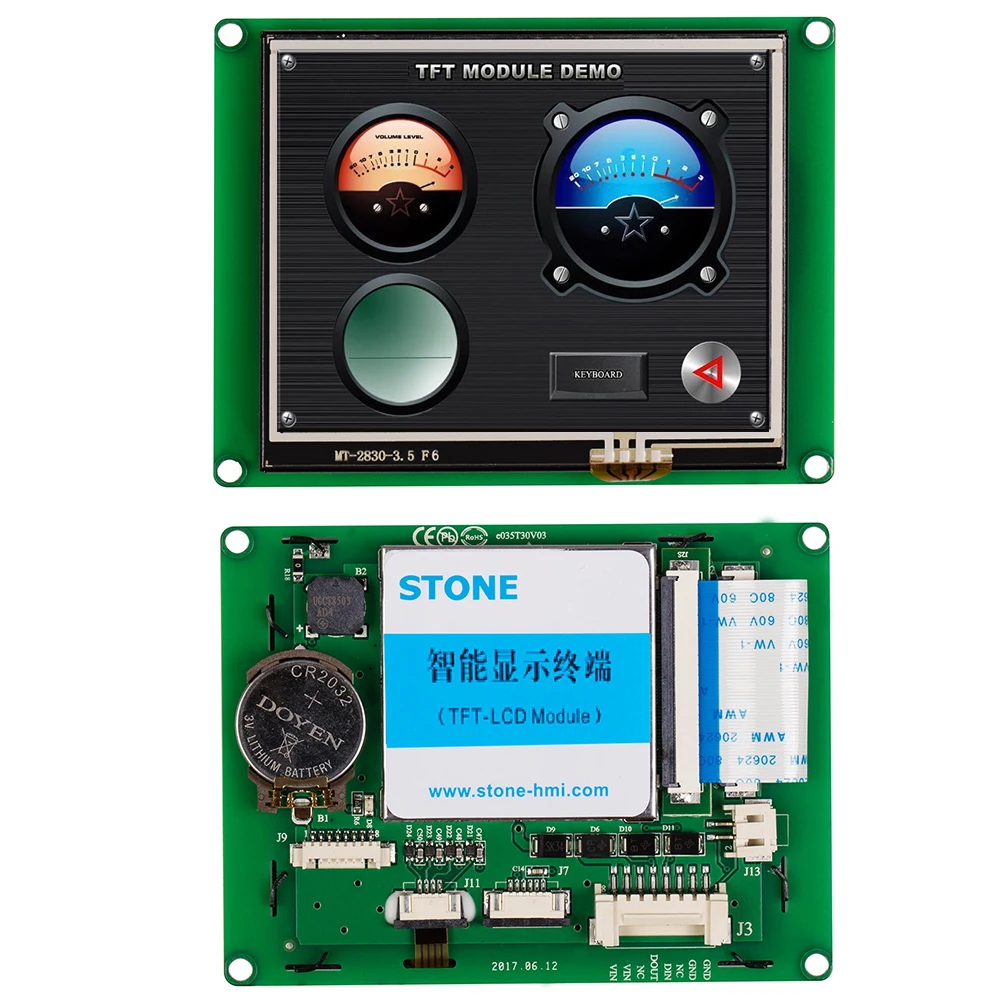

3.5" Display Module TFT LCD Touch Screen with Program +Software Use In Industrial
|
 |
STVI035WT-01

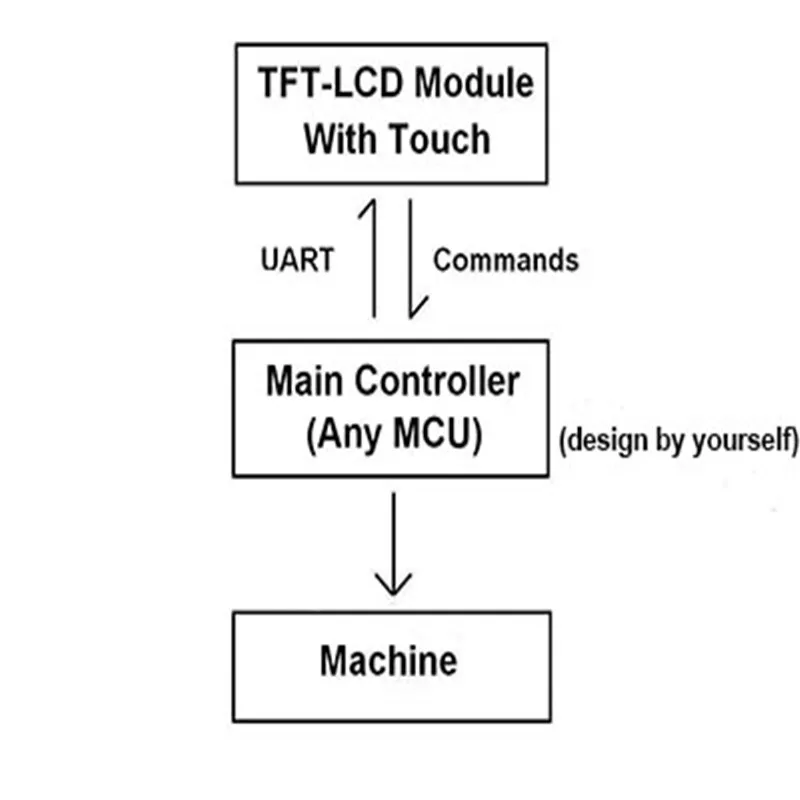

The STVI035WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.

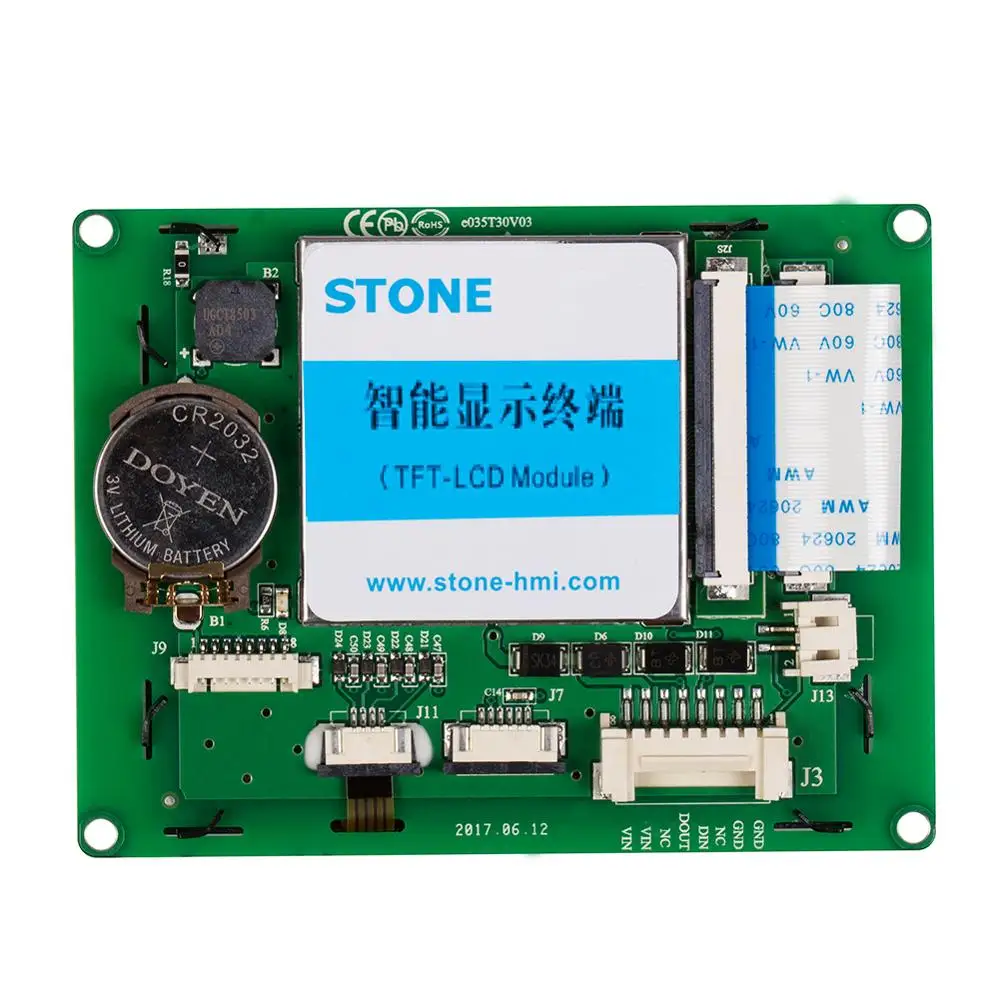

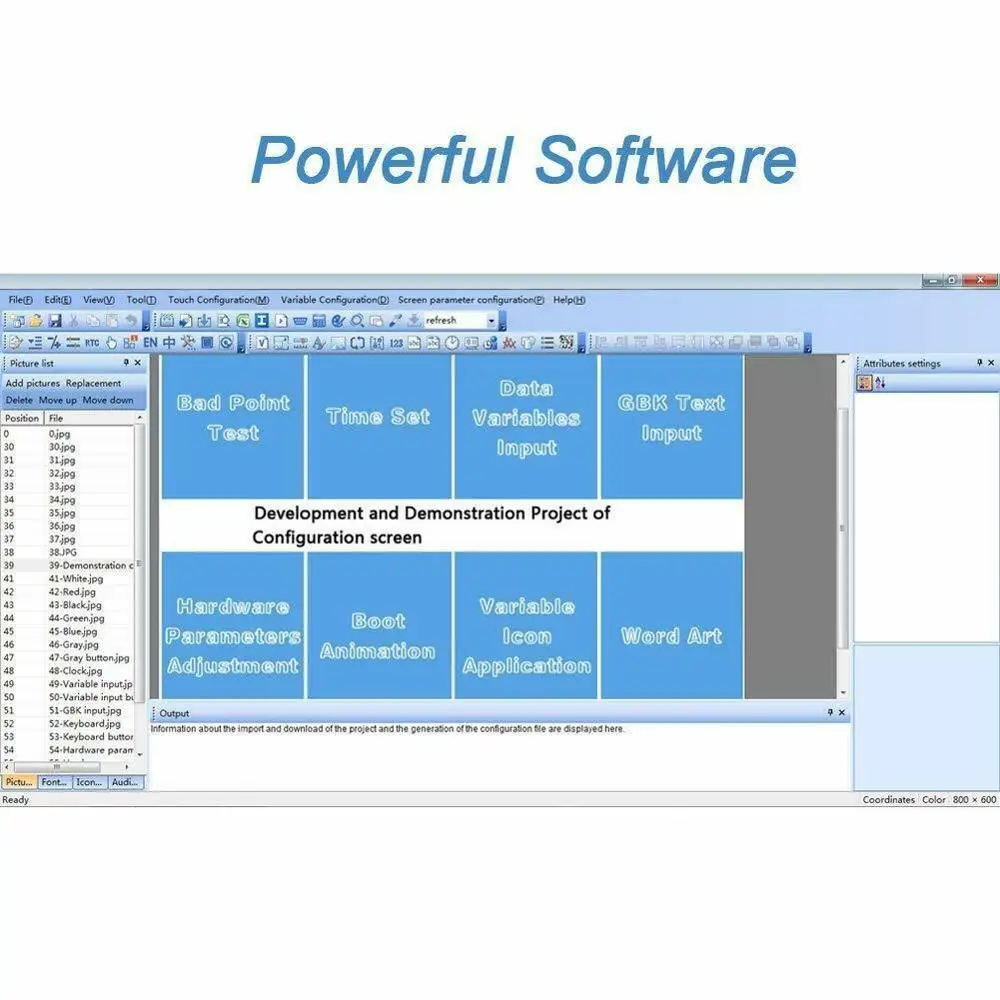

The STVI035WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers. |
Product Parameters
| Physical Parameter |
|
| Model |
STVI035WT-01 |
| Size (Inch) |
3.5 inch |
| Resolution |
320timesRGBtimes240 |
| Color |
65536 colors (16 bit) |
| Viewing Area |
70.1 mm times 52.6 mm |
| Pixel Spacing |
0.1905 mm times 0.0635 mm(HtimesV) |
| Overall Dimension |
93 mm times 70.1 mm times 14.9 mm(N)/16.5 mm(T) |
| Net Weight |
85 g(N)/ 100 g(T) |
| TFT Panel |
A+ Class Industry Panel |
| Touch Screen |
Industry Level 4 wire resistance |
| Backlight Parameter |
|
| Backlight Type |
LED |
| Brightness |
400 cd/m2(Brightness can be adjustable in 100 levels.) |
| Contrast |
500:1 |
| Backlight life |
300,00 hours |
| Viewing Angle |
70deg/ 70deg/ 50deg/ 70deg(L/R/U/D) |
| Working Temperature |
-20degC ~ +70degC |
| Working Humidity |
55degC, 85% |
| Storage Temperature |
-30degC ~ +80degC |
| Screen Mode |
Digital |
| Performance Parameter |
|
| CPU |
CortexM4 |
| LCD Controller |
CPLD EPM240 |
| Refresh Rate |
200MHz |
| Picture Switching Speed |
12 ms/picture (83 pictures/s) |
| Flash Memory |
Standard 128MB, Extension 1GB |
| Memory Amount for picture |
According to the capability of the image, Suggest "JPG" format. |
| Interface |
RS232/ USB Interface |
| Image downloading |
USB2.0 (12Mbps) & U storage Disk downloading |
| Voltage Range |
DC6.0V ~ 40V (typical value: 12V) |
| Power |
0.8W |
| Test Report |
|
| MTBF |
4,250,000H |
| Working Temperature |
-20degC ~ +70degC |
| Air Humidity |
60degC, 90% |
| Continuous Vibration Testing |
10-55Hz, 1.5mm, 10G |
| Impact Acceleration Testing |
6ms, 100G |
| ESD Testing |
10KV |
| Radiation Reliability Testing |
44W |
