ShenZhen Higtek Fiber Optical Company
Магазина ShenZhen Higtek Fiber Optical Company работает с 21.05.2015. его рейтинг составлет 85.71 баллов из 100. В избранное добавили 95 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 940 наименований товаров, успешно доставлено 127 заказов. 14 покупателей оставили отзывы о продавце.
Характеристики

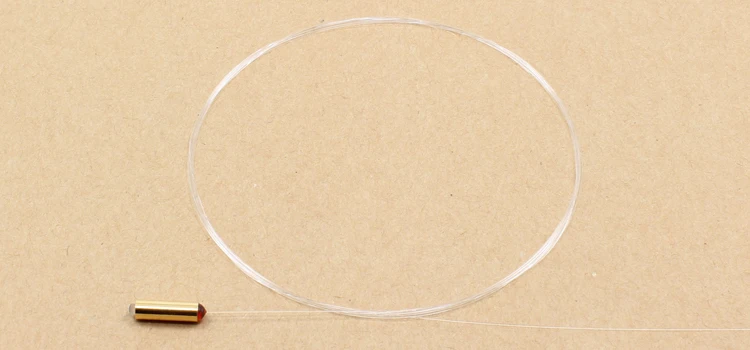

SM 1M Fiber Optic Single Core Collimator 3.2mm Gold Plated Tube C-lens | Мобильные телефоны и аксессуары
История изменения цены
*Текущая стоимость 2 914,05 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Jul-26-2026 | 3468.25 руб. | 3641.55 руб. | 3554.5 руб. |
| Jun-26-2026 | 3439.26 руб. | 3611.71 руб. | 3525 руб. |
| May-26-2026 | 2885.67 руб. | 3029.79 руб. | 2957 руб. |
| Apr-26-2026 | 3380.83 руб. | 3549.8 руб. | 3464.5 руб. |
| Mar-26-2026 | 2943.36 руб. | 3090.25 руб. | 3016.5 руб. |
| Feb-26-2026 | 3322.56 руб. | 3488.3 руб. | 3405 руб. |
| Jan-26-2026 | 3293.34 руб. | 3458.43 руб. | 3375.5 руб. |
| Dec-26-2025 | 3264.66 руб. | 3427.41 руб. | 3345.5 руб. |
| Nov-26-2025 | 3235.85 руб. | 3397.53 руб. | 3316 руб. |
Описание товара
Description:

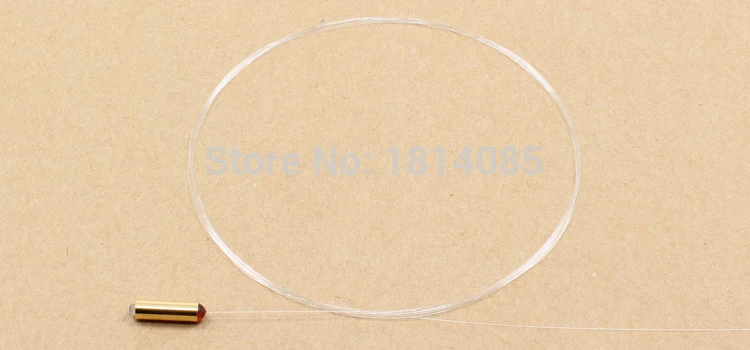

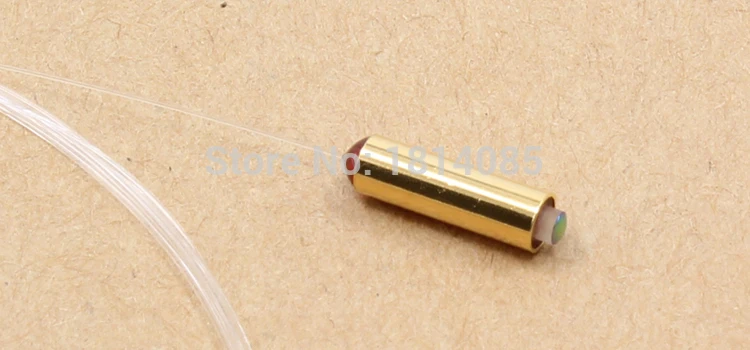

Collimator is made of capillary pigtail and Glens which aligned accurately. Lens are mainly C - Lens (spherical) and G - Lens (plane) two kinds.For packaging tube, there are mainly two types:glass tube and gold-plated tube .With the different capillary diameter, there comes a variety of outside diameter of the collimator.The function of fiber collimator is the output from optical fiber into a collimating light (parallel light), or to the outside world parallel light (parallel) approximation coupled into the fiber optic transmission.The products are widely used optical devices or optical field of research and experiment.
Application:
WDM device and modules Isolators Circulators Optical researching Optical switches Test and measurement systems Couplers Features: Low Insertion Loss Low polarization dependence loss Excellent return loss Wide bandwidth Long working distance Environmentally stable Specifications:| Item | Index Parameter | |
| Central wavelength(CW) | 1260nm-1650nm | 1260nm-1650nm |
| Typical Insertion Loss | 0.16 dB | 0.21 dB |
| Maximum Insertion Loss | 0.2 dB | 0.25 dB |
| Typical Return Loss | 65 dB | 65 dB |
| Minimum Return Loss | 60 dB | 60 dB |
| Maximum Receive angle (degree) | 0.15 Degree | |
| Maximum Beam Divergence Angle | 0.25 Degree | |
| Maximum Facula diameter (mm) | 0.5mm | |
| The maximum Optical Power | 300mW | |
| Maximum Tension | 5N | |
| Operating temperature | -20C to + 70C | |
| Storage Temperature | -40Cto + 85C | |
| Fiber Type | SMF-28, MMF50/125UM or MMF 62.5/125 | |
| Fiber Length,Diameter | 1 Meter Each End 0.25 or 0.9mm | |
| Package Dimension (mm) | 1.0*10mm(glass tube); | |
| 1.3*10mm(glass tube ,Goldplated tube ) | ||
| 1.8*10mm(glass tube ,Goldplated tube ) | ||
| 2.78*10mm(glass tube) | ||
| 3.2*10(glass tube) | ||
About Payment
1. We can accept payment via Escrow, Western Union and T/T. The best way is direct online payment,you can choose yourself. If you want to use other payment terms, please let us know before when you order.
2. Full payment must be made within 7 days after placing your order, or the order will be invalid or canceled by the system.
3. Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
About Shipment
1. We will send the goods within 5 business days after the full payment has been confirmed.
2. We can provide the international shipping services as follows:
China Post Air Mail, HK Post Air Mail, EMS, TNT, DHL, UPS, Fedex. The default way is by China post air mail and HK post air mail.
3. The buyer is responsible for insurrance, problems and damage which caused by shipping service such as accidents, delays or other issues. Besides, we are not responsible for any custom duty or import tax, these charges are not included in the item price and shipping cost.
The Following is estimated time for different shipping methods
WARRANTY&GUARANTEE
1. All the goods are inspected and tested before shipment. if you are not satisfied with the goods, you can exchange the items within 7 days and you must contact us within 24 hours after the receipt of the items.
2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
3. All return items must be in its original conditions, including box and accessories. Man-made defects are not guaranteed, such as broken, scratched and so on.
4. For any items, please use EMS or your local post when send back
