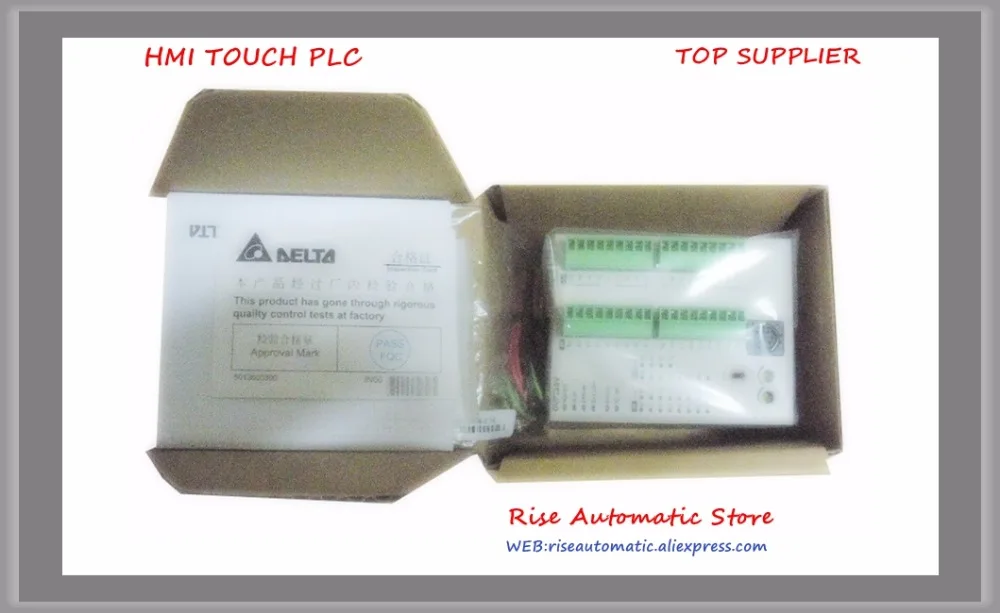

New Original PLC Module DVP28SV11S2 DVP28SV11T2 DVP28SV11R2 Controller

General introduction

The SV/SV2 is a 28-point (16 inputs + 12 outputs)/24-point (10 inputs + 12 outputs + 2 analog input channels) PLC

MPU, offering various instructions and with 16k (SV)/30k (SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200 kHz) pulse outputs (and two axes which generate 10 kHz outputs in 24SV2) and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

Electrical Specifications

DVP28SV11T2

The communication cable, which connects Human Interface and PLC, isn't provided for free. If needed, please inform us of your HMI model, we will offer a best price.

Delta PLC programming software:ISPSoft V2.04 (196MB),Editing software for DVP series and AH500 series (Multilingual)
Note: please use with COMMGR for communication function

Operating System: 2000, XP, Vista or 7(32-bit/64-bit)

if necessary, to provide free

General introduction

The SV/SV2 is a 28-point (16 inputs + 12 outputs)/24-point (10 inputs + 12 outputs + 2 analog input channels) PLC

MPU, offering various instructions and with 16k (SV)/30k (SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200 kHz) pulse outputs (and two axes which generate 10 kHz outputs in 24SV2) and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

Electrical Specifications

DVP28SV11R2

Features

The left-side parallel high speed extension interface on SV series is able to connect to all kinds of network interface, e.g. Ethernet, DeviceNet, ProfiBus, analog and temperature modules for the demand of immediate control. 16 special extension modules (digital, analog, axis control, communication, etc.) are connectable to SV series (8 on the left and 8 on the right). The built-in 200KHz 4-axis independent pulse output and the featured 2 groups of linear/arc interpolation motion control instructions offer an easy positioning control solution.

Specifications

MPU points: 28

Max. I/O points: 512

Program capacity: 16K Steps

Instruction execution speed: 0.24μS (basic instruction)

Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

Data register: 10,000 words

File register: 10,000 words

High-speed pulse output: Supports 4-point (Y0, Y2, Y4, Y6) high-speed pulse output, 2-group (Y0, Y1) (Y2, Y3) A/B phase pulse output and 2-group (Y0 ~ Y3 & Y4 ~ Y7) 2-axis interpolation. All outputs can reach 200KHz.

Built-in 4 groups of hardware high-speed counters

*Bandwidth refers to the max. counting range of a single counter.

 Applications

2-axis servo positioning control, material cutting machine (high-speed servo control), main hoist of crane, material clip controlled by servo, equipments in the optoelectronics industry, semiconductor industry, textile industry, energy saving activities and automation in buildings.

DVP28SV11R

Features

Thank you for choosing Delta DVP-SV #1 /DVP-SV2 #1. The SV/SV2 is a 28-point (16 input + 12 output) PLC MPU, offering various instructions and with 16k(SV)/30k(SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200kHz) pulse output and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

Note #1: DVP28SV11R/T is represented by SV, and DVP28SV11R2/T2/S2 is represented by SV2.

Specifications

1.        SV series

l  MPU points: 28

l  Max. I/O points: 512

l  Program capacity: 16K Steps

l  Instruction execution speed: 0.24μS (basic instruction)

l  Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

l  Data register: 10,000 words

l  File register: 10,000 words

l  High-speed pulse output: Supports 4-point (Y0, Y2, Y4, Y6) high-speed pulse output, 2-group (Y0, Y1) (Y2, Y3) A/B phase pulse output and 2-group (Y0 ~ Y3 & Y4 ~ Y7) 2-axis interpolation. All outputs can reach 200KHz.

l  Built-in 4 groups of hardware high-speed counters

#Bandwidth refers to the max. counting range of a single counter.

2.        SV2 series

l  High-speed pulse output: 4 sets of 200kHz pulse output

l  Supports max. 4 hardware 200kHz high-speed counters

l  Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning

l  Offers linear / arc interpolation motion control

l  Provides up to 16 external interrupt pointers

Complete Program

l  Auto backup function to prevent losing programs and data even when the battery runs out

l  Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged

l  Up to 4-level password protects your source programs and intellectual property

Supports DVP-S series left-side and right-side modules

     Add new ETHRW instruction for Ethernet communication

Electrical Specifications

#1: Please refer to “I/O Terminal Layout” for the max. X/Y No. on each model.

#2: UP and ZP must be connected to a 24VDC (-15% ~ +20%) power supply. The rated

consumption is 10mA/point.

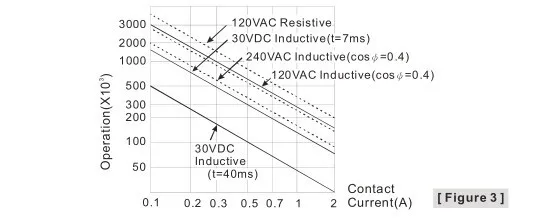

#3: Life curves
