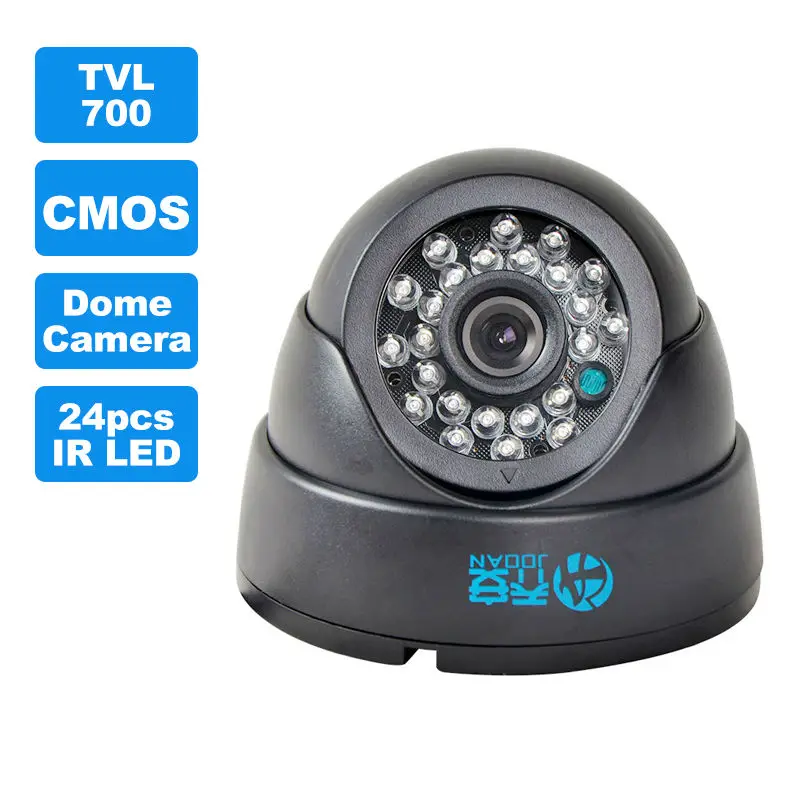

JOOAN 1/3 Color CMOS 700TVL Dome MINI CCTV Camera HD Indoor Black 24 IR Leds Day Night Security Home Video Surveillance Camera|video surveillance

---

  JOOAN 1/3 color  CMOS 700TVL dome mini cctv camera,HD indoor black 24 ir leds day/night security home video surveillance camera

Model JA-570YRB-T Sensor 1/3’ CMOS  COLOR Signal System PAL/NTSC Horizontal Resolution 700TVL Standard lens 3.6mm  F1.2  ( 2.8mm, 6mm, 8mm optional) IR distance 15M IR switch Auto Day and night function Dual filter automatic switching Gamma Correction 0.45 Min Illumination: 0LUX/0.05LUX/F1.2(IR ON) SNR ≥ 50dB Electronic Shutter PAL:1/50/100000/sec  NTSC:1/60/1/10000/sec adjustable Video Output Range 1.0Vp-p/75Ω Auto Gain Control Auto White Balance Auto Backlight Compensation Auto Exposure Mode Electronic Auto Exposure Synchronization inter-sync Power Supply DC12V/1A Weight 248g

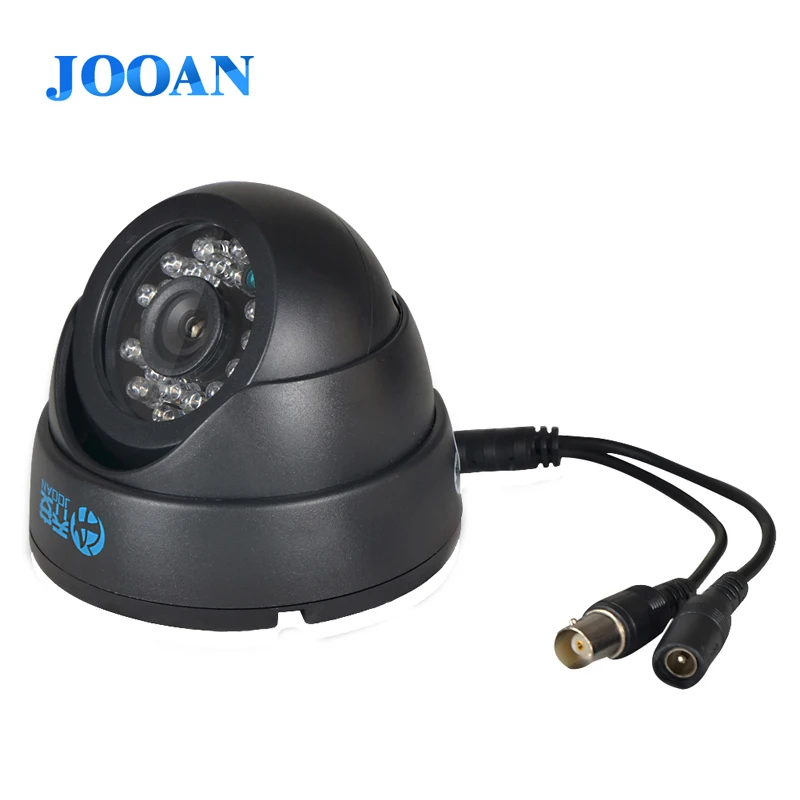

1. 24pcs LED, 15m IR, not waterproof,suitable for indoor installtion. 2. High Definition CS  F1.2 Lens 3. Can guarantee the cameras in the weak light,or mattely open array light source   Advantage Features   Camera:  Most Popular Type of Dome Camera for Residential or Business Security. Camera uses high resolution CMOS  image sensor with 700TVLines which gives crisp and clear color video during daytime and black and white image during night-time.  It has 24 infra-red LED which gives an illumination distance up to 65 ft.  This IR or night vision security camera is compatible with all professional grade video surveillance/security systems. The camera provides a BNC connection for video.   Camera Feature : 1/3" CMOS Outdoor or Indoor Camera, 700 TV lines, 3.6MM Lens, 24 IR LEDs, 65 ft IR Distance. Low Illumination Color: 0.3Lux, B&W: 0Lux. Vandal resistant & water proof  Waterproof Outdoor or Indoor Camera  700 TV lines  Low Illumination Color: 0.3Lux, B&W: 0Lux  Auto Gain Control  Auto Electronic Shutter    Camera Specifications  Model: JA-570YRA Image Sensor: 1/3" CLORO CMOS  Resolution: 700TVL  Effective Pixels: PAL:500(H)*582(V)440K  NTSC:510(H)*492(V) 380K Lens  Focal length: 3.6mm  Iris: Yes   IR-CUT,   Plastic IR Dome Camera  IR LED: 5X24 PCS IR range: 20M 65ft Video System: NTSC /PAL Video scanning type: 2:1 interface  Video Output:  1 BNC, 1.0 Vp~p, 75 Ohm Composite  Sync. system: Internal  S/N Ratio: > 50dB (AGC off)  Min Illumination Color: >0.3 Lux, B&W: 0Lux (IR LED on)  Function  Electronic Shutter: NTSC: 1/60 ~1/100,000  White Balance: ATW  BLC: Auto  Gain Control: Auto  IR Lighting  Infrared Red Lamps: 24pcs IR LEDs  Effective IR Lighting Distance: 65ft  Mechanical  Weight: 0.66 lb (300g)  Chasis Material & Color: ABS/white   Power  Supply Voltage: DC 12V  Power Consumption: 2W (LED OFF) / < 3W (LED ON)  Environmental:  Operating temperature: 14F - 122F RH90% Max. (Non-condensing)  Storage temperature: -4F ~ 140F  Accessory  Screw: 3  Manual: 1  CMOS 700TVL (139+DSP+IR+CUT) Original cmos chip ceramic oack aging technology , 700TVL IR Indoor dome camera cctv camera, the sensor head adopts camera packing   Way better than 600TVL/700TVL Horizontal resolution 700TVL,Advanced 3D noise reduction technology, signal to noise ratio is more than 52dB, less noise ensures the  clear image. Auto white balance,it can restore the true colors in the case of different color    Day-night mode, it adjusts the image's color according to the environment. Built-in IR-CUT, dual IR-CUT design, visible light is excellent at daytime, 850 infrared light make sure the true night vision, put an end to colour cast
