USES:

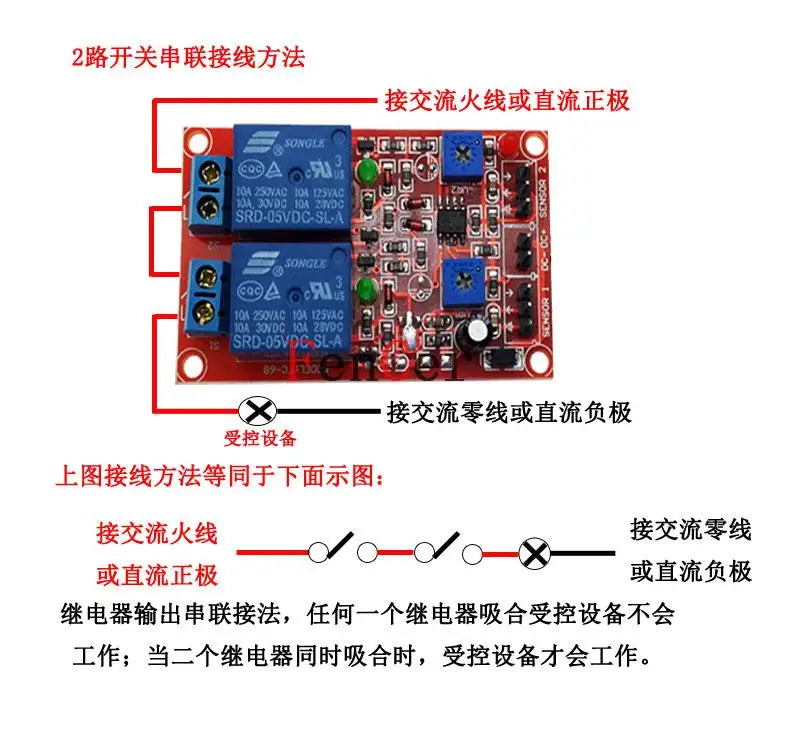

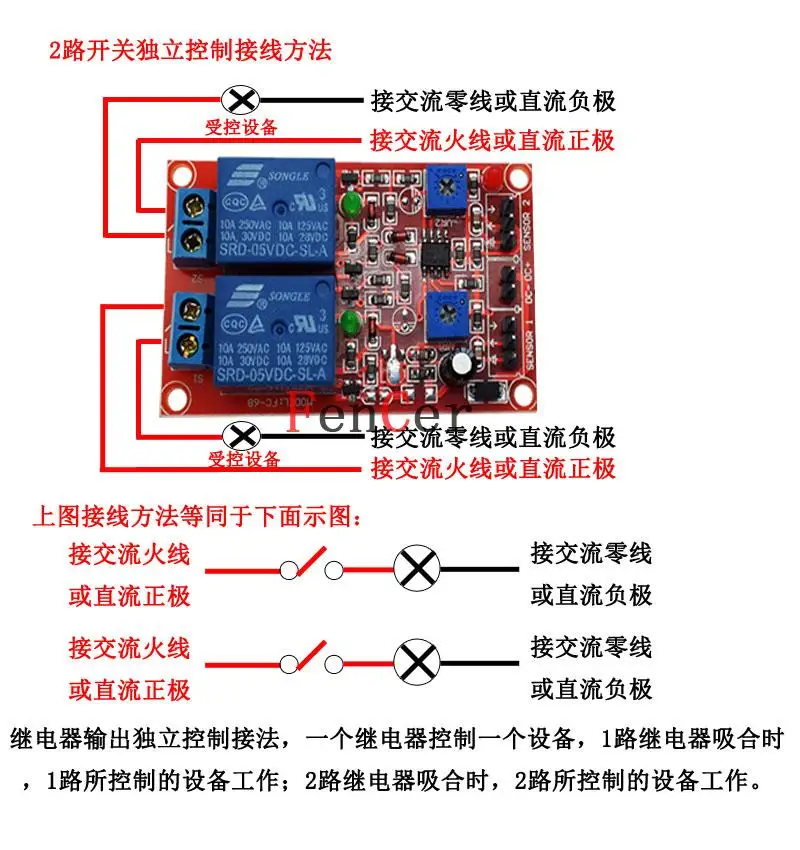

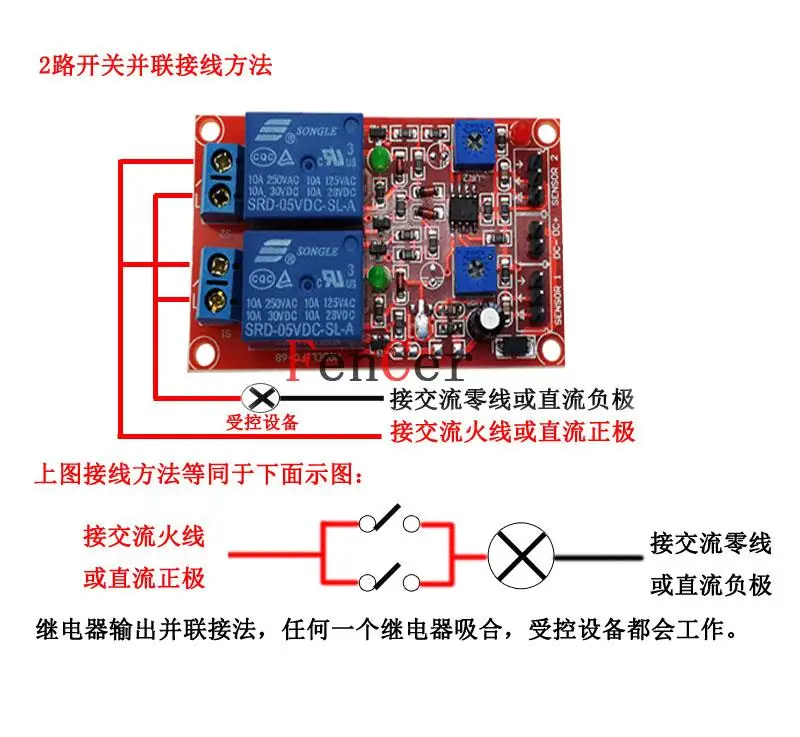

1,2Road motor speed detection, pulse counting,Position limit, can be doneTrigger of two kinds of condition, the output end of the series (with door), any kind of trigger two conditions, the output parallel (or door), two groups of independent control of three kinds of control modes, direct connect ac power products

2And can be applied to other automatic magnetic sensing applications

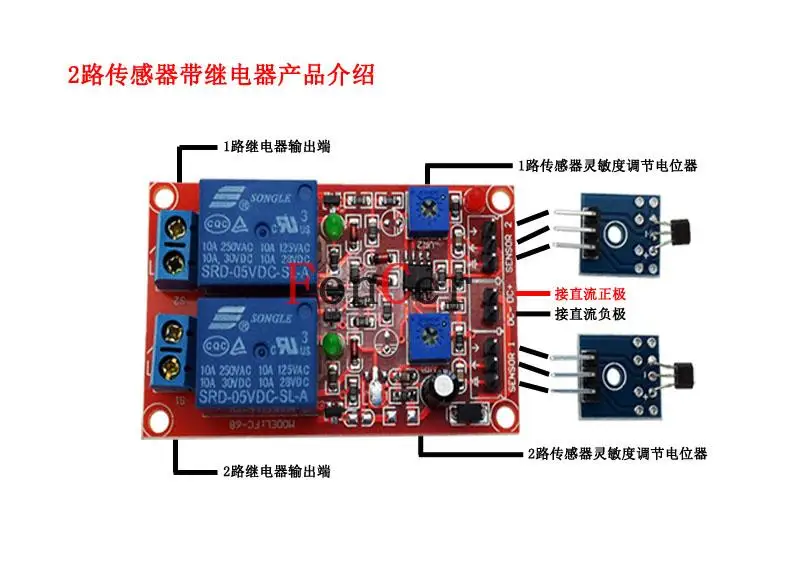

Product introduction:

1And sensor using3144 eHall sensor switch type, built-in relay, direct control of the load

2, working voltage:5 v,The 12 v,24 v

3, output form:AC 220 v 10 aorDC30V 10 aThe load on the

4, detection distance:1 mmto17 mmThe best distance for5 mm

5And is equipped with4A fixed bolt hole, convenient installation

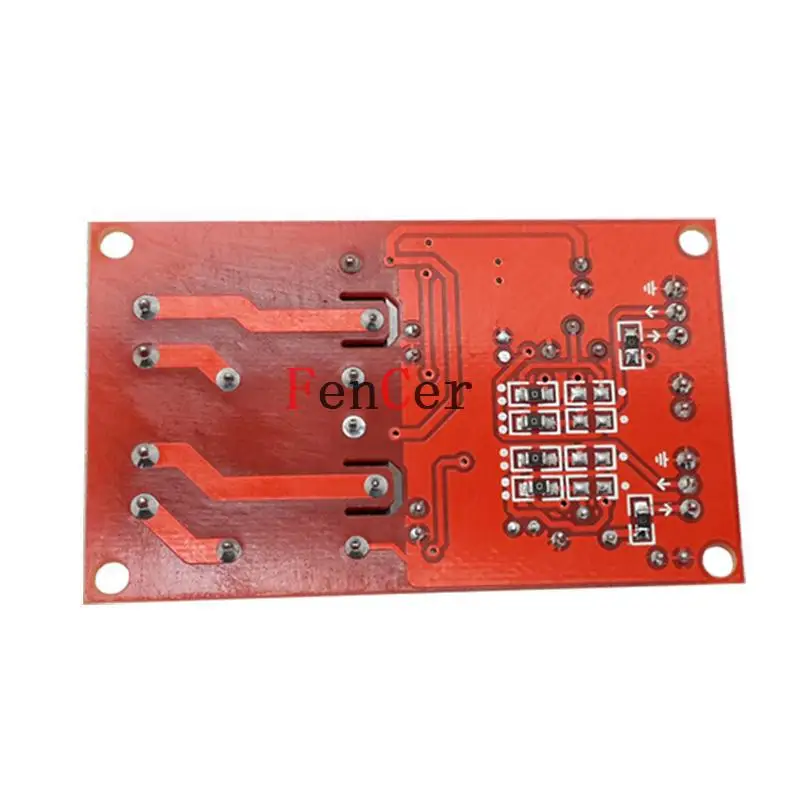

6And small platePCBSize:1.3 cm x 1.5 cm

7And use of wide voltageLM393The comparator

Method of use:

According to the interface module wiring connection after well(Note the power supply is the cathode cannot meet the, so as not to burn out the chip)And sensors for the detection of objects, electric adjustment potentiometer, bring up the detection distance,1 mmto17 mmThe best distance for5 mm, when there is no magnetic field induction, relay, magnetic induction, relay disconnect.

Electrical parameters:

The power supply voltage: 5 VDC    12 VDC       24 VDC
Working current:1Road,70 ma   42 ma        34 ma
         2Road,131 ma   76 ma       61 ma
Load:10 a 250 vCommunication or10 a 30 vdc

Shipping list:

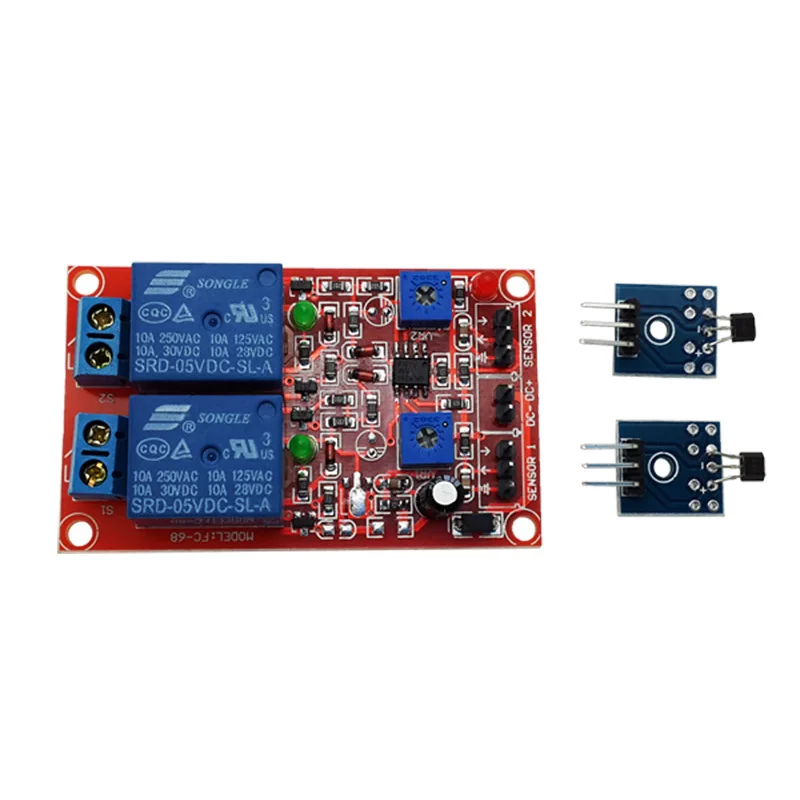

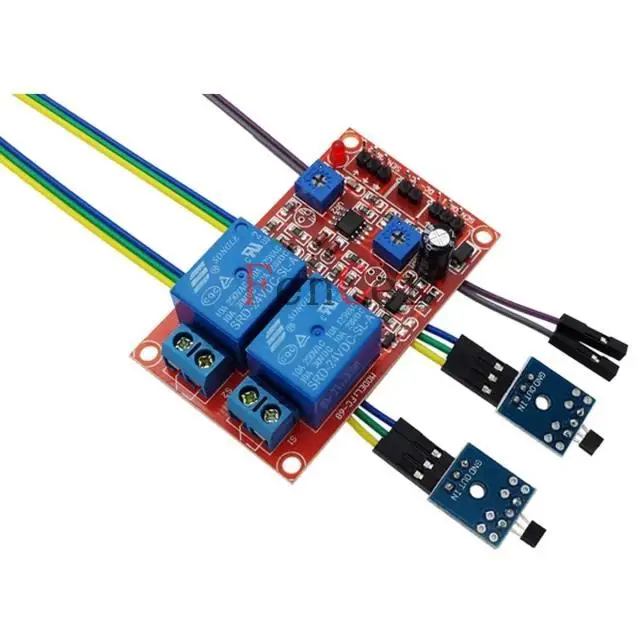

2Hall sensor and relay module1A, with small hall sensor board1Set of

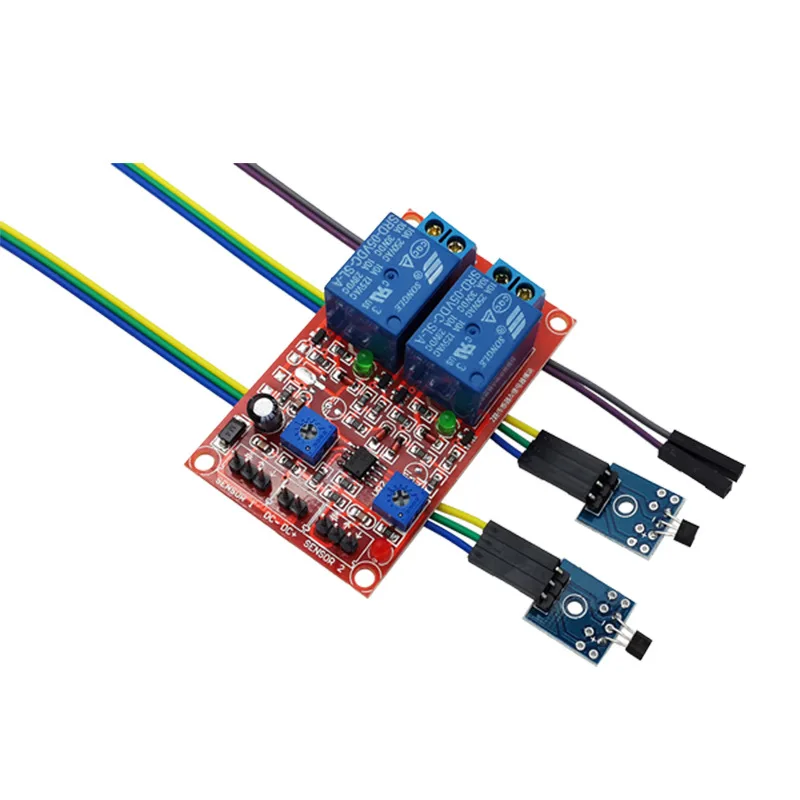

This module of conventional wiring diagram
