Описание товара

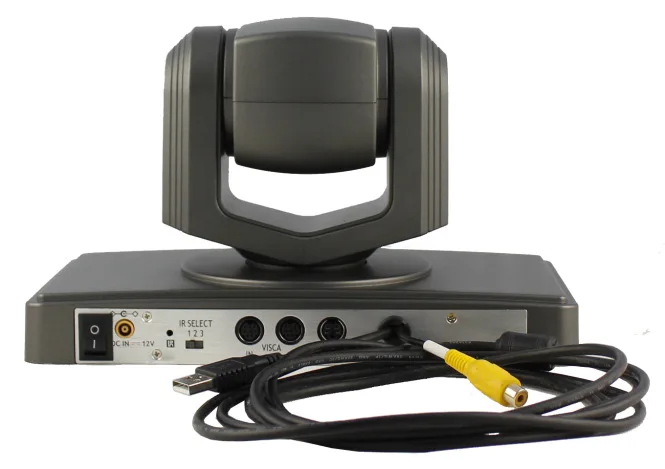

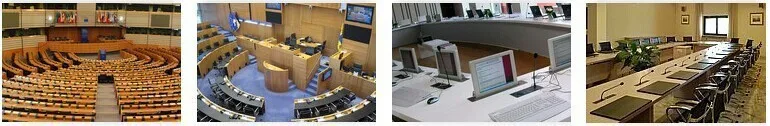

SVC-HB04 equipped with FCB-EX48EP Which is deliver 18x optical zoom super Video performance with 1/4 Exview CCD, it supports VISCA/RS232/RS485 PTZ Control. There are S-Video, AV video output connect, built in 360 degree continuously Pan movement, 90 degree Tilt and features with REV for up-side down installation. Which is Ideally suited for Web conferencing system, remote education, lecturing and Training room application.
| Model Number | SVC-HB04-18 | |
| Image Sensor | Sensor | SONY FCB-EX48EP 1/4-type EXview HAD CCD |
| Signal System | PAL/NTSC | |
| Illumination | 1.0Lux/F1.4 | |
| White Balance | Auto/Manual | |
| Gain Control | Auto | |
| Back-light | On /Off | |
| compensation | ||
| E-Shutter | 1 - 1/100,000s | |
| Horizontal | 550 TVL | |
| Resolution | ||
| S/N Ratio | >50db | |
| Lens | Focus | f=4.1-73.8 F1.4 -3.0 |
| Iris | Auto/Manual | |
| Zoom | 18 Optical X 12 Digital Zoom | |
| Video Output | AV, S-VIDEO, USB Output (Optional) | |
| Control Decoder | Built-in decoder | |
| Communication | EIA/RS422, EIA/RS232(Bidirectional) | |
| Interface | ||
| PTZ Control Protocol | VISCA, PELCO-P, PELCO-D (optional) | |
| Baud Rate | 4800/9600bps | |
| Patrol Lines | 4 Patrol Lines | |
| Preset Position | 64 Preset Position | |
| Power-off Protection | Saved scanning or patrol line settings Automatically Before power off | |
| Speed Matching | Slow down camera Pan/Tilt movement speed while camera zooming in | |
| OSD Menu | To change parameters of camera or camera module from OSD Menu | |
| Image Auto Flip | Image Auto Flip | |
| Pan Speed | 1-280 degree per second | |
| Tilt Speed | 1-100 degree per second | |
| Pan Rotation Angle | 360 degree continuously | |
| Tilt Rotation Angle | 240 degree | |
| Auto Pan Scan | Support auto pan scanning | |
| Boundary Scan | 0-359 degree (programmable) | |
| Remoter Control | IR wireless remote controller P/T/Z | |
| Power Supply | DC12V±10%, 1.2A | |
| Working Temperature | 0-50degree | |
| Environment Humidity | 0-95%RH | |
| Size(LxWxH) | 124X120X145mm | |
| Weight | 1300g | |
| |||||
![]() ![]() ![]() |
