Mini GPS GSM GPRS Tracking SMS Real Time Vehicle Motorcycle Monitor Tracker Free shipping|monitor playstation|monitor lgtracker motorcycle |

Mini GPS GSM GPRS Tracking SMS Real Time Vehicle Motorcycle Monitor Tracker Free shipping|monitor playstation|monitor lgtracker motorcycle |

Detail :

Brand   new and high quality

Built-in   GSM

Support   SMS and GPRS platform tracking

With   SOS alarm and voice monitoring function

GPS   vehicle, truck, motorcycle tracker monitor

Built-in   vibration sensor, realizing  vehicle vibration alarm.

 burglar and SOS alarm tracker will give you more secure feeling

Technical specification:

GSM:   900/1800MHz or 850/1900MHz

Standby   current: ≈0.2mA

GPRS:   Class12,TCP/I

Voltage   range: 9-48VDC(can also connect 12/24V)

Operating   ambient temperature: -20°C - +70°C

Work   environment Humidity: 20%-80%RH

Dimensions   of the device tracker : about 57.0(L)x40.0(W)x10(H)mm

Dimensions   of the original package : about  105 (L) x 82(W) x 39 (H)mm

Installation:

1.        Check   the product, open the package and check product model and accessories. If there   is something wrong or missing, please contact the distributor.

SIM card choice, terminal needs to insert a GSM SIM card.

2.       SIM   card installation, use your hand to uncover the terminal cover, uncover SIM  card  slot cover, the SIM card metal side down and put the card into the SIM  card  slot, then fasten card slot cover, and finally put on the back shell.

Terminal chosen & installation:
This device is high technical GPS product, please choose the professional   organization or person that distributor designated to install and debug.
Please follow the following order to do terminal installation, don't inverse.  In  the installation process, please don't give terminal power supply.
The terminal's installation suggests to be a concealed installation.
It is suggested to let the professional organization that dealer designated do   the concealed installation, please pay attention to the following items:

 ⊃2;             to   avoid the thieves' destruction, the terminal should be hidden as far as   possible, please notice waterproof;

⊃2;       avoid   to put it together with emission source, such as burglar alarm and other  vehicle  communication terminal;

⊃2;       can   use ribbon to fix, or use wide sponge double-faced adhesive to stick.

⊃2;       Motorcycle   connection mode: open the battery box and connect 12V voltage. The red line is   positive (DC +), joint battery anode, black line for negative level (GND),  joint  battery cathode.

⊃2;       Battery car   connection mode: battery car is generally 48-60V voltage, there are 4 groups of   batteries, each group is 12V. Open the battery box and put 12V battery into it.   Battery anode (DC +) joints red, negative (GND) joints black.

Note :

      Please   do NOT reverse terminal SIM card;

      Terminal   SIM card needs to open GPRS function;

      Please   make sure that terminal SIM card has charge;

      Suggest   using special GPS equipment flow card(only support GSM network)

Attention:

   Usually   battery car is 48V, and it can reach to 80V in high speed running process. In   this way, the device is easy to be burn off. So it should connect one to two   batteries for safe use. Because each battery is 12V, two batteries series will   be 24V(equipment normal working voltage is 9-48V).

    It   would be at your own risk if the equipment is burned by not proper installation.

Package:

   1   x GPS tracker

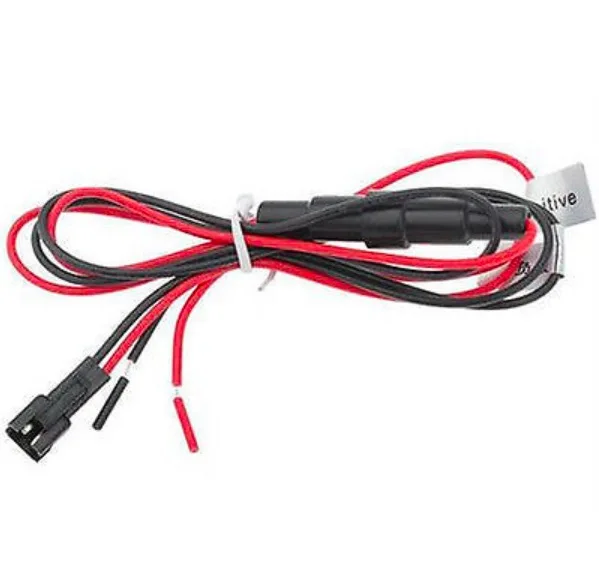

   1 x   2P wire

    1 x   English user manual
