Product Description

Feature:

· Wireless control, easy to install

· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC12V..

· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

· This switch can learn different coding remote controls (such as 2262,1527 ect.)

· One/several transmitters can control one/several receivers simultaneously.

· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it wont affect each other.

· Operating Frequency: 315MHz / 433MHz

· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

About Receiver:

· Model No.: AK-RK04S-12

· Channel: 4 CH

Radio Frequency:315MHZ/433MHZ

Operating Voltage: DC12V

Operating Type: Momentary (jog) Latched(inter-lock) Toggle(self-lock)

· Coding Type: learning code

· Maximum Working Current: 10A

· Output Mode: Without voltage output(also called Contact output)

· Step-down approach: resistance-capacitance(RC)

About Working way/ output Way:

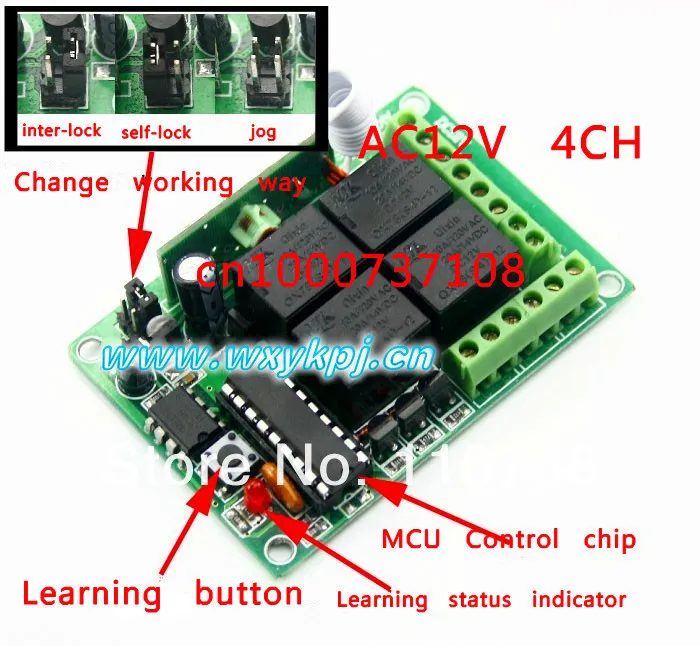

· Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.

Momentary/ Jog--Press and hold -> On; Release -> Off.

· Toggle/ Self-lock--Press -> On; Press again -> Off·

Latched/ Interlock--Press -> On; Press other button -> Off.

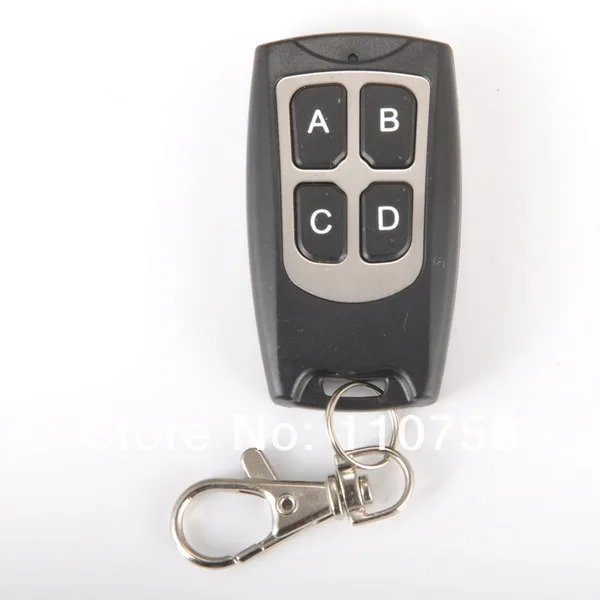

About Transmitter:

· Model No.:AK-FS04A

· Buttons:4 Buttons

· Working Voltage:DC6V (2016 Battery*2)

· Operating frequency :315/433MHz

· Remote Control Distance: 20-100m

· Encode: Fixed code by soldering

About Learning and clearing Method:

· Learning code: Press the learning key, it means the controller putting in the learning state when the indicator goes out, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times after 1 second, then recover to normally on, which means successfully studied.

· After pressing any buttons of the remote control to transmit signal, the indicator didnt flash, 10 seconds later it still recovers to normally on, but it study unsuccessfully.

Clearning code: Hold press learning button about 8 seconds,,indicator from on to off,then press remote ,receiver did not work ,it means clearning code successful.

Pay attention:

· The default setting of output way is Interlock; If you need other output way can leave a message to change it for you before the delivery.

· Here is the 4 Channel switch and 4-button remote control .you can choose the working way as you need, we suggest the best to choose the interlock, then all the buttons can be used.

· The theoretical distance is 100m, which shall be operated in an open ground; no barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; or you can add the External Extend Antenna or Transponder on the receiver to extend the range.

Package Include:

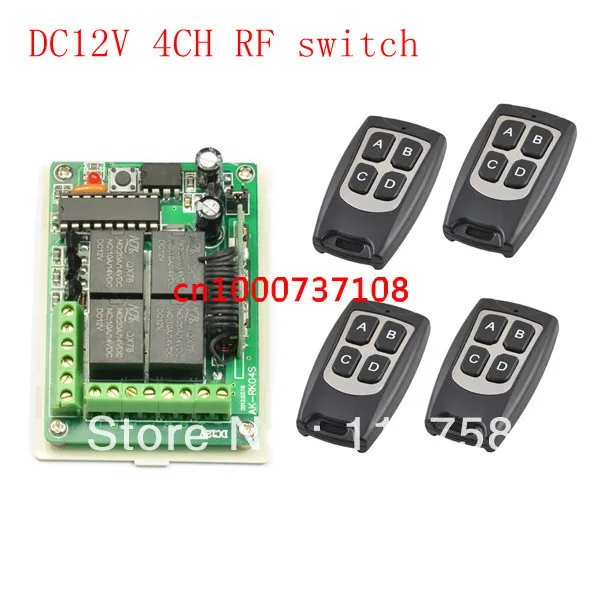

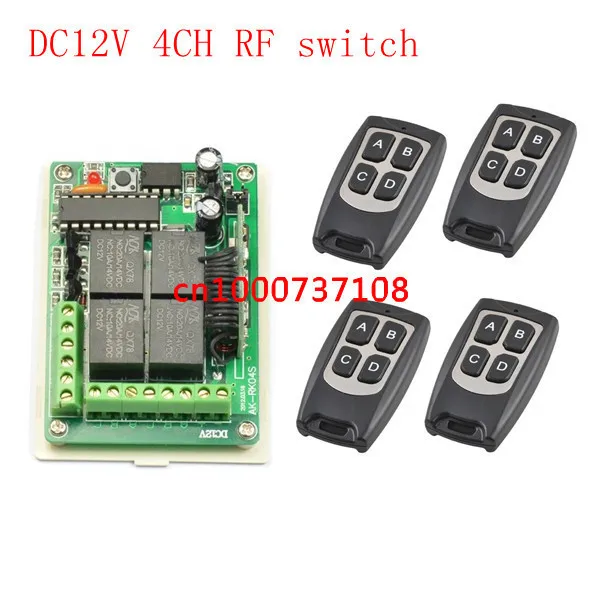

· 1 x Receiver:AK-RK04S-12 (with cover)

· 4 x Transmitter: AK-FS04A (with battery)
