Name :12v 6 channel wireless remote control switch +wireless remote control

Description

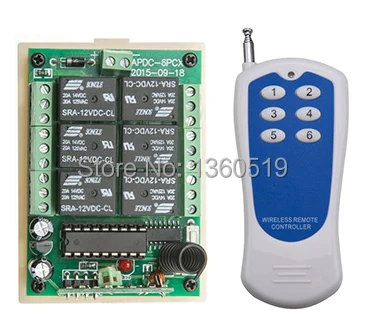

Product Name: 315MHz / 433MHz Wireless Remote Control Switch System AK-RK06C-12+AK-D6
Category: Remote Control Switch Add to My Favorite Catalog
Short Description: Wonderful wireless digital remote control switch for home appliance. Just take a remote controller and you can easily control all electrical appliances at home, moreover, the remote control installation and use conveniently.
Quantity: 1 Piece
Package Size: 12.0 * 10.0 * 8.0 ( cm )
Gross Weight/Package: 0.25 ( kg )
Specifications:

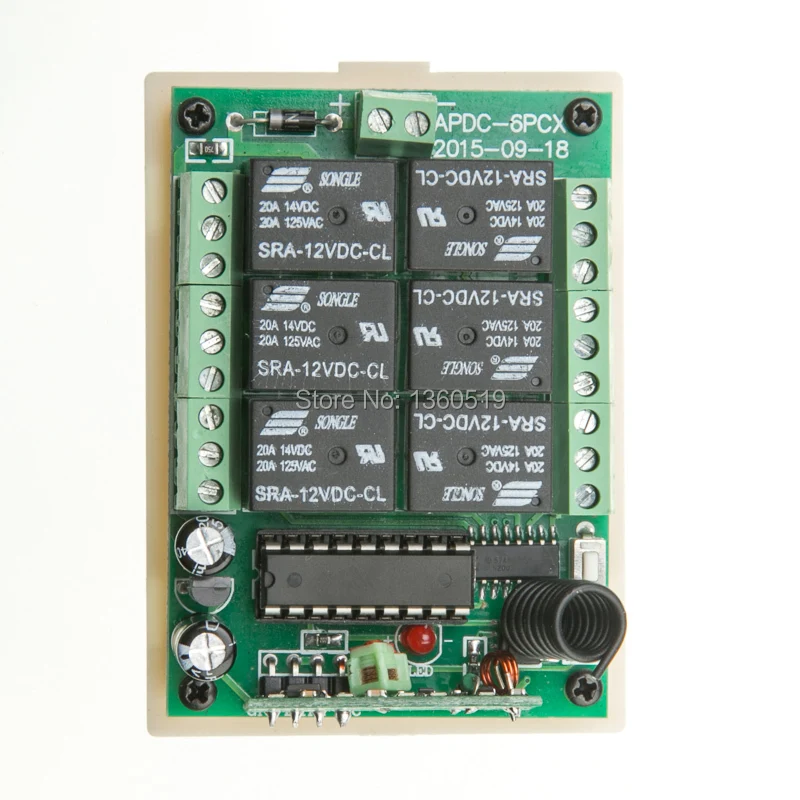

Remote Control Switch:
Working Voltage: 12V
Quiescent Current: 6mA
Output Current: 10A
Encoding Type: Fixed code,
Emissive Frequency: 315MHz, 433MHz
Working Temperature: -40~80
Receiver Sensitivity: ≥-105dBm
Dimension: 72 x 52 x 26 mm / 2.83 x 2.05 x 1.02 in

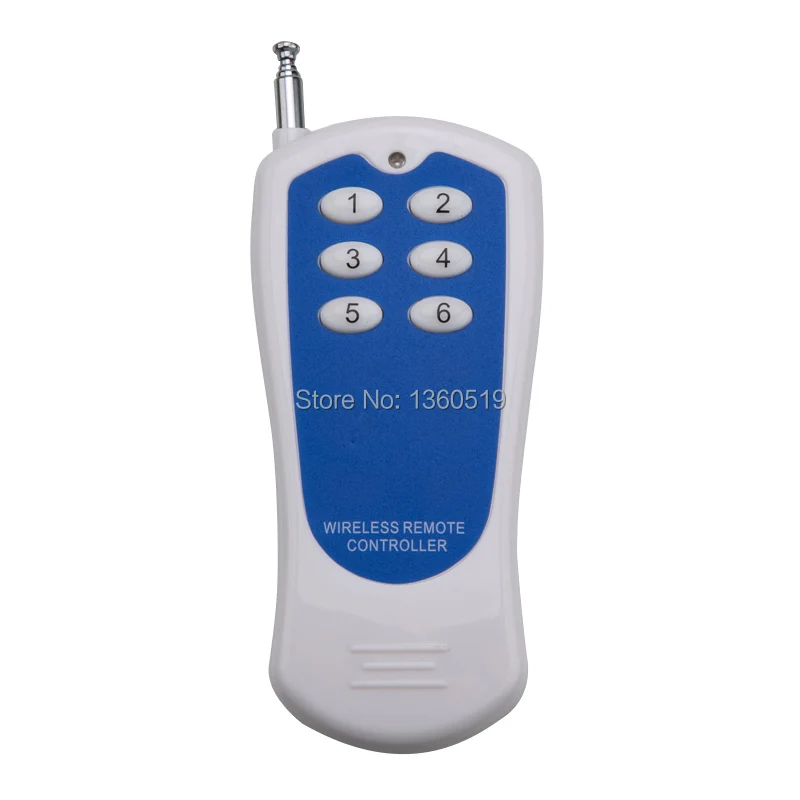

Remote Control:
Working Voltage: DC 12V
Working Current: 30mA
Working Frequency: 315-433MHz
Transmitter Distance: 1000m
Encoding Type: Fixed code,
Size: 85 x 37 x 18 mm / 3.35 x 1.46 x 0.71 in (L x W x H)
Output working way:
1. Jog---CHIP IS PT/SC2272-M6
2.inter-lock---- CHIP IS PT/SC2272-L6

Jog----  press one button is ON   . loosen your finger on the same button  is    OFF
 Inter-lock-------press one button is ON , press another button is OFF .
 Please tell us the working way that you want after you buy it , if you are not the professional person, we would set the working way as your requirement before we ship .
Package Included:
1 x Remote Control Switch
1 x Remote Control
Please tell me the working way that you want after you have bought it ,thank you


Learning and remove method
1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully .

Technique Data
1.working voltage :DC12V
2.quiescent condition :less than 6mA
3.working temperature :-40'c+80'c

4.receiver sensitivity : more than -105dBm
5.working frequency :315/433MHz
here is in set ,we have made it work together .so you do not have to care about what frequency are they .
6.output voltage:DC and AC is optional
7.output current : less than 3A
8.max load current:10A
9.72mm*52mm*26mm
Encodeing way : Learning code


wireless remote control :
Working voltage: DC12V
Working current: 30MA
Working frequency: 266-433MHZ
Transmitting distance: 1000M (it is the ideal distance .it would be shortcut as the different enviroment )
Encoding type: fixed code, learning code
Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency
 package included  1 remote
                             1 receiver
